Control Assembly Replacement

REMOVAL PROCEDURE




1. Remove the bezel-IP cluster.
2. Remove the Radio.

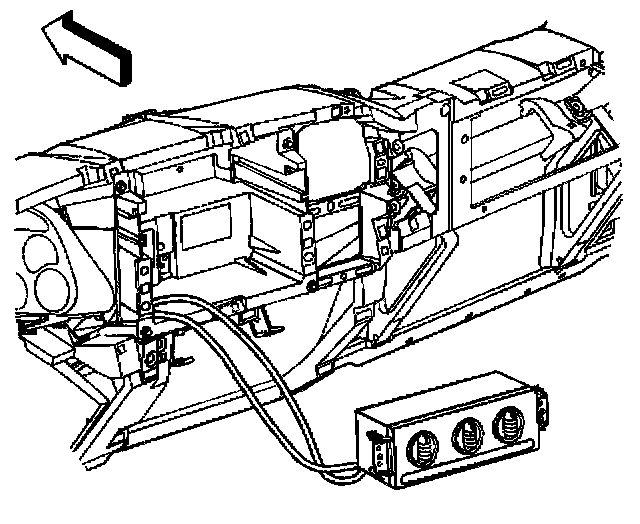

3. Remove the heater control assembly by firmly depressing and holding the retaining tabs and then sliding the assembly away from the dash.

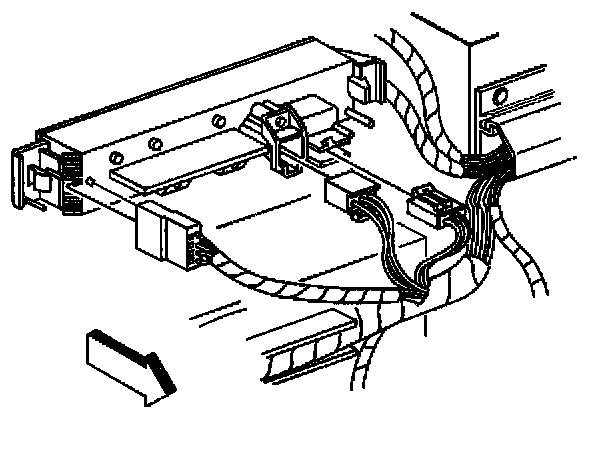

4. Disconnect the temperature and mode cables from the back of the control head.
5. Disconnect the electrical connection from the control head.
6. Remove the control head.

INSTALLATION PROCEDURE

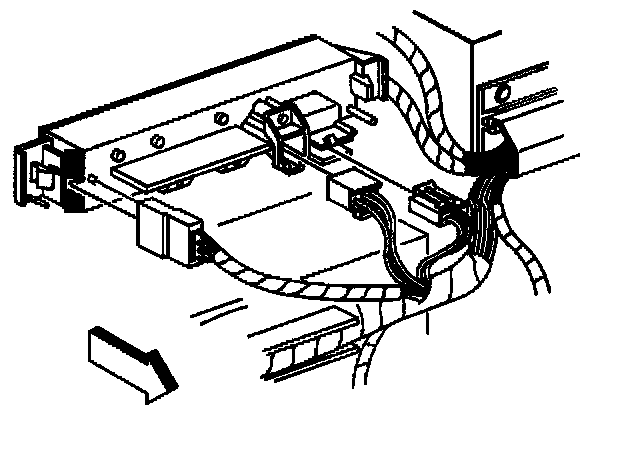

1. Connect the electrical connection to the control head.
2. Connect the temperature and mode cables to the back of the control head.

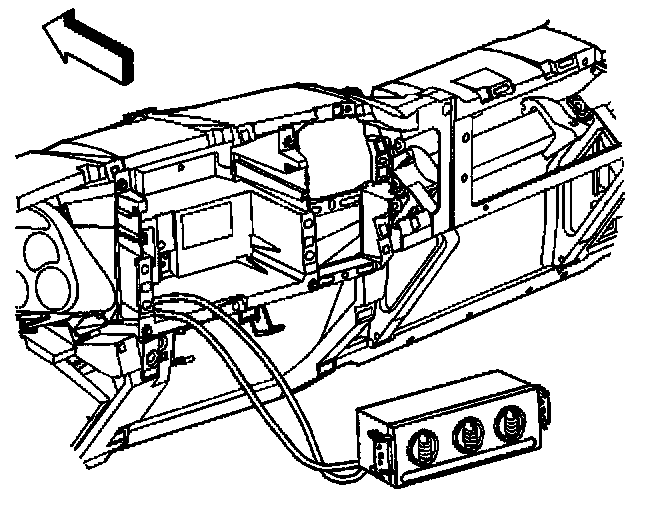

3. Install the control head to the I/P carrier until a snap is heard.
4. Install the radio.
5. Install the bezel-I/P cluster.
