Center Overhead

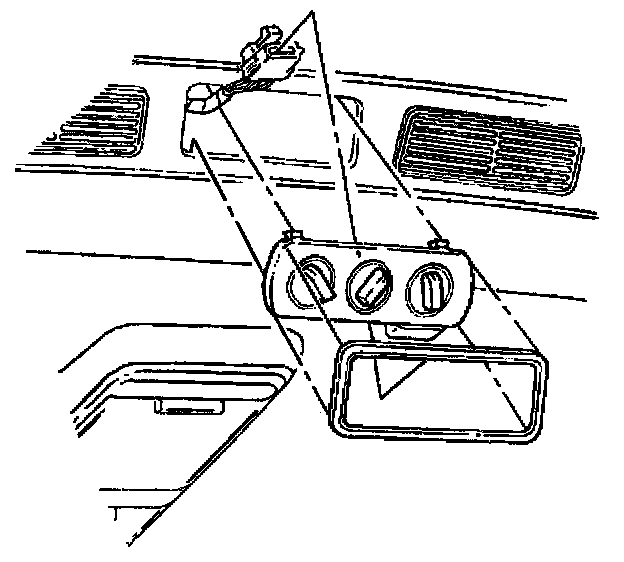

REMOVAL PROCEDURE




1. Remove the bezel.
2. Remove the control assembly from the roof panel.
3. Disconnect the electrical connectors.

INSTALLATION PROCEDURE




1. Connect the electrical connectors.
2. Install the control assembly to the roof panel.
3. Install the bezel.
4. Verify the circuit operation.
