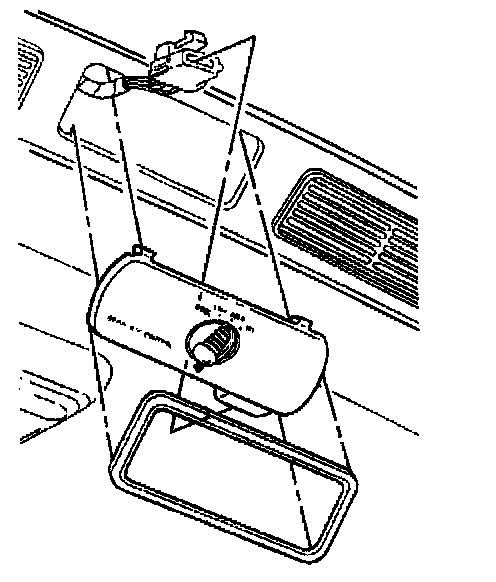

Front Overhead

REMOVAL PROCEDURE

1. Remove the overhead console.
2. Disconnect the electrical connectors.
3. Remove the control assembly from the overhead console.

INSTALLATION PROCEDURE

1. Install the control assembly to the overhead console.
2. Connect the electrical connectors.
3. Install the overhead console.
4. Verify the circuit operation.
