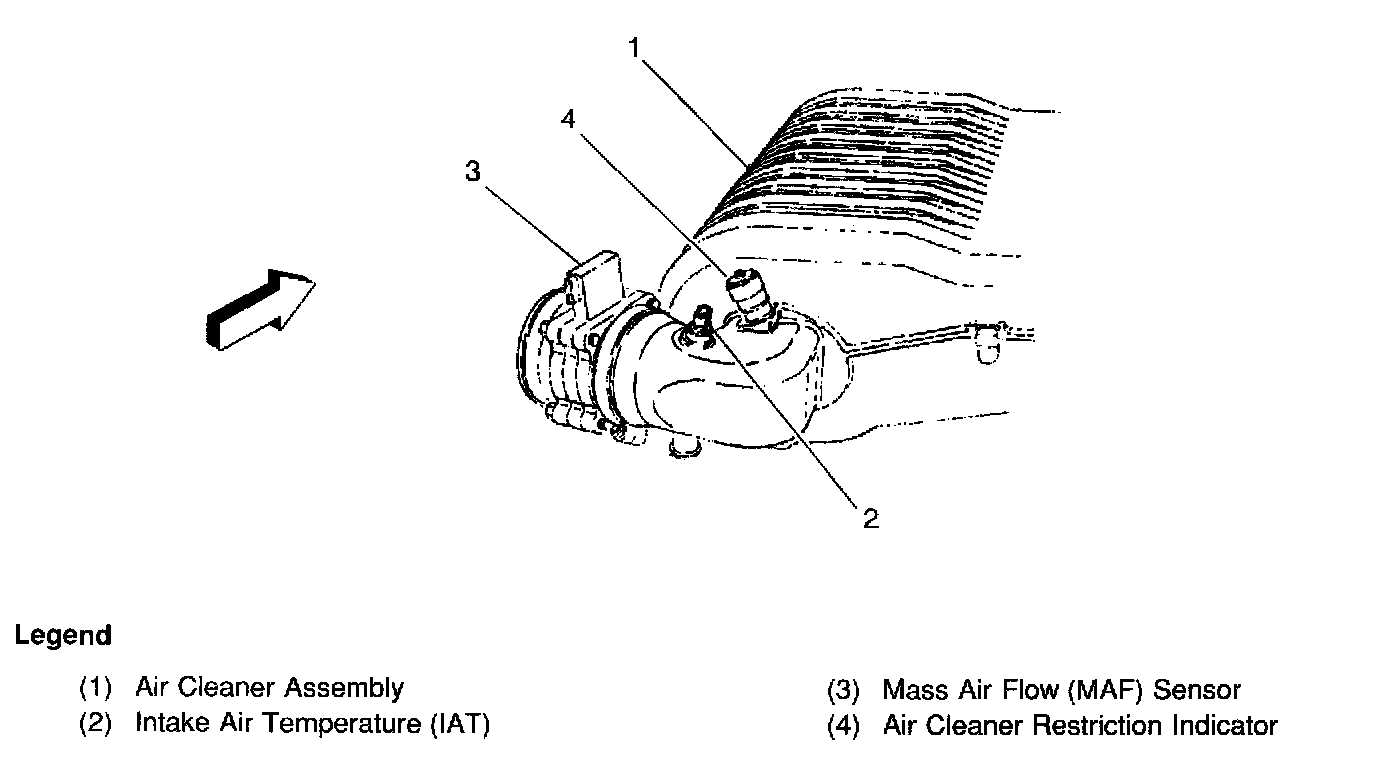

Air Flow Meter/Sensor: Locations

Locations View:





At Air Intake Duct, near Air Filter, RH of Engine
