Scan Tool Does Not Communicate With Class 2 Device
>>
Data Line
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Data Line

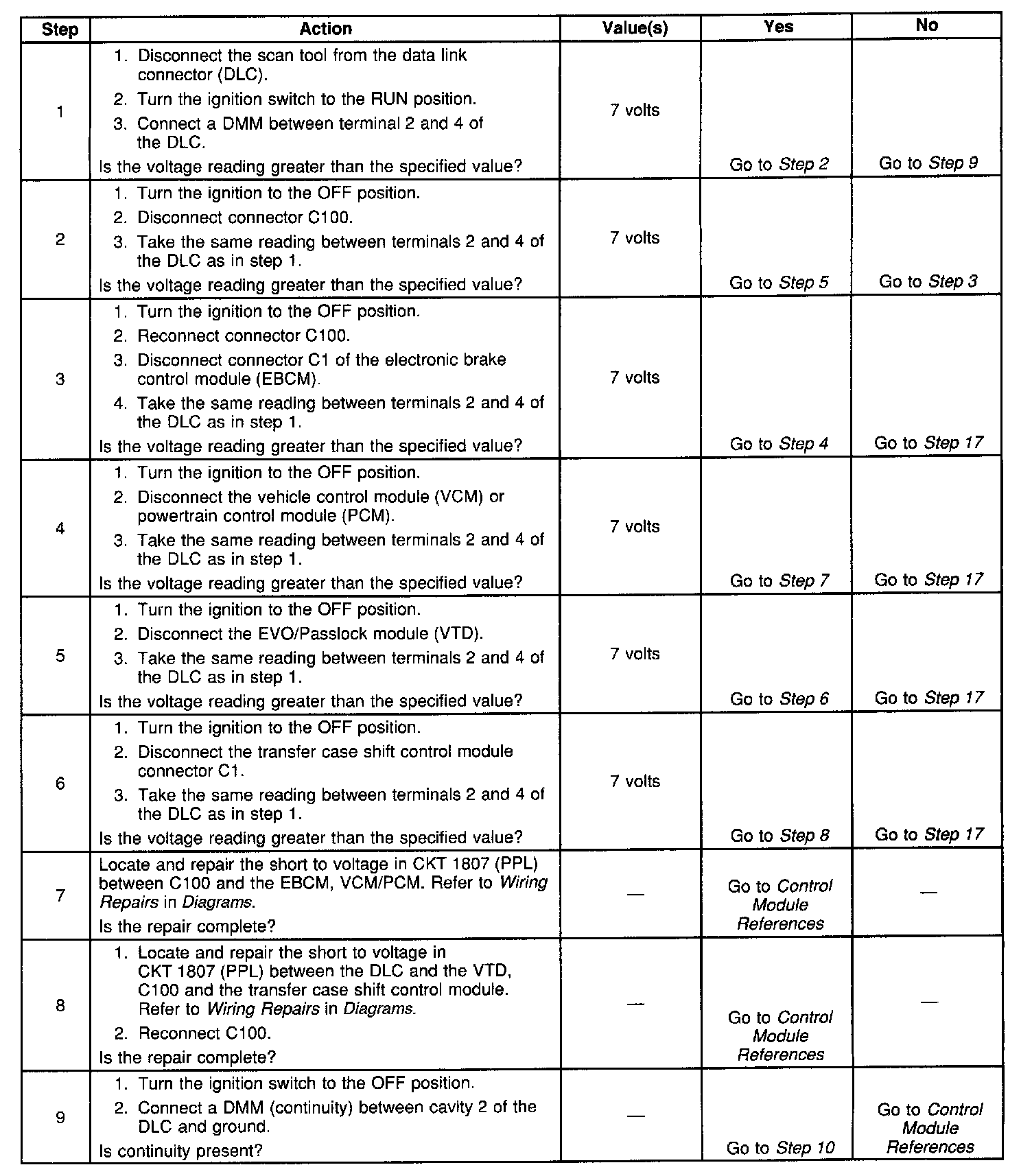

Diagnostic Chart (Part 1 Of 2):

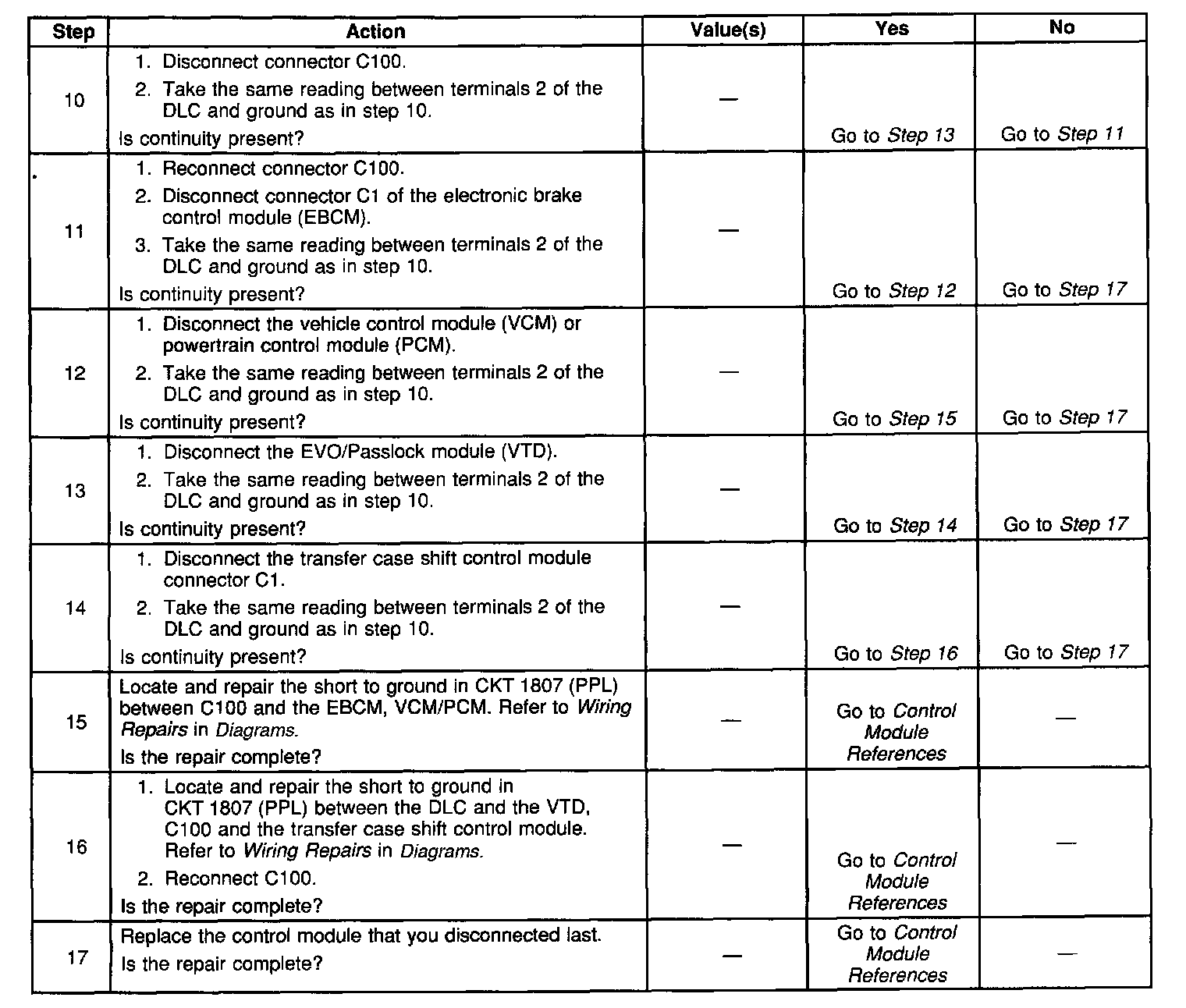

Diagnostic Chart (Part 2 Of 2):
