Transmission Position Sensor/Switch: Locations

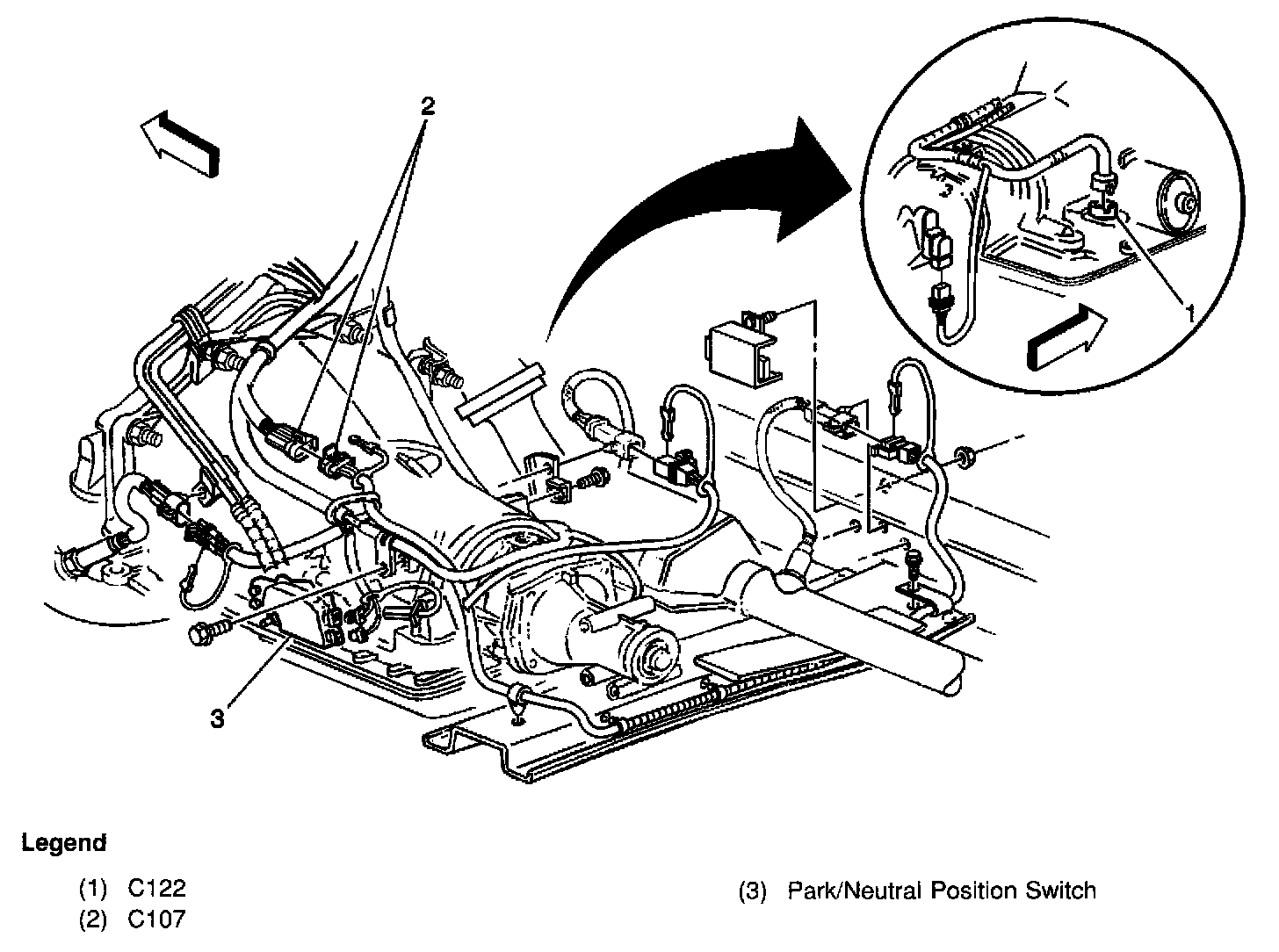

Transfer Case NVG 243-NP1 (Two Speed Selectable):

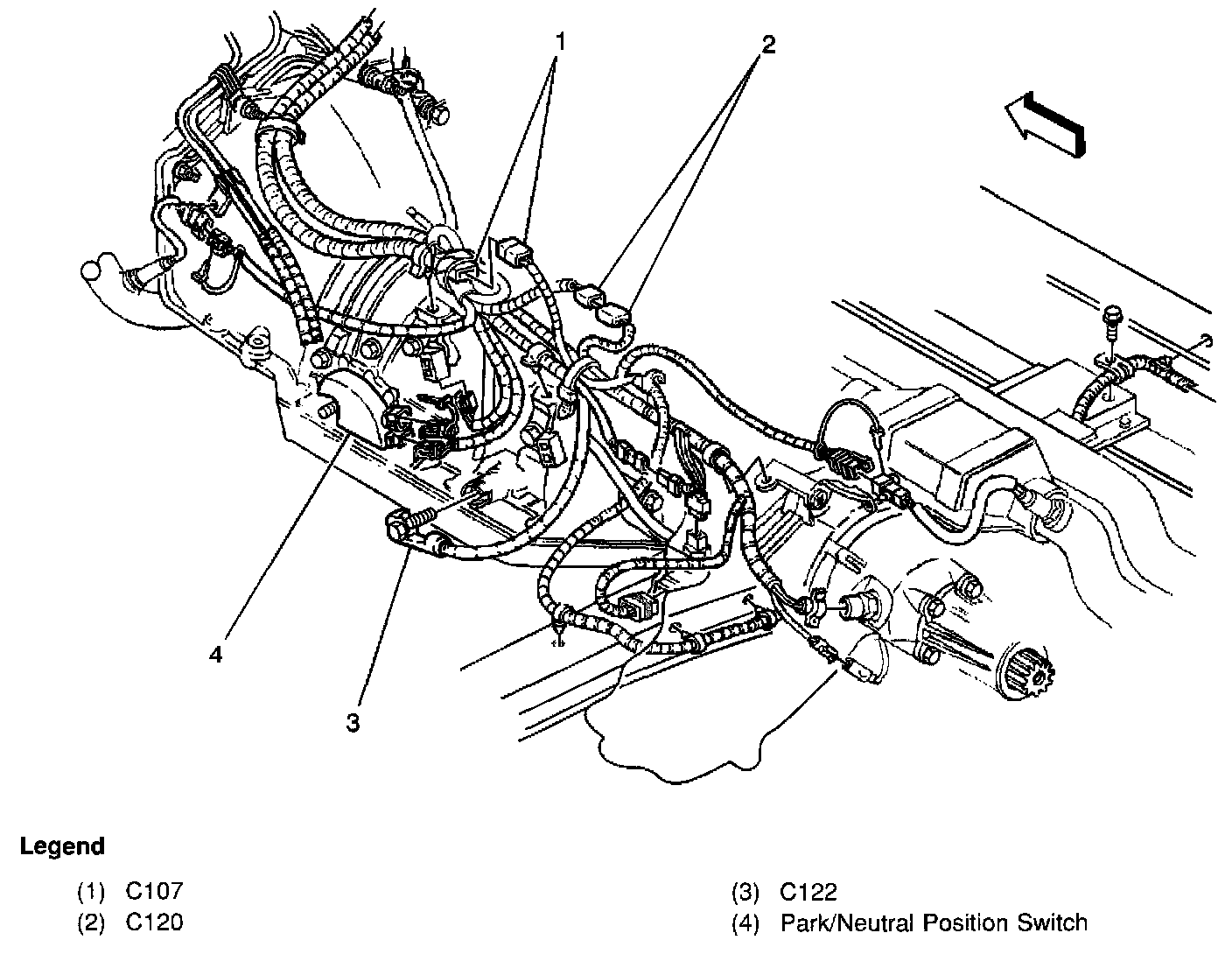

4L80-E Transmission Components:

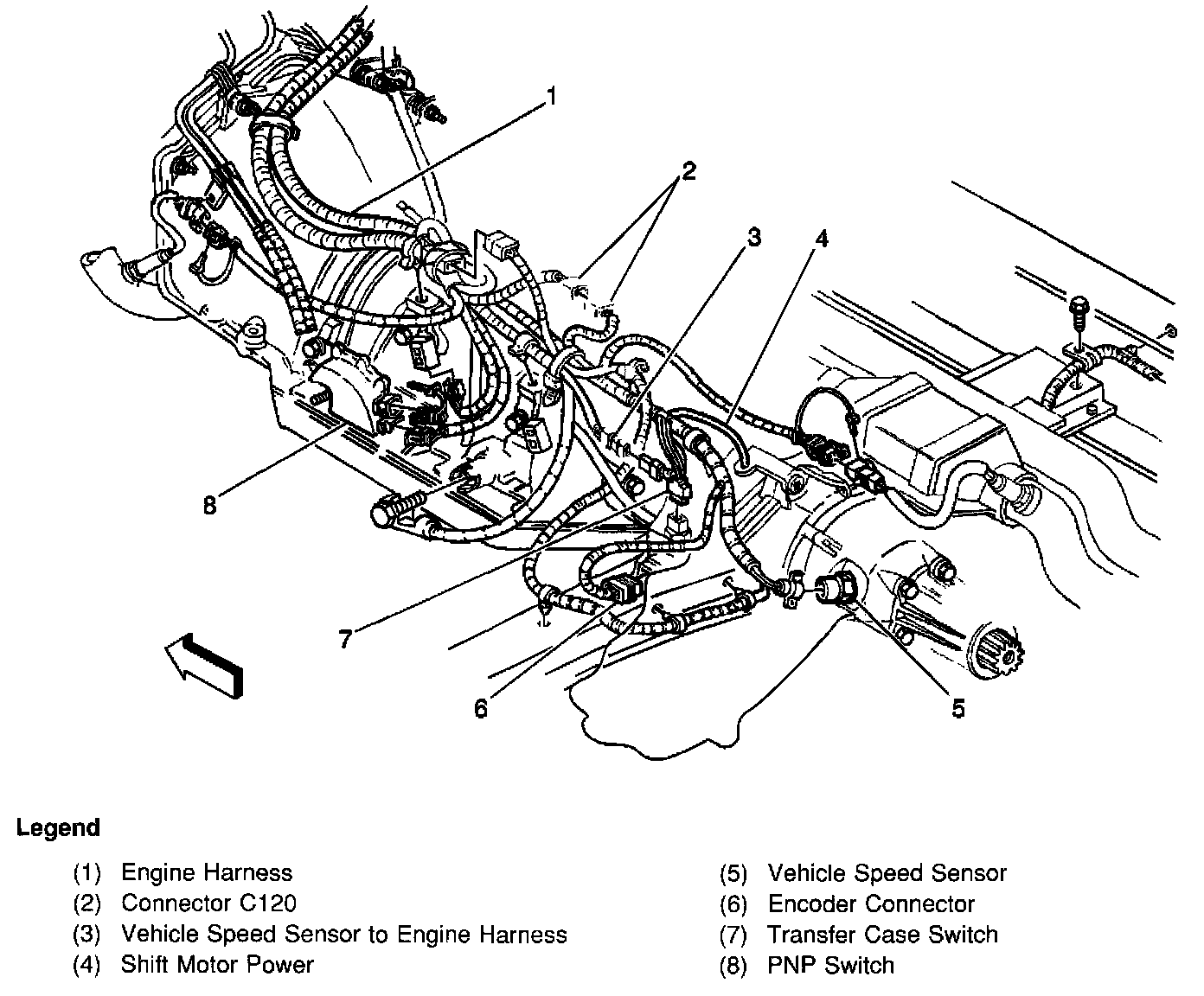

4L60-E Transmission Components:
