Front-End Discriminating Sensor: Installation
WARNING: This page is about a different car, the 2000 GMC Safari and 2000 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

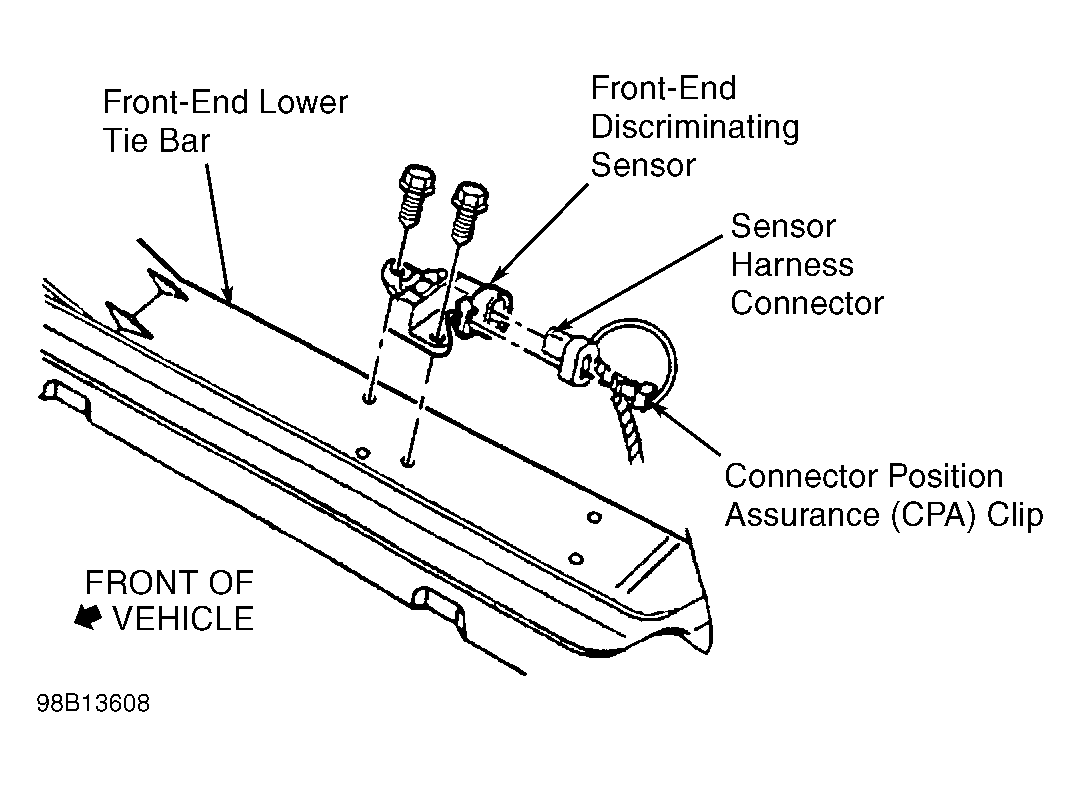

To install, reverse removal procedure. Ensure arrow on sensor is installed pointing forward. Tighten fasteners to 58 INCH lbs. (6.5 N.m). Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .
