Component & Connector Identification

WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT & CONNECTOR IDENTIFICATION

Component Location
Body Control Module (BCM) On left lower side of IP below steering column.
Mid Bussed Electrical Center (MBEC) Under left side of instrument panel near left kick panel.
Remote Control Door Lock Receiver In top center of IP near instrument cluster.
Underhood Bussed Electrical Center (UBEC) At left side of engine compartment near battery.
G203 On left upper IP at A pillar.
P100 At left rear of engine compartment in front of dash.
Splice Pack 203 (SP203) On top left side of IP near A pillar.

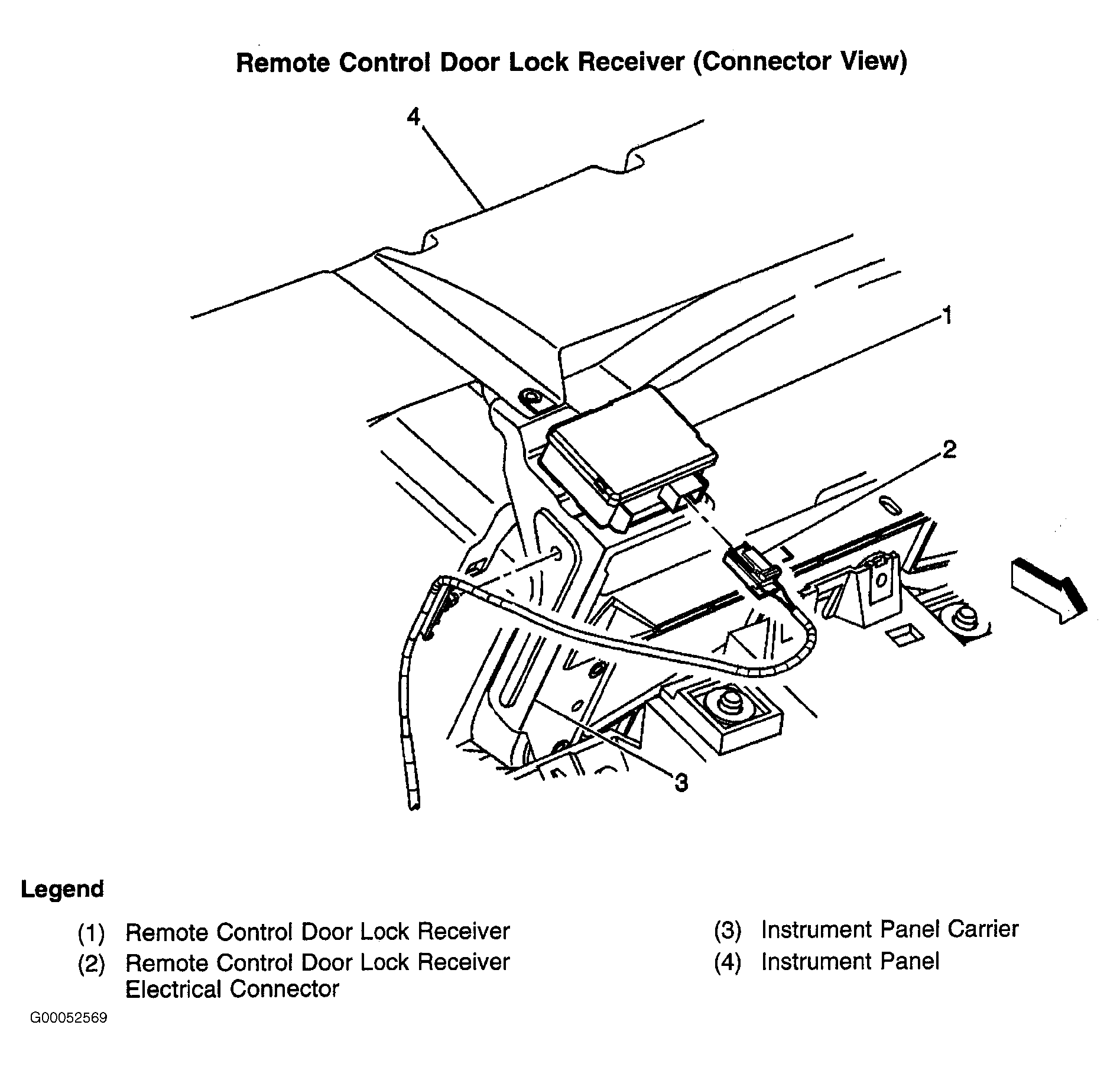

Fig 1: Remote Control Door Lock Receiver (Connector View)
G00052569Courtesy of GENERAL MOTORS CORP.

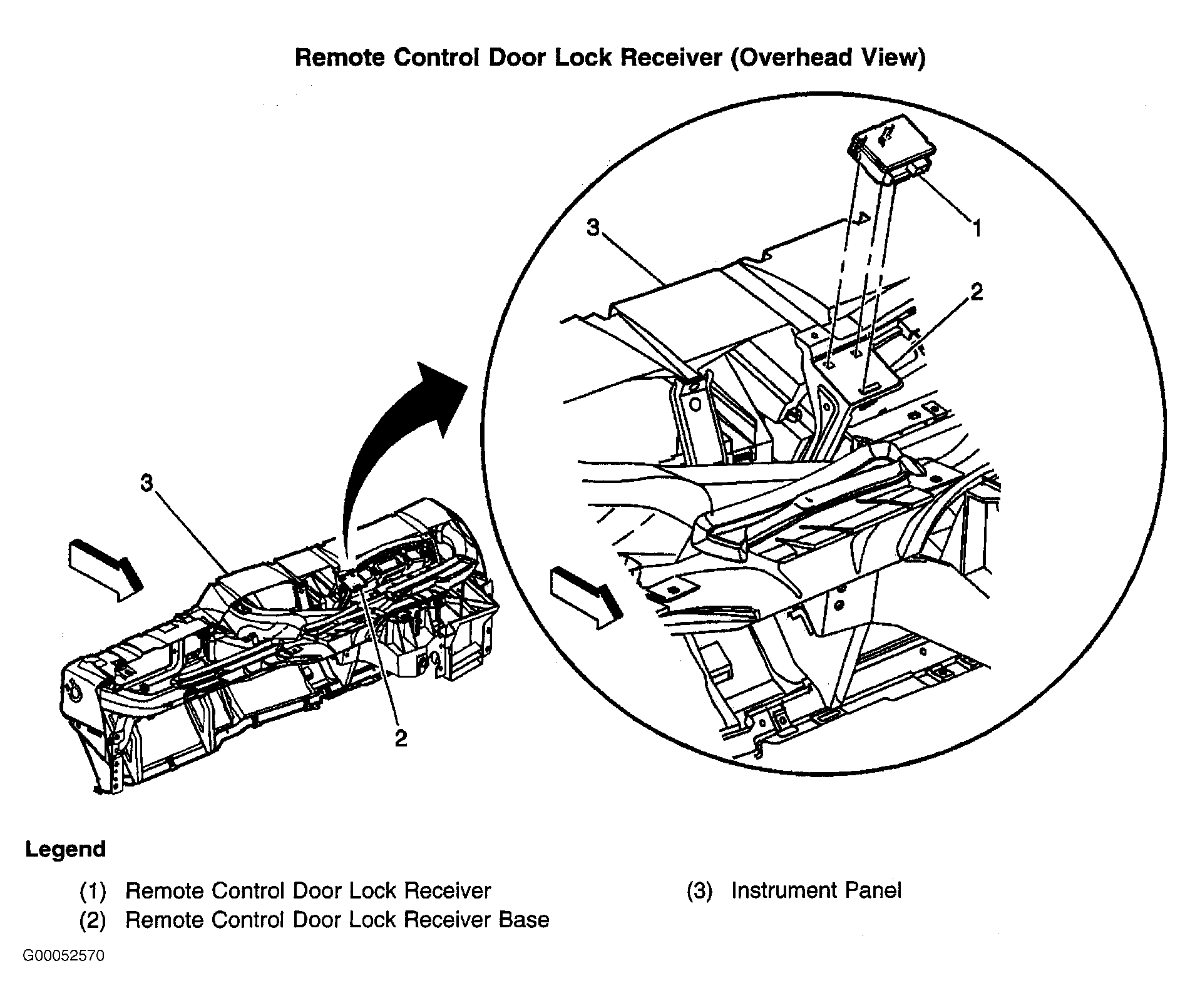

Fig 2: Remote Control Door Lock Receiver (Overhead View)
G00052570Courtesy of GENERAL MOTORS CORP.
