Removal & Installation

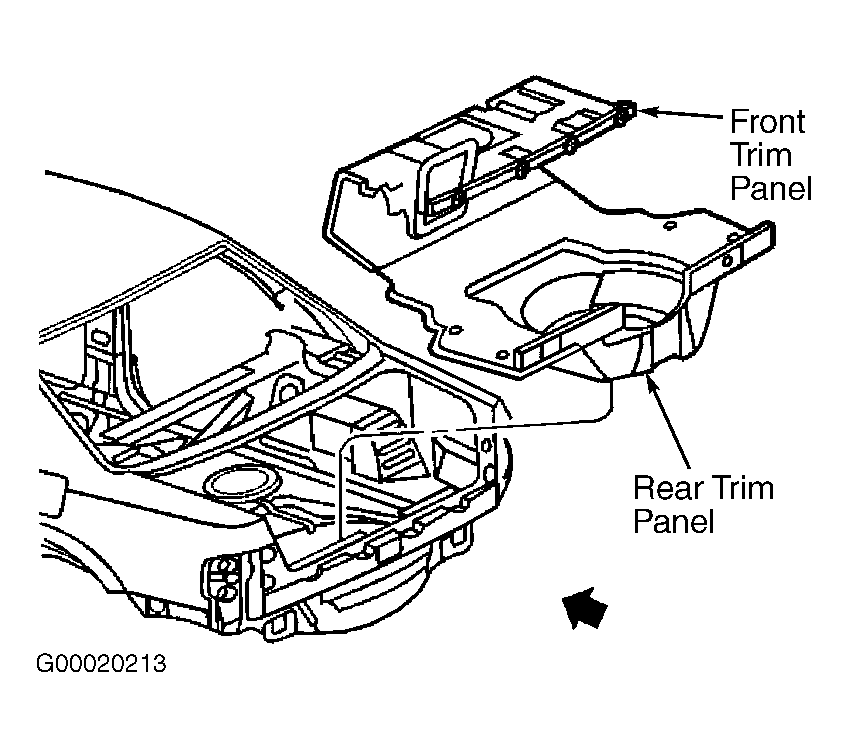

Open rear compartment lid. Remove spare tire. Remove convenience net. Sill plate retainers are push on, screw off type. Remove convenience net retainers retaining rear compartment sill plate to vehicle. Lift rear compartment sill plate to disengage clips from the sill and remove. Remove convenience net retainers retaining rear compartment trim panel to floor. Remove retainers at rear edge of rear compartment front trim panel. Remove rear compartment front and rear compartment trim panel. See Fig 1 . To install, reverse removal procedure.
