Rear Fuse Block

NOTE: Rear fuse block is located under rear seat. See Fig 1 .

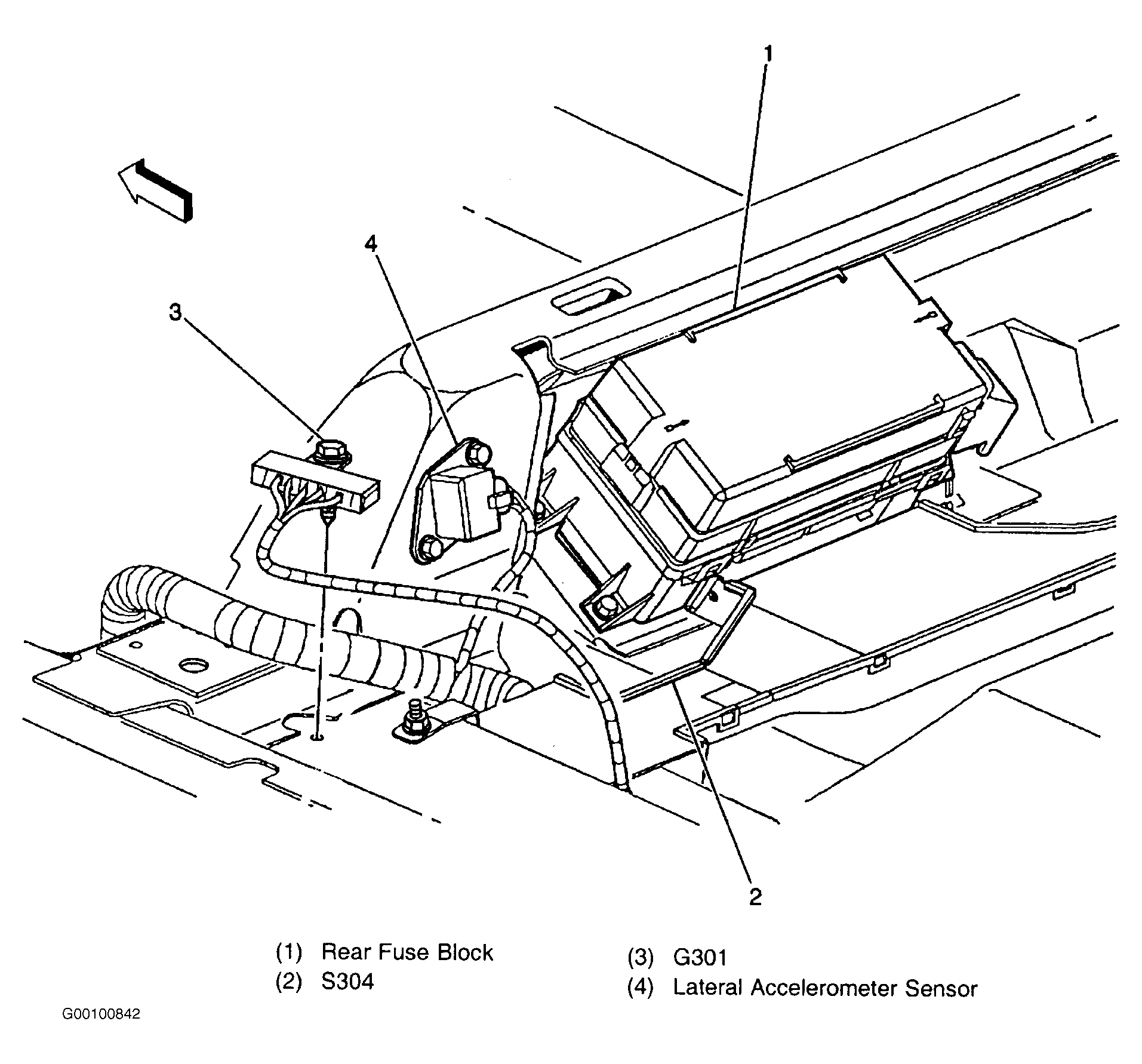

Fig 1: Locating Rear Fuse Block

Courtesy of GENERAL MOTORS CORP.

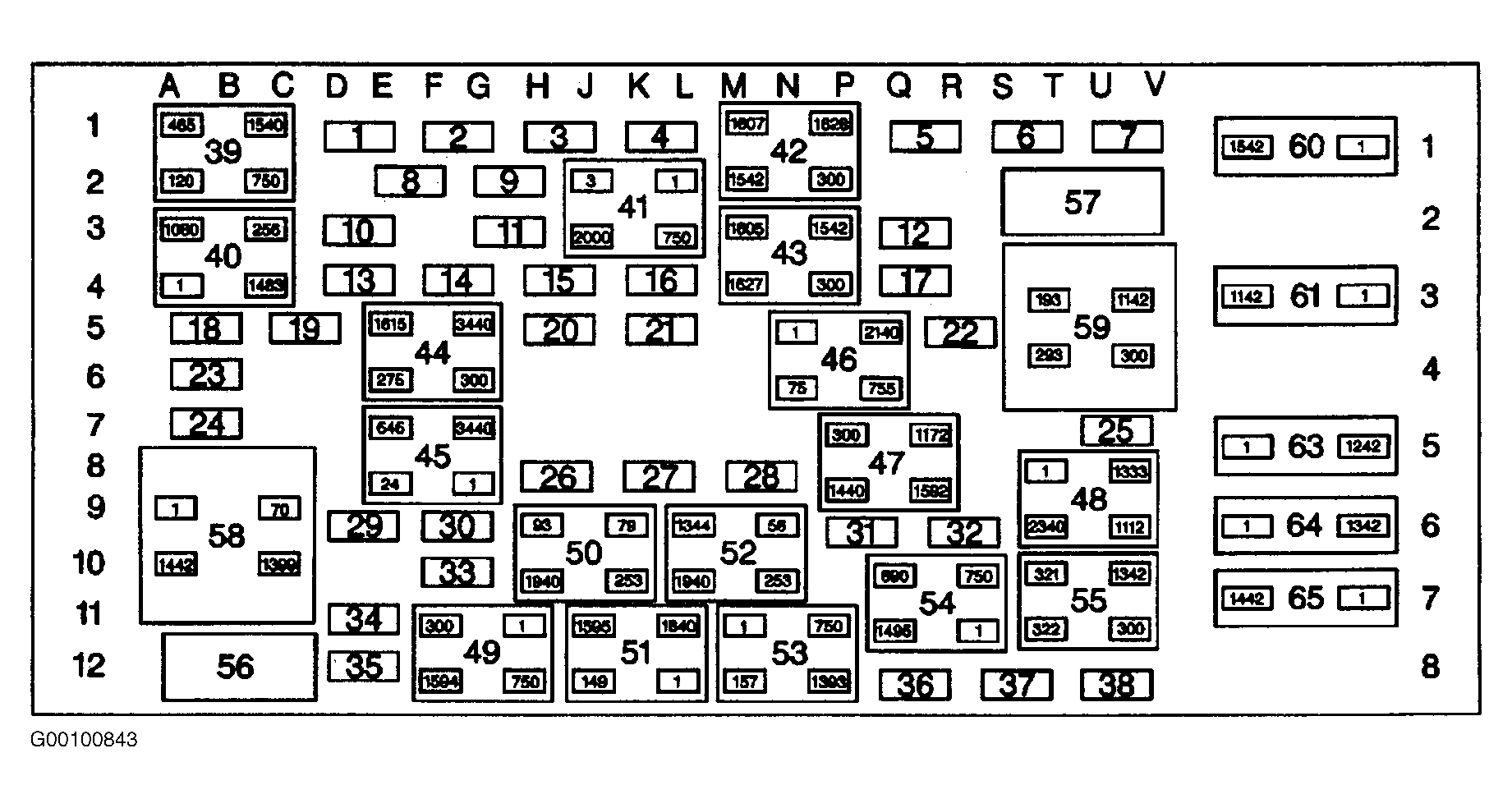

Fig 2: Identifying Rear Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

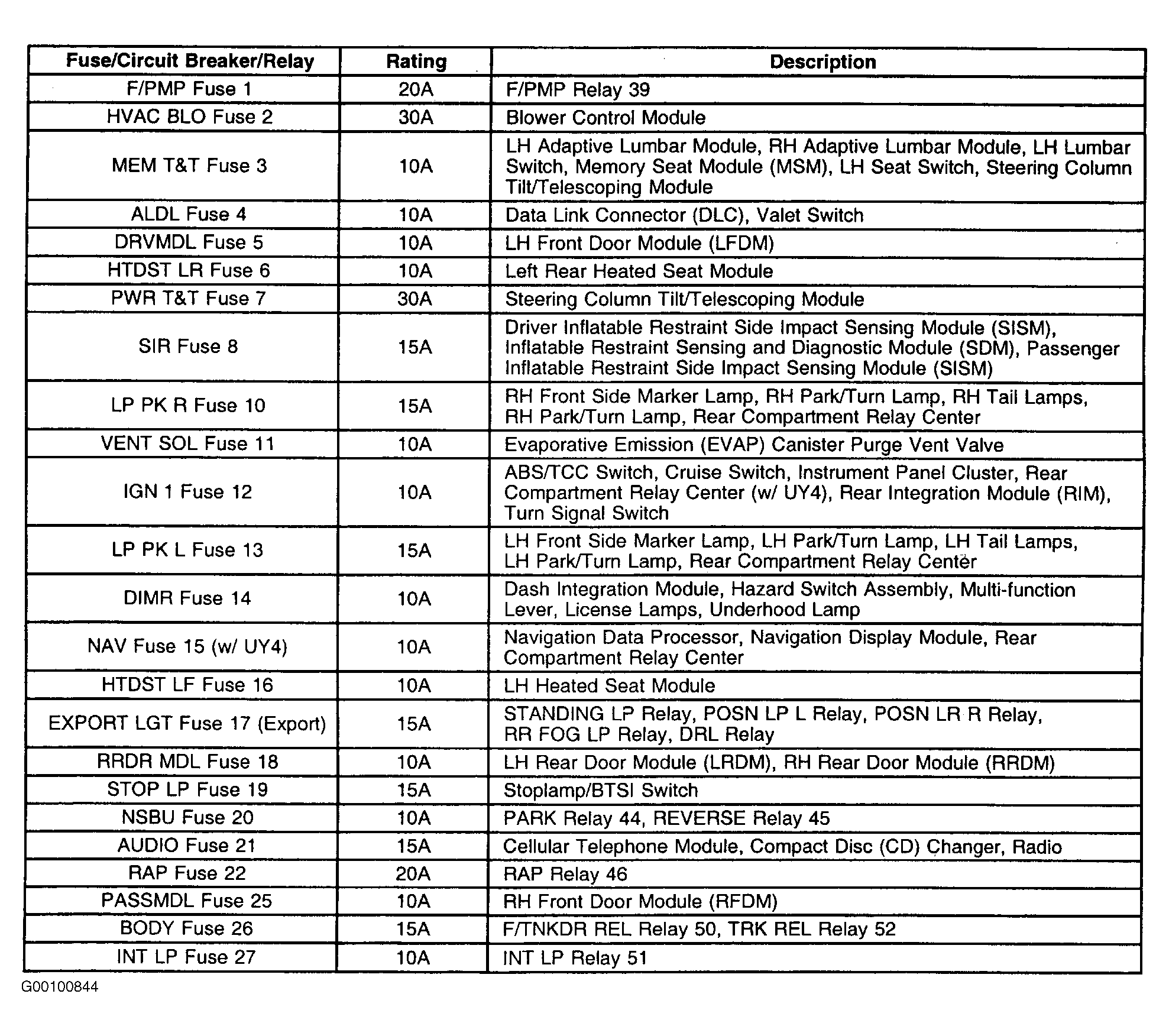

Fig 3: Rear Fuse Block Legend (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

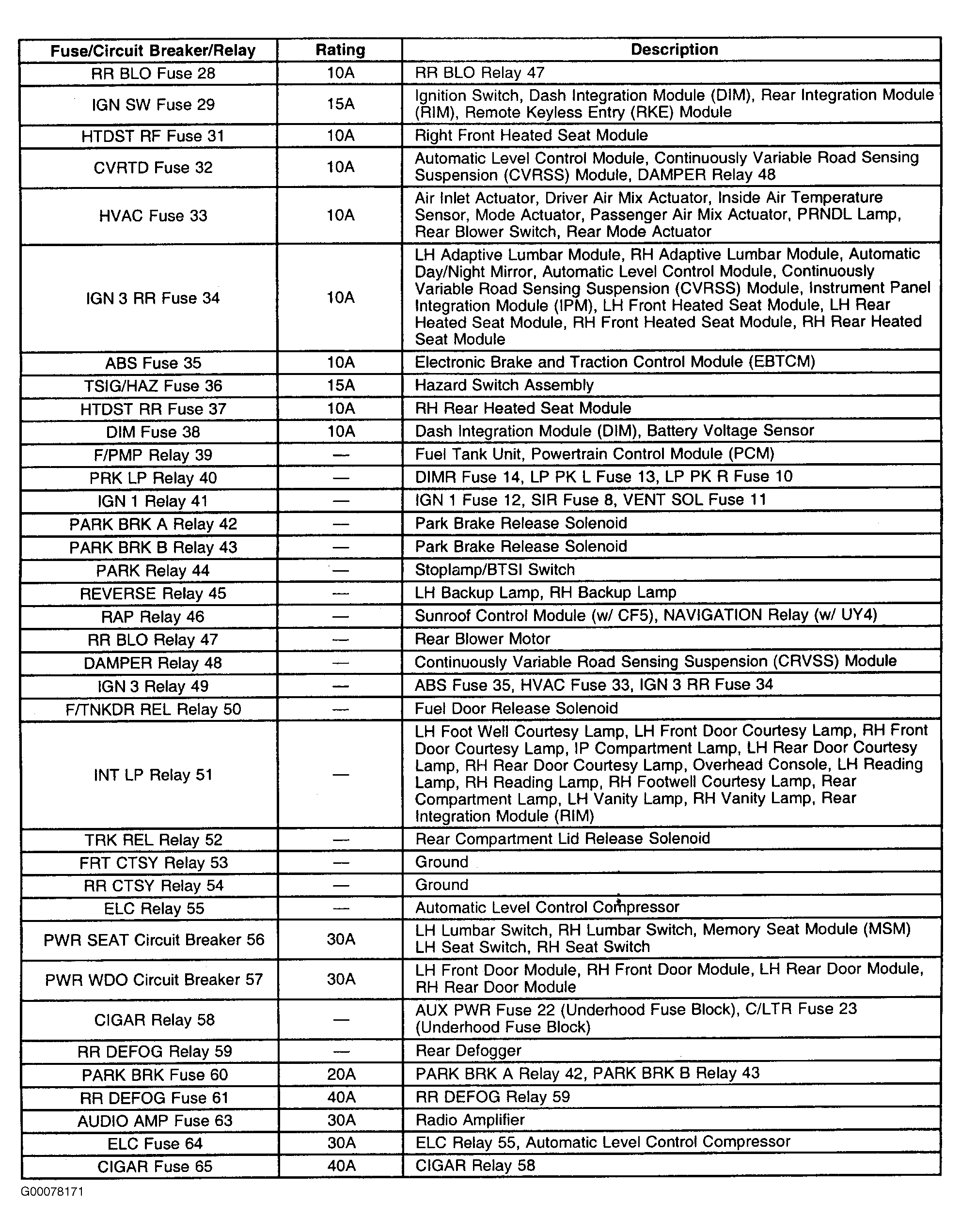

Fig 4: Rear Fuse Block Legend (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
