Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR HANDLING CAUTION .

Remove the rear seat back. Refer to Seat Back Replacement - Rear .
Disconnect the electrical connectors to the heated seat module.

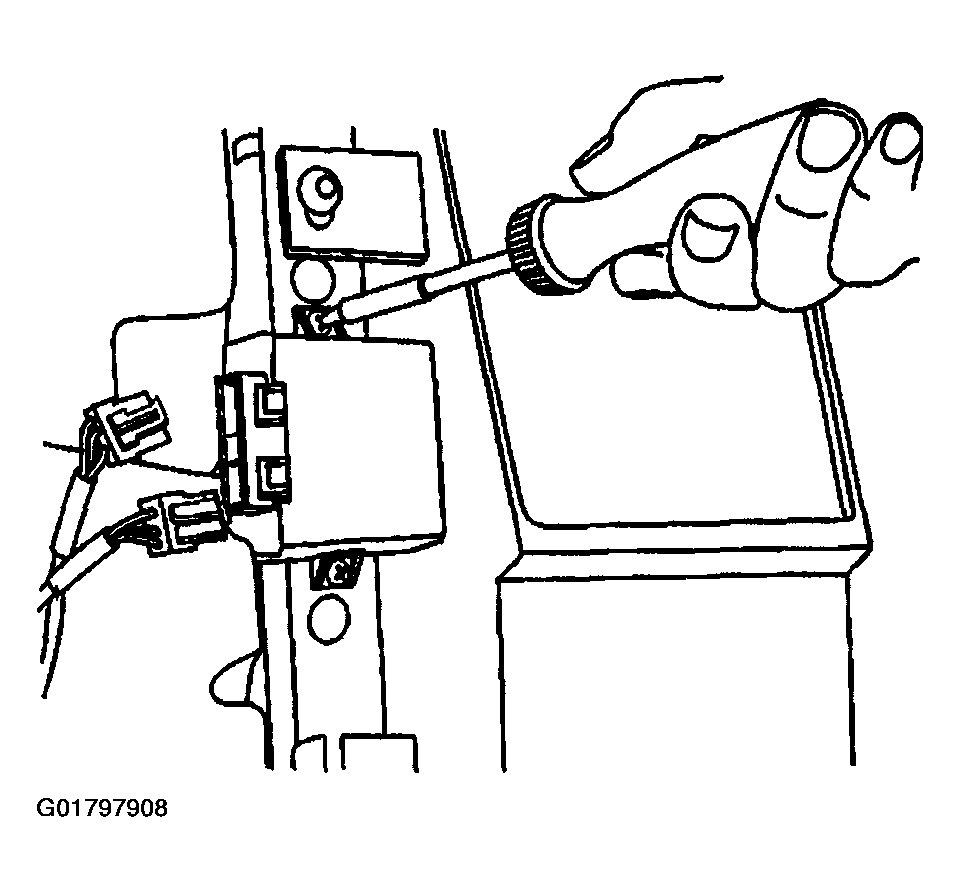

Fig 1: Removing Rear Heated Seat Control Module

Courtesy of GENERAL MOTORS CORP.

Remove the fasteners from the heated seat control module.
Remove the rear heated seat module from the seat back.
