Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Install the memory seat switch (2) to the door trim panel.
NOTE: Refer to FASTENER NOTICE .
Install the memory seat switch fasteners (1), fully driven, seated, but not stripped.

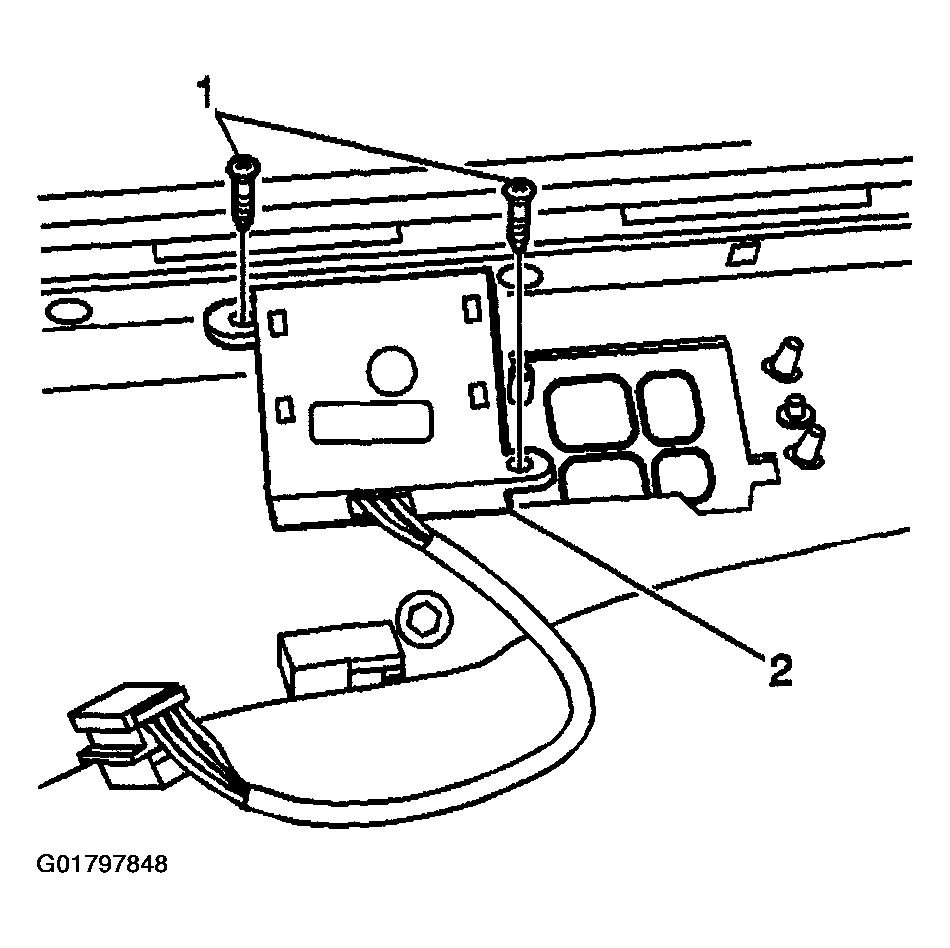

Fig 1: Memory Seat Switch
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector (2) to the memory seat switch (1).

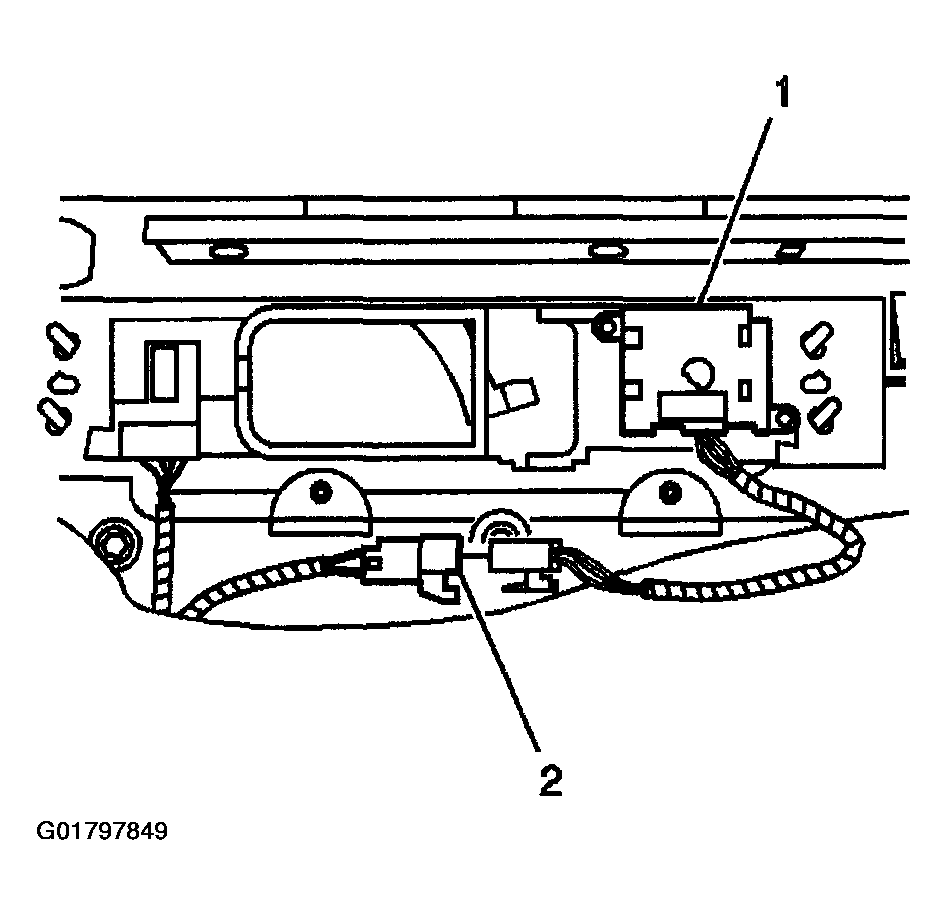

Fig 2: Memory Seat Switch Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the inside door handle to the door trim panel. Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE .
Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
