Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Install the module to the bracket.
Slide the DIM upward until it is fully engaged.

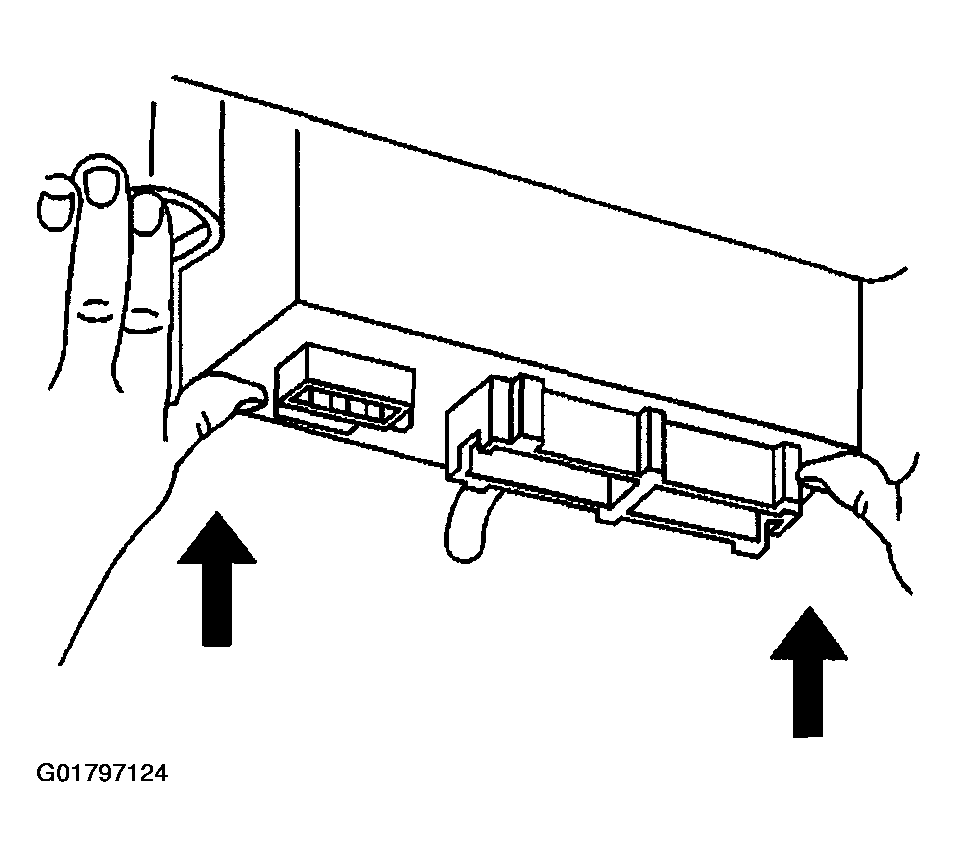

Fig 1: Installing Module & Locking Tab (LHD)
Courtesy of GENERAL MOTORS CORP.
Connect the DIM electrical connectors (2).
Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT or CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
Reprogram the Dash Integration Module. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM)1 .

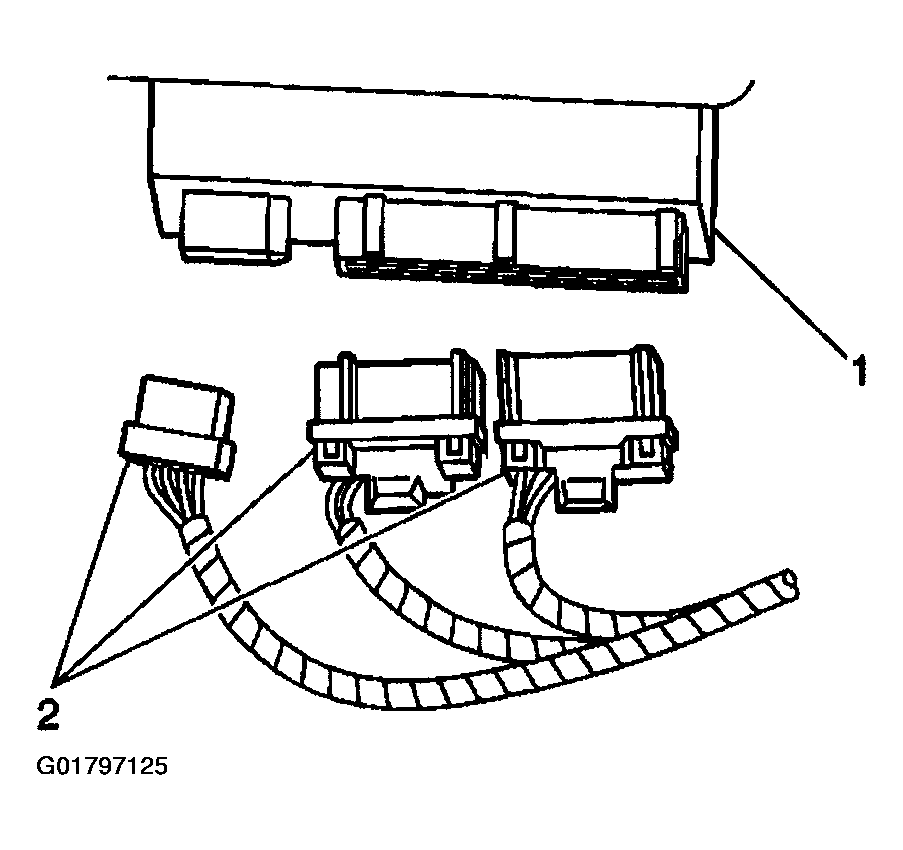

Fig 2: Connecting DIM Electrical Connectors (LHD)
Courtesy of GENERAL MOTORS CORP.
