WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

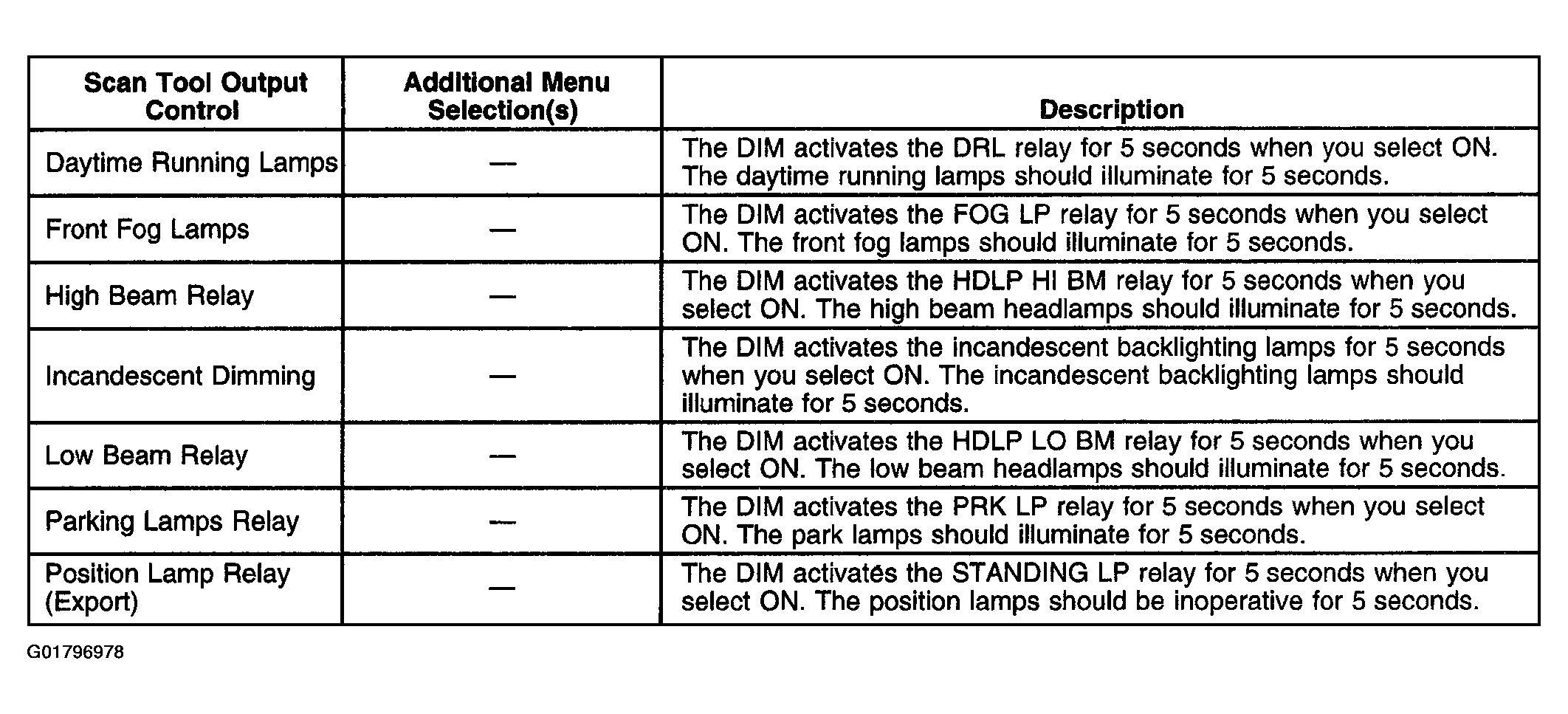

Fig 1: Identifying Scan Tool Output Controls (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

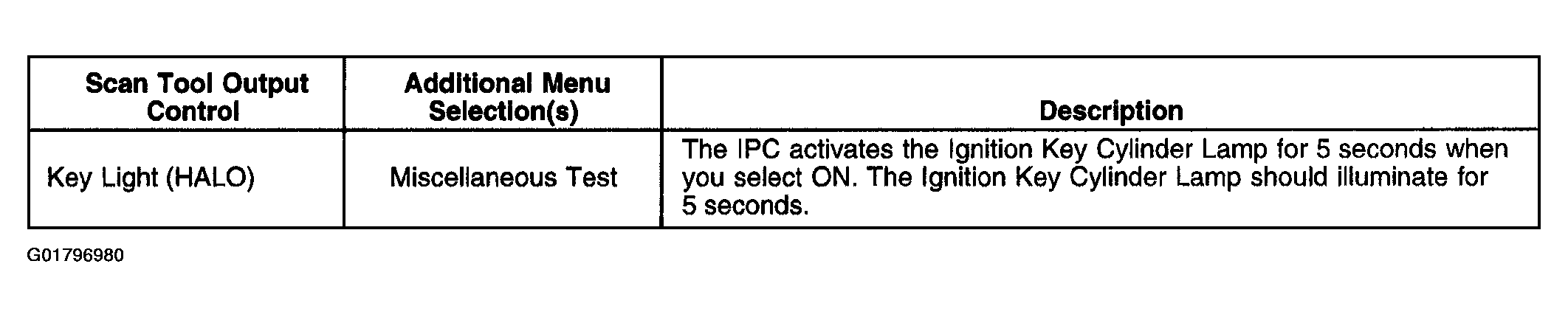

Fig 2: Identifying Scan Tool Output Controls (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

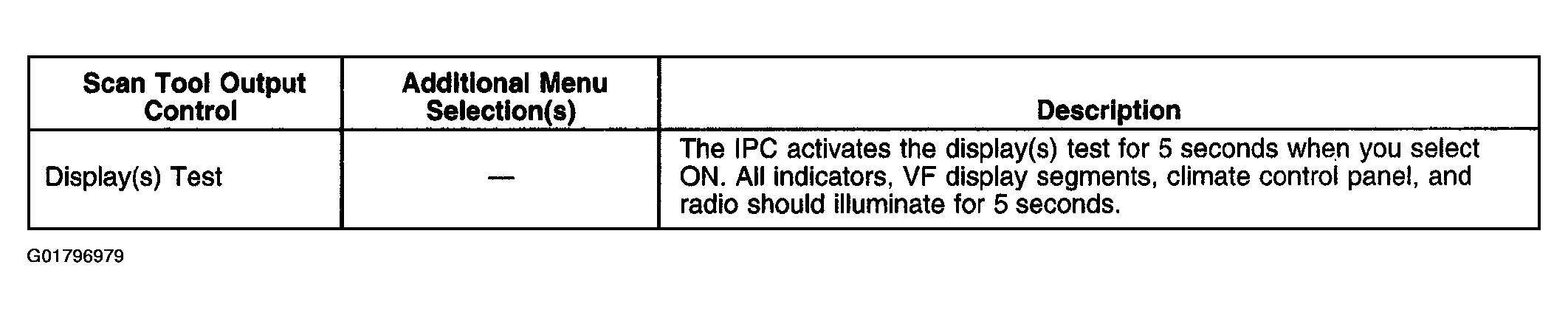

Fig 3: Identifying Scan Tool Output Controls (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

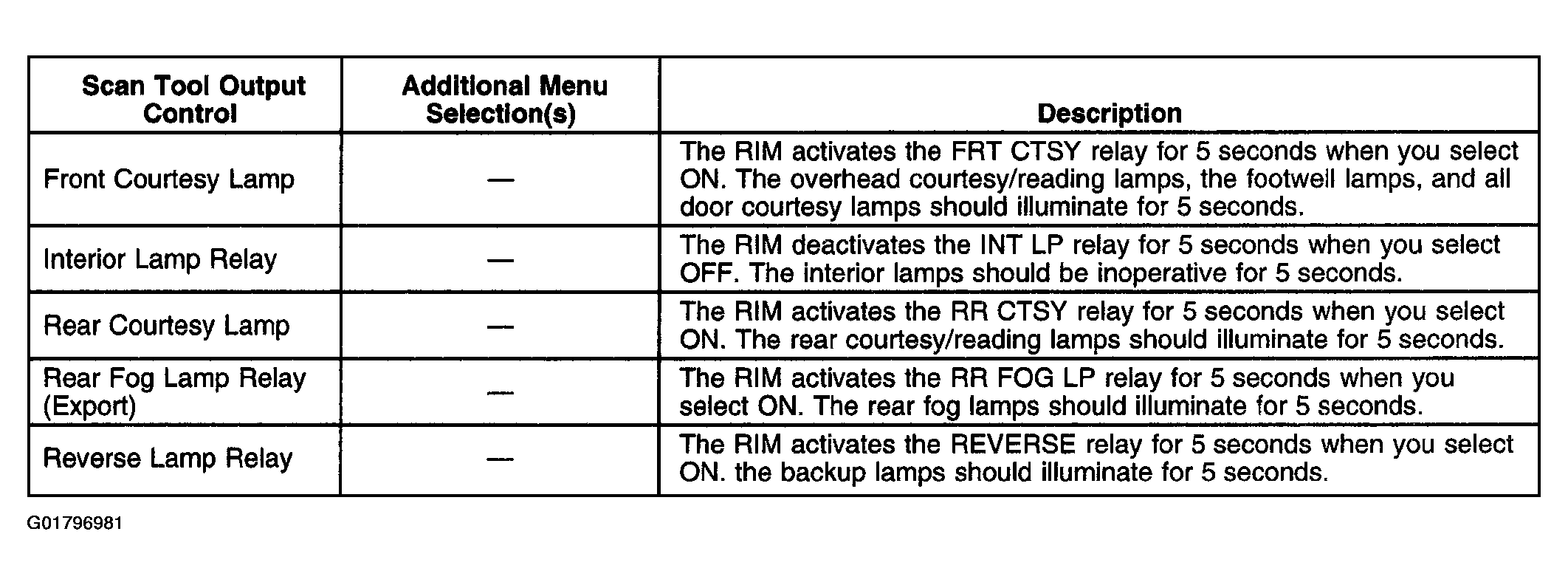

Fig 4: Identifying Scan Tool Output Controls (4 Of 4)
