Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cruise control cable. Refer to Cruise Control Cable Replacement .
  2. Remove the electrical connector from the cruise control module assembly (1).
  3. Remove the fasteners (2) from the mounting studs.
  4. Remove the cruise control module assembly (1) from the vehicle.

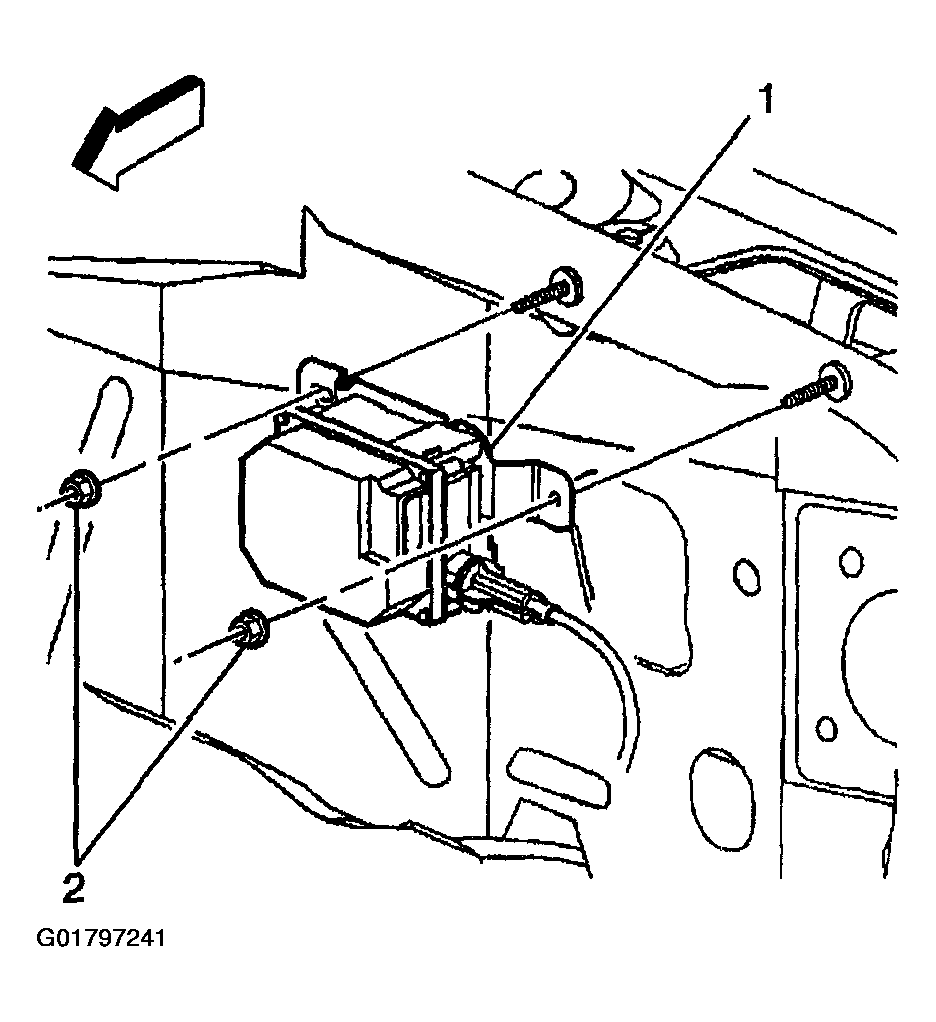

    Fig 1: Removing Fasteners & Cruise Control Module Assembly
    G01797241Courtesy of GENERAL MOTORS CORP.
  5. Remove the fasteners (3) that retain the cruise control module bracket (2) to the cruise control module.
  6. Remove the cruise control module bracket (2) from the cruise control module (1).

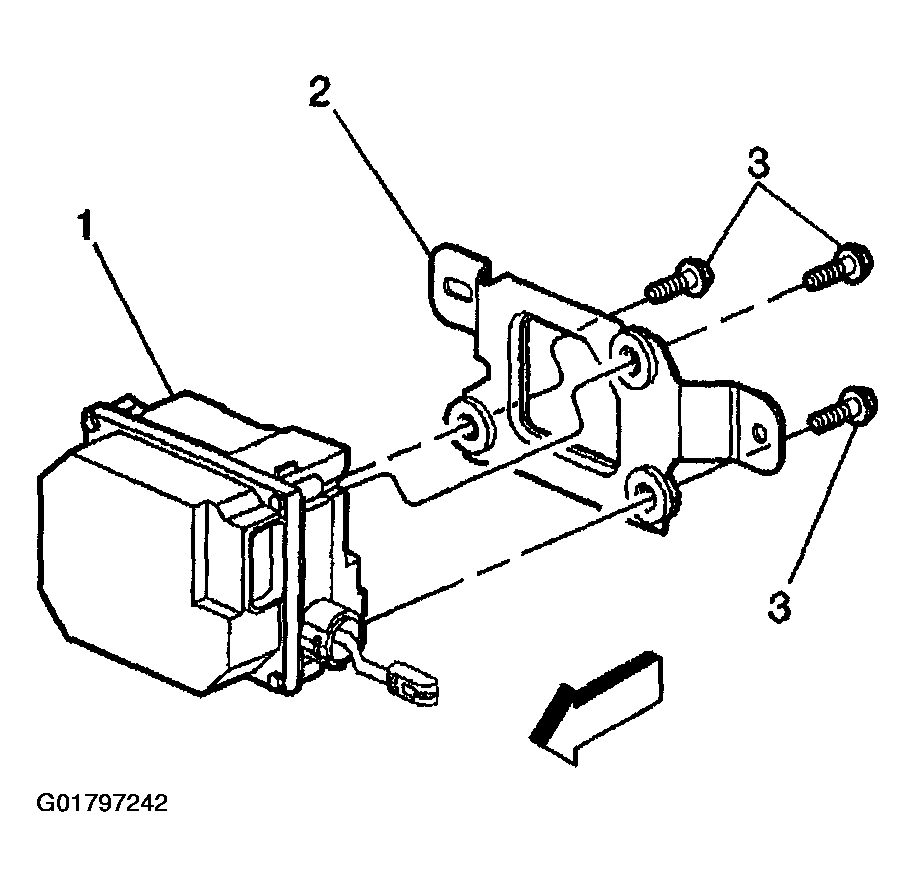

    Fig 2: Removing Cruise Control Module, Bracket & Fastener
    G01797242Courtesy of GENERAL MOTORS CORP.
