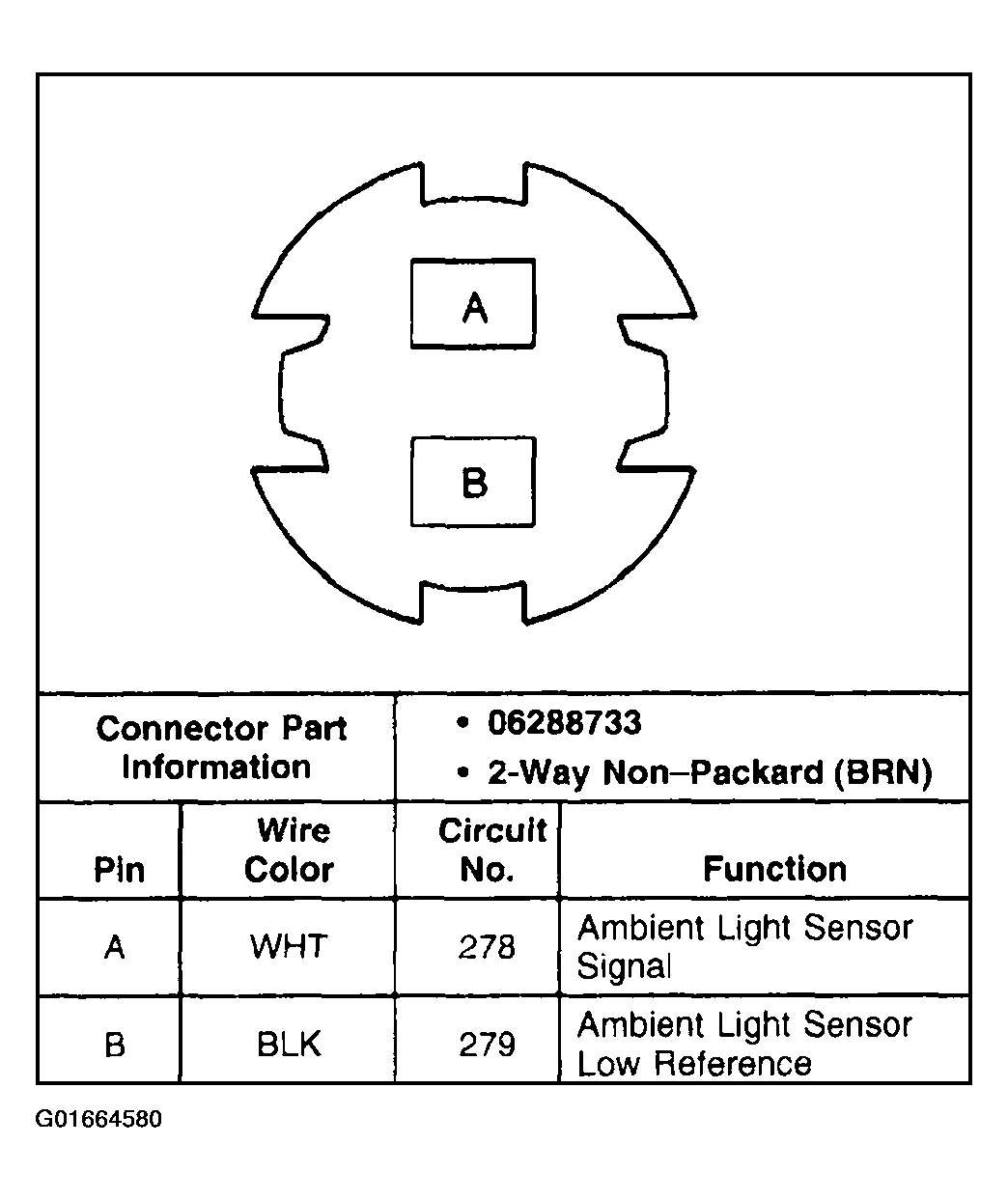

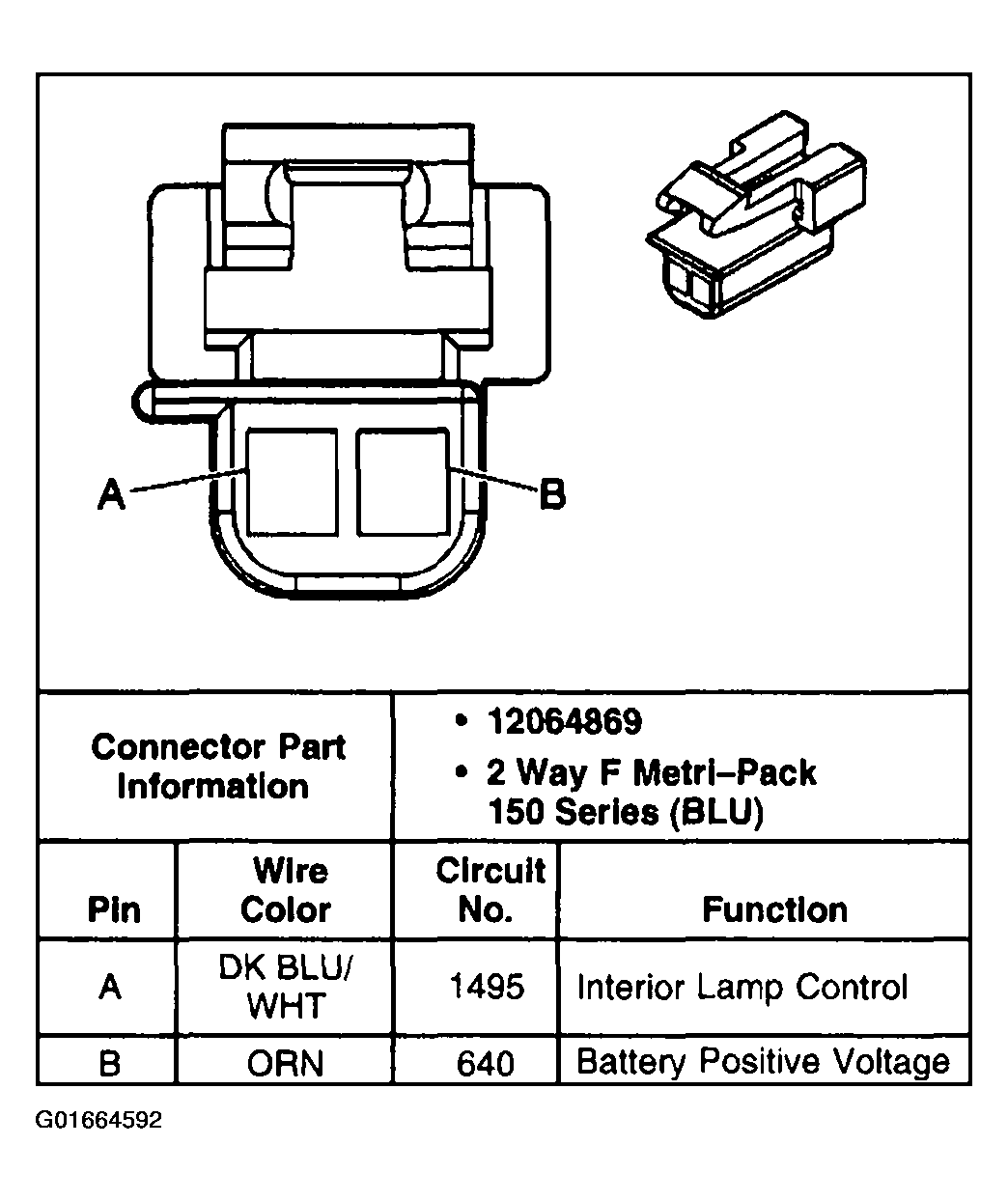

Fig 1: Ambient Light Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 2: Ashtray Lamps Connector End View
Courtesy of GENERAL MOTORS CORP.

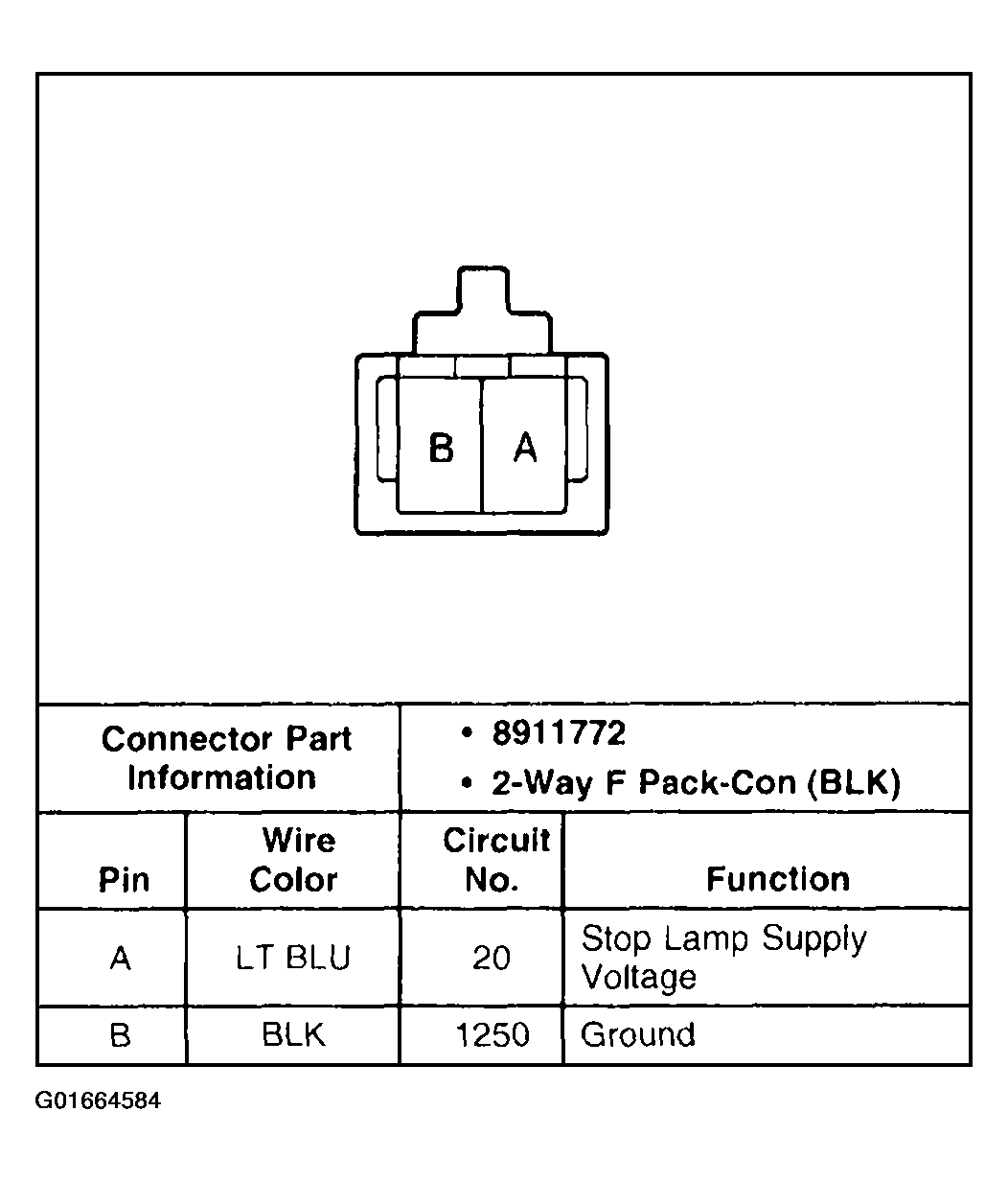

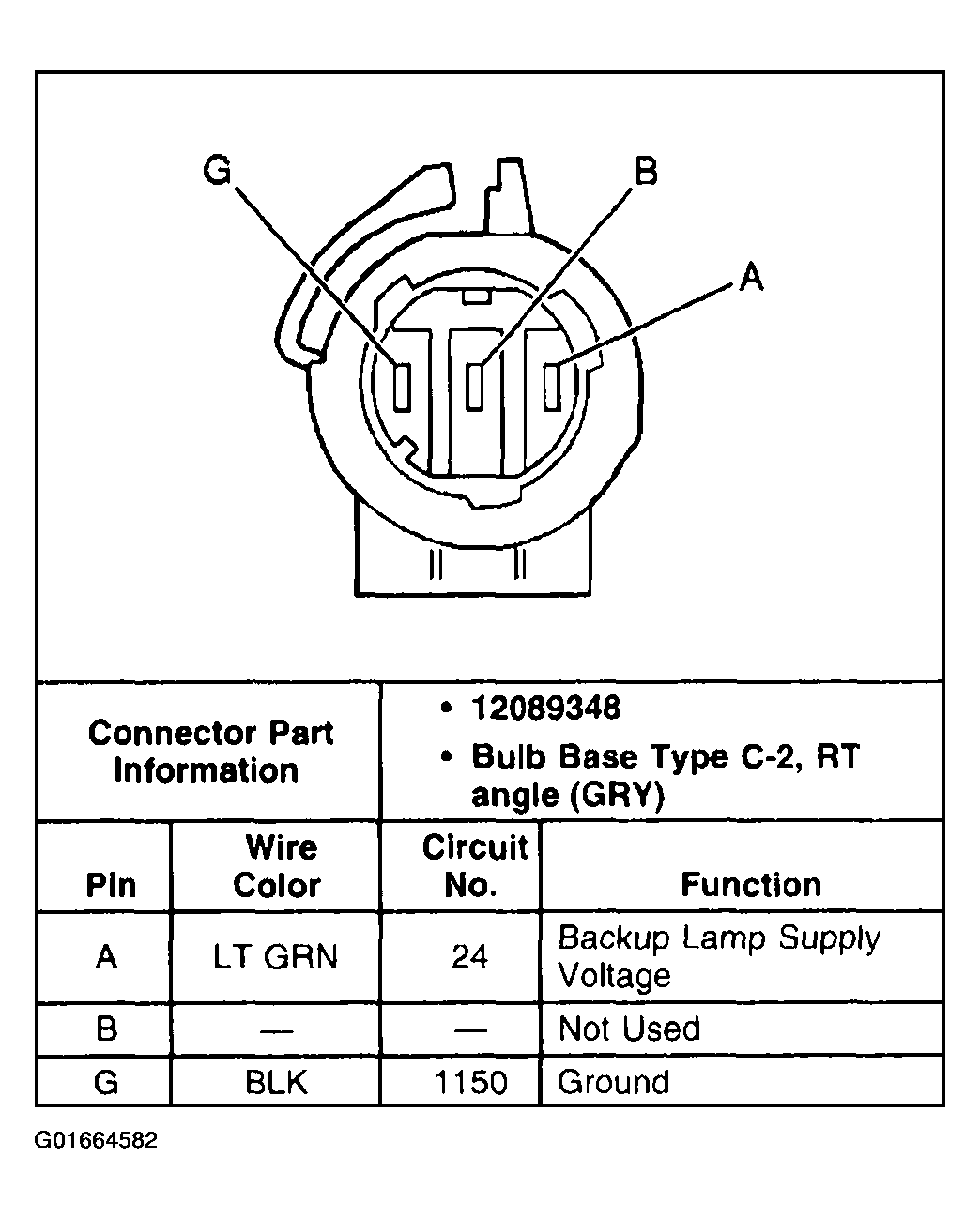

Fig 3: Backup Lamp Connector End View - Left
Courtesy of GENERAL MOTORS CORP.

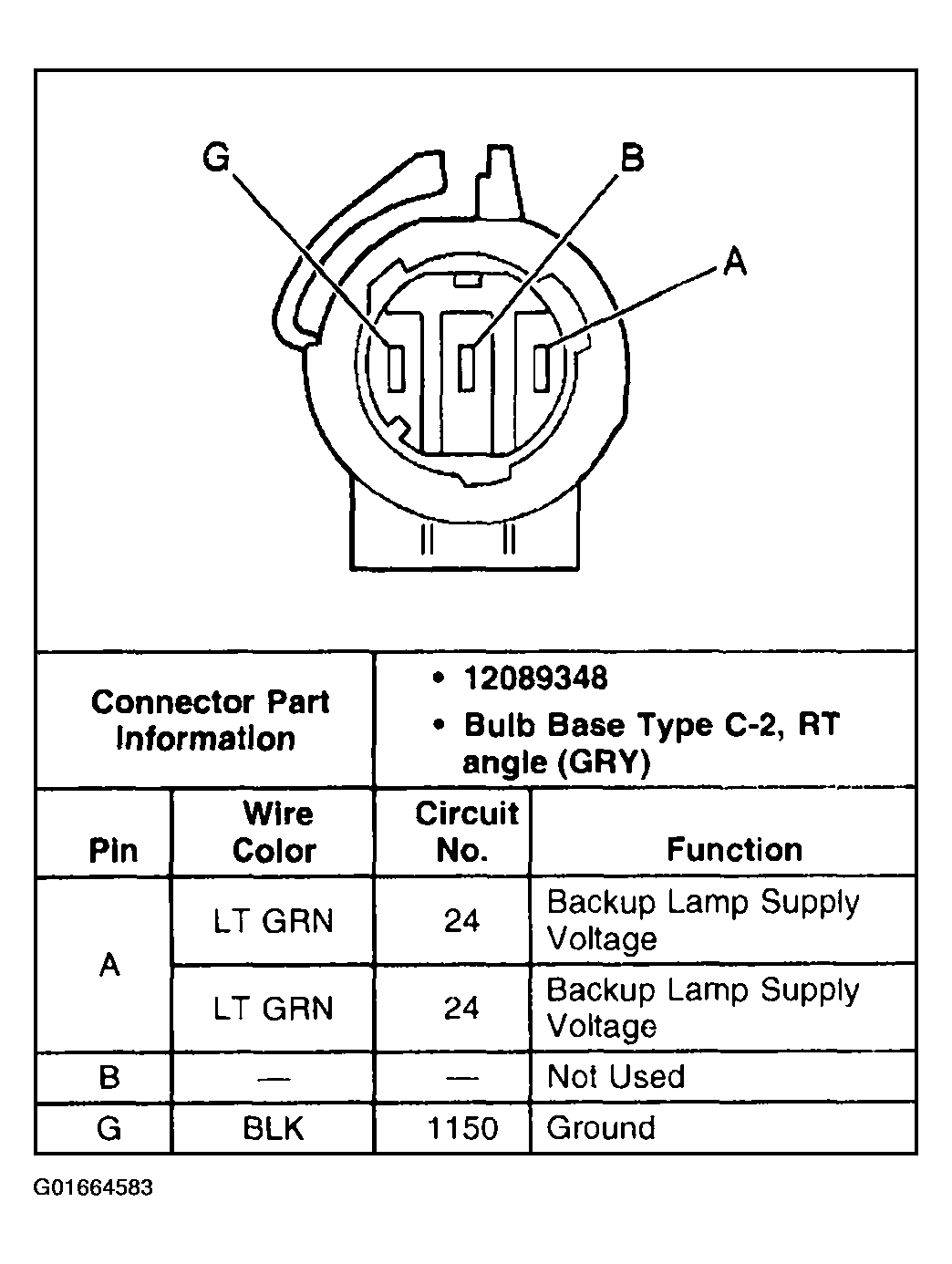

Fig 4: Backup Lamp Connector End View - Right
Courtesy of GENERAL MOTORS CORP.
Fig 5: Center High Mounted Stop Lamp (CHMSL) Connector End View
Courtesy of GENERAL MOTORS CORP.

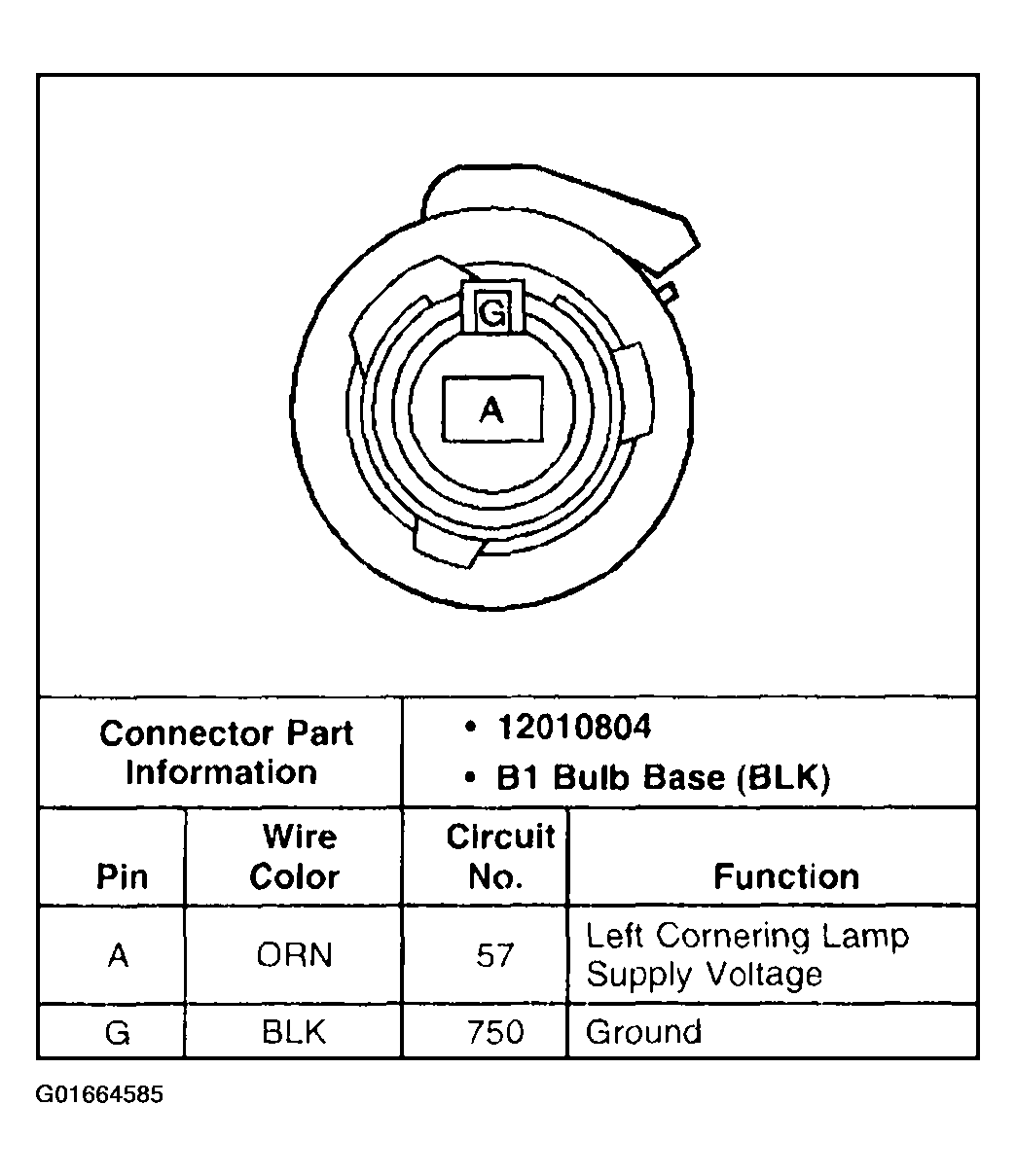

Fig 6: Cornering Lamp Connector End View - Left
Courtesy of GENERAL MOTORS CORP.
Fig 7: Cornering Lamp Connector End View - Right
Courtesy of GENERAL MOTORS CORP.

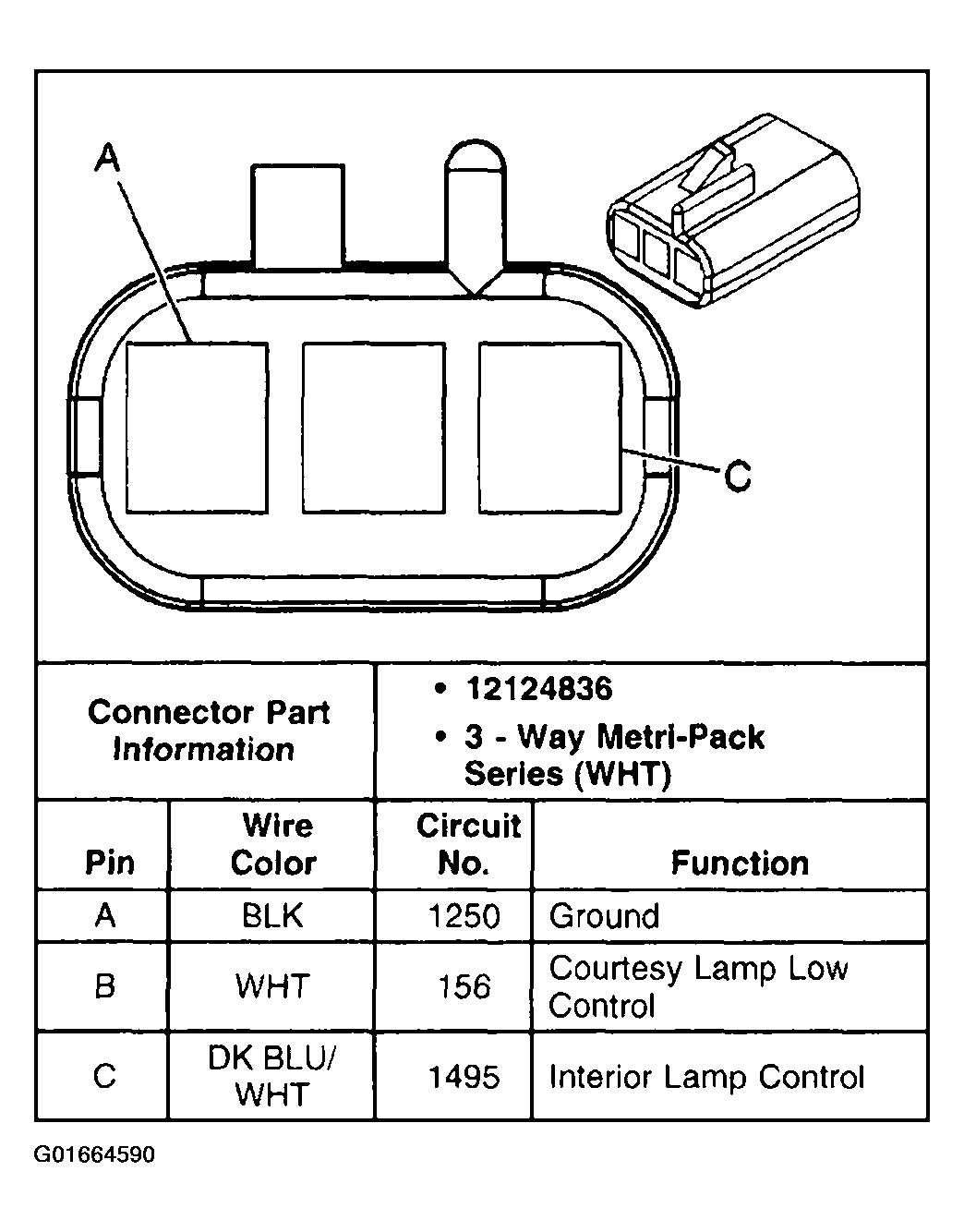

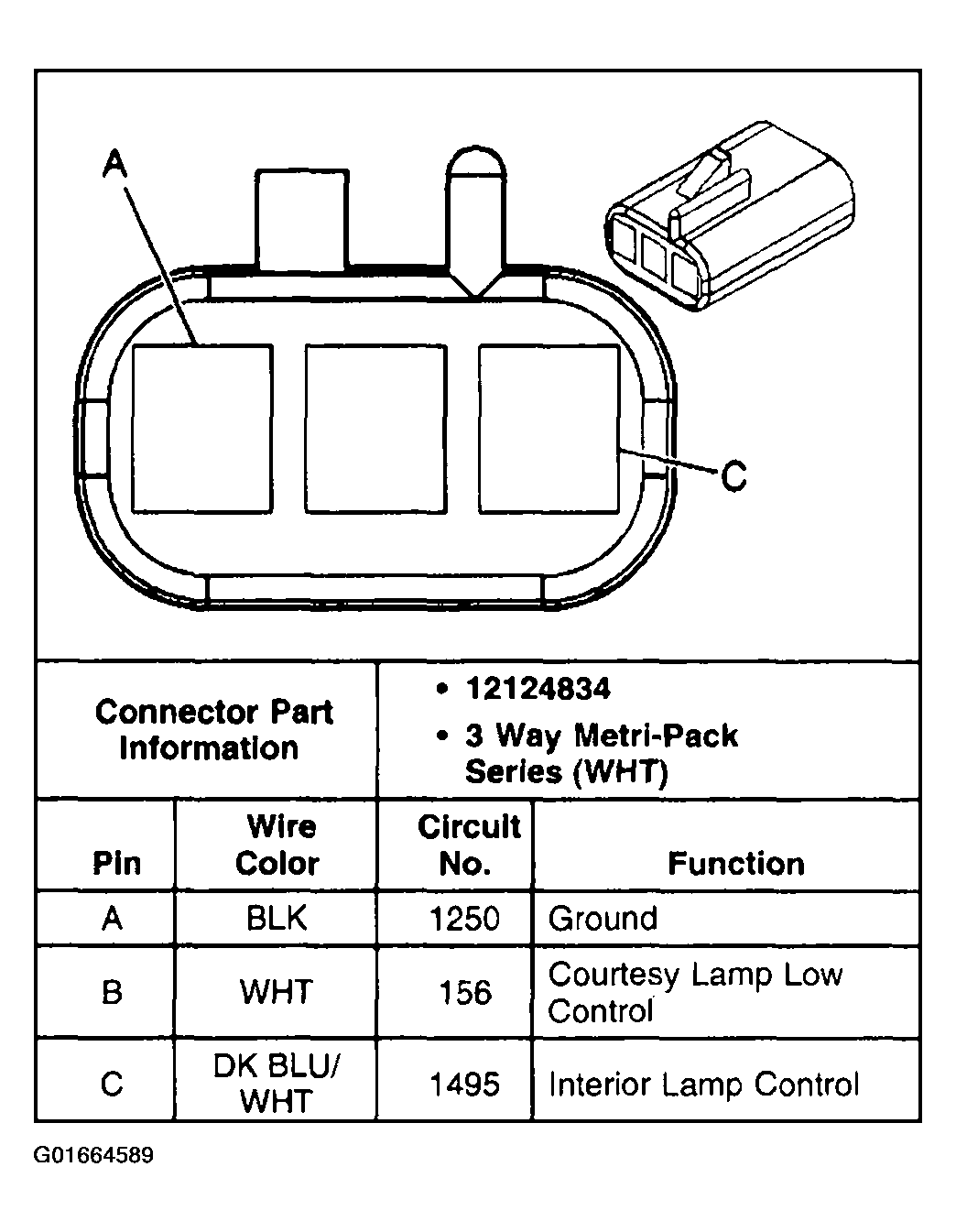

Fig 8: Courtesy/Reading Lamps Connector End View - Front
Courtesy of GENERAL MOTORS CORP.
Fig 9: Courtesy/Reading Lamps Connector End View - Rear
Courtesy of GENERAL MOTORS CORP.
Fig 10: Courtesy/Reading Lamp Switches Connector End View - Front
Courtesy of GENERAL MOTORS CORP.
Fig 11: Courtesy/Reading Lamp Switches Connector End View - Rear
Courtesy of GENERAL MOTORS CORP.

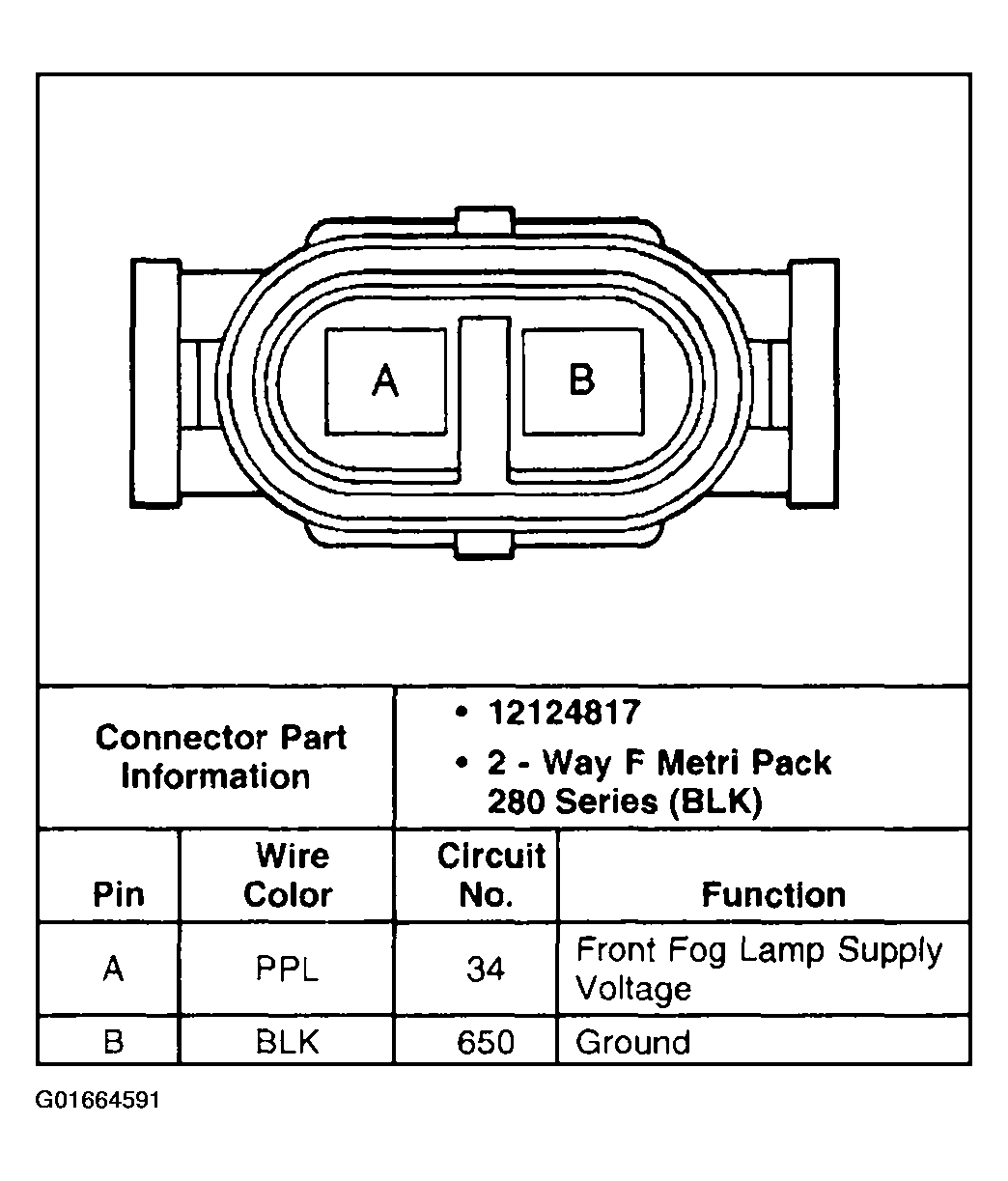

Fig 12: Fog Lamps Connector End View
Courtesy of GENERAL MOTORS CORP.

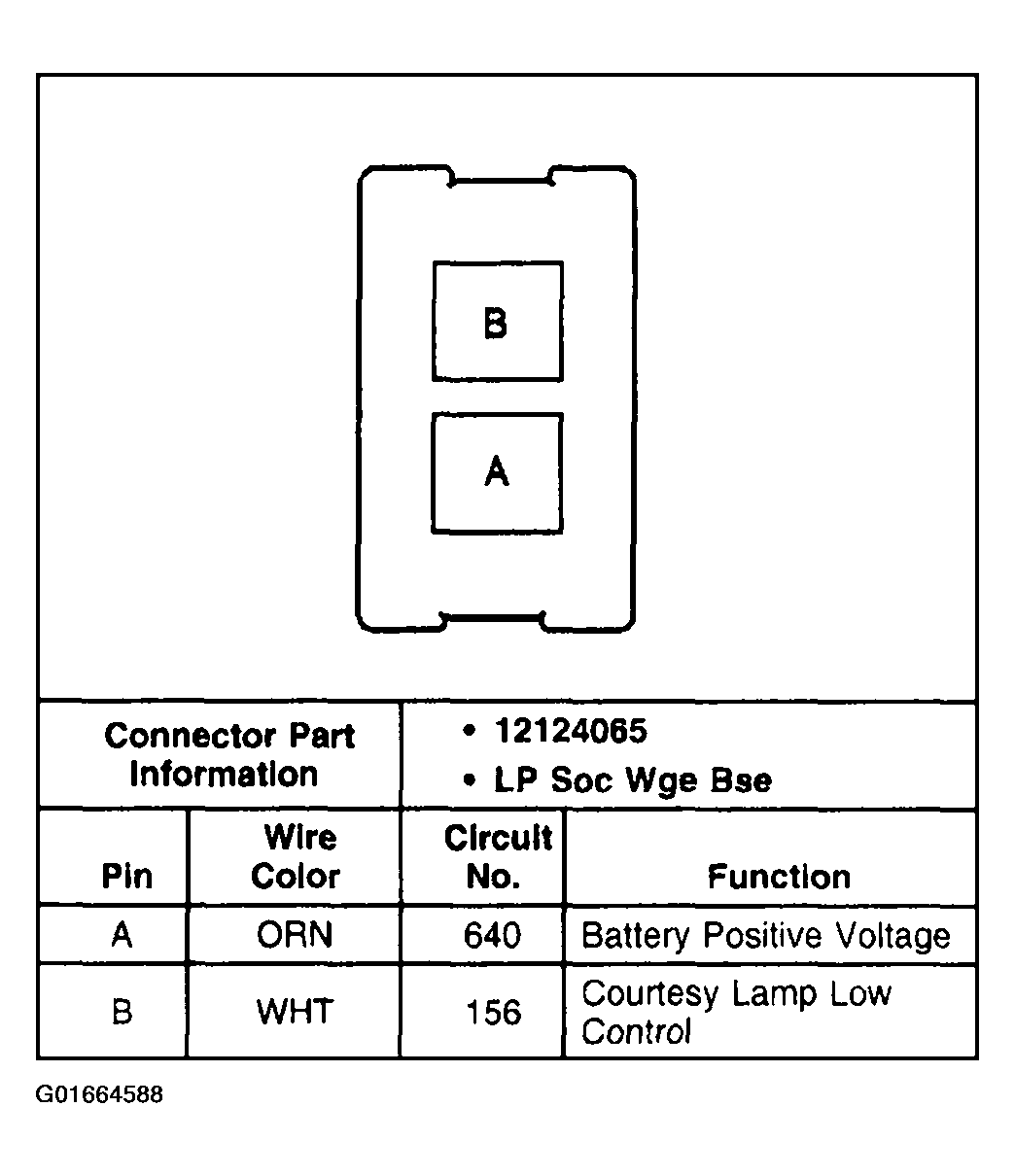

Fig 13: Footwell Courtesy Lamps Connector End View
Courtesy of GENERAL MOTORS CORP.

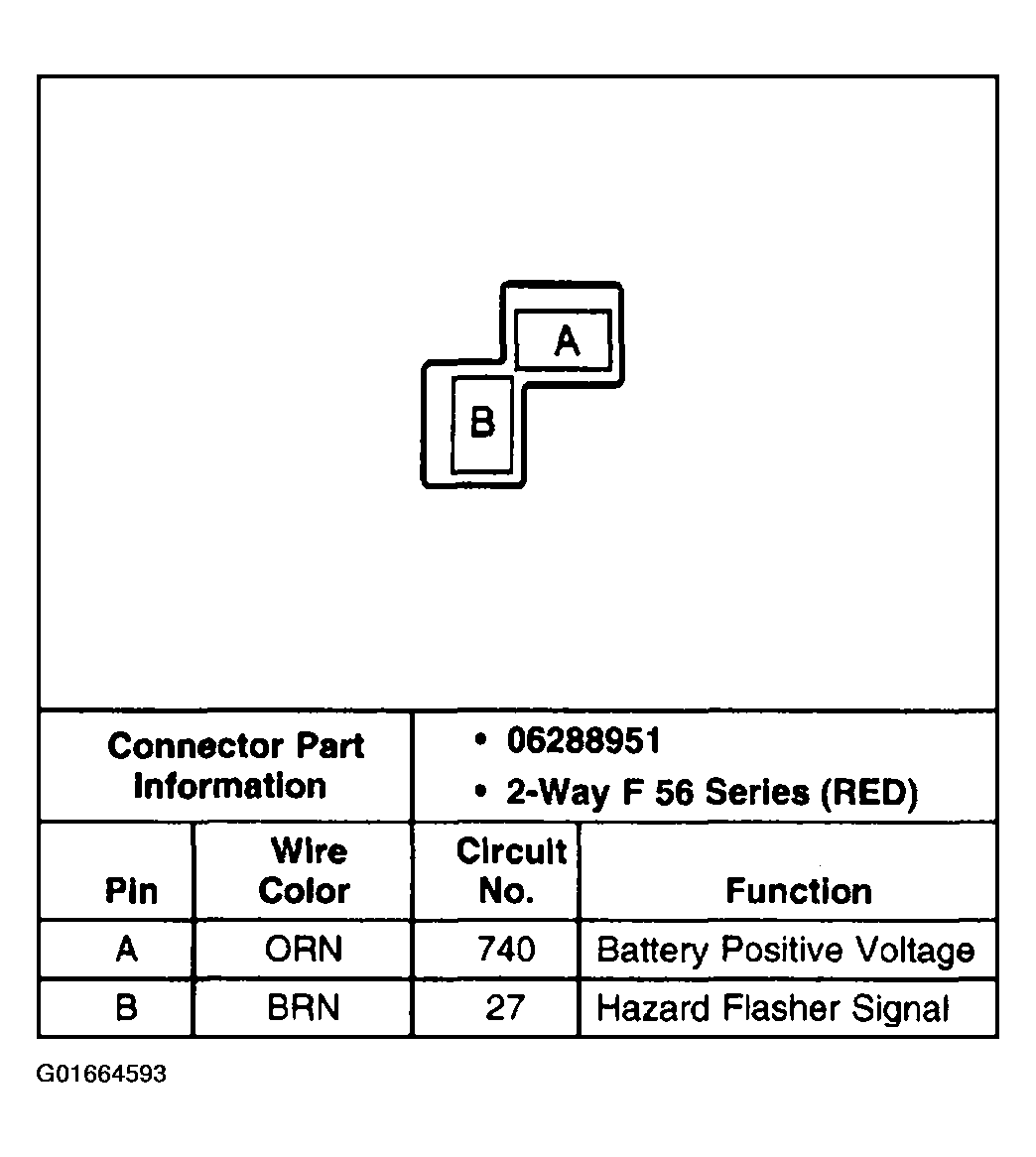

Fig 14: Hazard Flasher Connector End View
Courtesy of GENERAL MOTORS CORP.

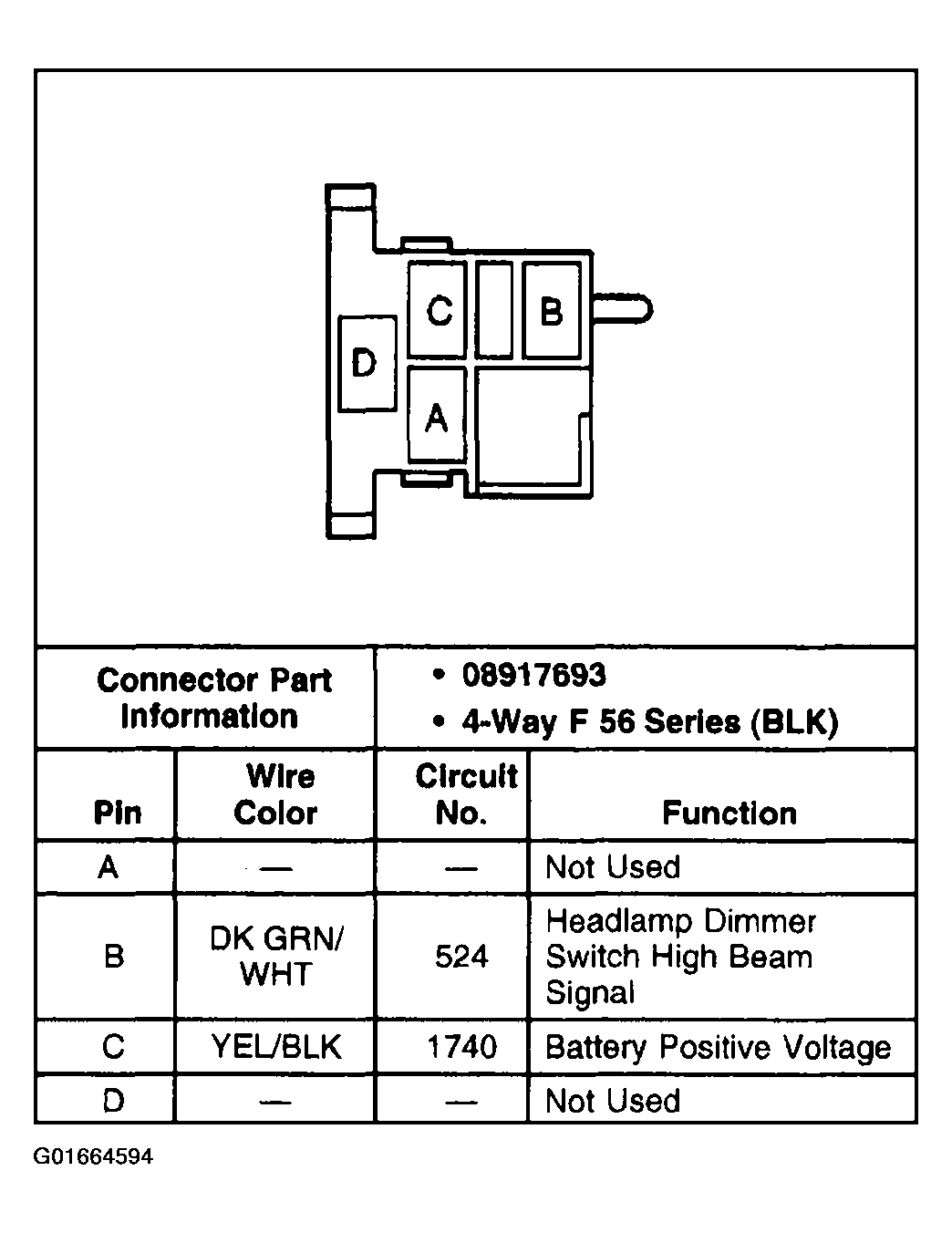

Fig 15: Headlamp Dimmer Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

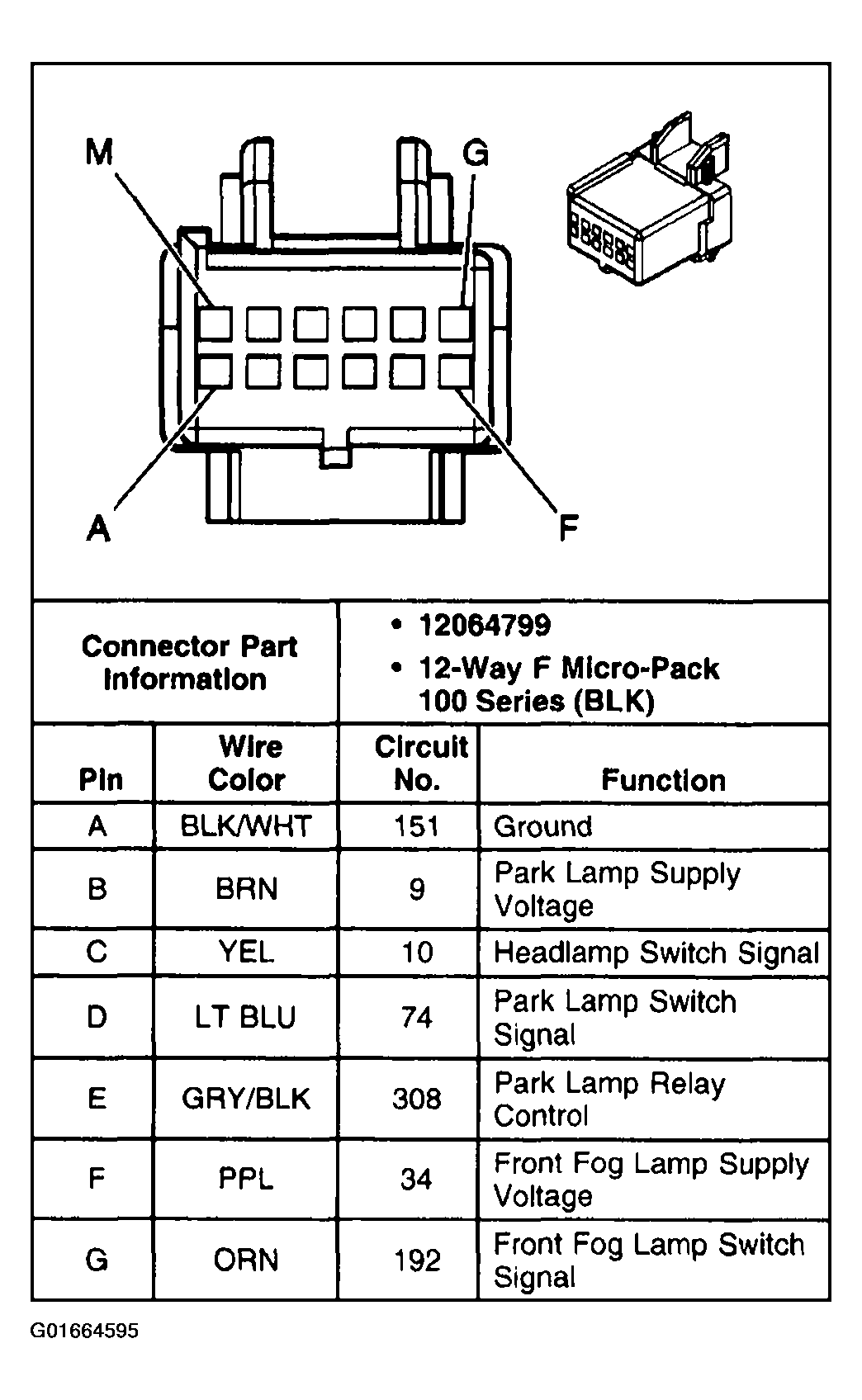

Fig 16: Headlamp Switch C1 Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

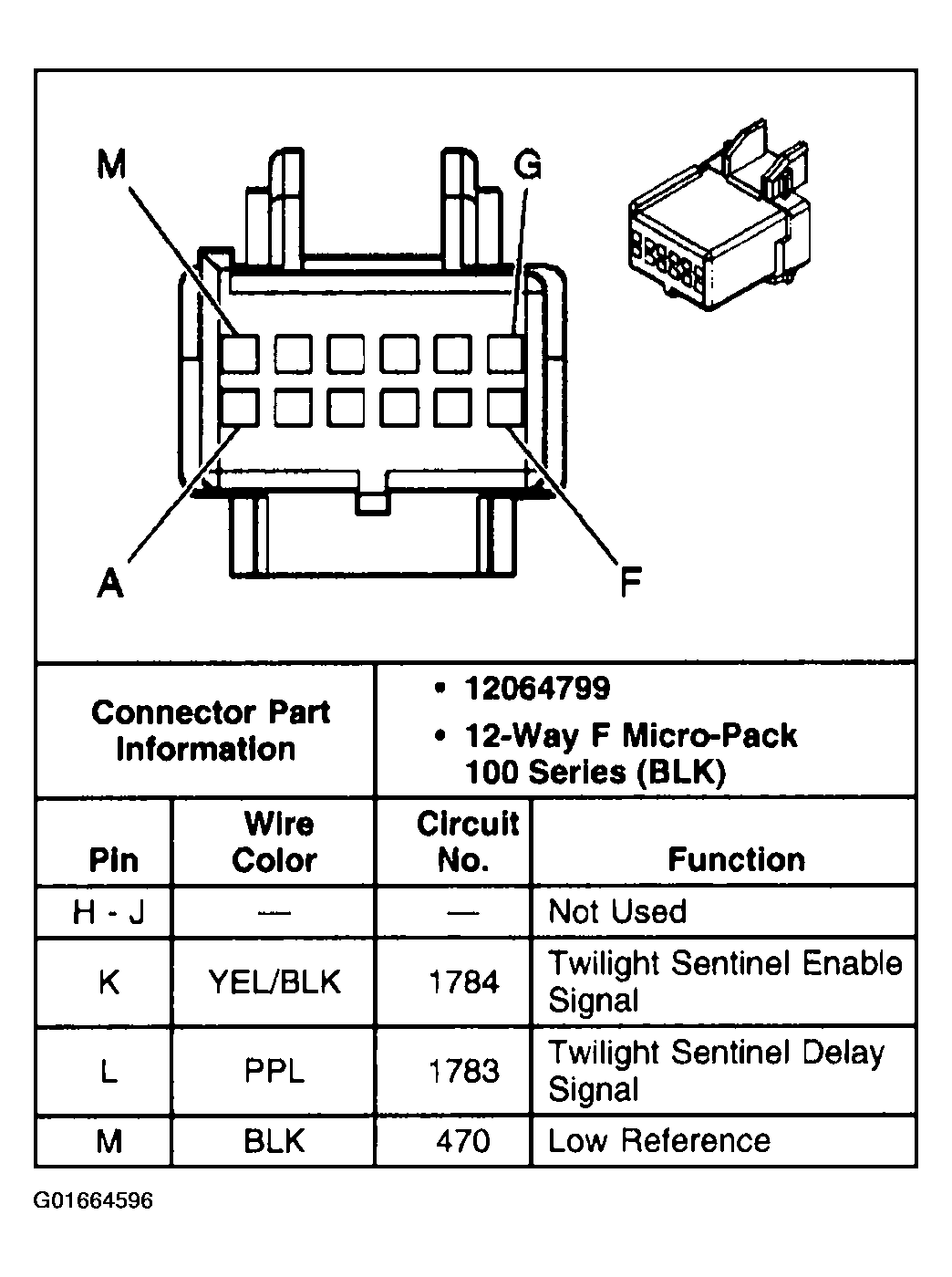

Fig 17: Headlamp Switch C1 Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

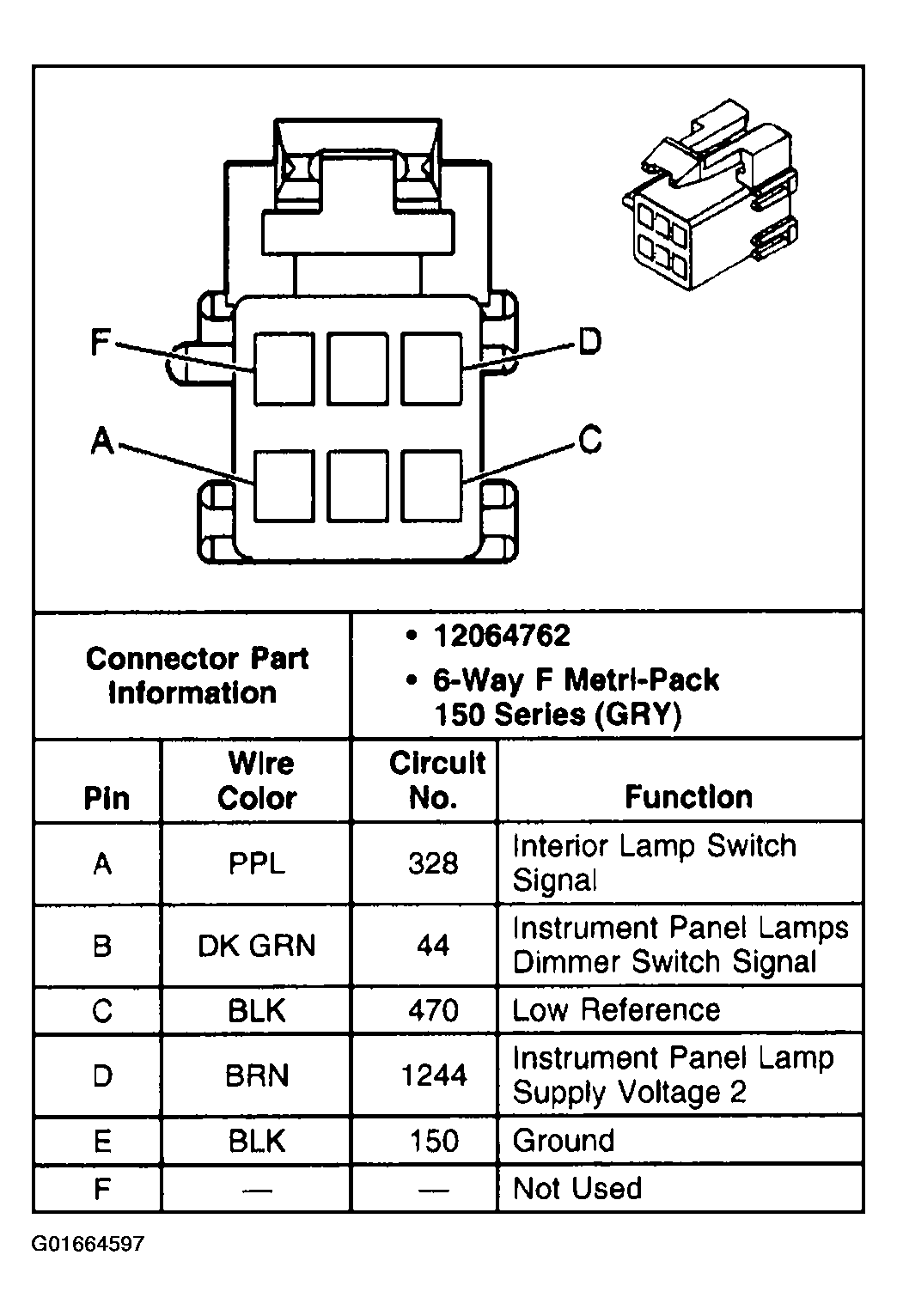

Fig 18: Headlamp Switch C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

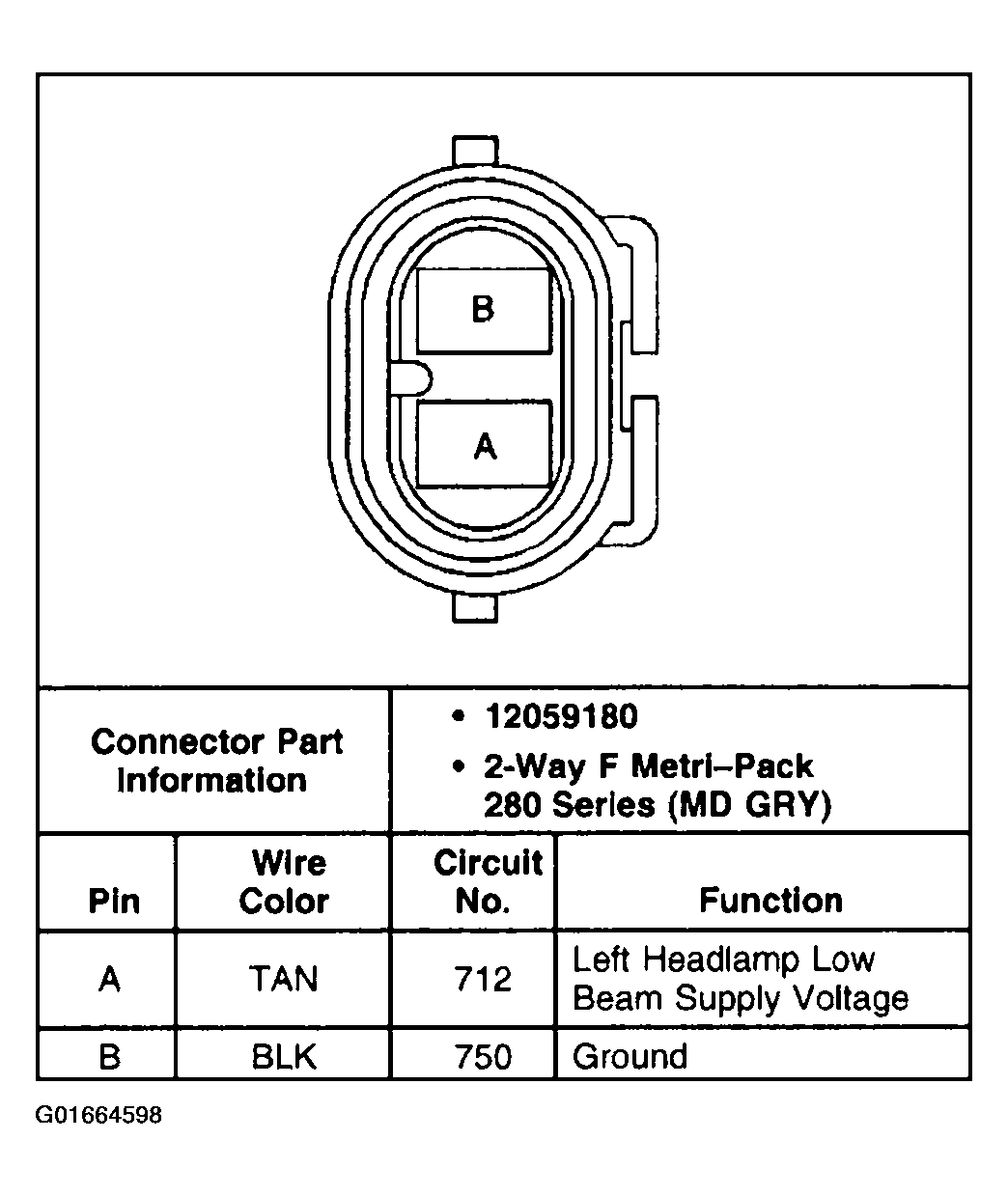

Fig 19: Headlamp - Low Beam Connector End View - Left
Courtesy of GENERAL MOTORS CORP.

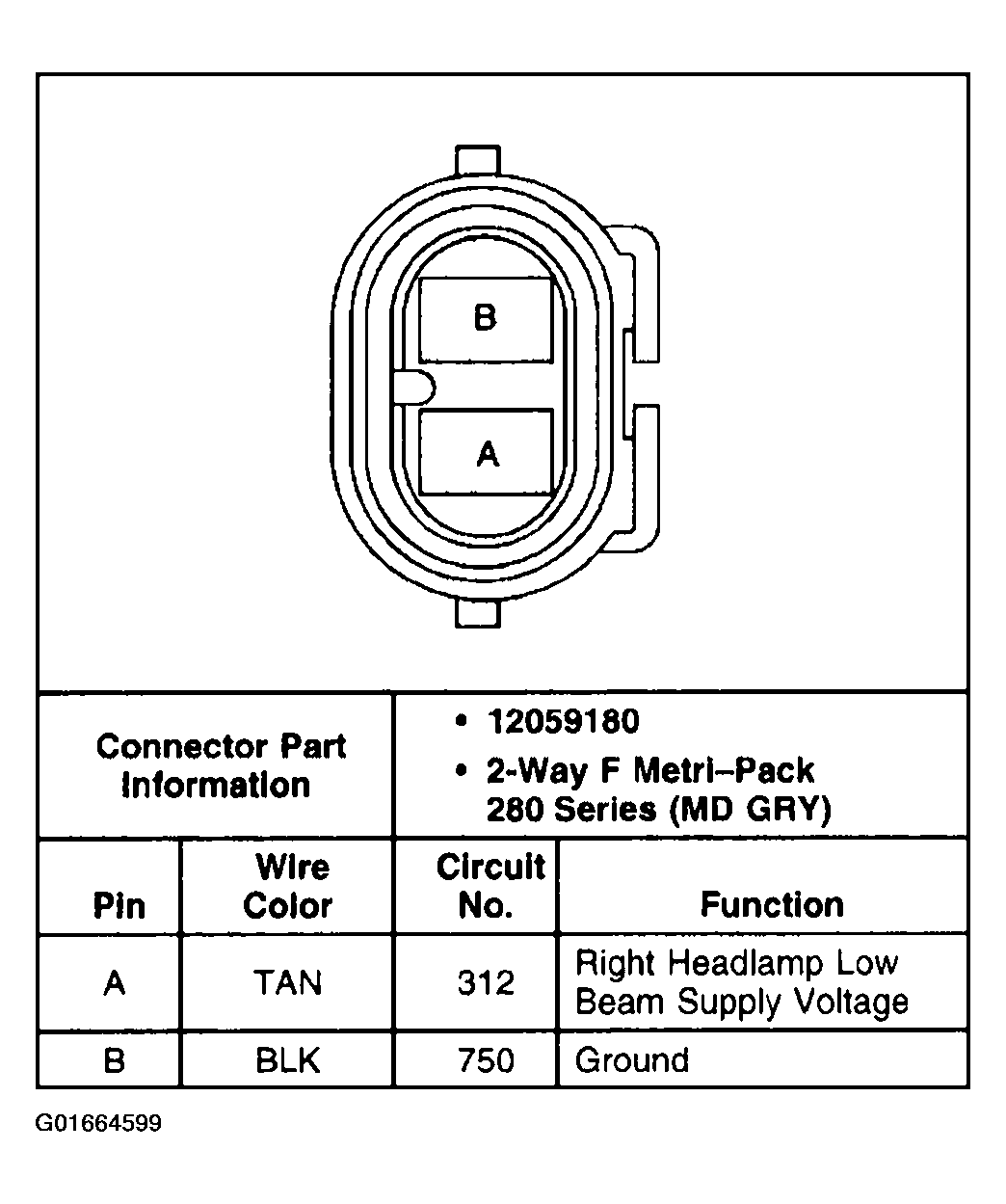

Fig 20: Headlamp - Low Beam Connector End View - Right
Courtesy of GENERAL MOTORS CORP.

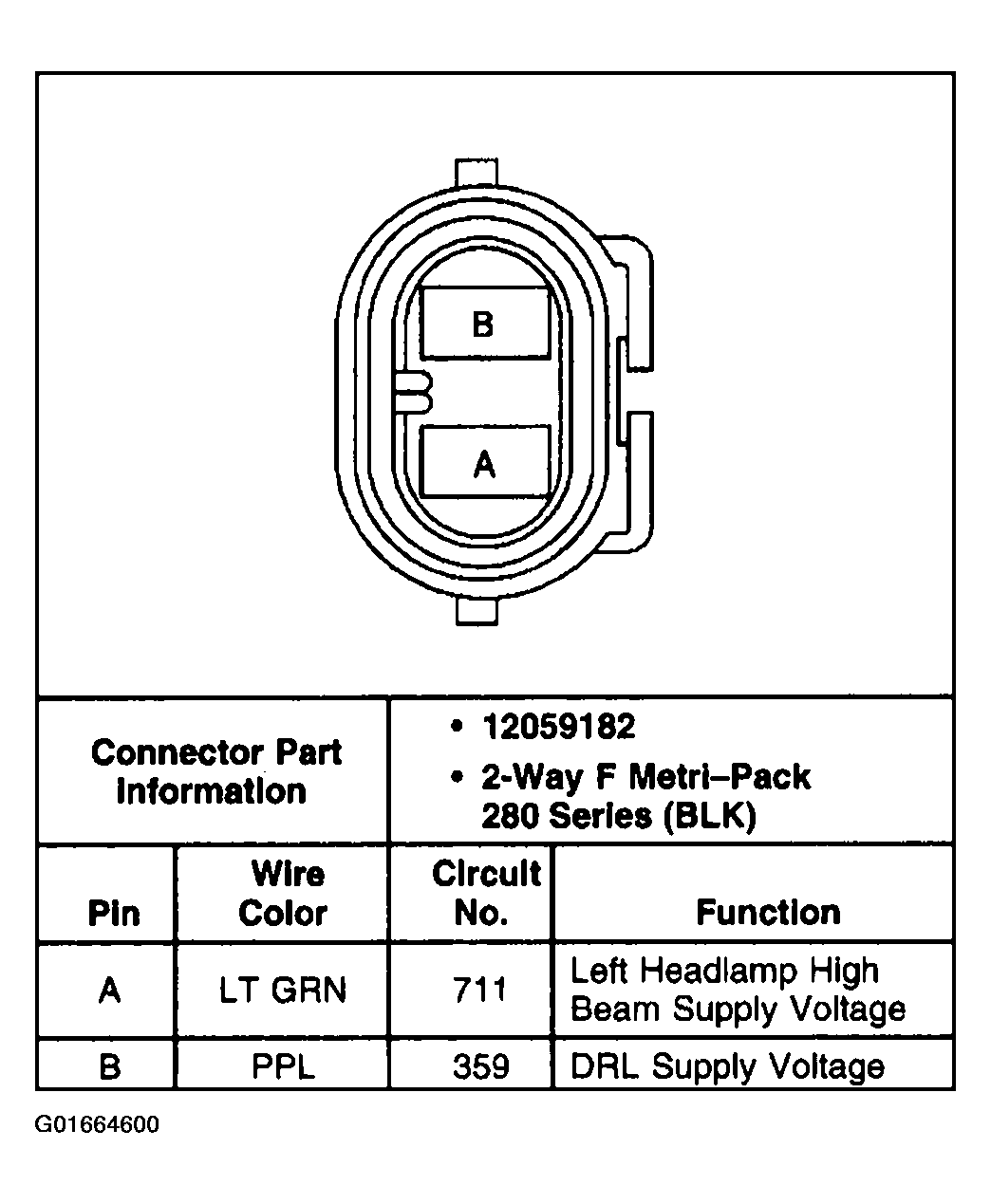

Fig 21: Headlamp - High Beam Connector End View - Left
Courtesy of GENERAL MOTORS CORP.

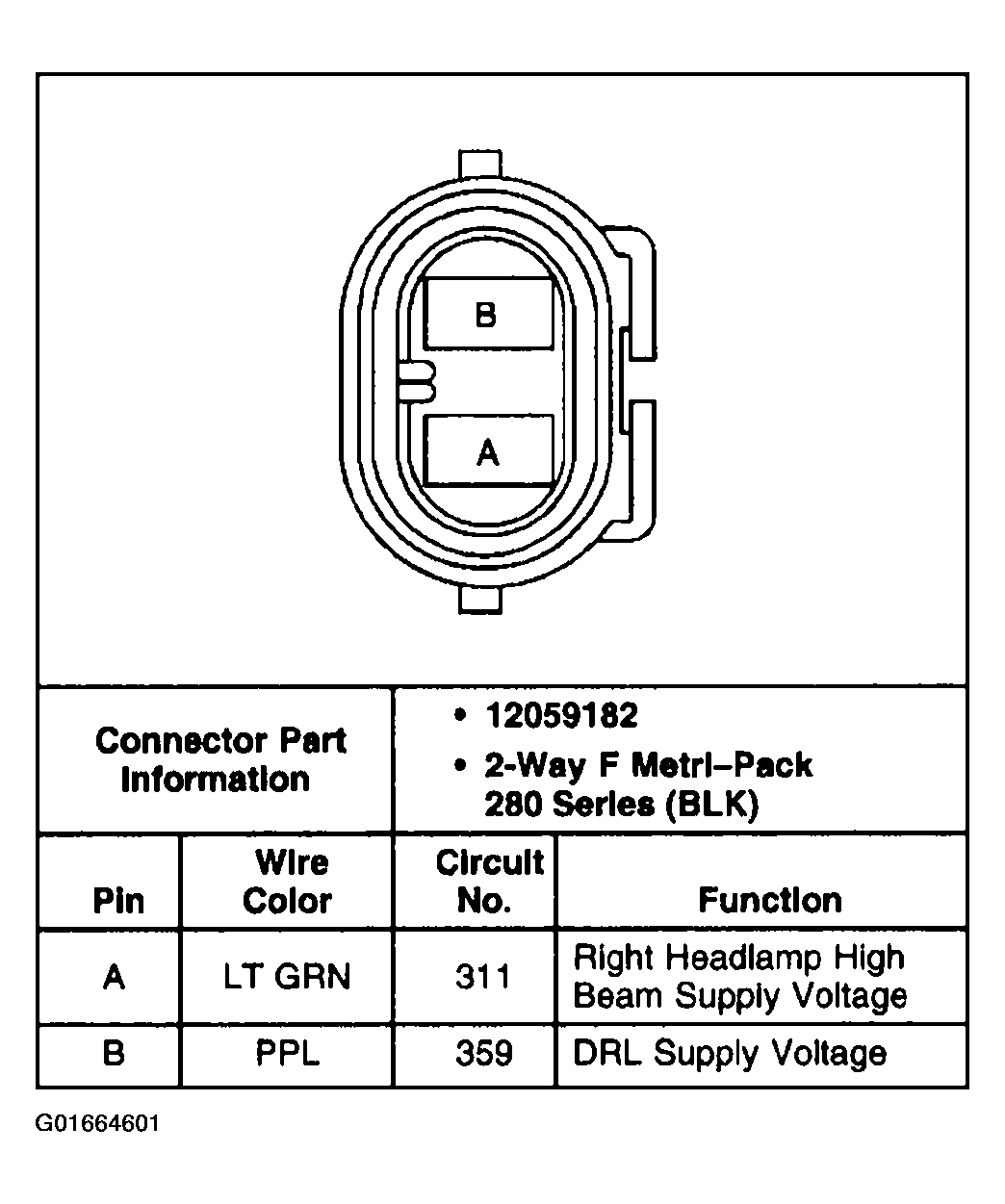

Fig 22: Headlamp - High Beam Connector End View - Right
Courtesy of GENERAL MOTORS CORP.

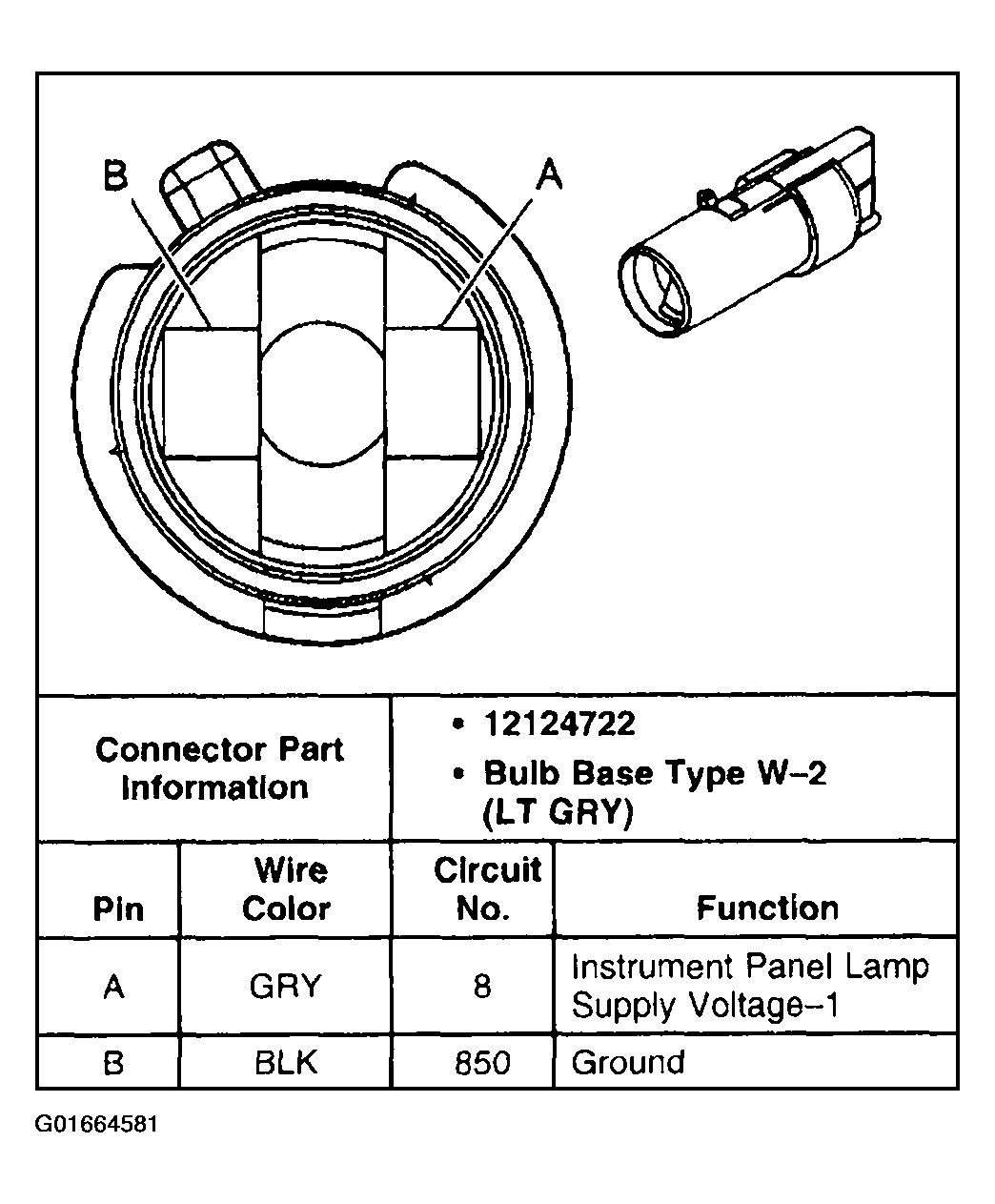

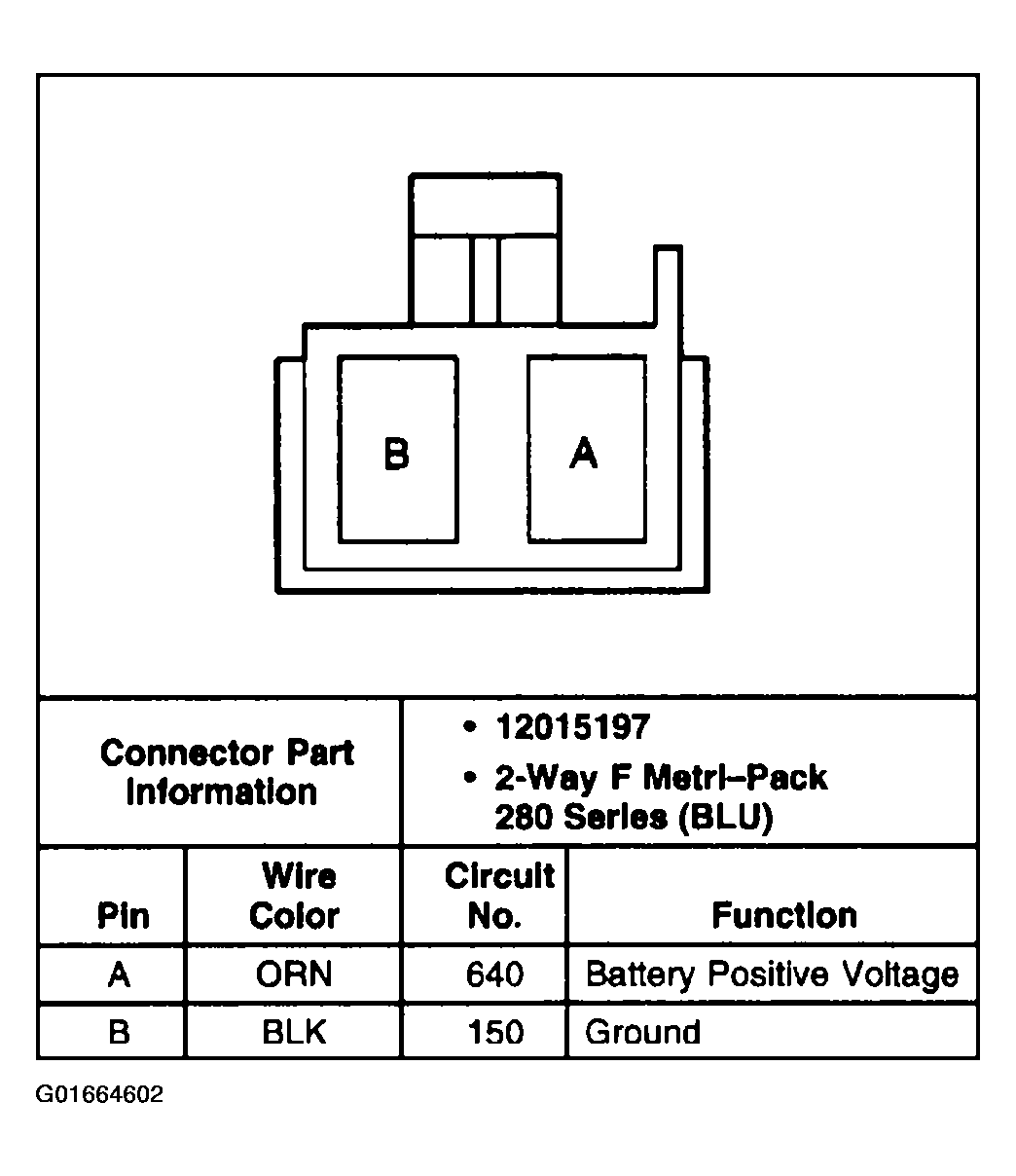

Fig 23: I/P Compartment Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

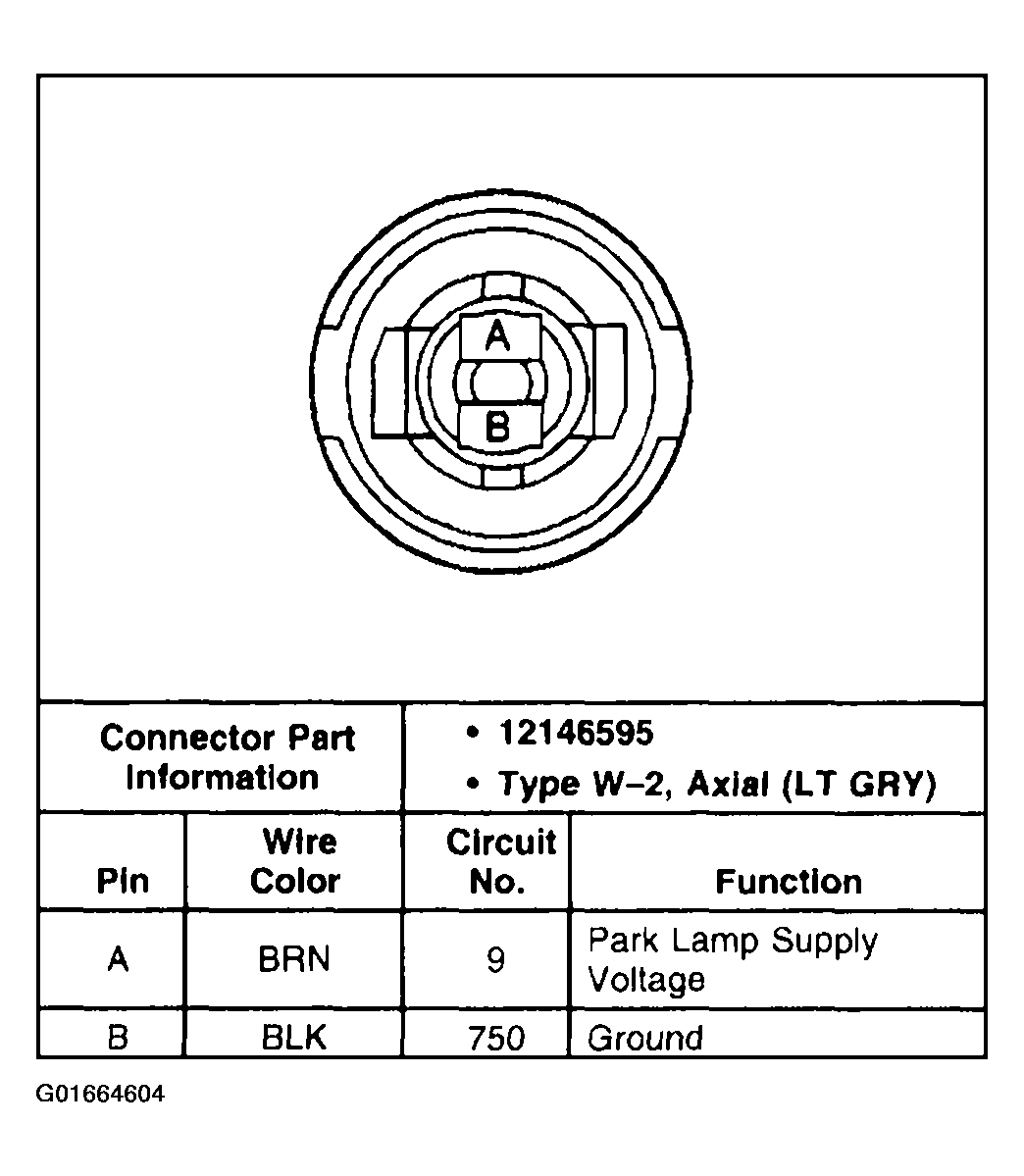

Fig 24: License Lamps Connector End View
Courtesy of GENERAL MOTORS CORP.

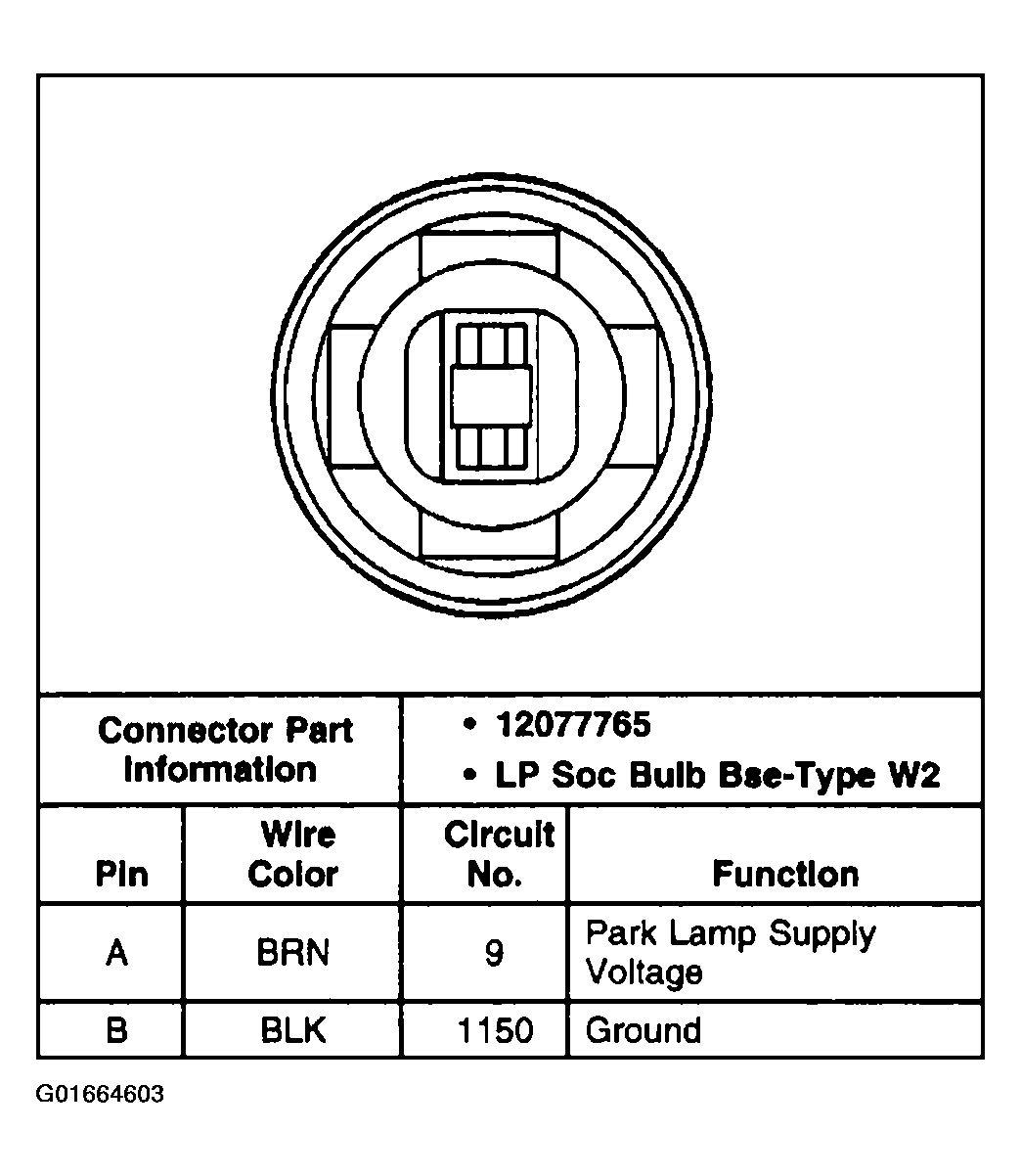

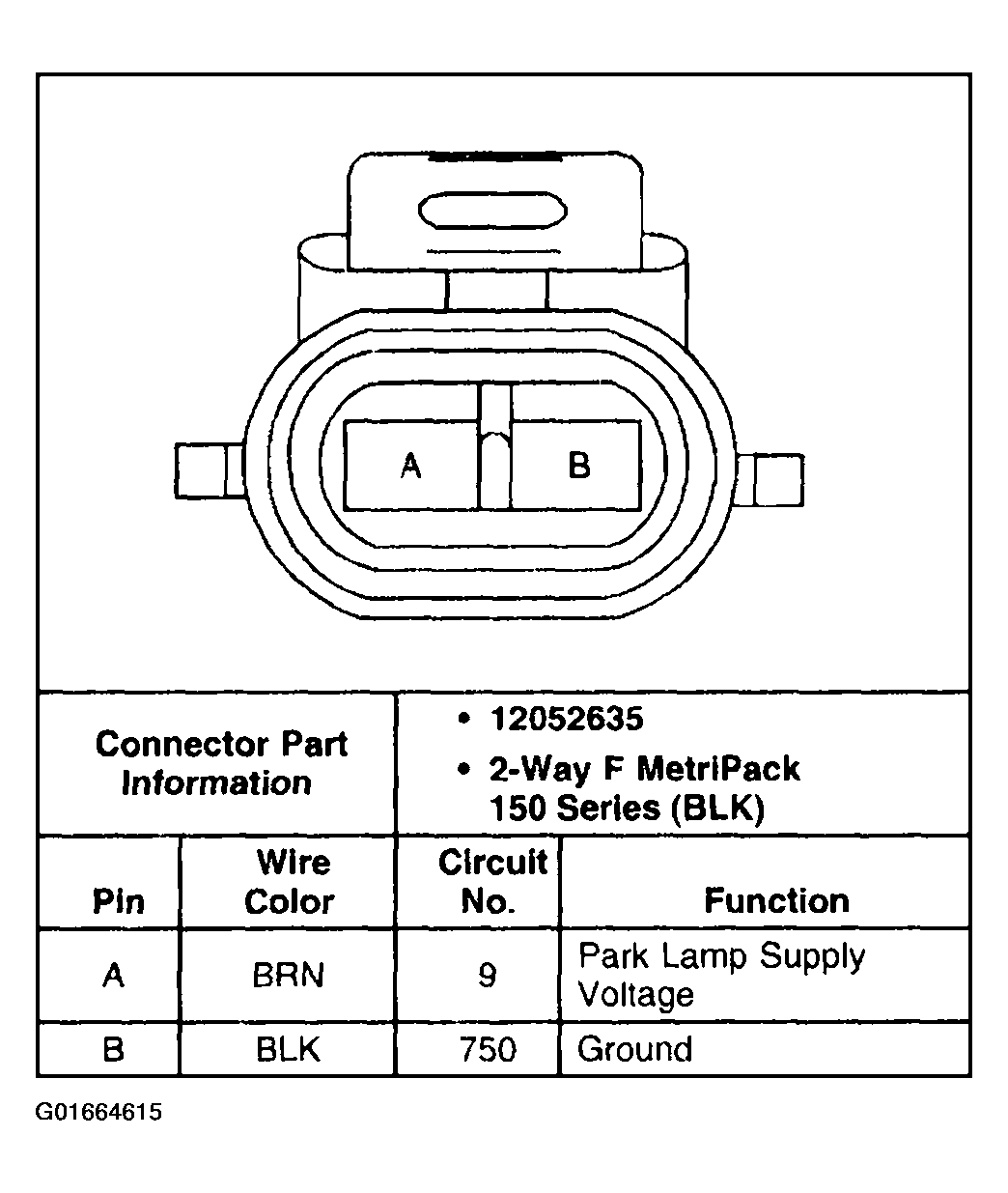

Fig 25: Marker Lamps Connector End View - Front
Courtesy of GENERAL MOTORS CORP.
Fig 26: Marker Lamps Connector End View - Rear
Courtesy of GENERAL MOTORS CORP.

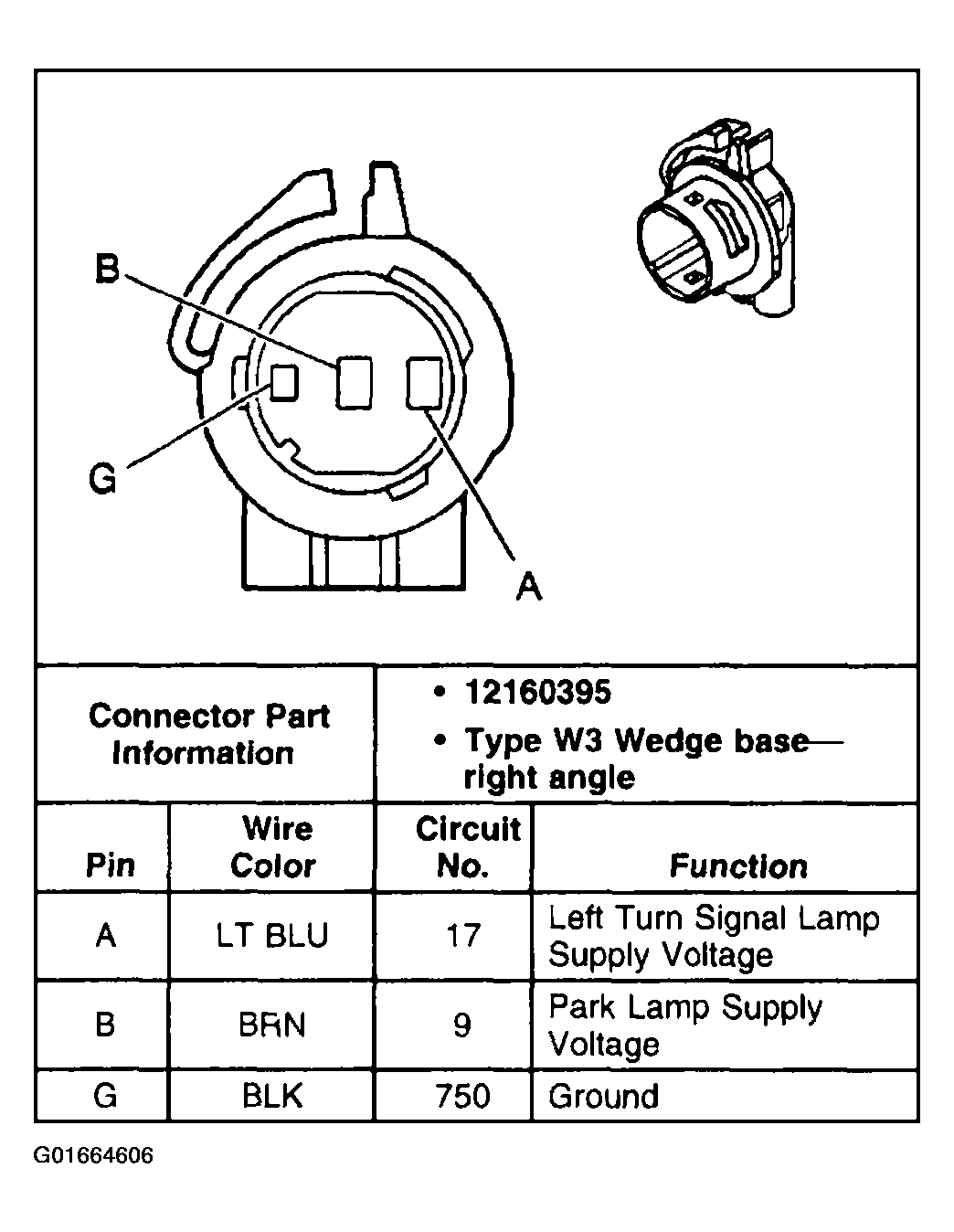

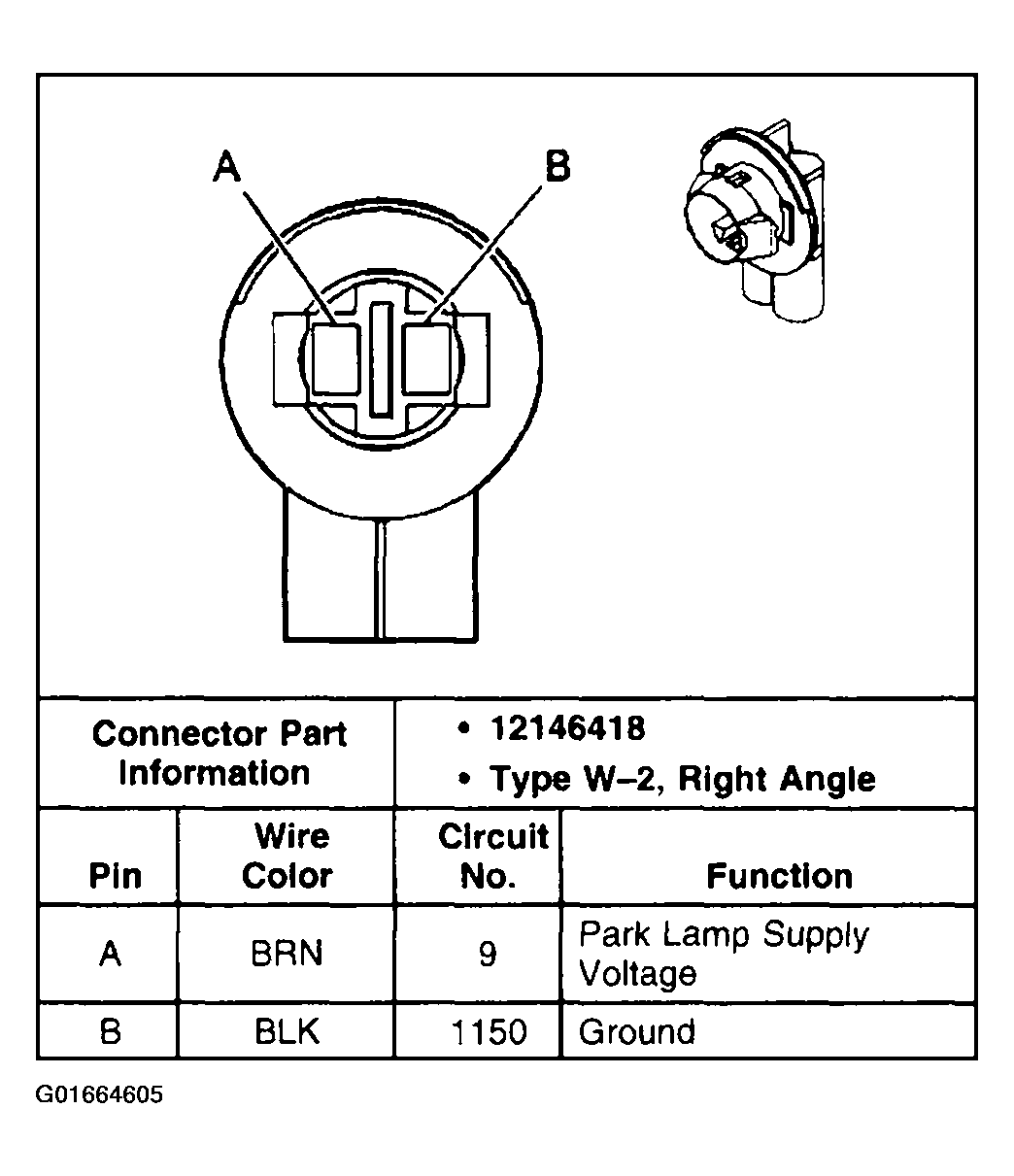

Fig 27: Park/Turn Signal Lamps Connector End View - LF
Courtesy of GENERAL MOTORS CORP.

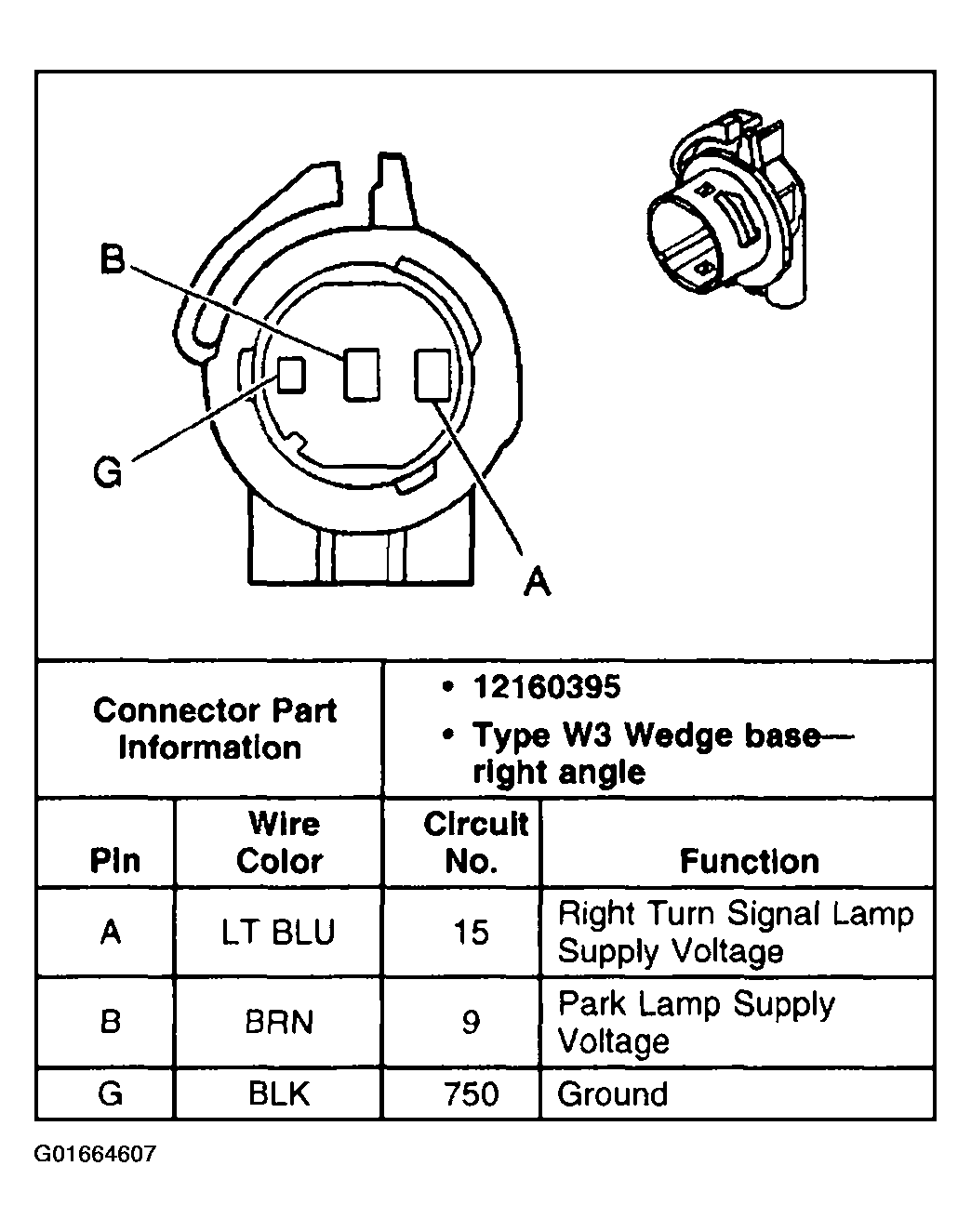

Fig 28: Park/Turn Signal Lamps Connector End View - RF
Courtesy of GENERAL MOTORS CORP.

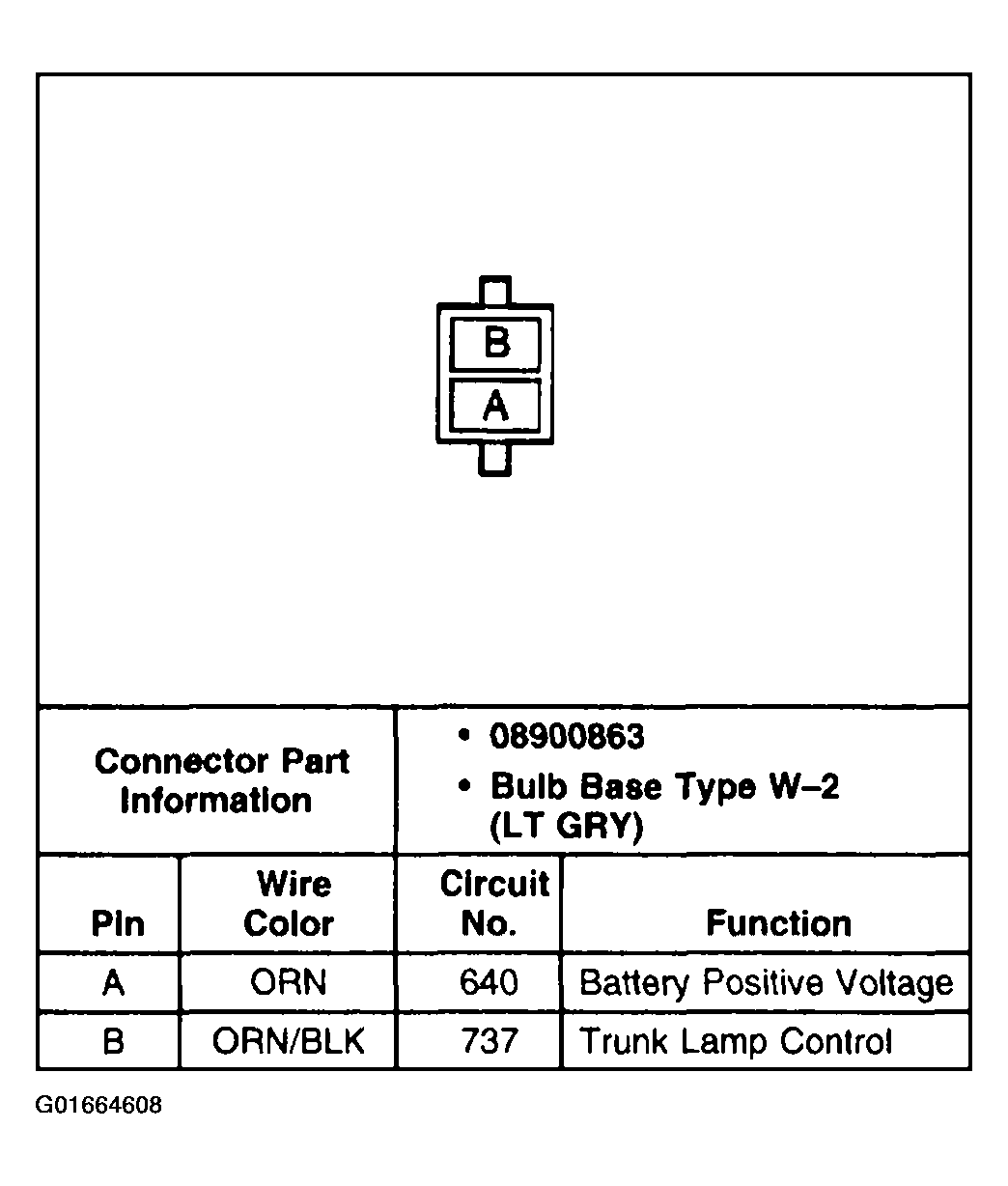

Fig 29: Rear Compartment Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

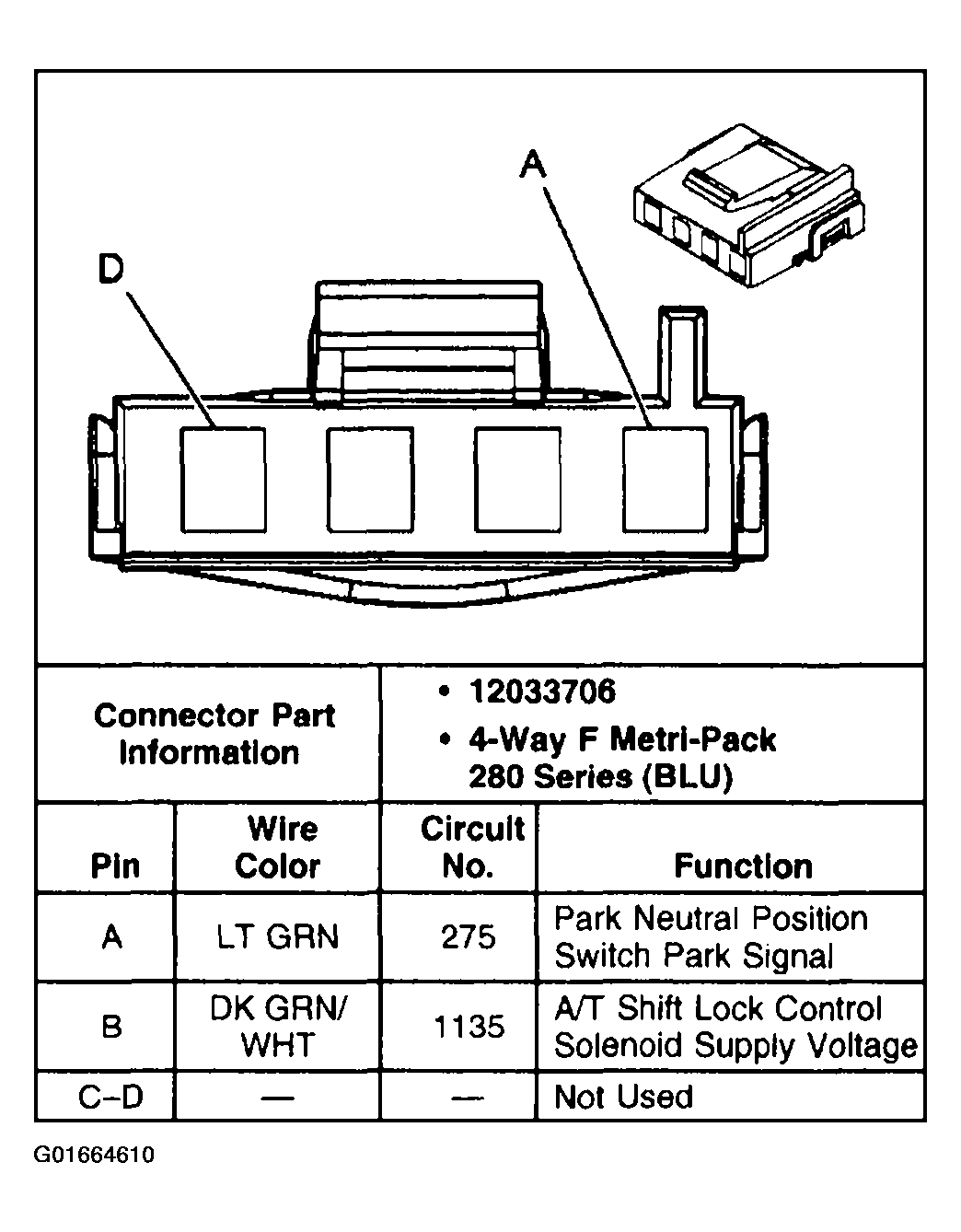

Fig 30: Stoplamp/AT Shift Lock Control Switch Connector End View - C1
Courtesy of GENERAL MOTORS CORP.
Fig 31: Stoplamp/IAT Shift Lock Control Switch Connector End View - C2
Courtesy of GENERAL MOTORS CORP.

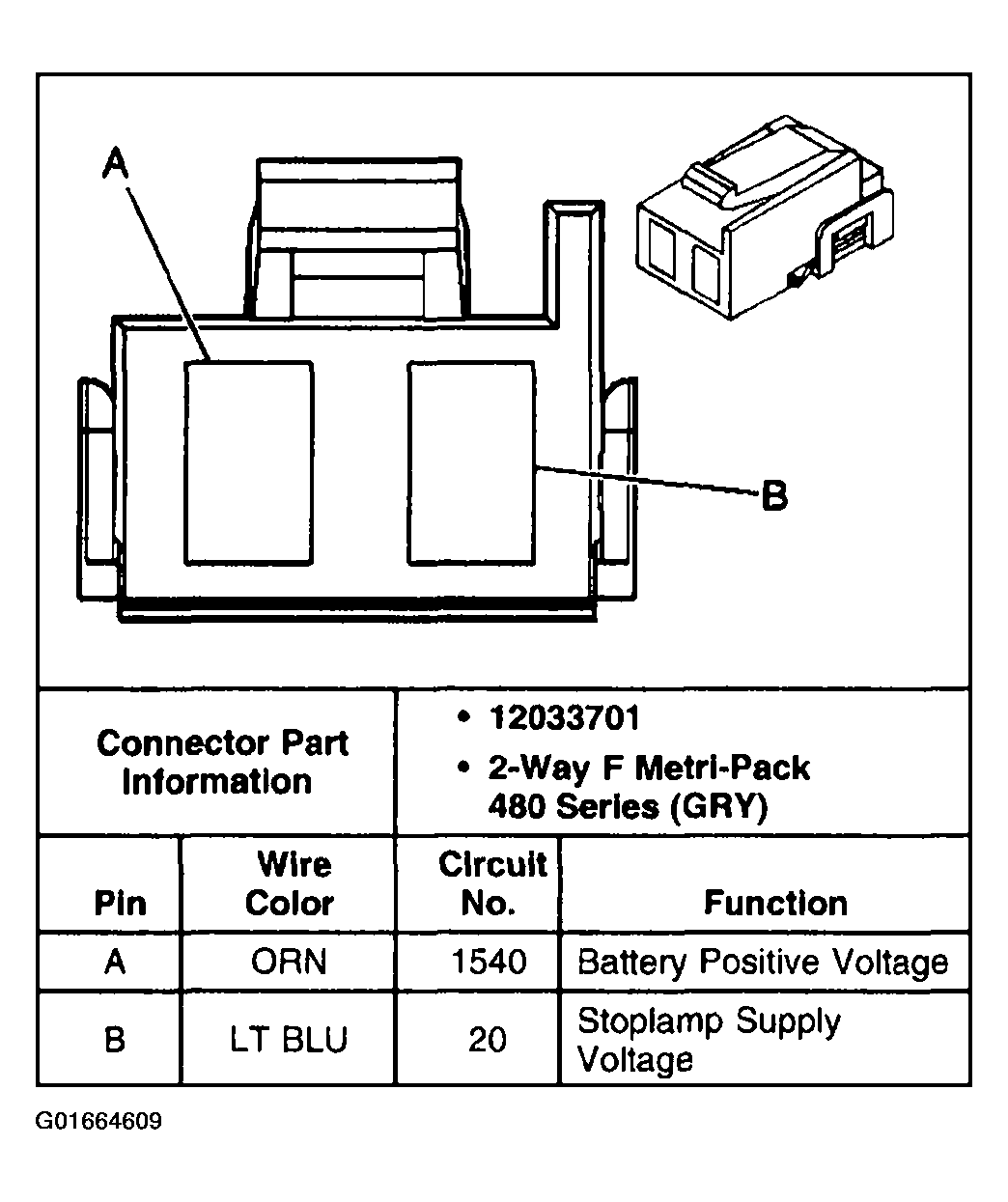

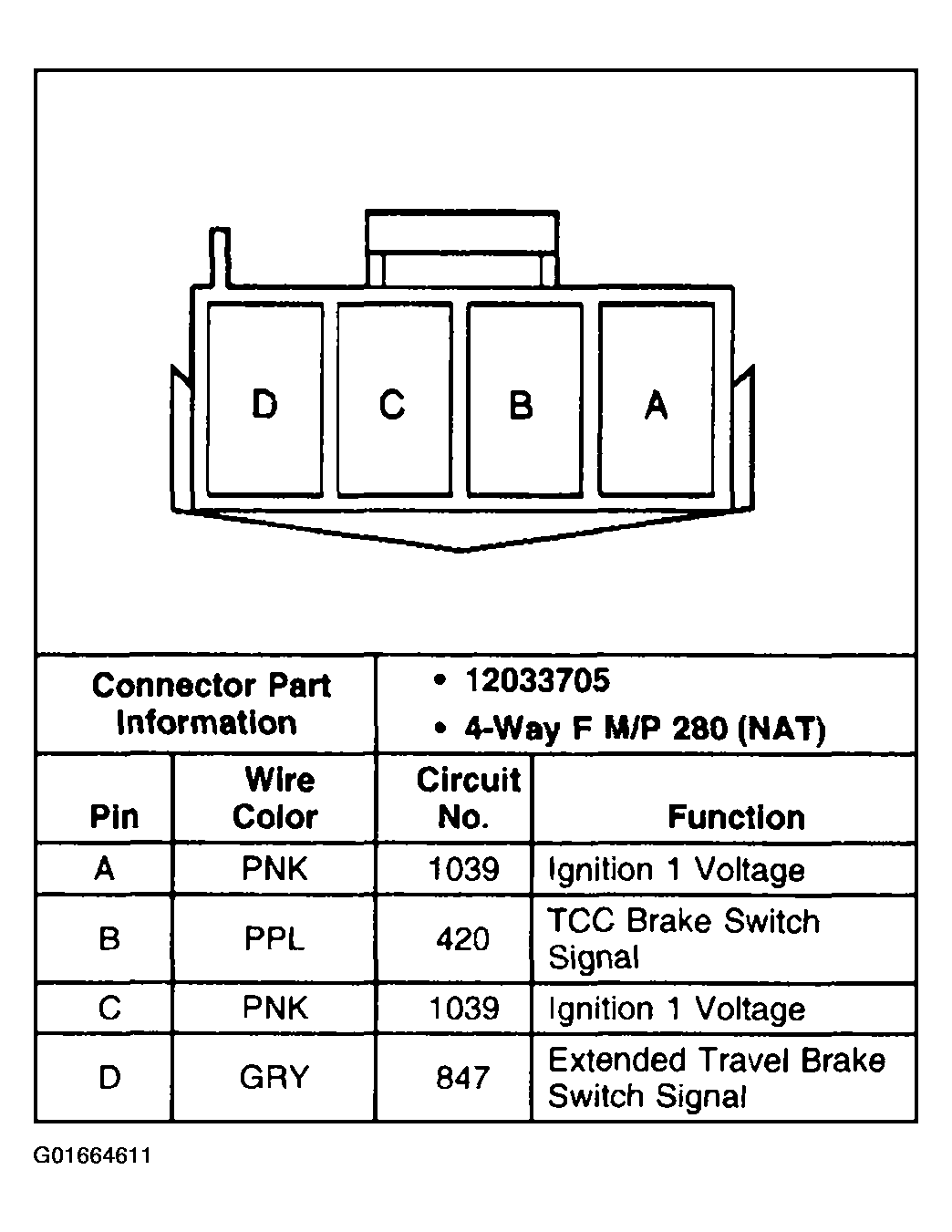

Fig 32: Stoplamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 33: Tail/Stop and Turn Signal Lamp Connector End View - Left
Courtesy of GENERAL MOTORS CORP.

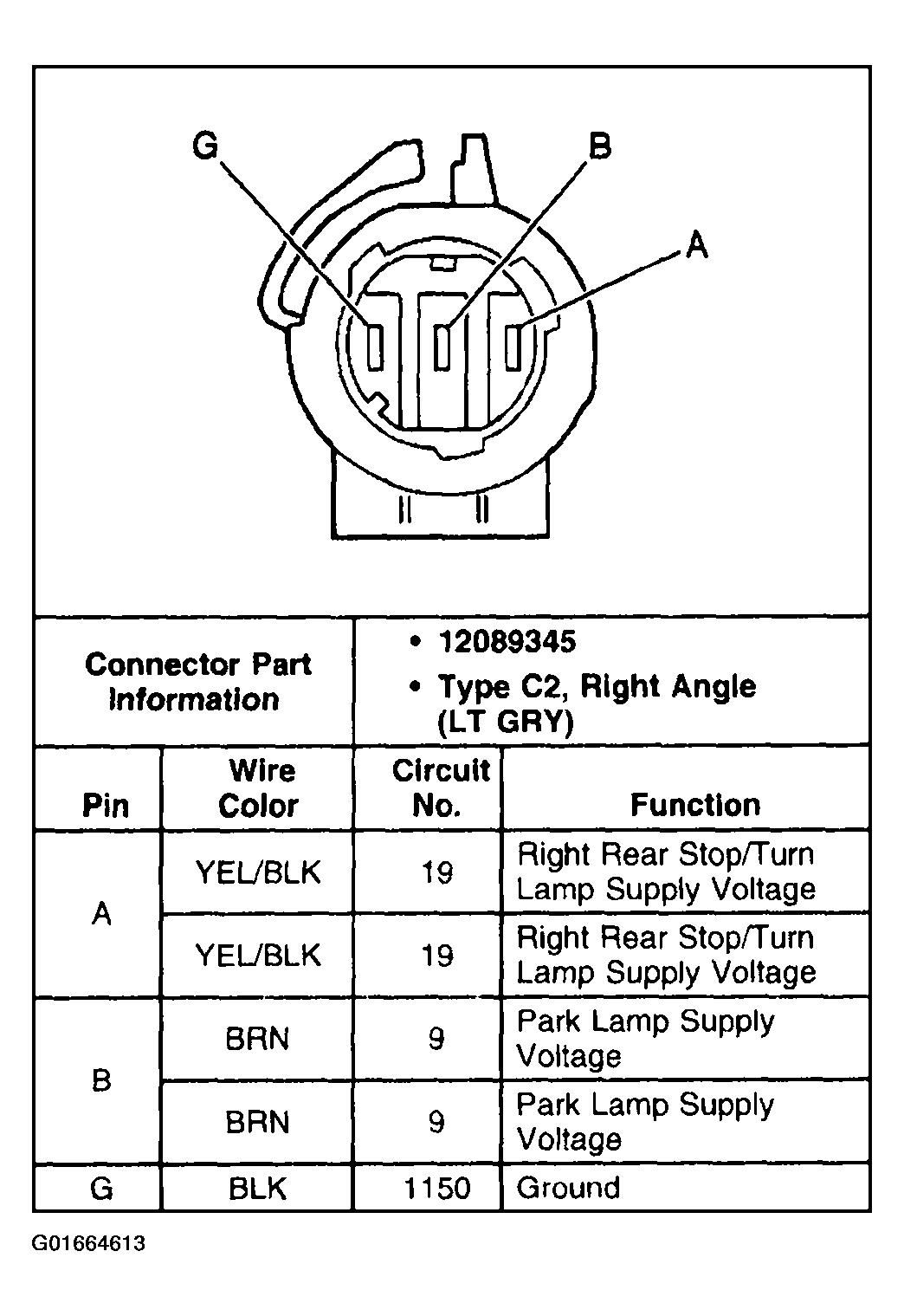

Fig 34: Tail/Stop And Turn Signal Lamp Connector End View - Right
Courtesy of GENERAL MOTORS CORP.
Fig 35: Turn Signal Flasher Module Connector End View
Courtesy of GENERAL MOTORS CORP.

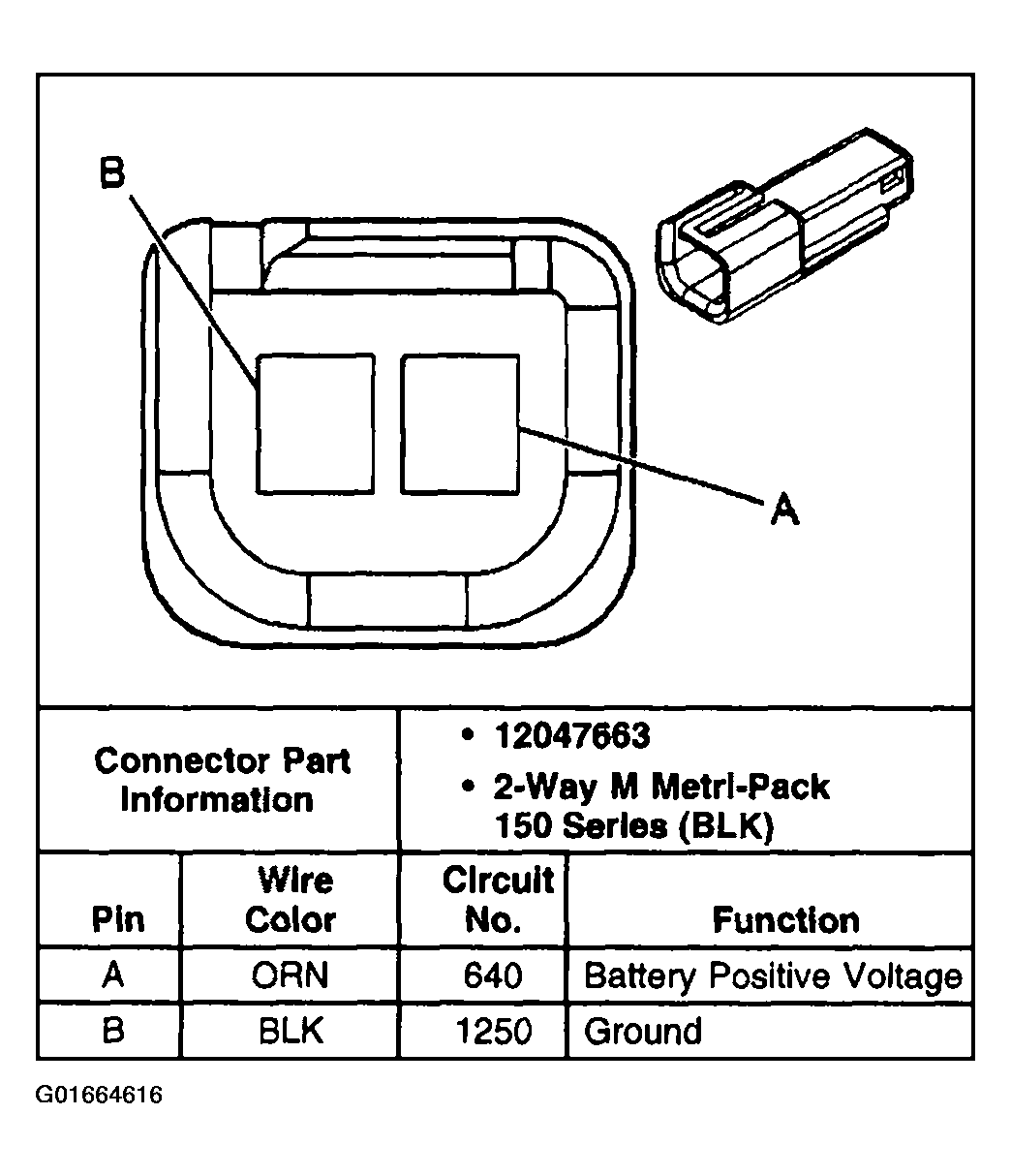

Fig 36: Underhood Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 37: Vanity Mirror Connector End View - Left And Right
