Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
Important: The temperature of the windshield must be 13-38°C (55-100°F) for proper adhesion.
- Remove the protective covering from the optical tape.
Install the sensor on the windshield.
- Firmly push around the entire periphery of the rain sensor to windshield in order to remove any air bubbles from the tape.
- Hold the sensor for 10 to 15 seconds.
- Inspect the sensor for air bubbles between the tape and the windshield.
- Repeat the previous steps, if incomplete adhesion or air bubbles are present.

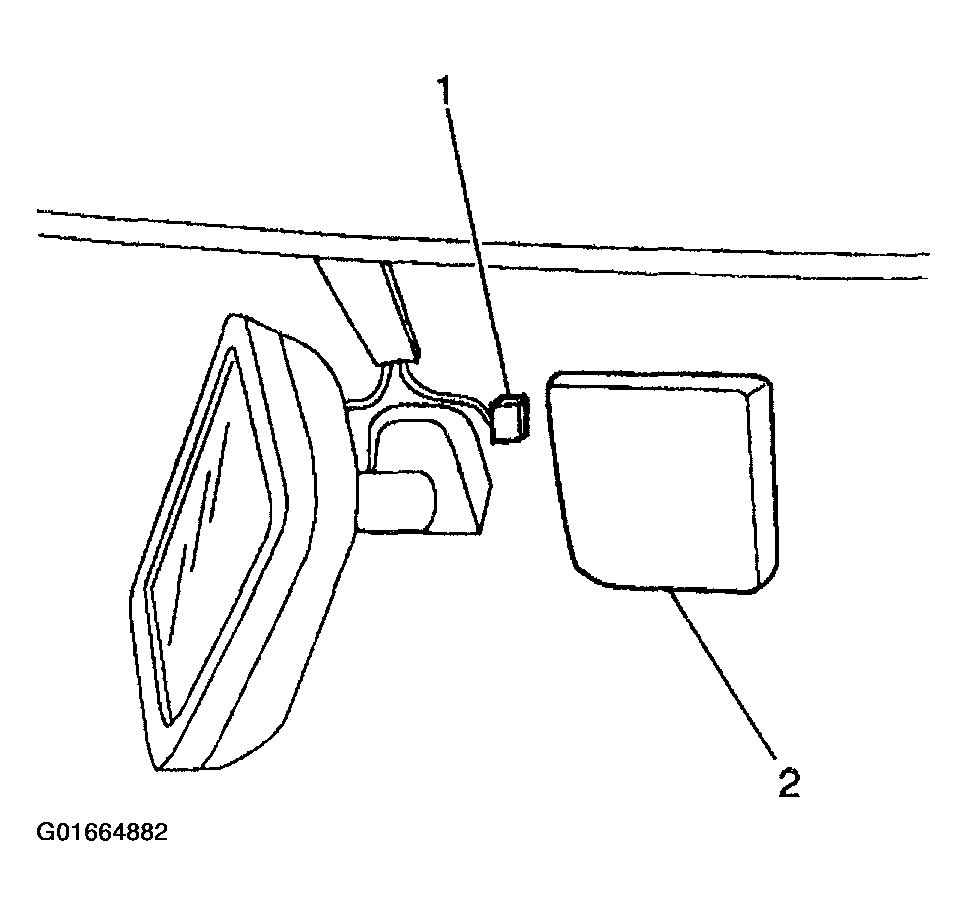

- Attach the rain sensor (2) to the windshield.
Important: Do not move or shift the sensor on the windshield after installation.
- Connect the electrical connector (1) to the sensor (2).
- Remove the tape (1) from the windshield.
- Inspect the operation of the rain sensing wiper system for proper operation.
