Power Seat Systems Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

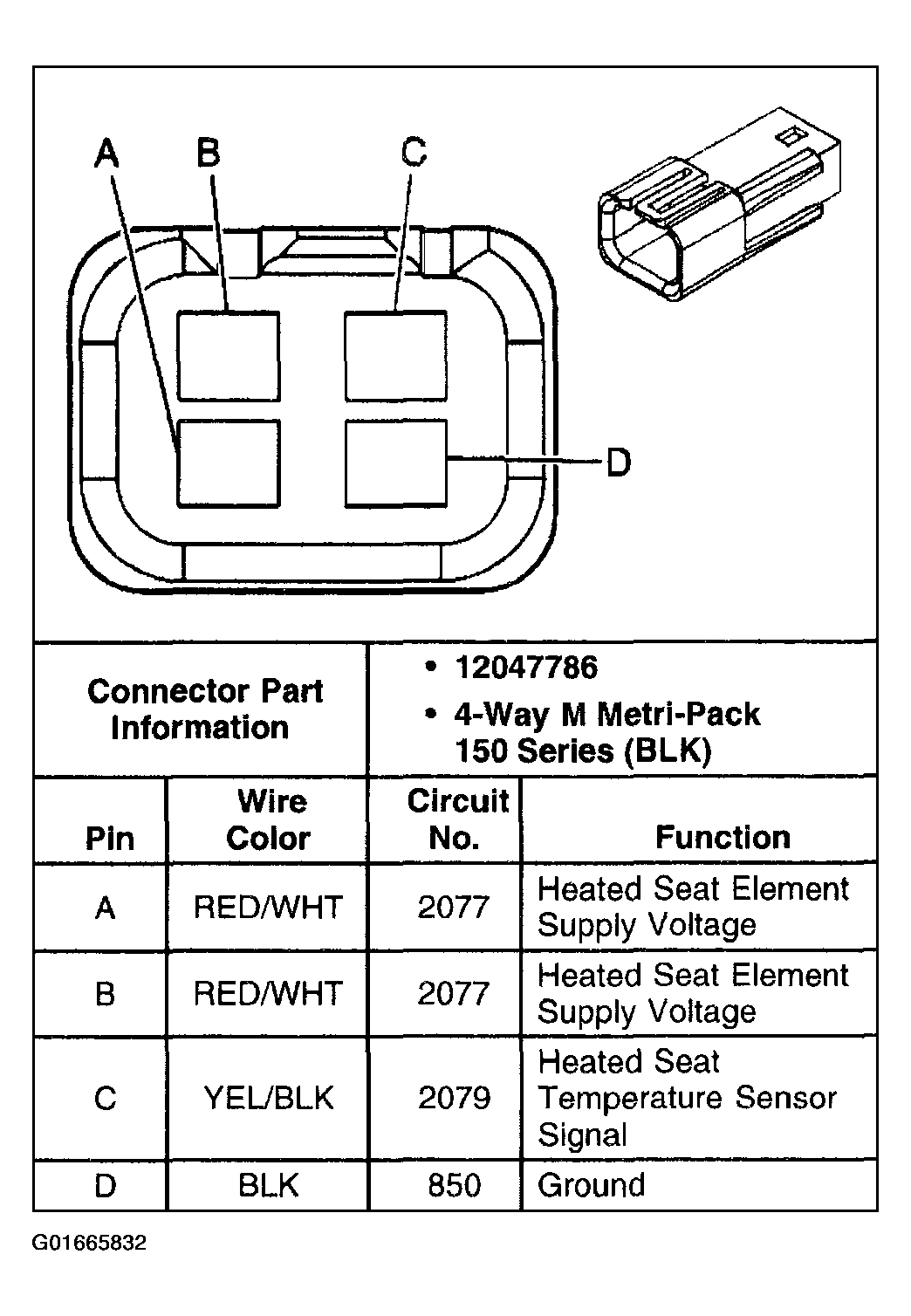

Fig 1: Heated Seat Cushion Element C1 Connector End View
G01665832Courtesy of GENERAL MOTORS CORP.

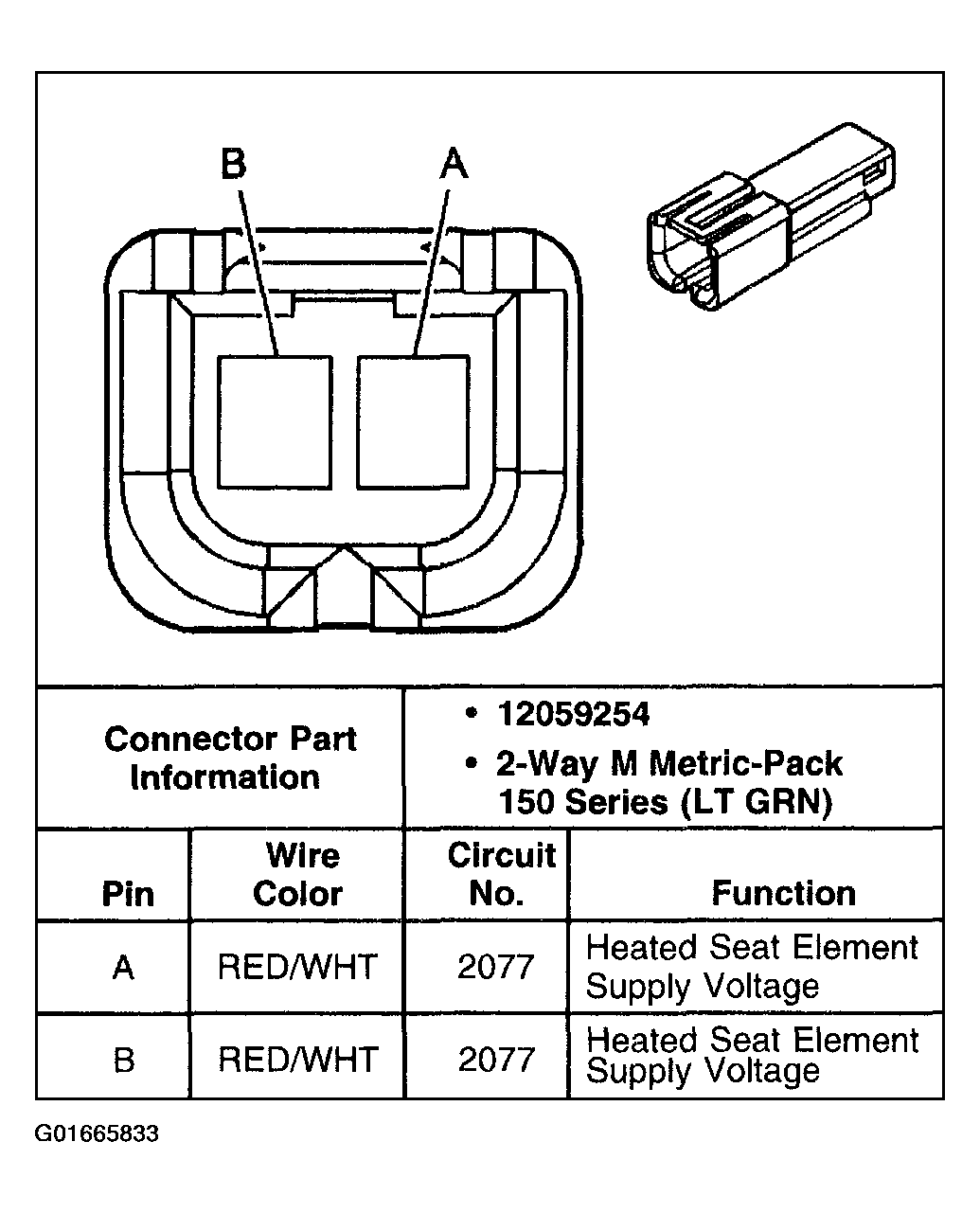

Fig 2: Heated Seat Cushion Element C2 Connector End View
G01665833Courtesy of GENERAL MOTORS CORP.

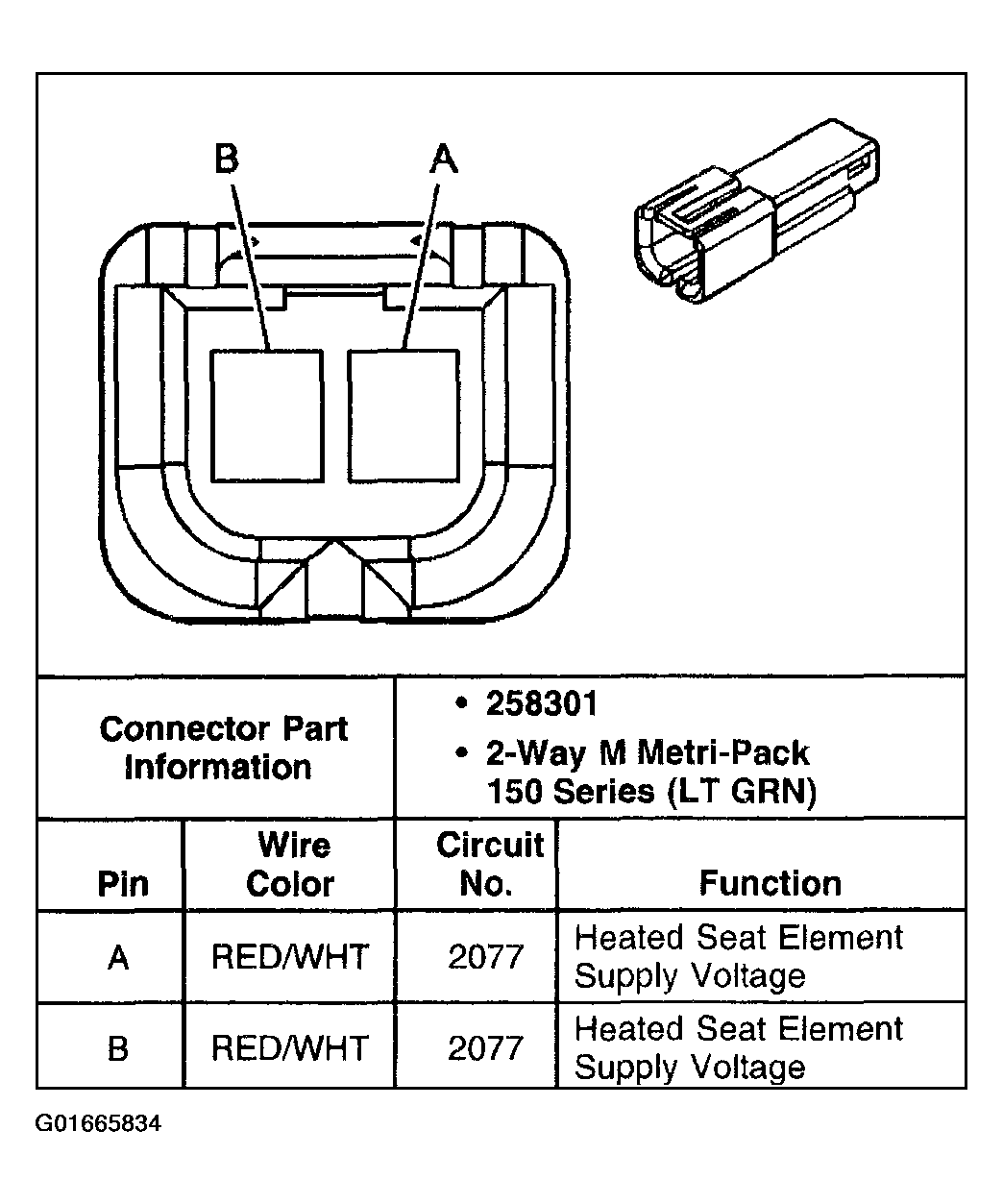

Fig 3: Heated Seat Back Element C3 Connector End View
G01665834Courtesy of GENERAL MOTORS CORP.

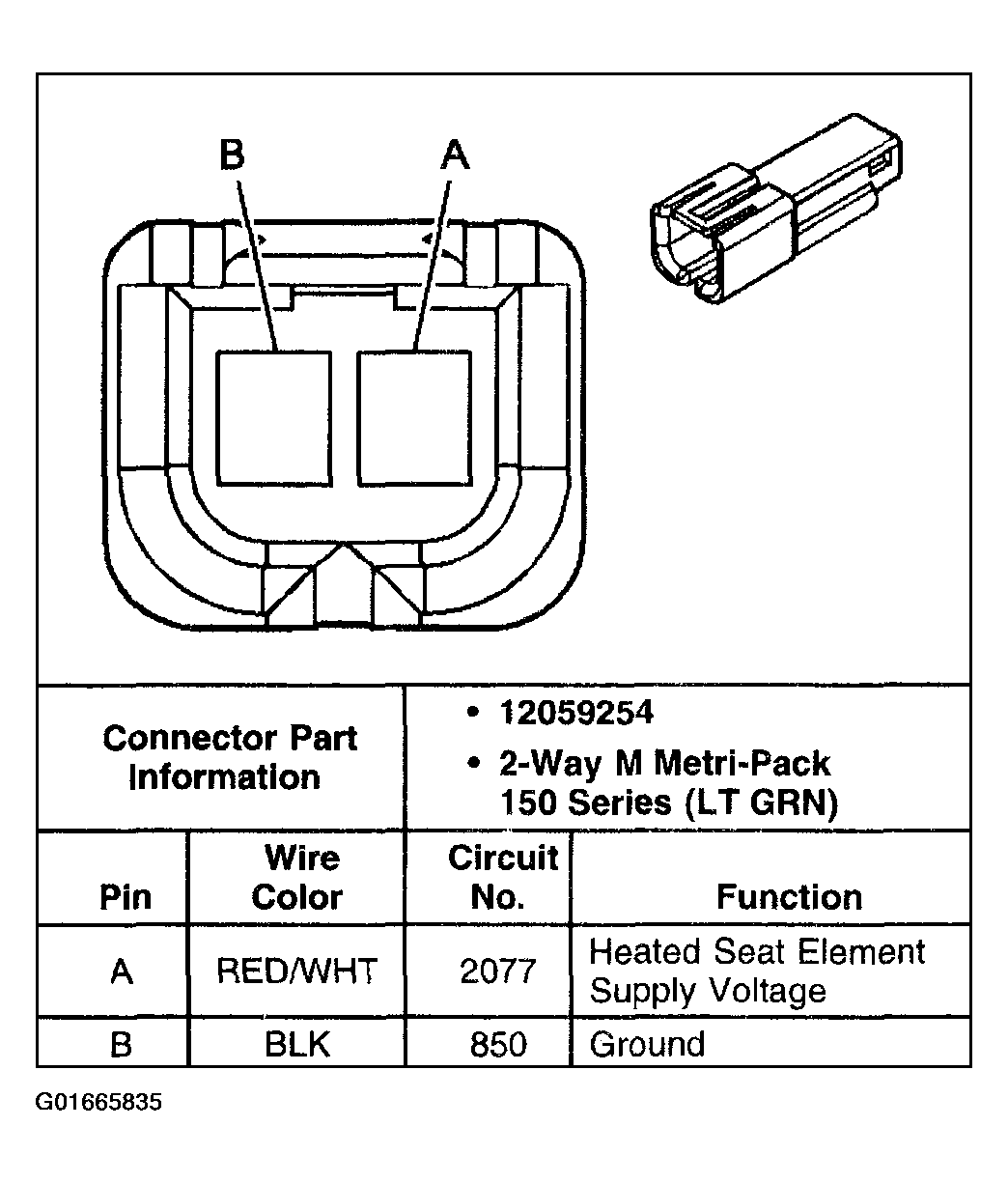

Fig 4: Heated Seat Back Element C4 Connector End View
G01665835Courtesy of GENERAL MOTORS CORP.

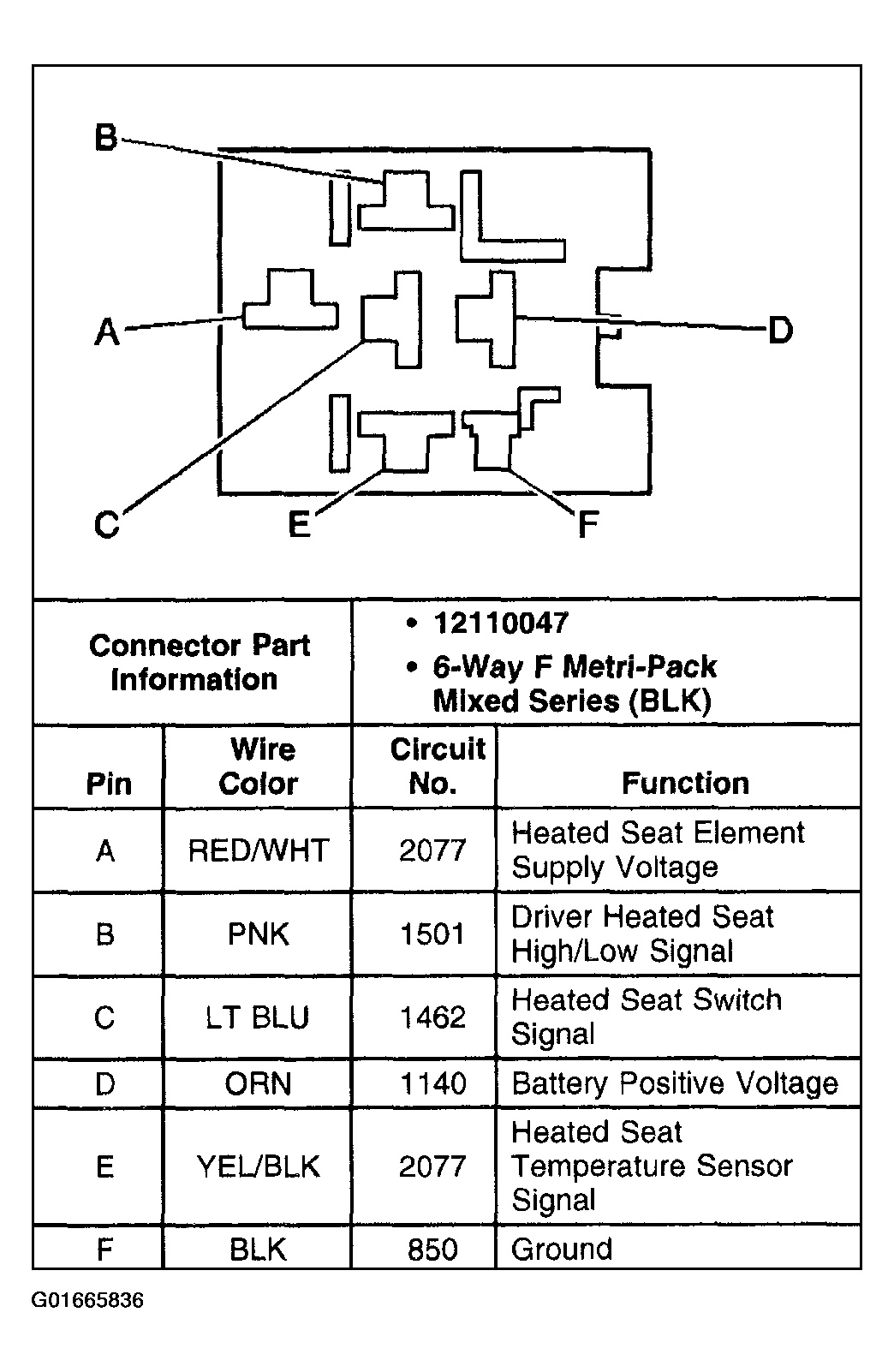

Fig 5: Heated Seat Module - Driver Connector End View
G01665836Courtesy of GENERAL MOTORS CORP.

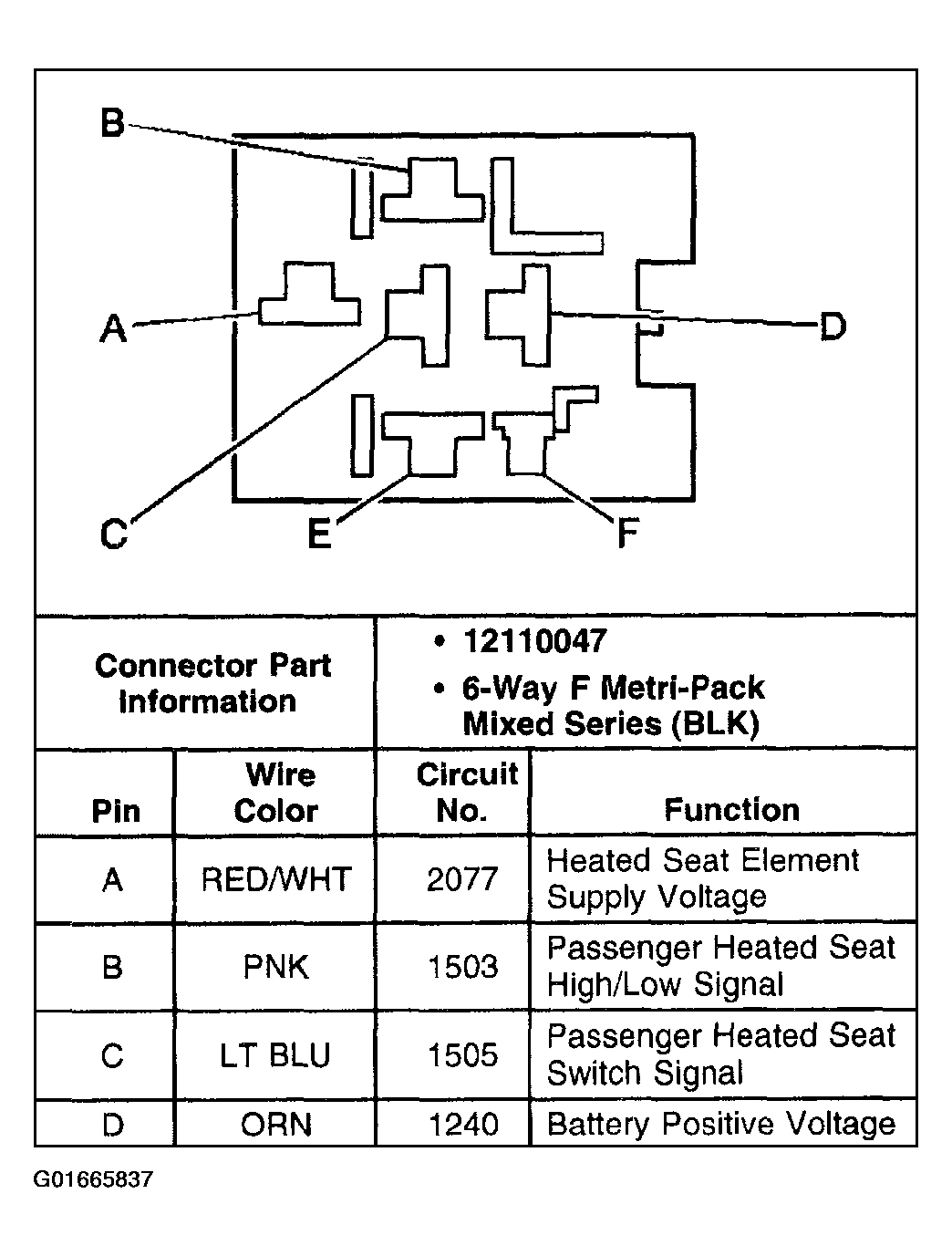

Fig 6: Heated Seat Module - Front Passenger Connector End View (1 Of 2)
G01665837Courtesy of GENERAL MOTORS CORP.

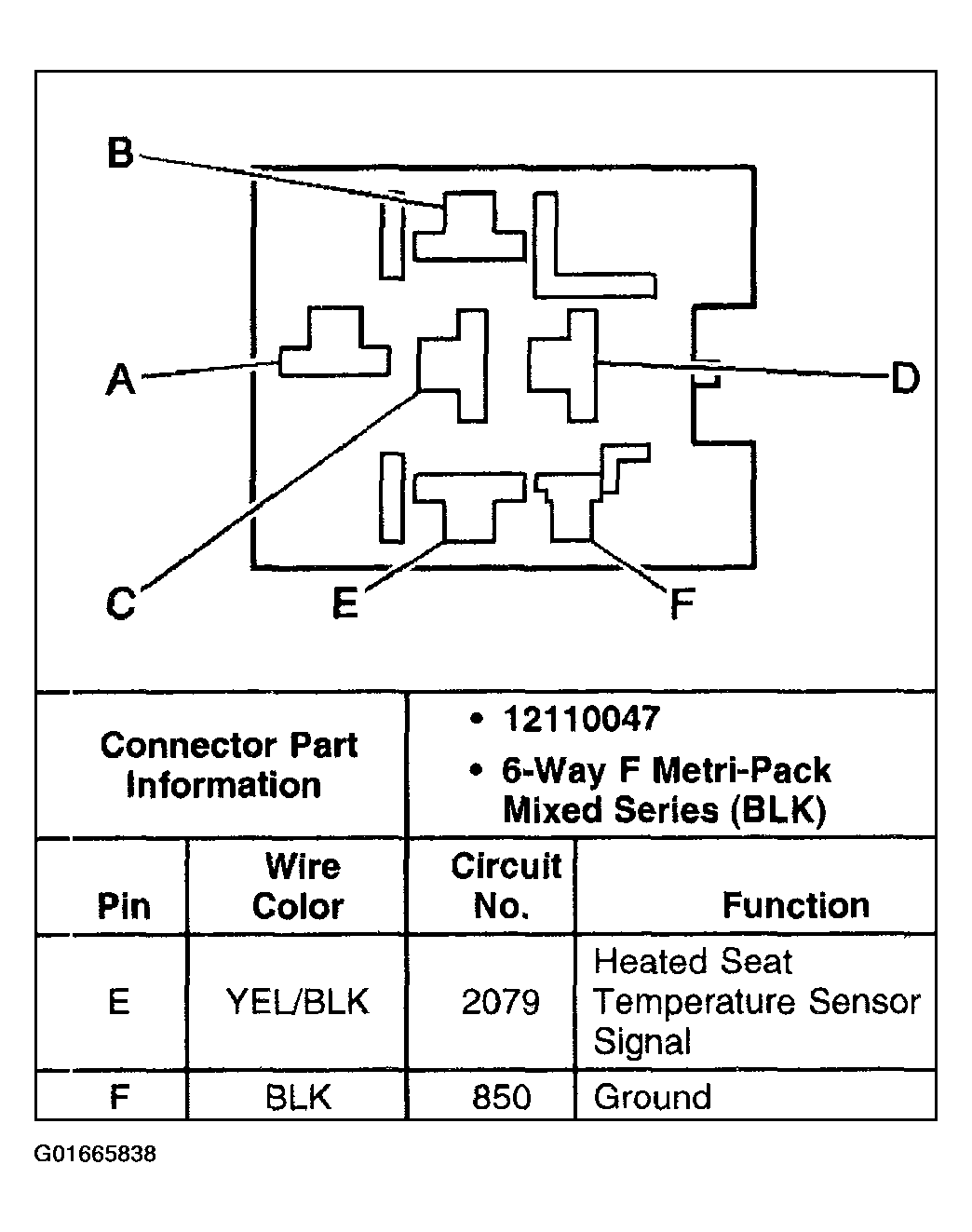

Fig 7: Heated Seat Module - Front Passenger Connector End View (2 Of 2)
G01665838Courtesy of GENERAL MOTORS CORP.

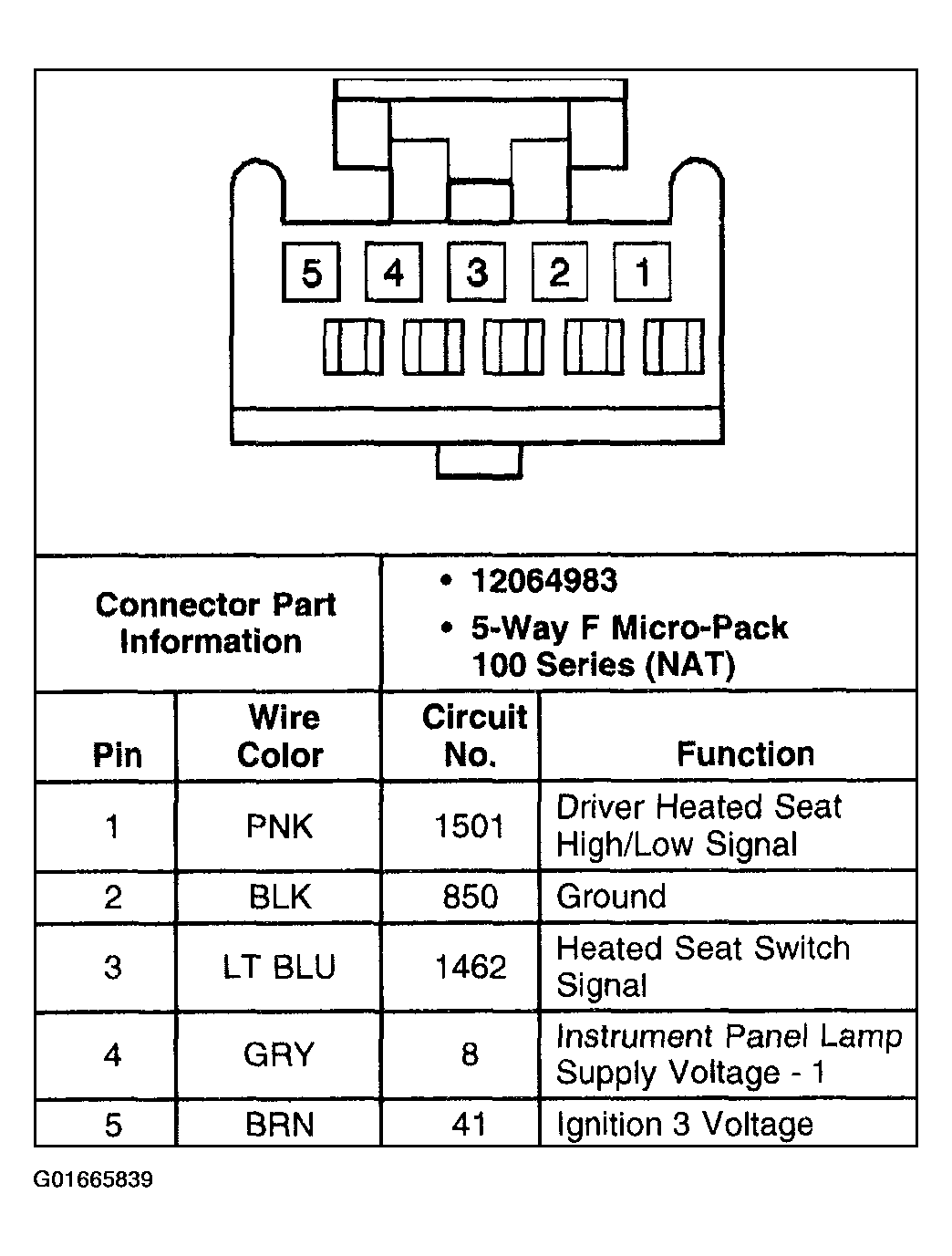

Fig 8: Heated Seat Switch - Driver Connector End View
G01665839Courtesy of GENERAL MOTORS CORP.

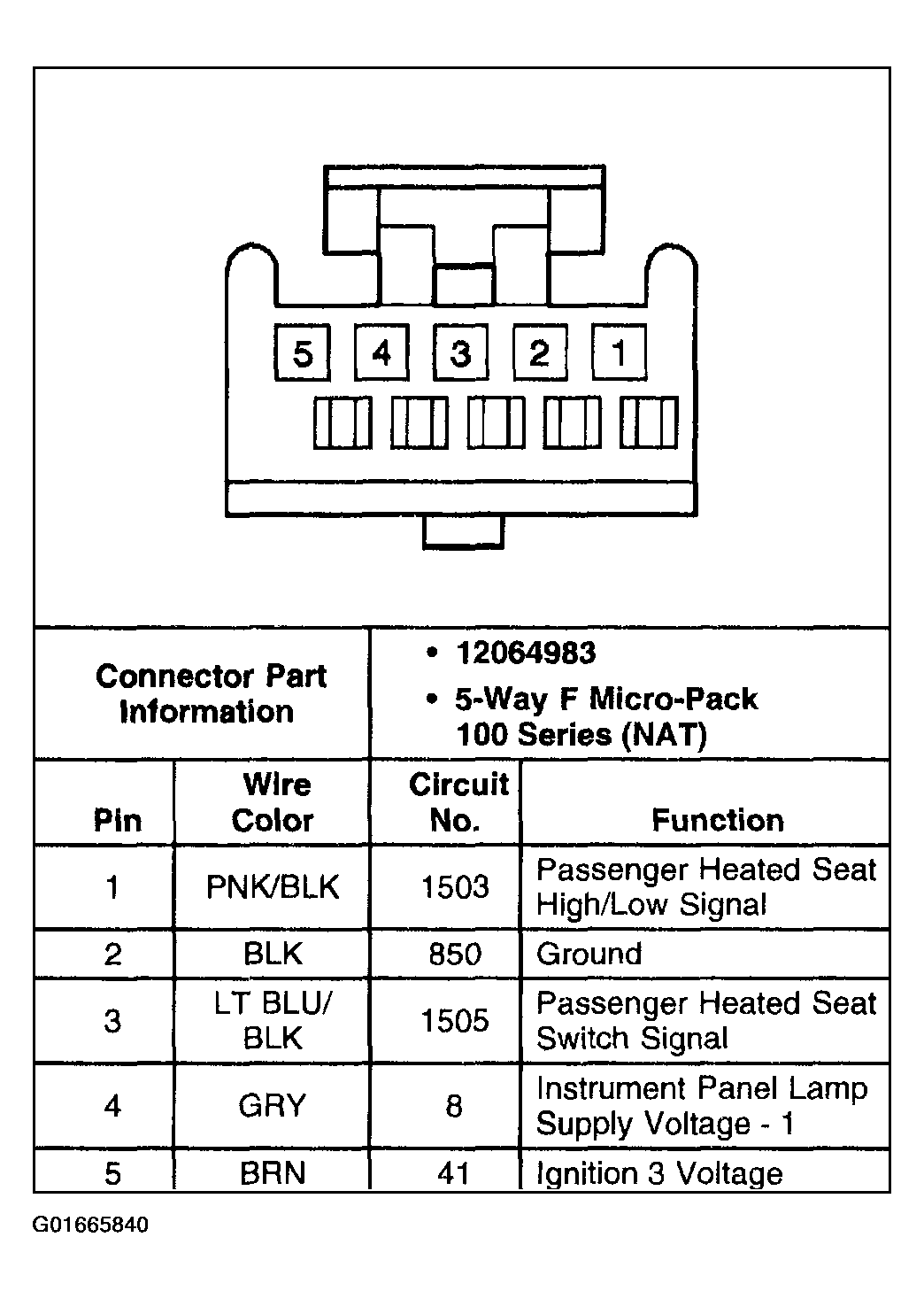

Fig 9: Heated Seat Switch - Front Passenger Connector End View
G01665840Courtesy of GENERAL MOTORS CORP.
Fig 10: Lumbar Horizontal Motor - Driver Connector End View
G01665841Courtesy of GENERAL MOTORS CORP.

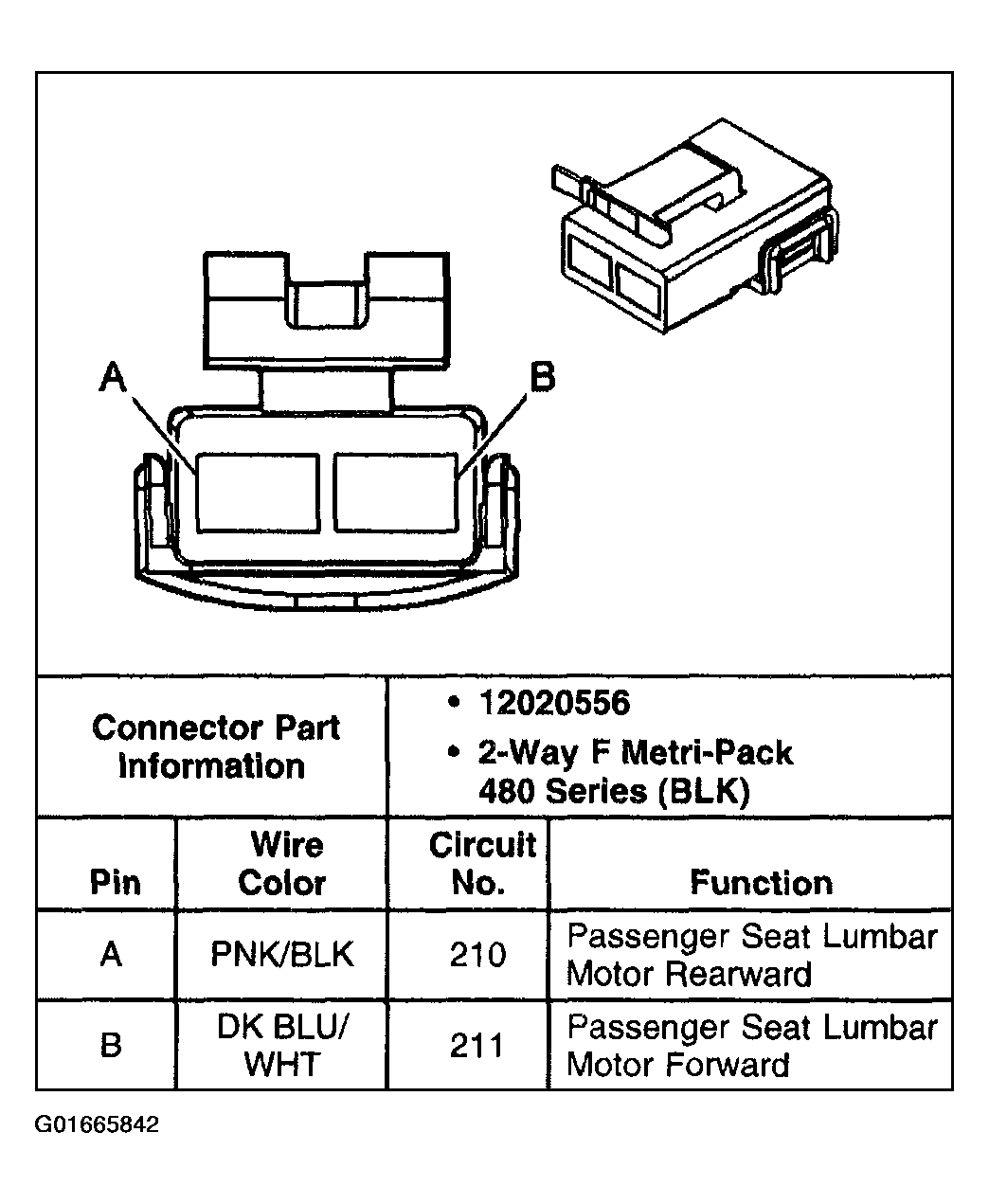

Fig 11: Lumbar Horizontal Motor - Front Passenger Connector End View
G01665842Courtesy of GENERAL MOTORS CORP.

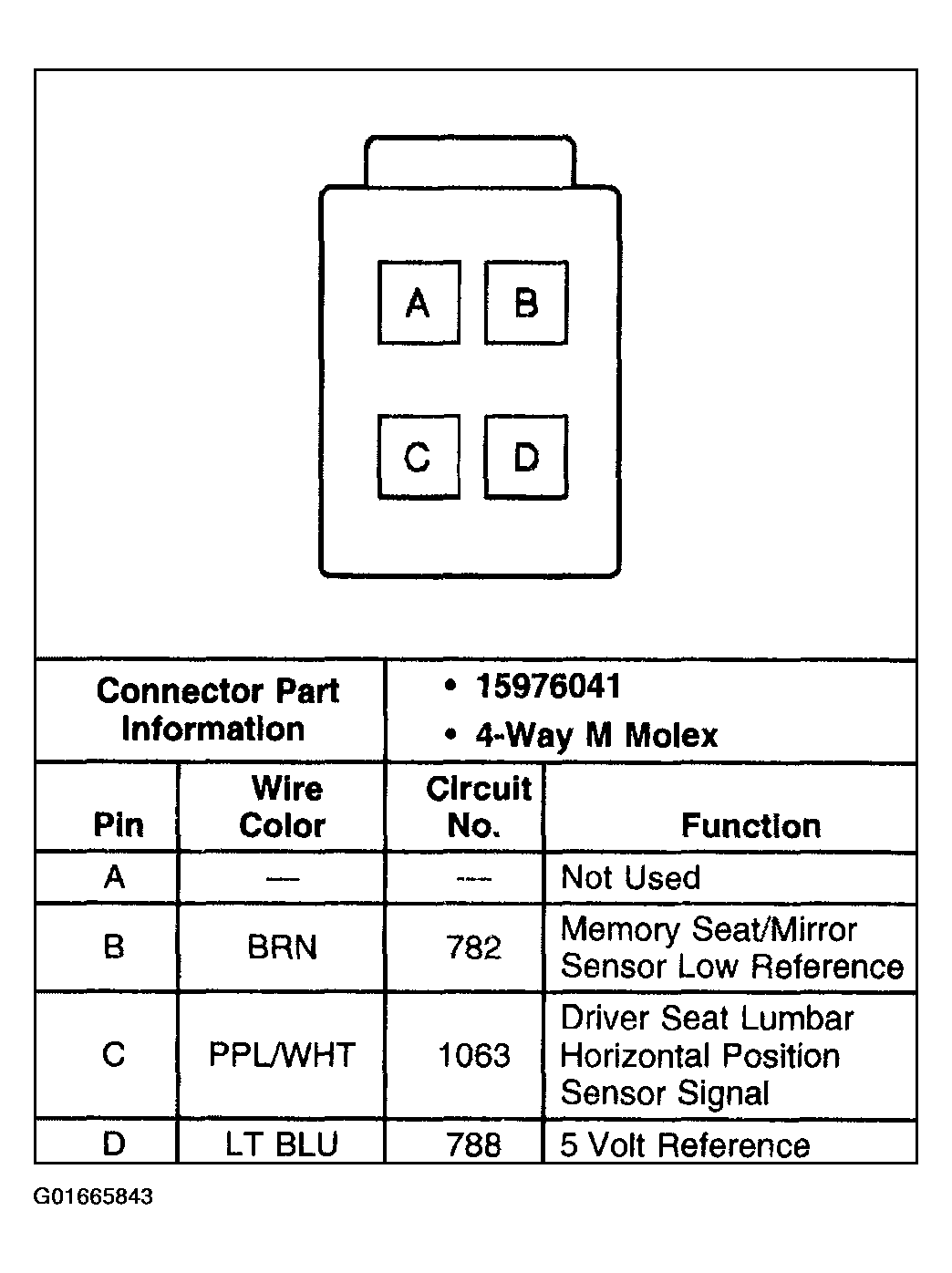

Fig 12: Lumbar Horizontal Position Sensor - Driver Connector End View
G01665843Courtesy of GENERAL MOTORS CORP.

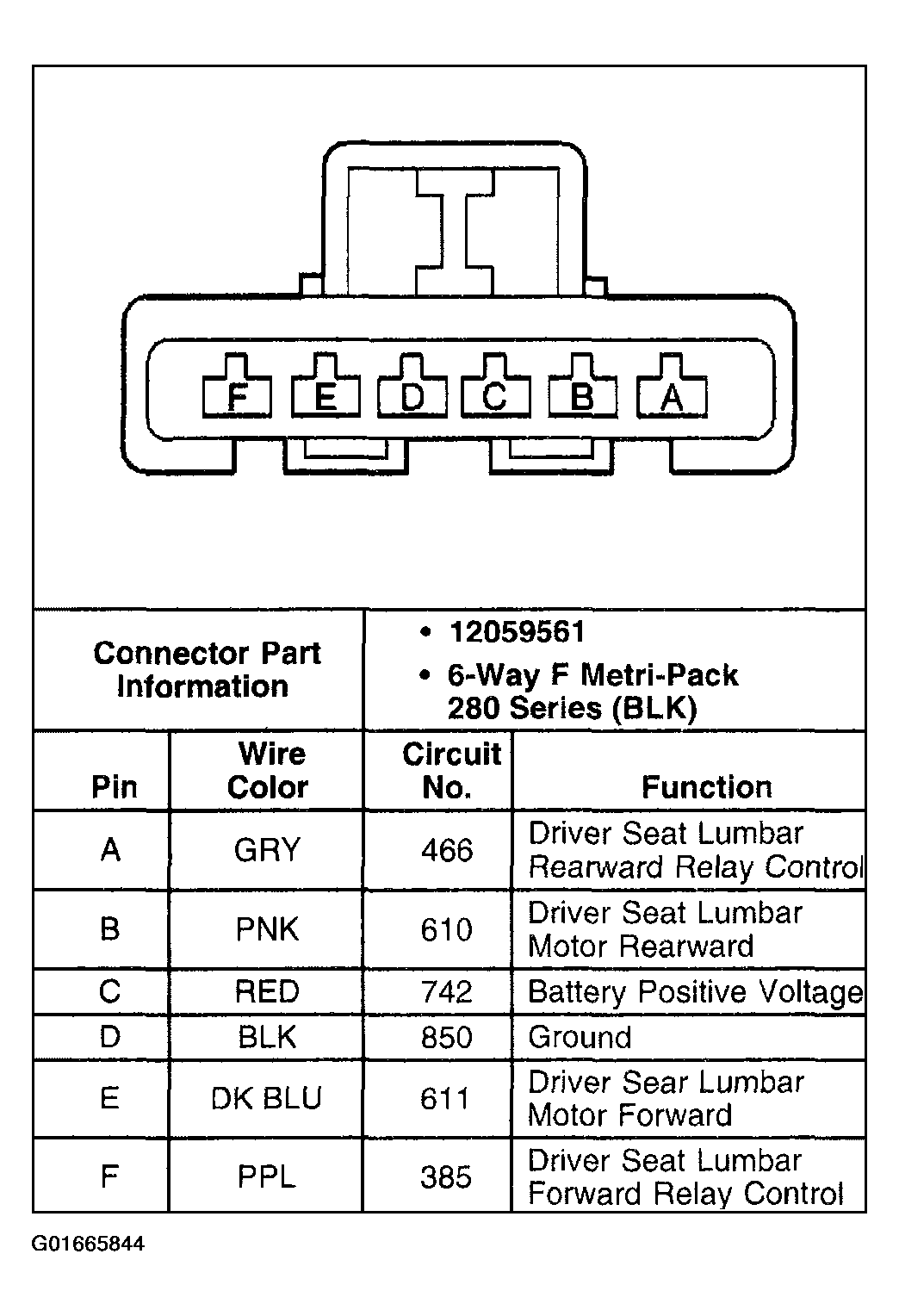

Fig 13: Lumbar Horizontal Relay - Driver Connector End View
G01665844Courtesy of GENERAL MOTORS CORP.

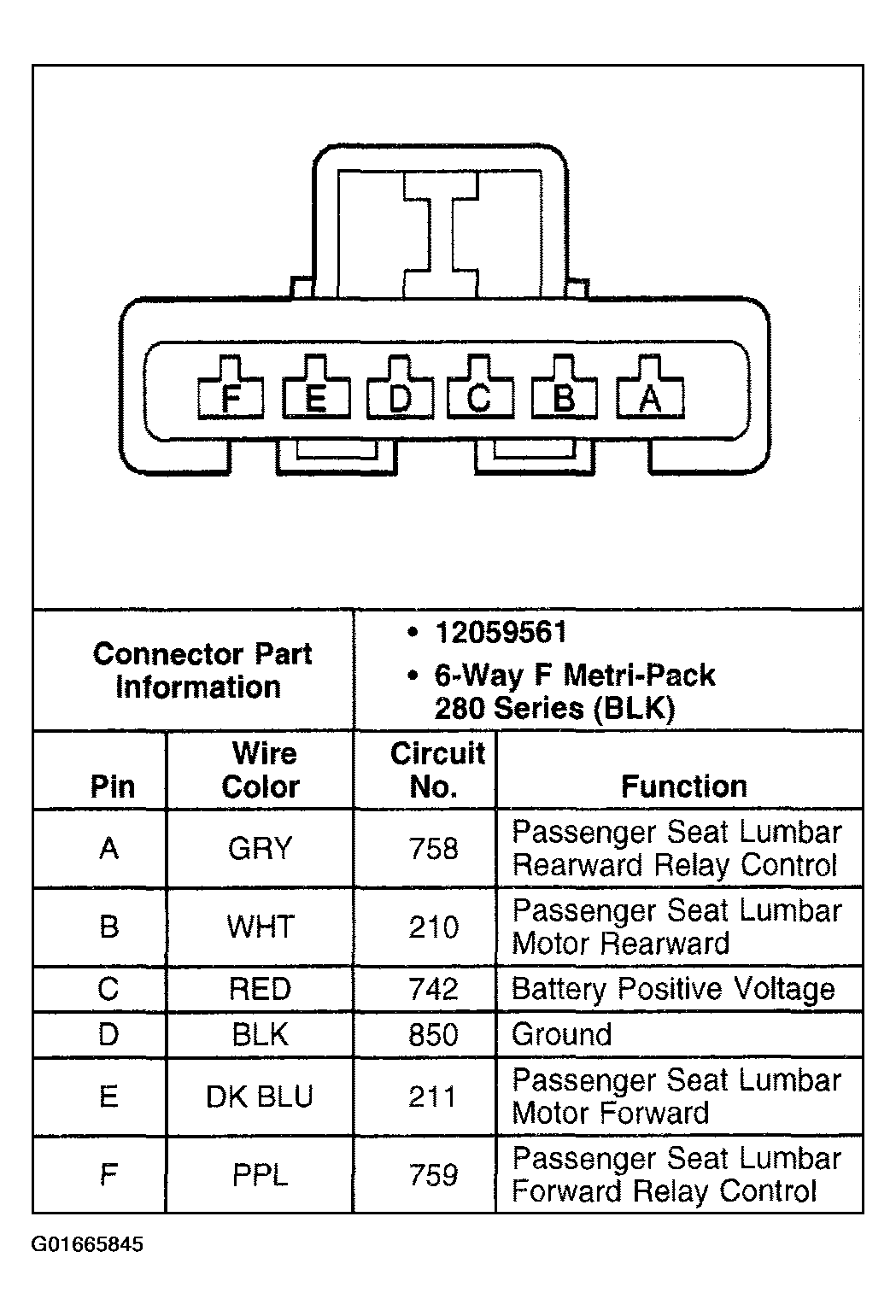

Fig 14: Lumbar Horizontal Relay - Front Passenger Connector End View
G01665845Courtesy of GENERAL MOTORS CORP.
Fig 15: Memory Seat Module (MSM) C1 Connector End View (1 Of 2)
G01665846Courtesy of GENERAL MOTORS CORP.
Fig 16: Memory Seat Module (MSM) C1 Connector End View (2 Of 2)
G01665847Courtesy of GENERAL MOTORS CORP.
Fig 17: Memory Seat Module (MSM) C2 Connector End View (1 Of 2)
G01665848Courtesy of GENERAL MOTORS CORP.
Fig 18: Memory Seat Module (MSM) C2 Connector End View (2 Of 2)
G01665849Courtesy of GENERAL MOTORS CORP.
Fig 19: Memory Seat Module (MSM) C3 Connector End View
G01665850Courtesy of GENERAL MOTORS CORP.
Fig 20: Memory Seat Module (MSM) C4 Connector End View
G01665851Courtesy of GENERAL MOTORS CORP.

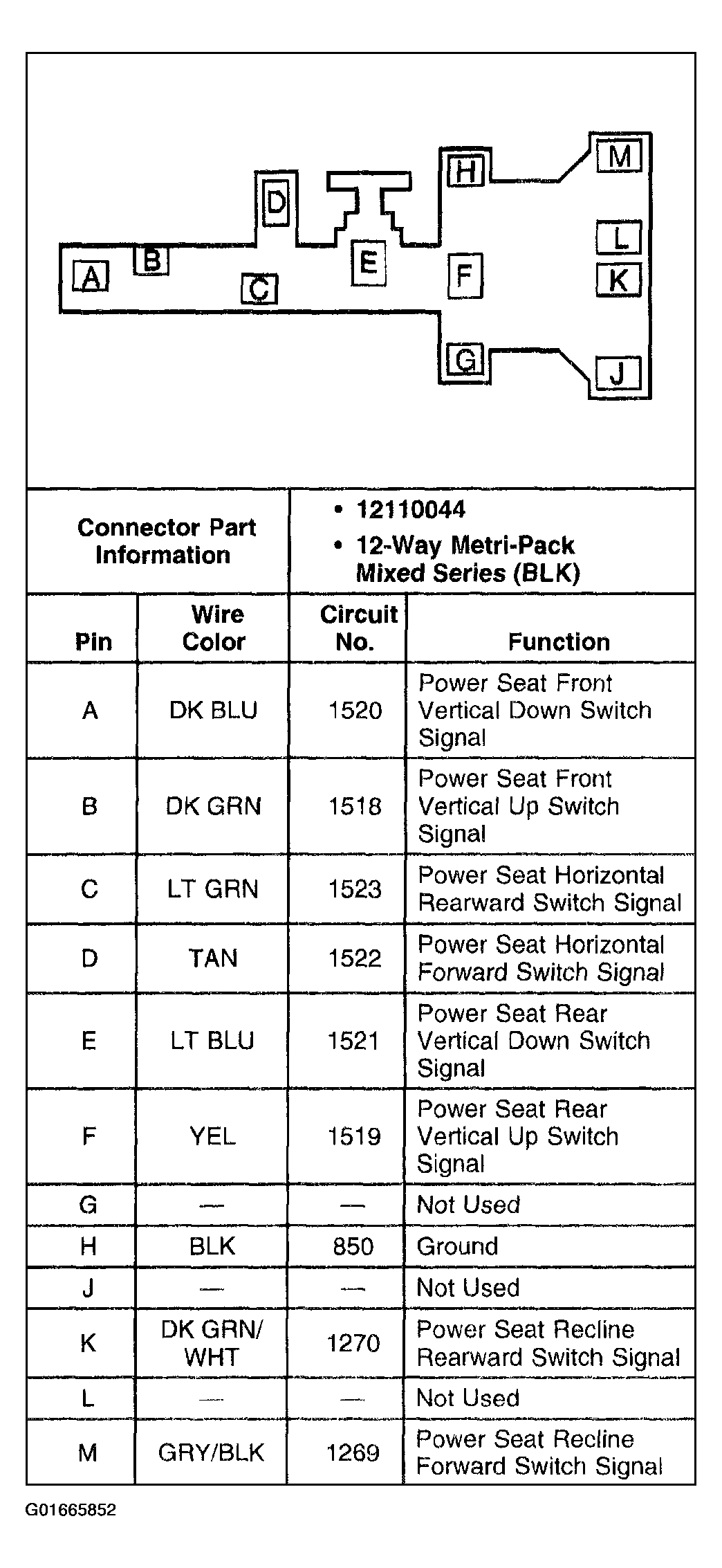

Fig 21: Seat Adjuster Switch - Driver (W/A45) Connector End View
G01665852Courtesy of GENERAL MOTORS CORP.

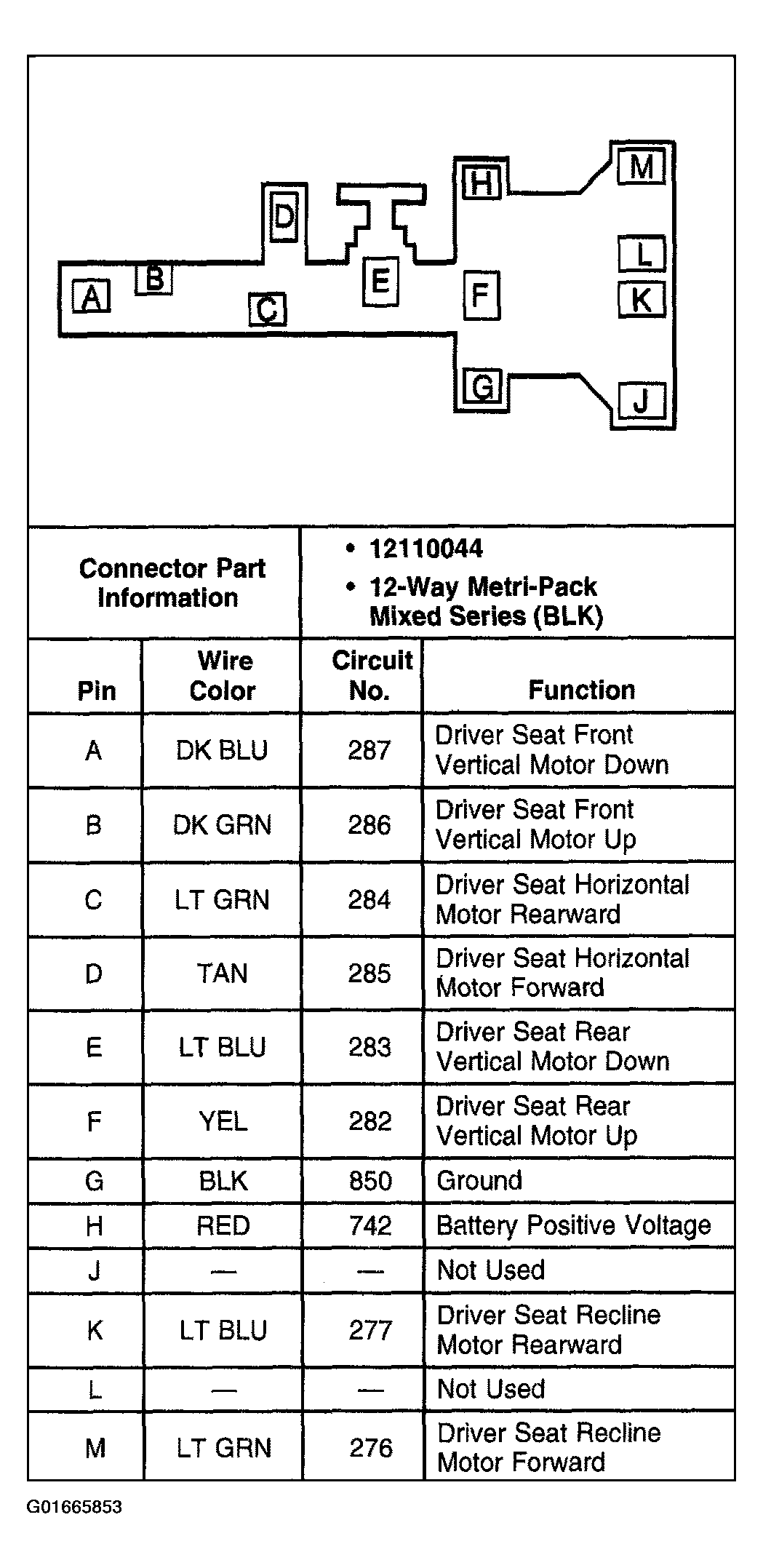

Fig 22: Seat Adjuster Switch - Driver (W/O A45) Connector End View
G01665853Courtesy of GENERAL MOTORS CORP.

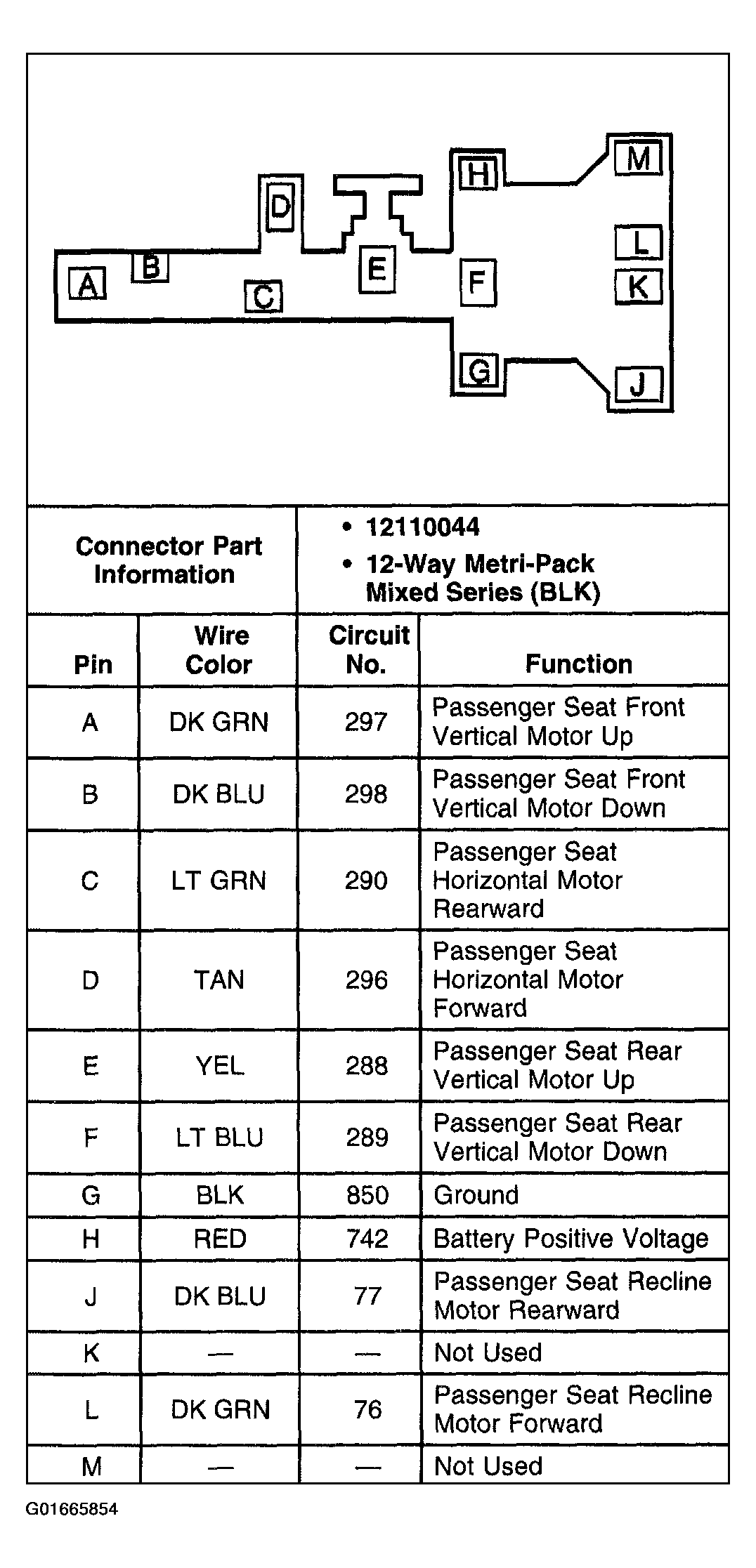

Fig 23: Seat Adjuster Switch - Front Passenger Connector End View
G01665854Courtesy of GENERAL MOTORS CORP.

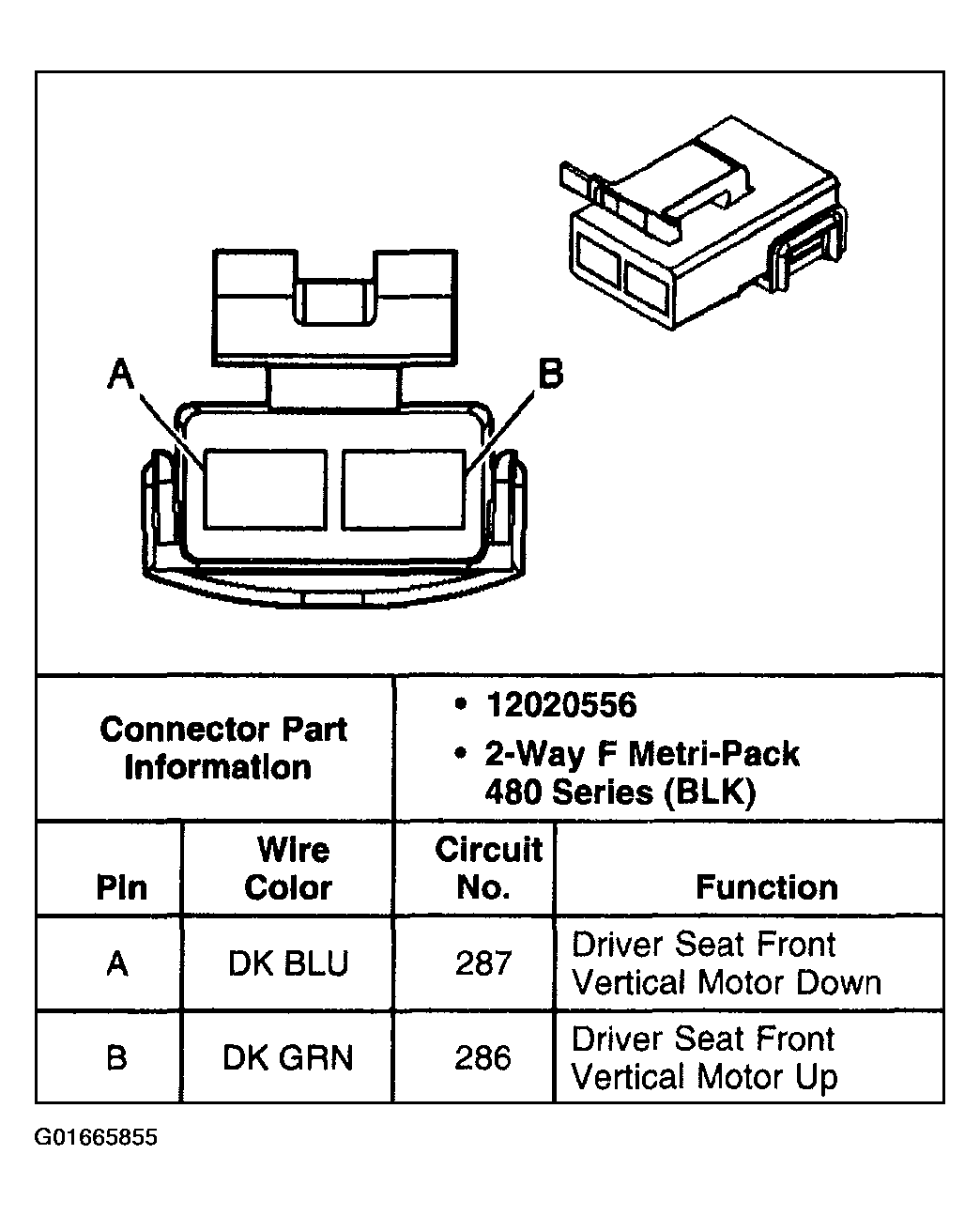

Fig 24: Seat Front Vertical Motor - Driver Connector End View
G01665855Courtesy of GENERAL MOTORS CORP.

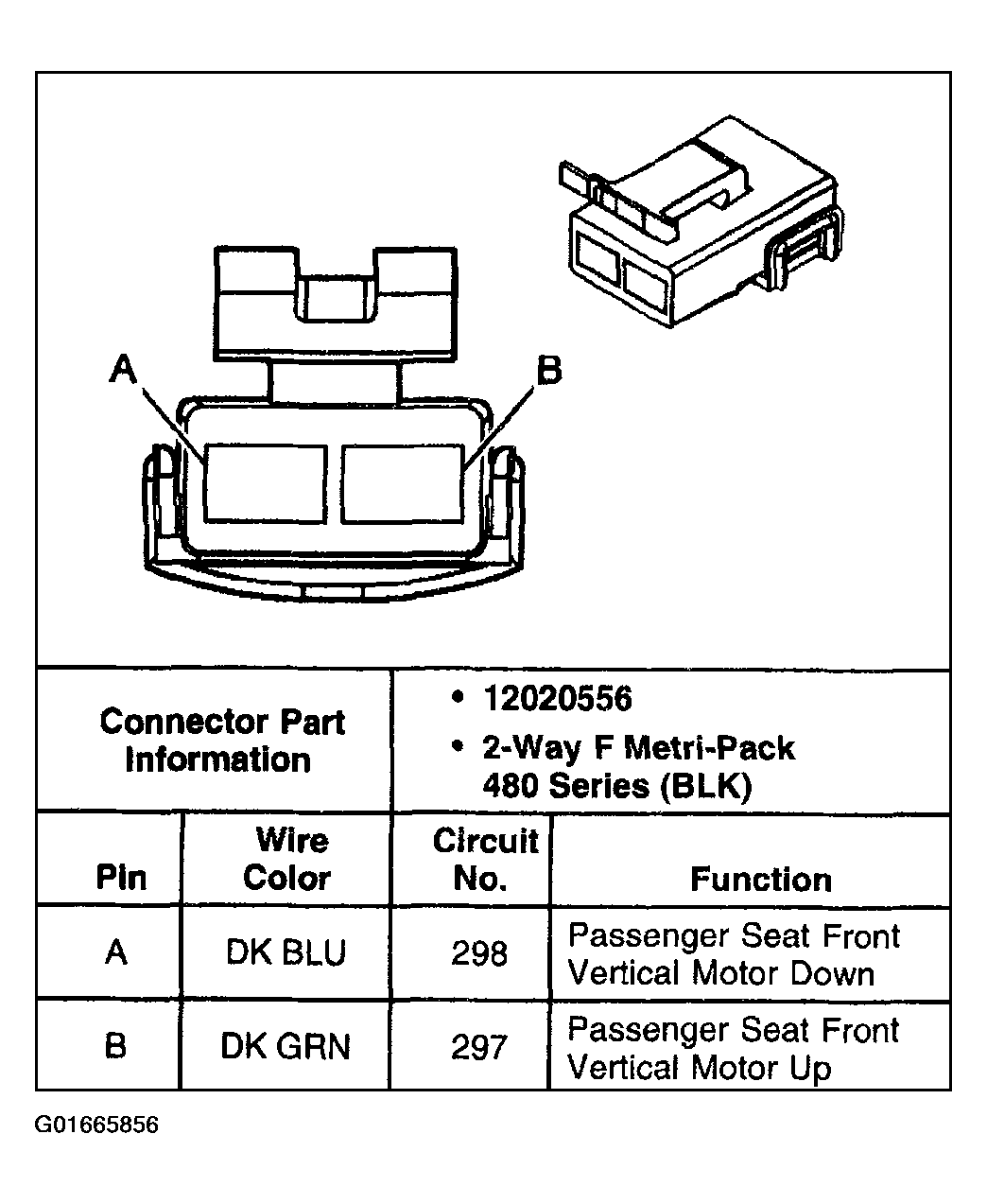

Fig 25: Seat Front Vertical Motor - Front Passenger Connector End View
G01665856Courtesy of GENERAL MOTORS CORP.

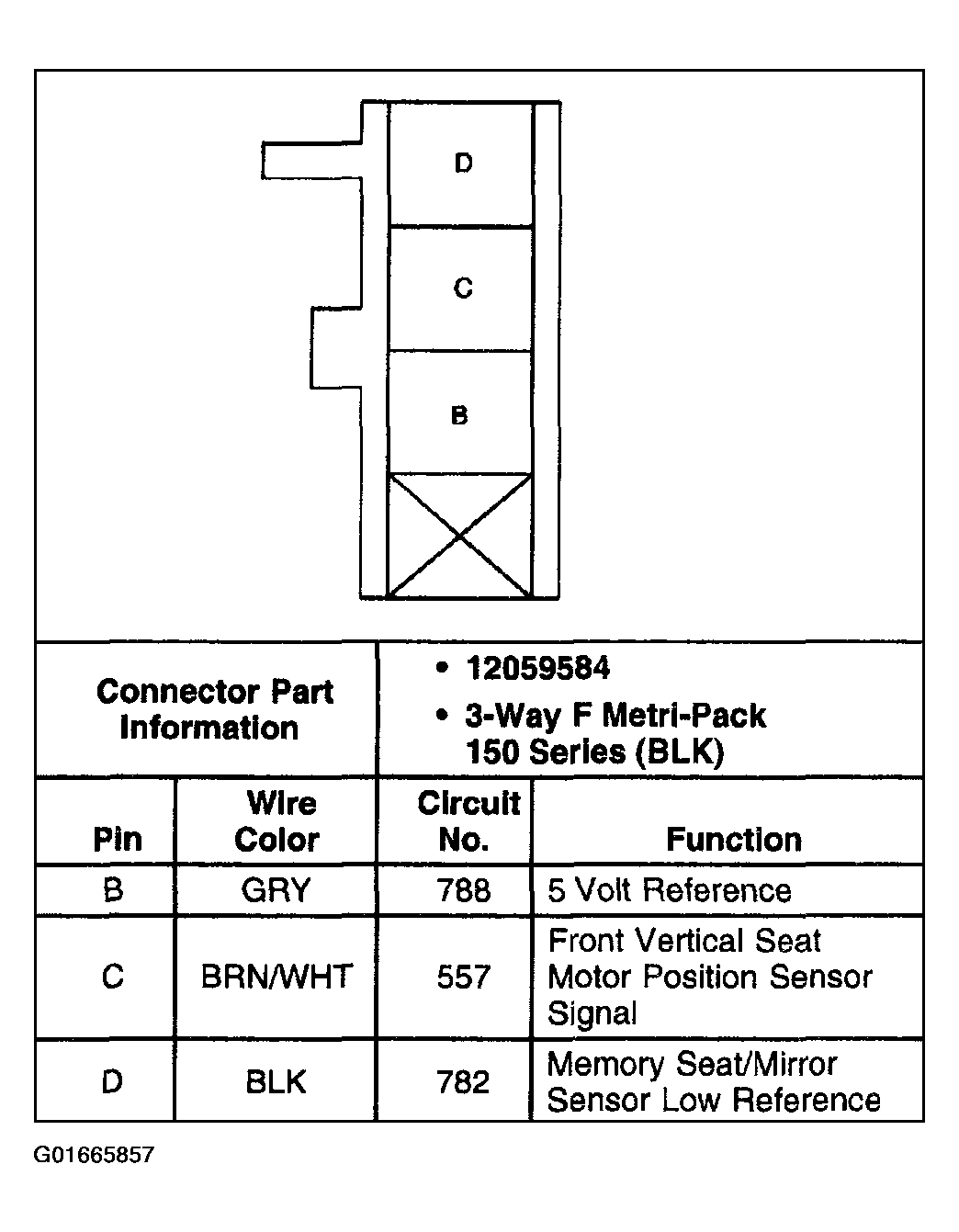

Fig 26: Front Vertical Position Sensor Connector End View
G01665857Courtesy of GENERAL MOTORS CORP.

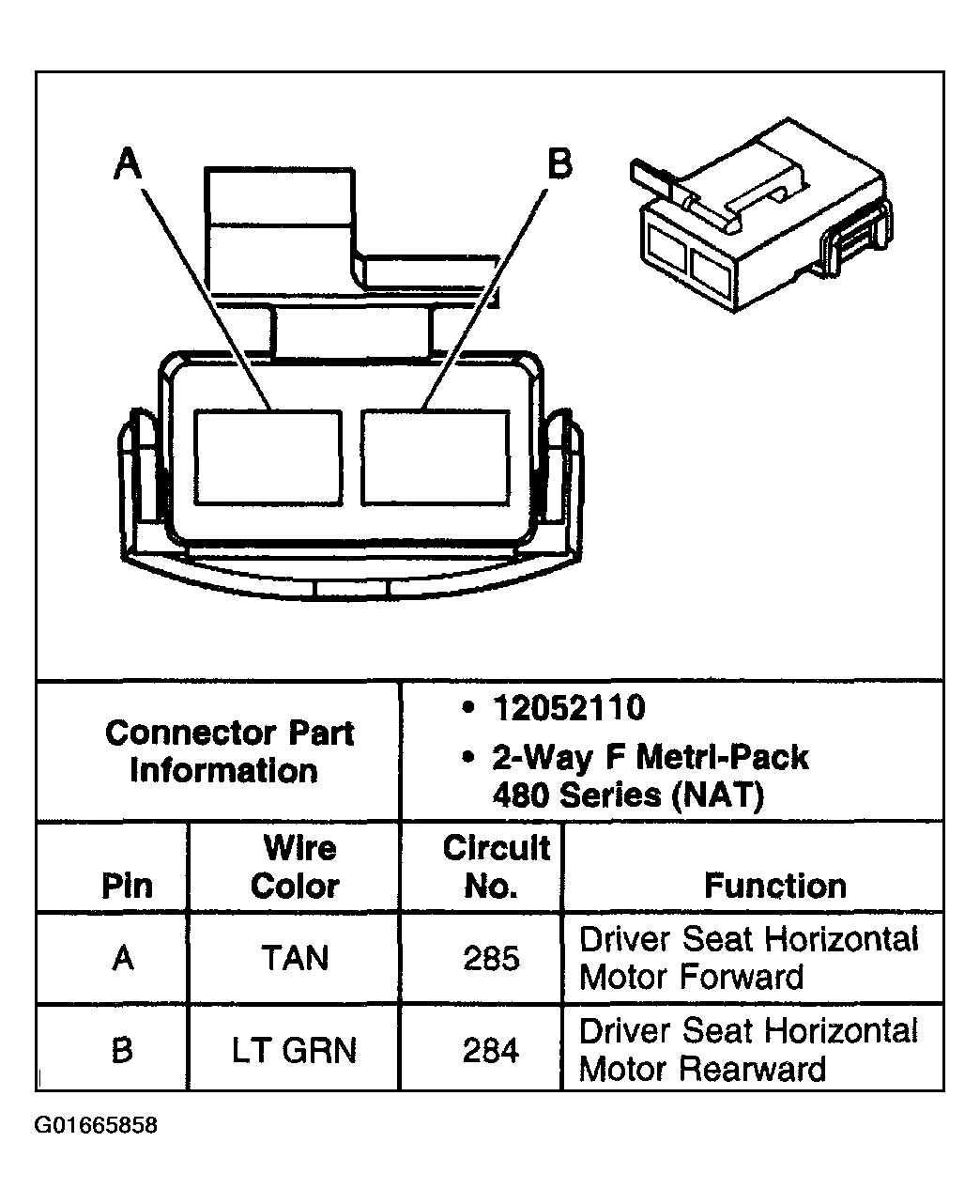

Fig 27: Seat Horizontal Motor - Driver Connector End View
G01665858Courtesy of GENERAL MOTORS CORP.

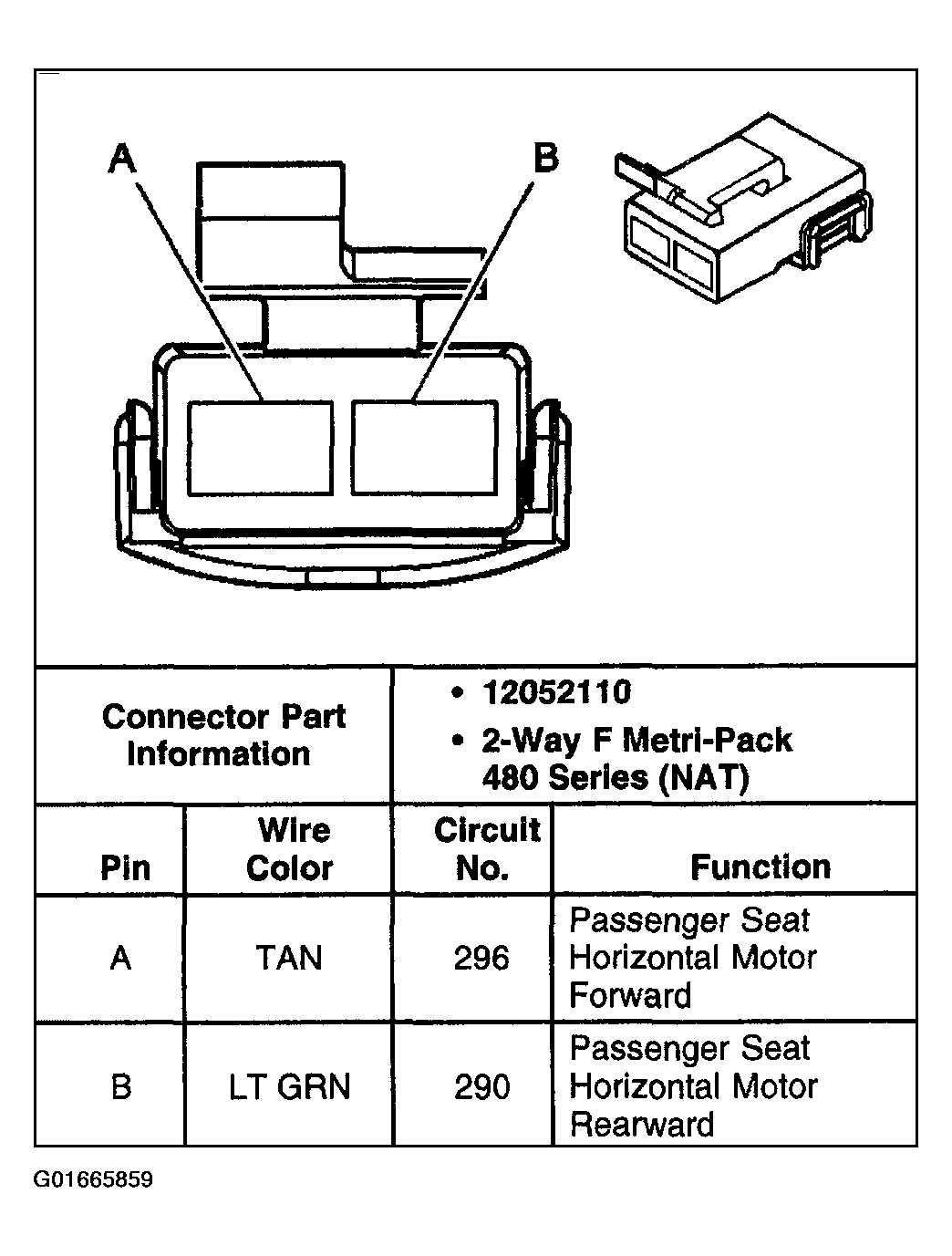

Fig 28: Seat Horizontal Motor - Front Passenger Connector End View
G01665859Courtesy of GENERAL MOTORS CORP.

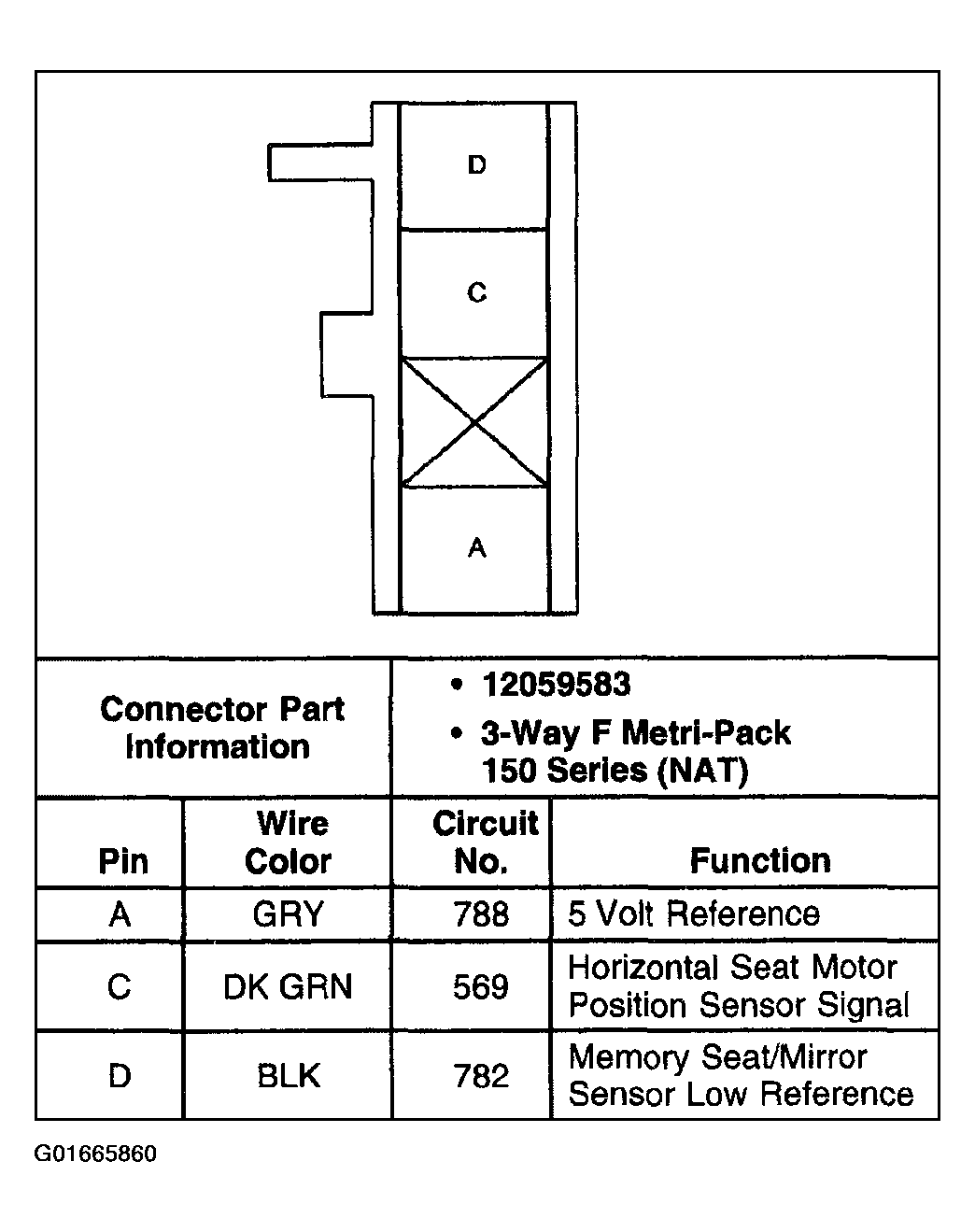

Fig 29: Seat Horizontal Position Sensor Connector End View
G01665860Courtesy of GENERAL MOTORS CORP.

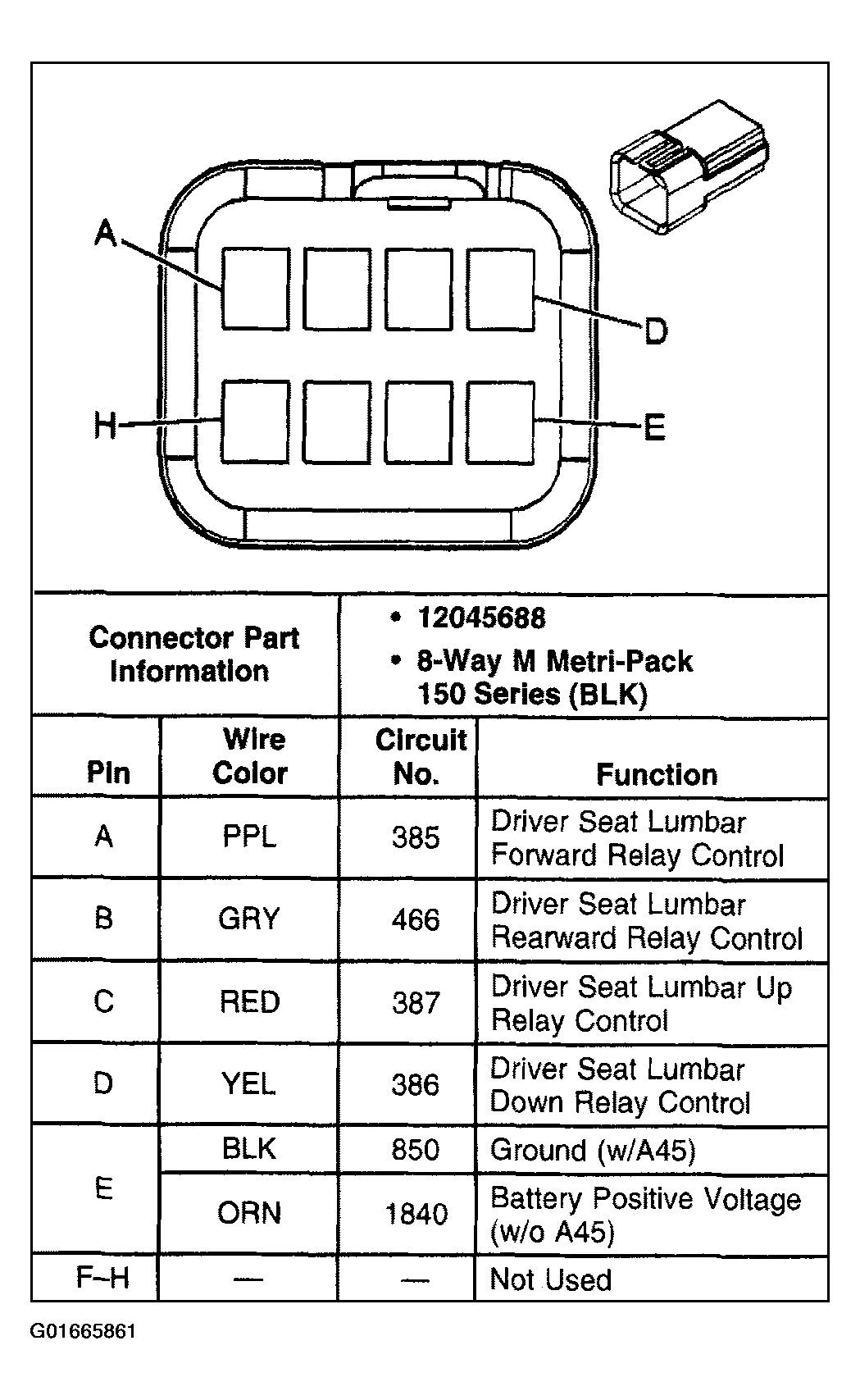

Fig 30: Seat Lumbar Switch - Driver Connector End View
G01665861Courtesy of GENERAL MOTORS CORP.

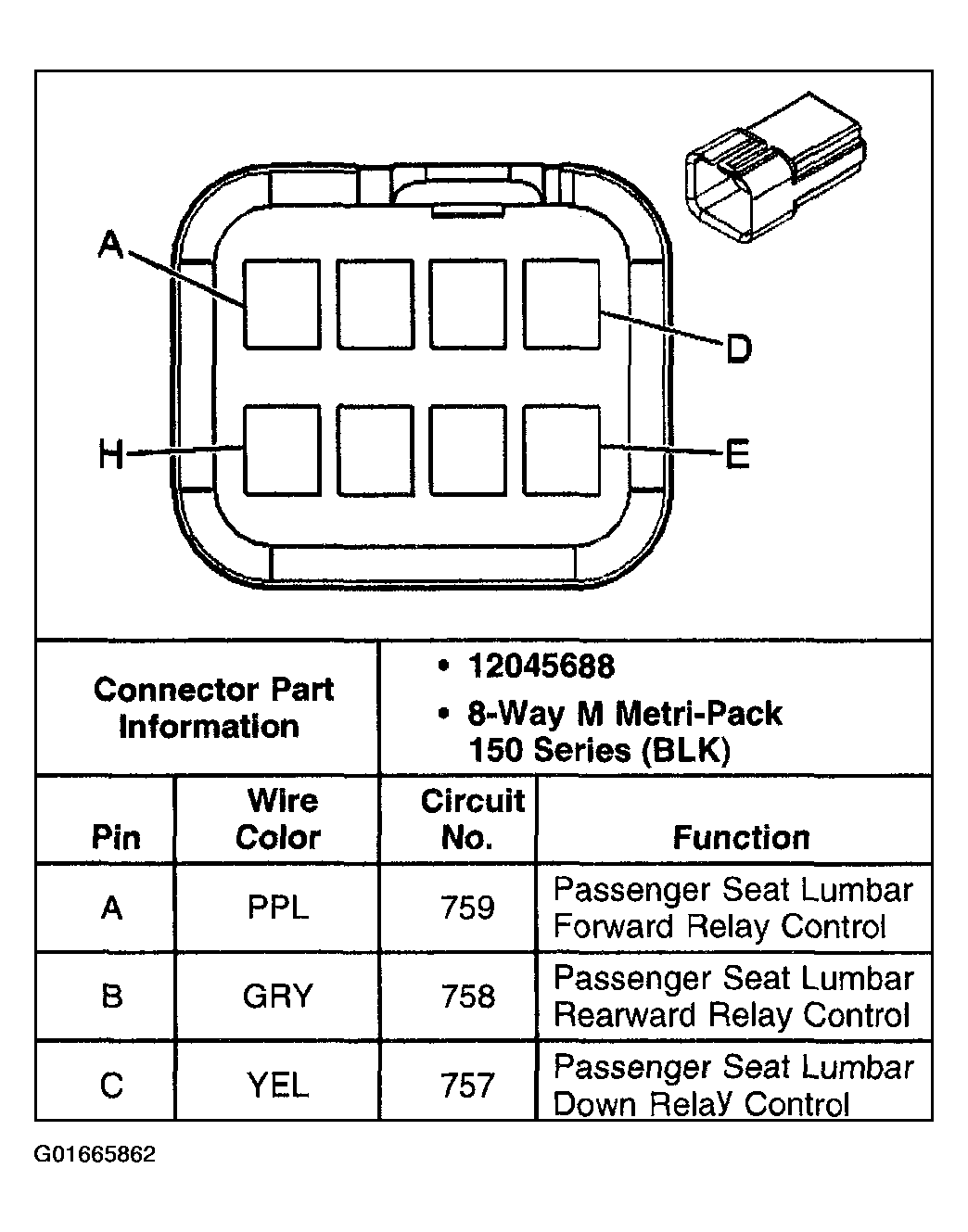

Fig 31: Seat Lumbar Switch - Front Passenger Connector End View (1 Of 2)
G01665862Courtesy of GENERAL MOTORS CORP.

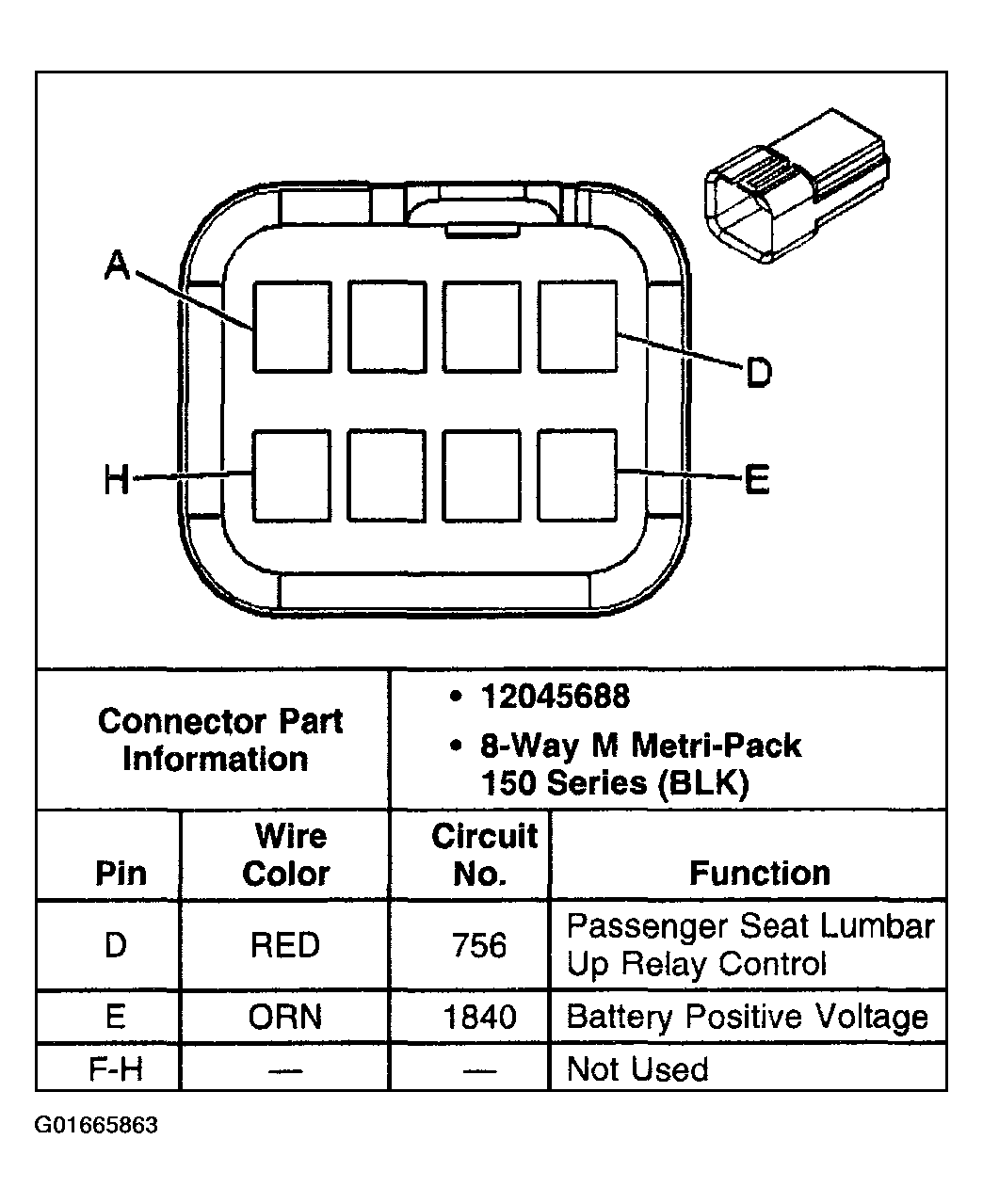

Fig 32: Seat Lumbar Switch - Front Passenger Connector End View (2 Of 2)
G01665863Courtesy of GENERAL MOTORS CORP.

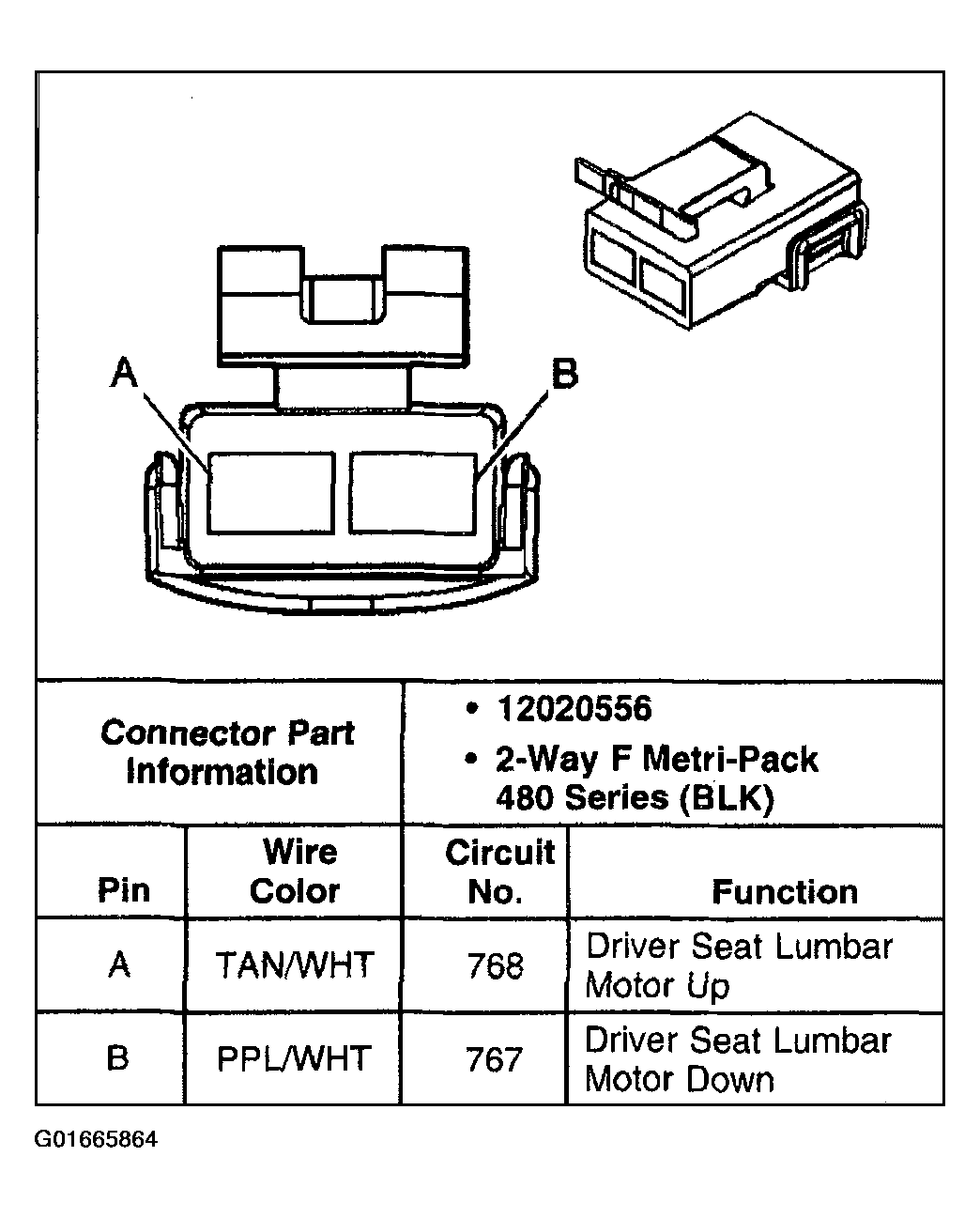

Fig 33: Seat Lumbar Vertical Motor - Driver Connector End View
G01665864Courtesy of GENERAL MOTORS CORP.

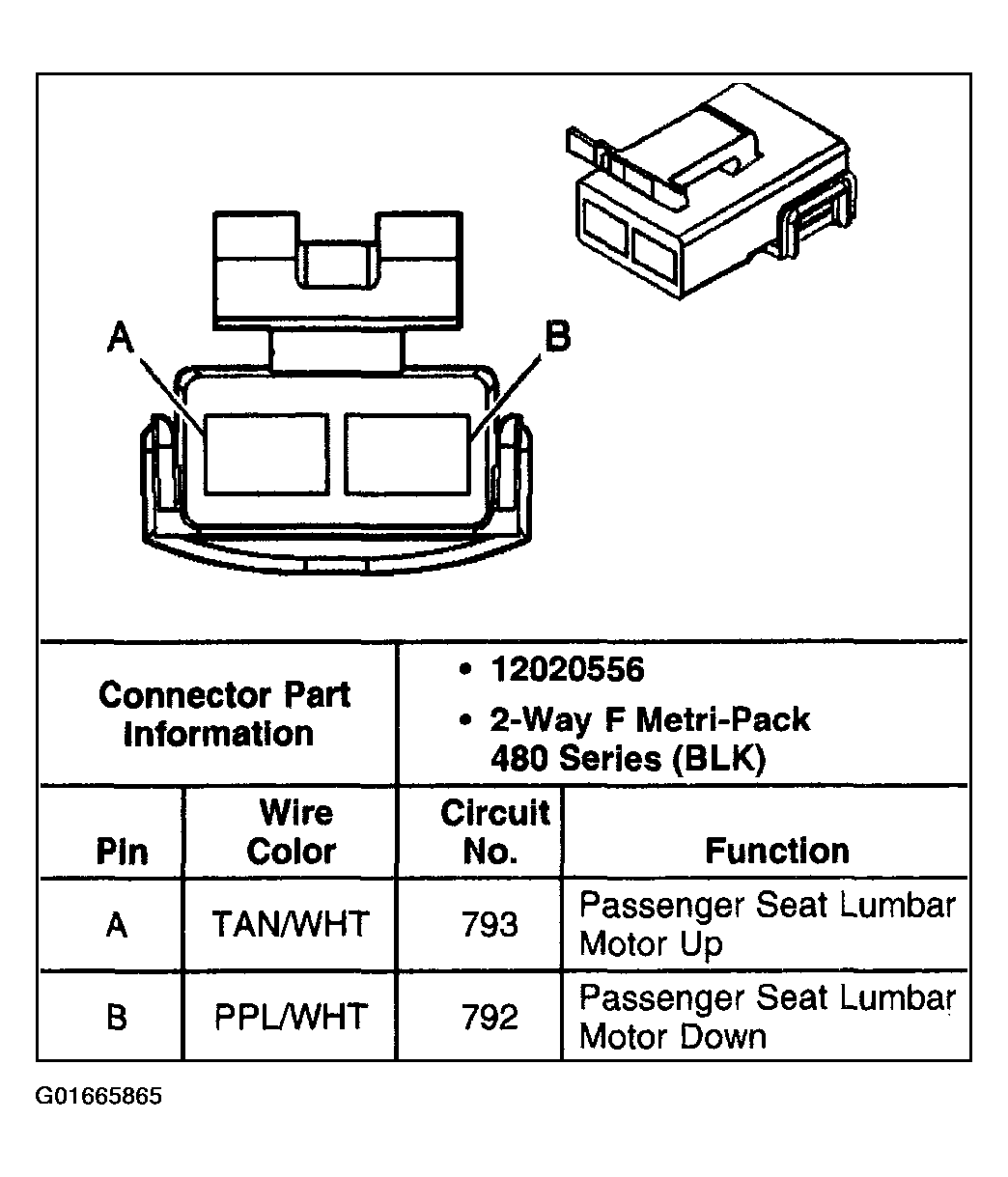

Fig 34: Seat Lumbar Vertical Motor - Front Passenger Connector End View
G01665865Courtesy of GENERAL MOTORS CORP.

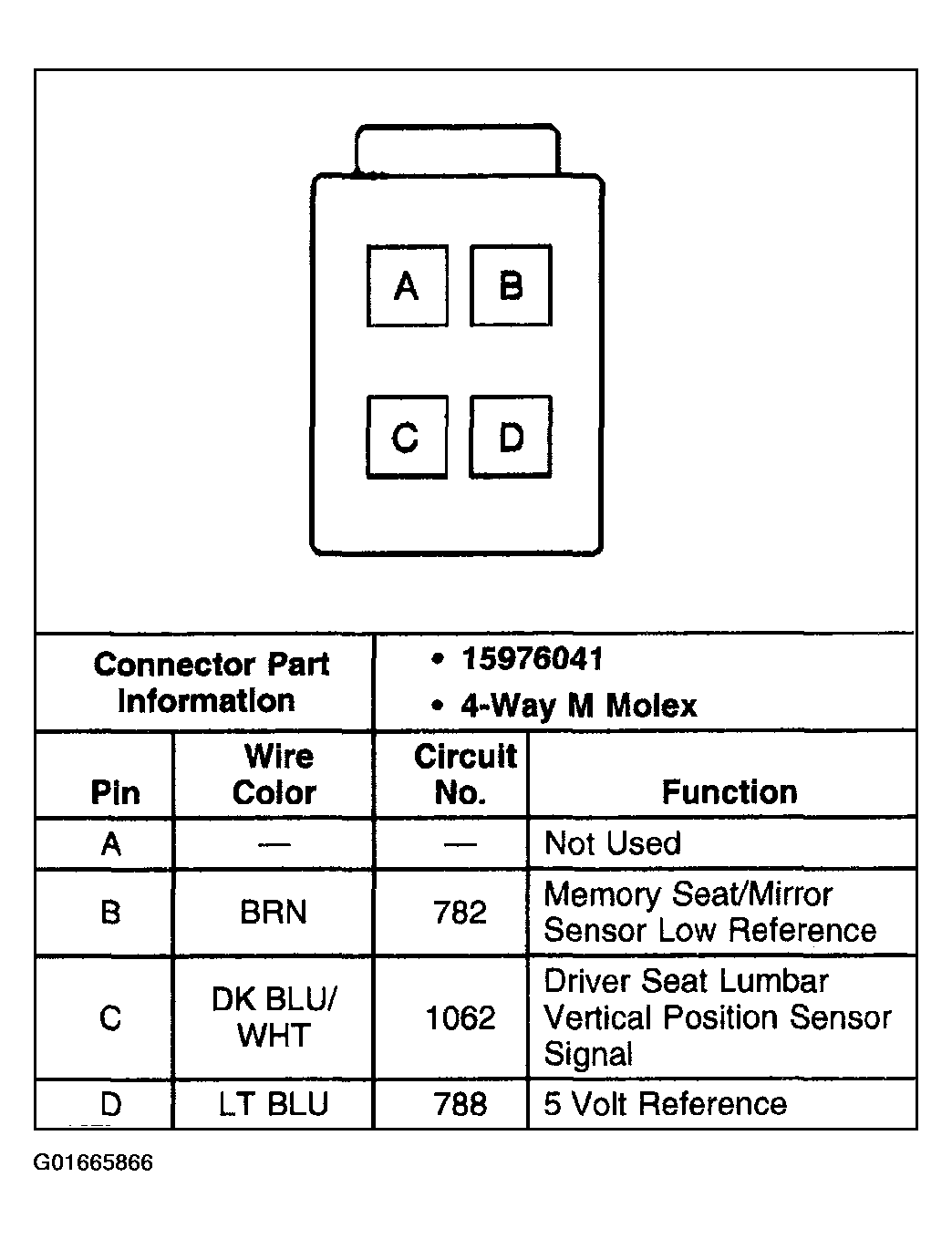

Fig 35: Seat Lumbar Vertical Position Sensor - Driver Connector End View
G01665866Courtesy of GENERAL MOTORS CORP.

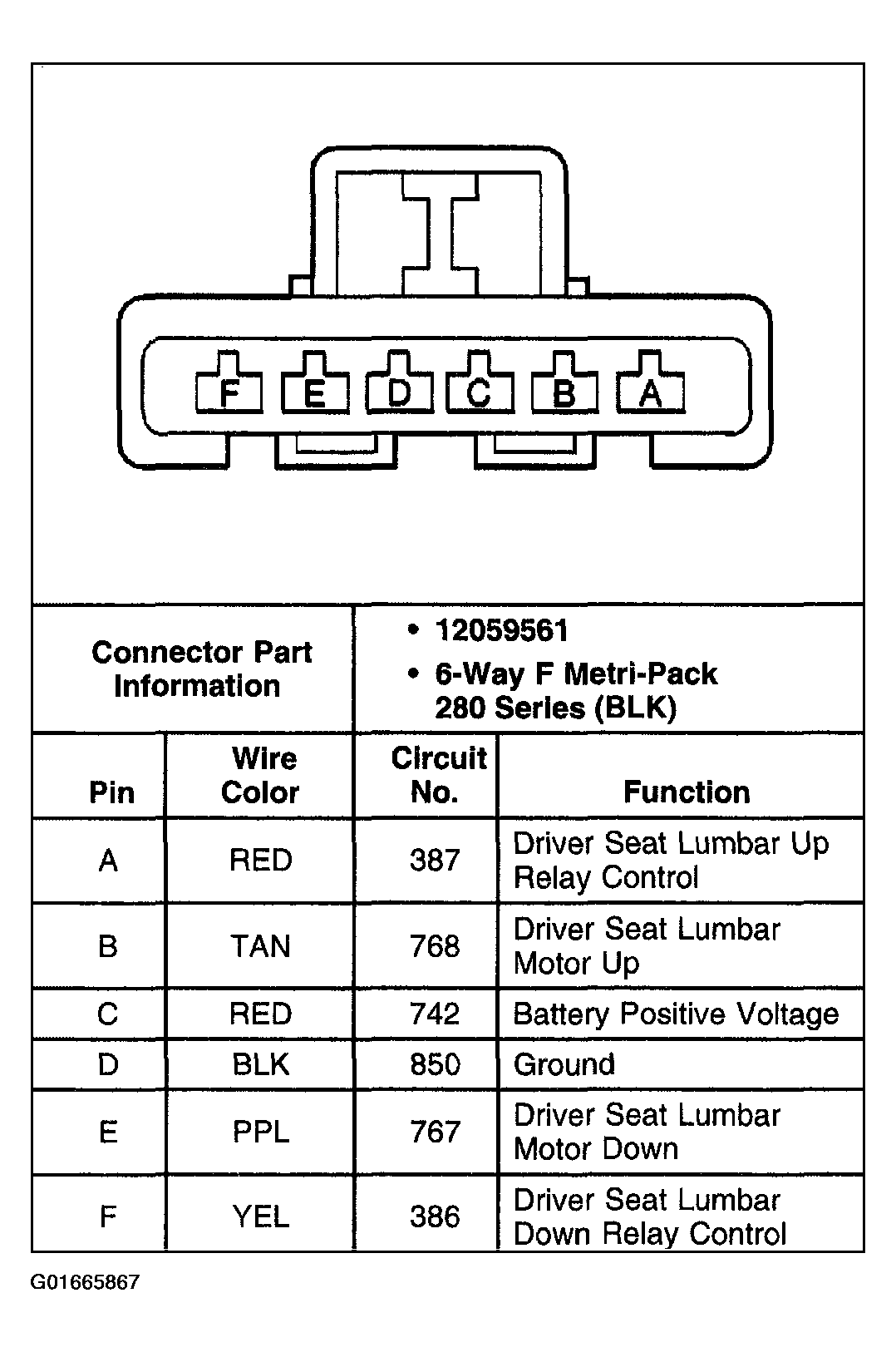

Fig 36: Seat Lumbar Vertical Relay - Driver Connector End View
G01665867Courtesy of GENERAL MOTORS CORP.

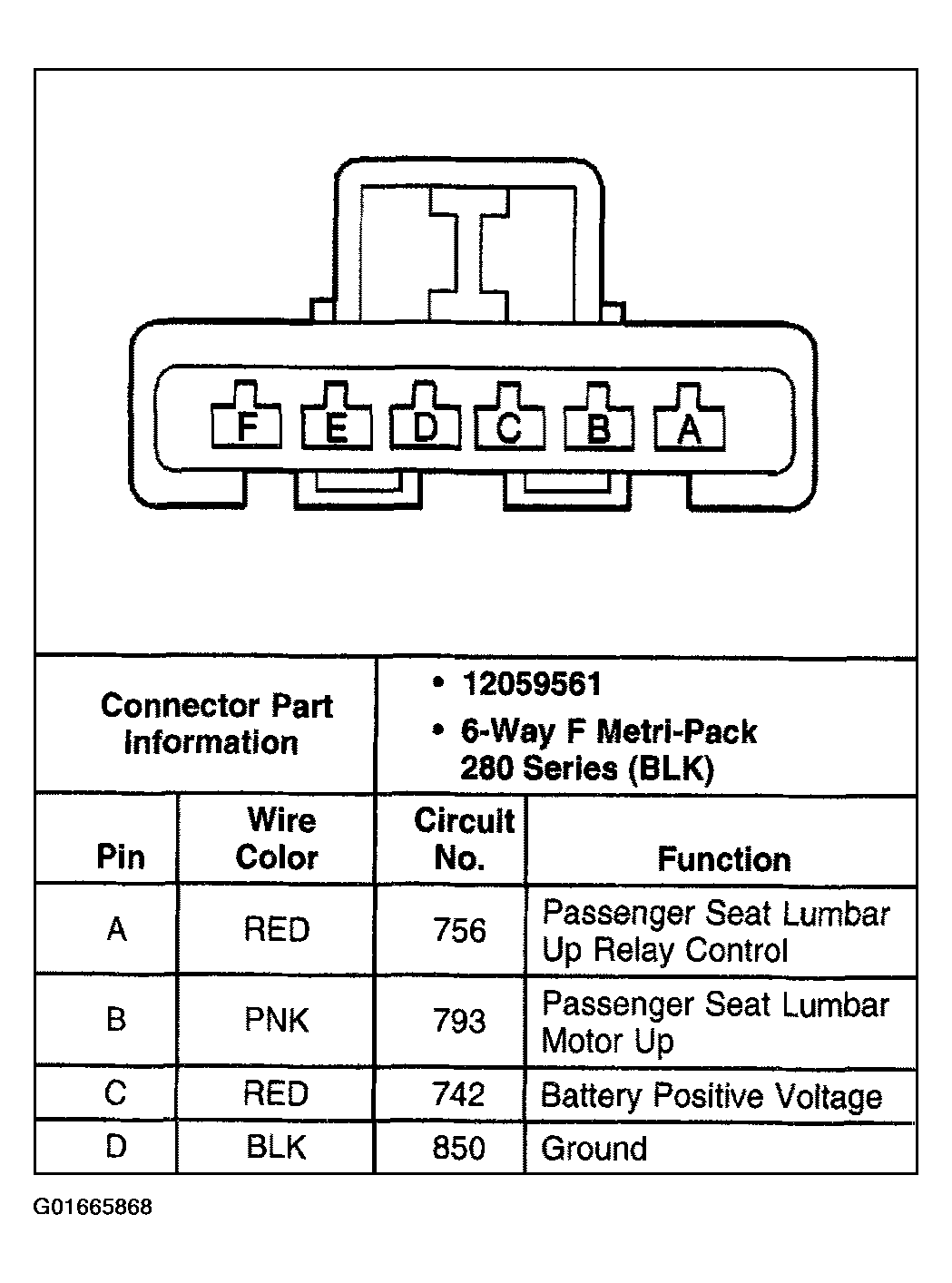

Fig 37: Seat Lumbar Vertical Relay - Front Passenger Connector End View (1 Of 20
G01665868Courtesy of GENERAL MOTORS CORP.

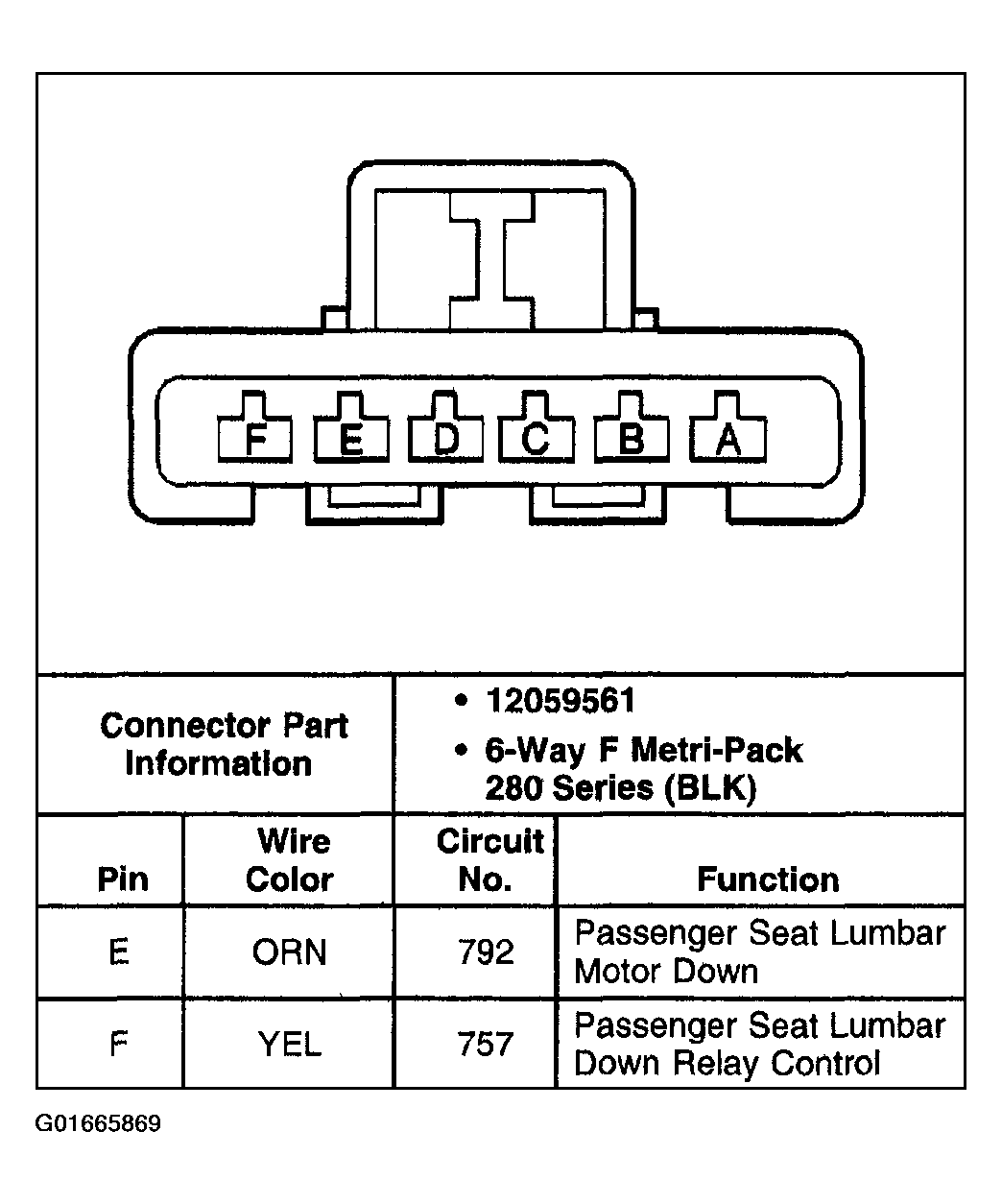

Fig 38: Seat Lumbar Vertical Relay - Front Passenger Connector End View (2 Of 2)
G01665869Courtesy of GENERAL MOTORS CORP.

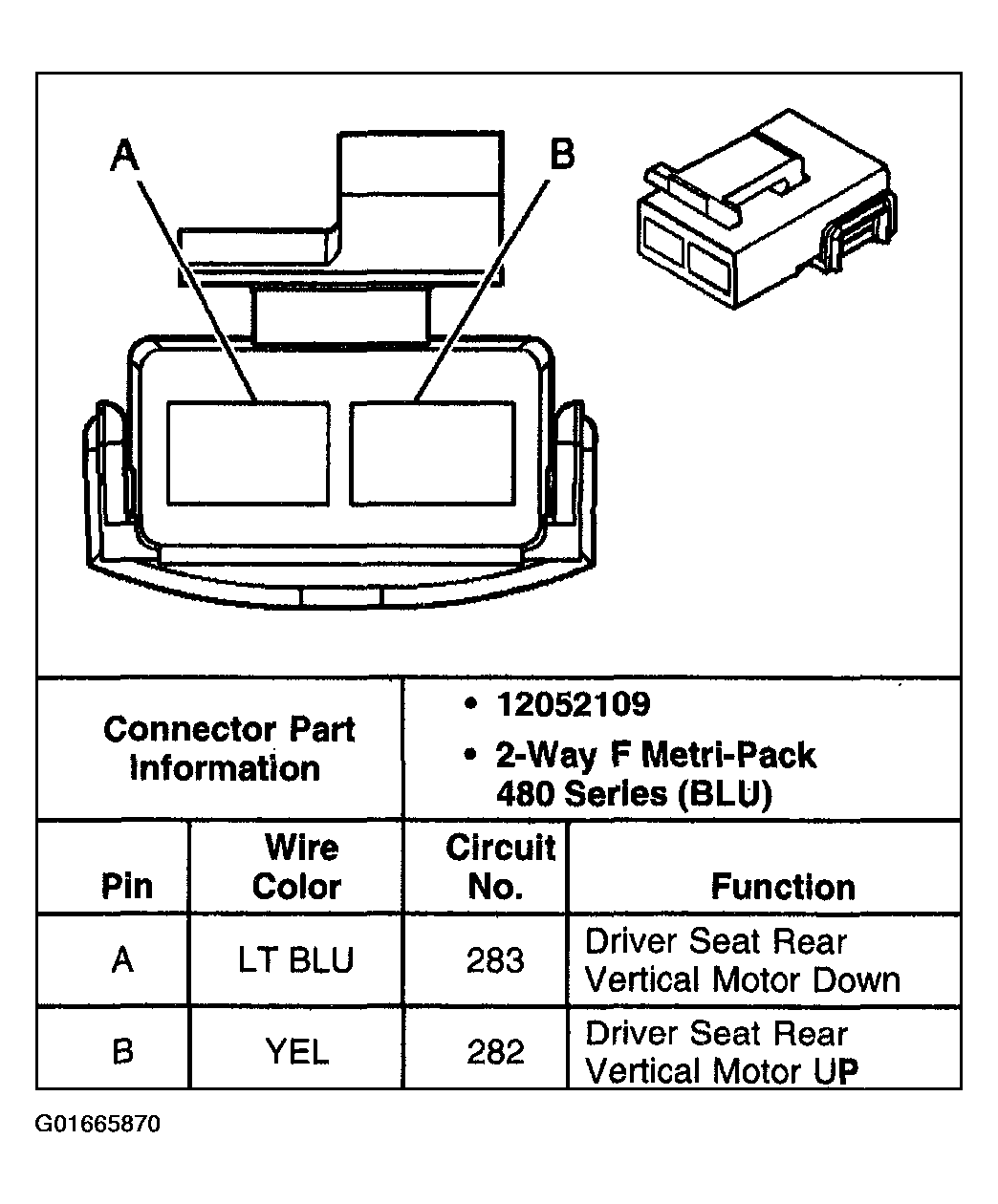

Fig 39: Seat Rear Vertical Motor - Driver Connector End View
G01665870Courtesy of GENERAL MOTORS CORP.

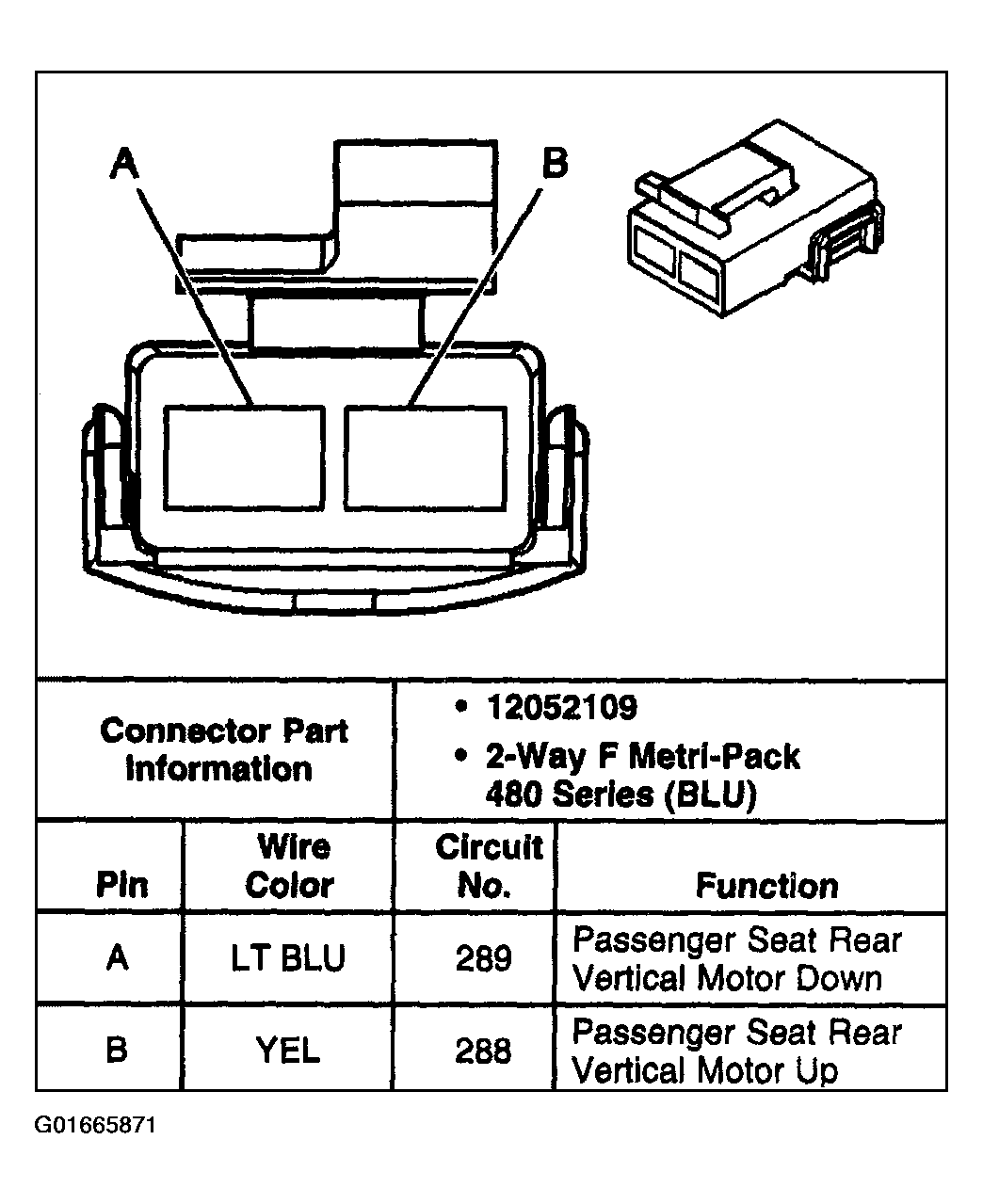

Fig 40: Seat Rear Vertical Motor - Front Passenger Connector End View
G01665871Courtesy of GENERAL MOTORS CORP.

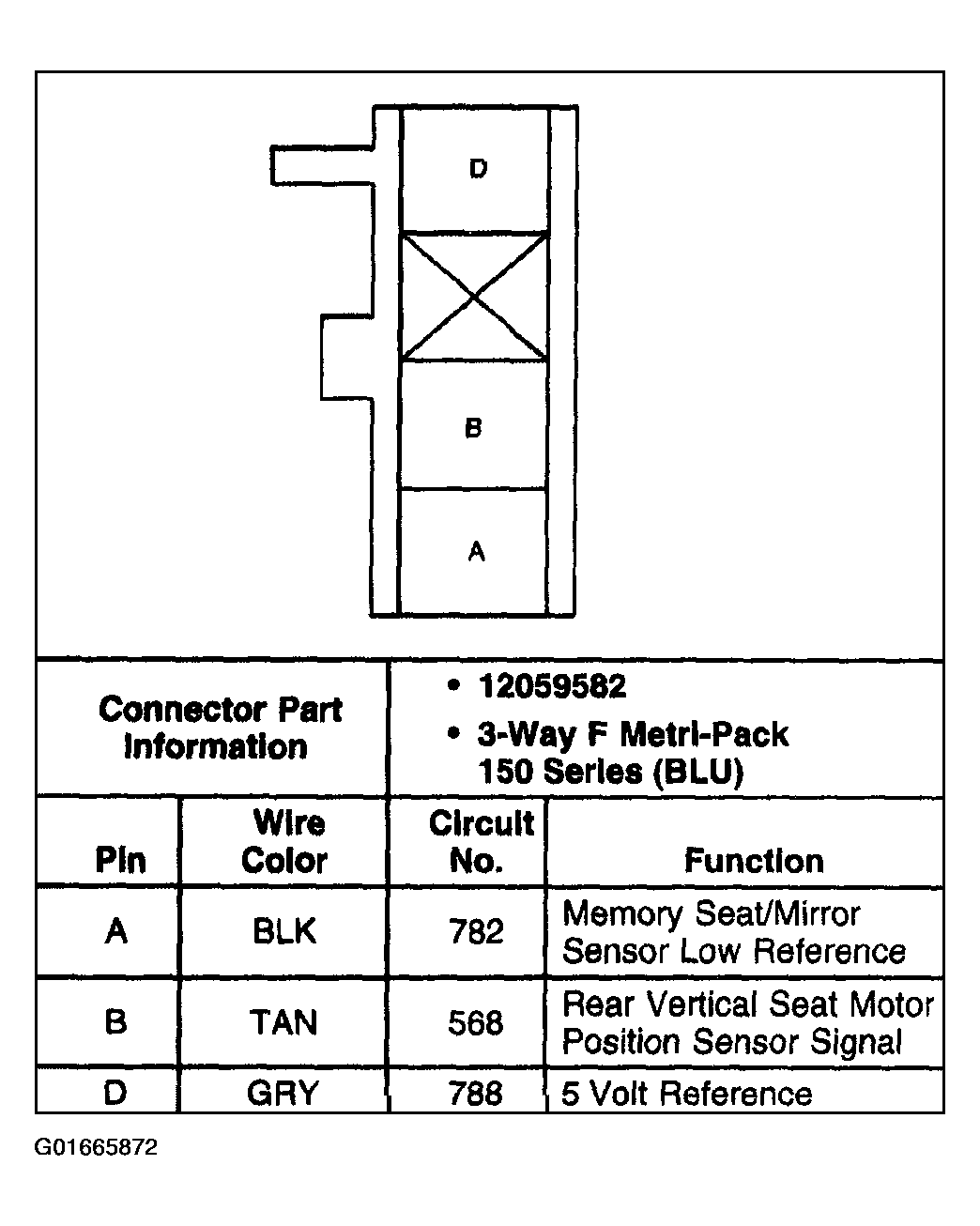

Fig 41: Seat Rear Vertical Position Sensor Connector End View
G01665872Courtesy of GENERAL MOTORS CORP.

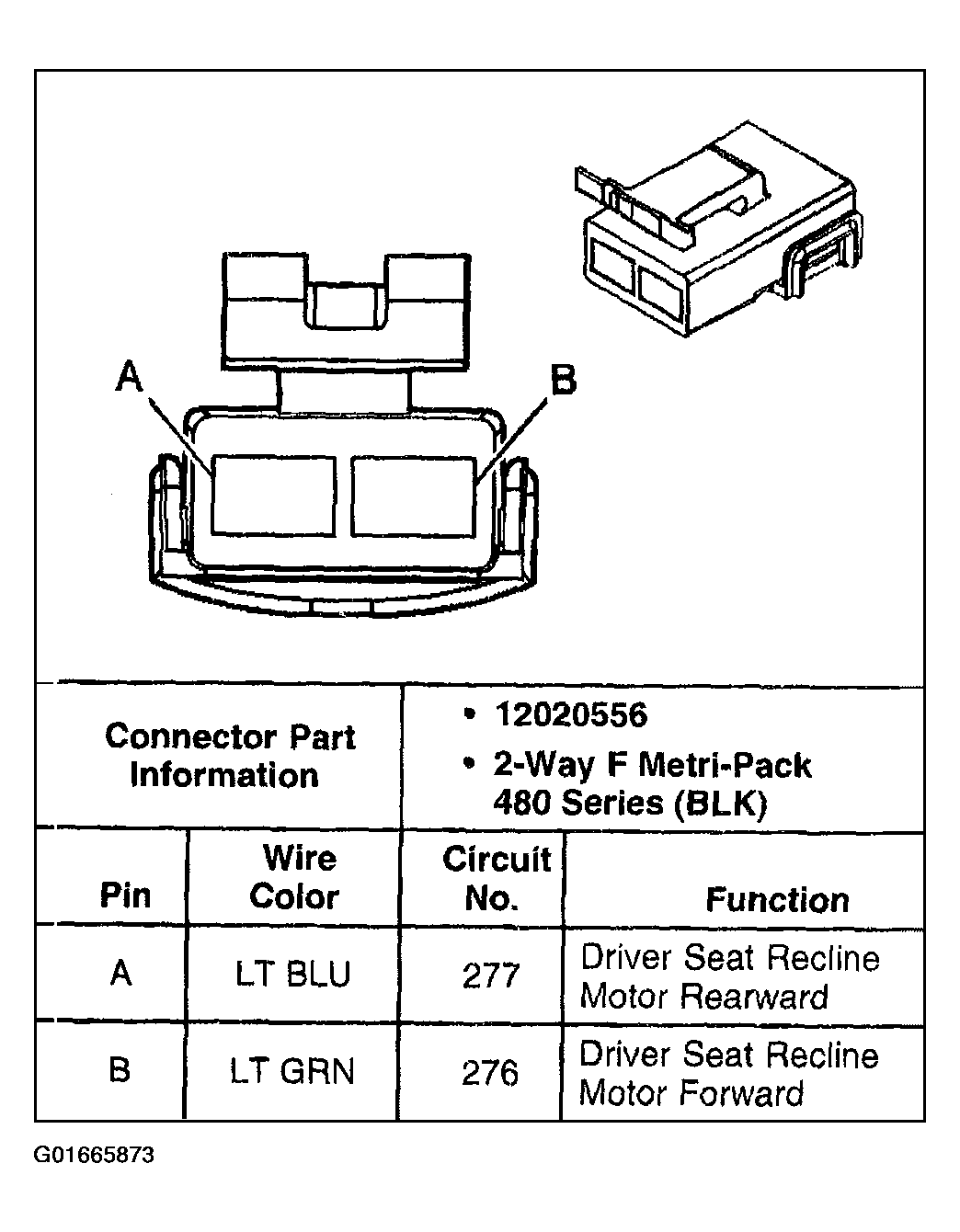

Fig 42: Seat Recline Motor - Driver Connector End View
G01665873Courtesy of GENERAL MOTORS CORP.

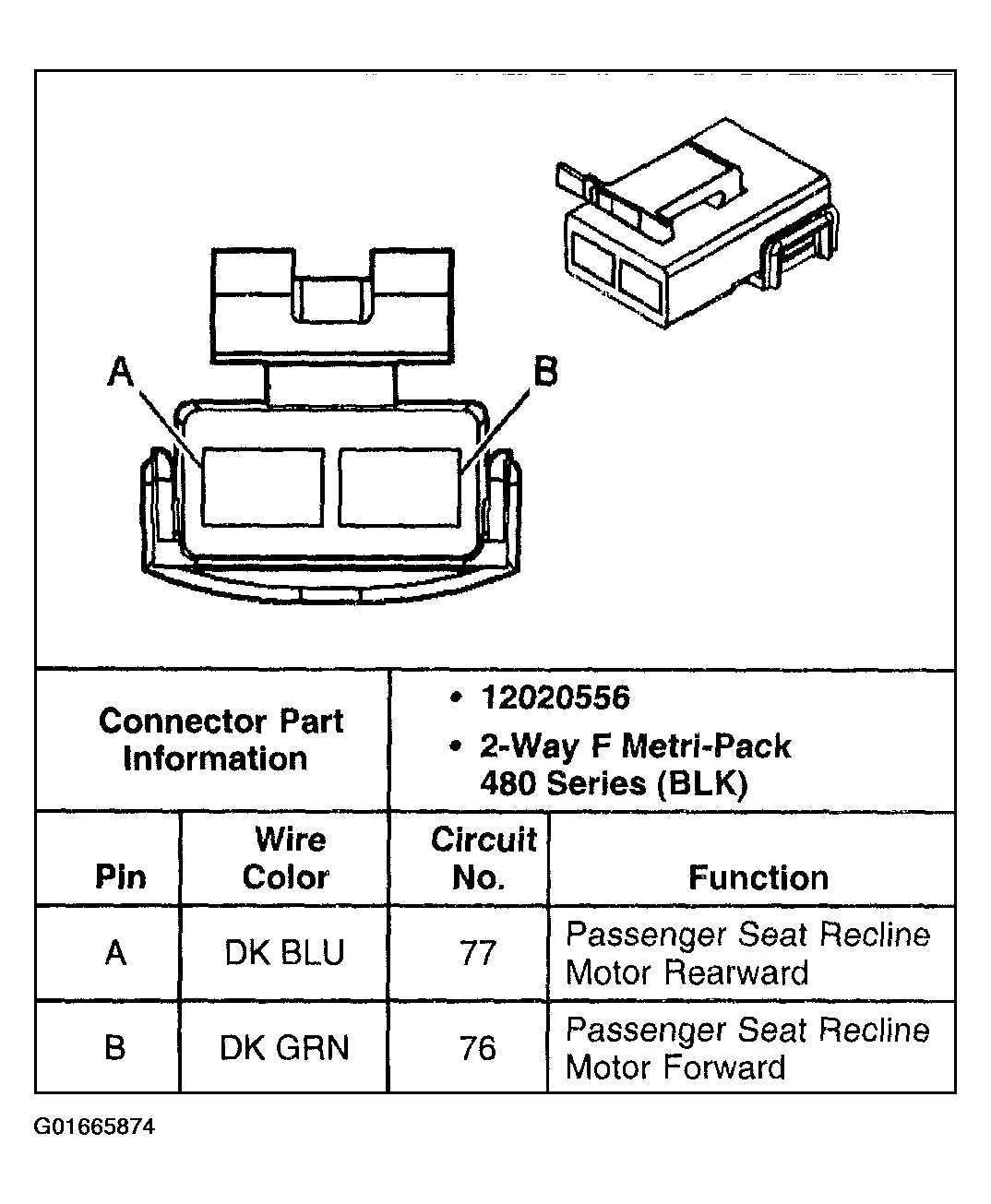

Fig 43: Seat Recline Motor - Front Passenger Connector End View
G01665874Courtesy of GENERAL MOTORS CORP.

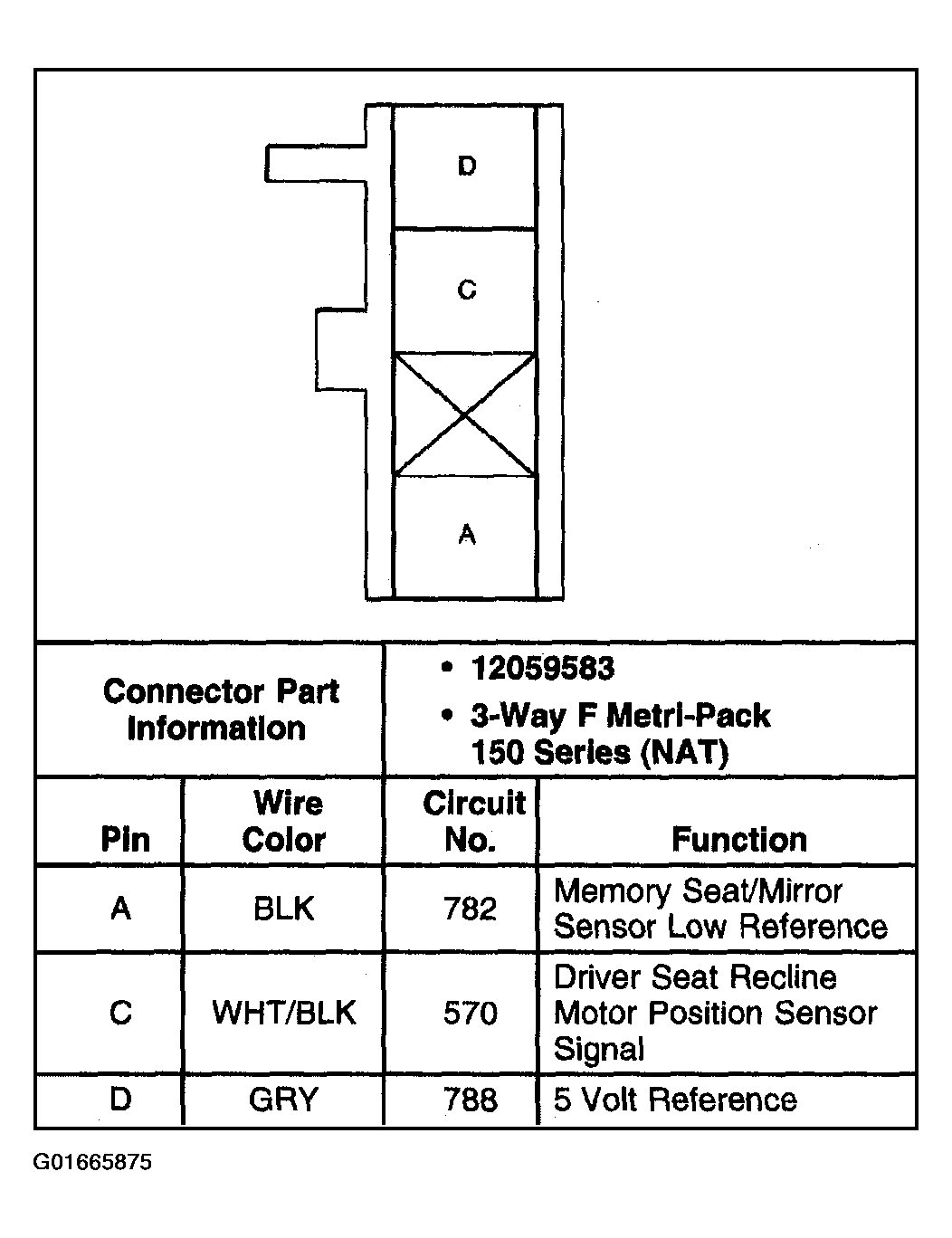

Fig 44: Seat Recline Position Sensor Connector End View
G01665875Courtesy of GENERAL MOTORS CORP.
