Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heated seat relay module to the electrical connector.
  2. Push inward the relay in order to secure.
  3. Install the front seat. Refer to Seat Replacement - Bucket .

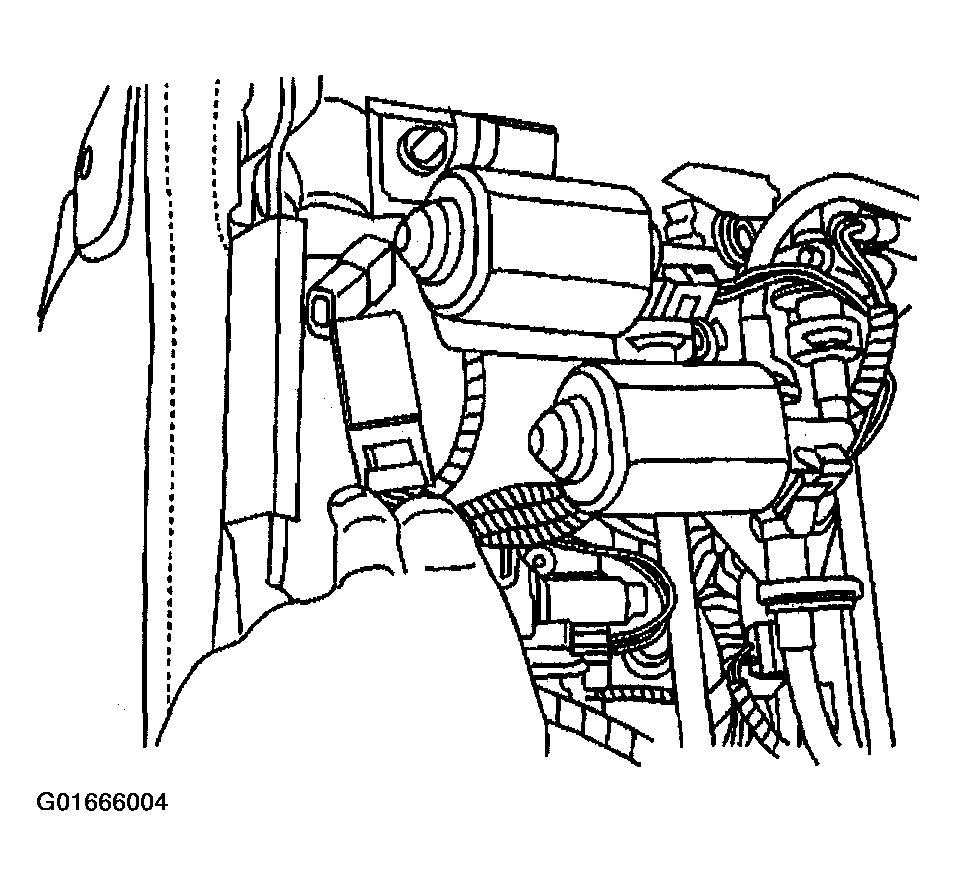

    Fig 1: View Of Heated Seat Relay Module
    G01666004Courtesy of GENERAL MOTORS CORP.
