Transmitter Replacement




^ The transmitter is a radio frequency signal generator. The transmitter is battery powered and water resistant. Two transmitters are provided with each vehicle. The RFA module uniquely recognizes each transmitter.
^ You may obtain replacement transmitters for the vehicle. You must reprogram the RFA module for the module to accept the new transmitter. Refer to Transmitter Programming.
^ Each vehicle has 2 transmitters. The transmitters are labeled in the following manner:
- Transmitter number 1
- Transmitter number 2

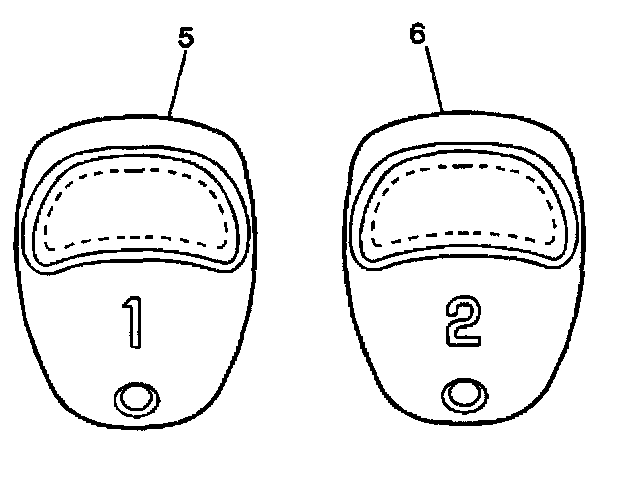

^ The RFA module recognizes each transmitter individually. The module sets the programmable features to the correct setting for each transmitter. There may be 2 number 1(5) and 2 number 2 (6) transmitters per vehicle.
