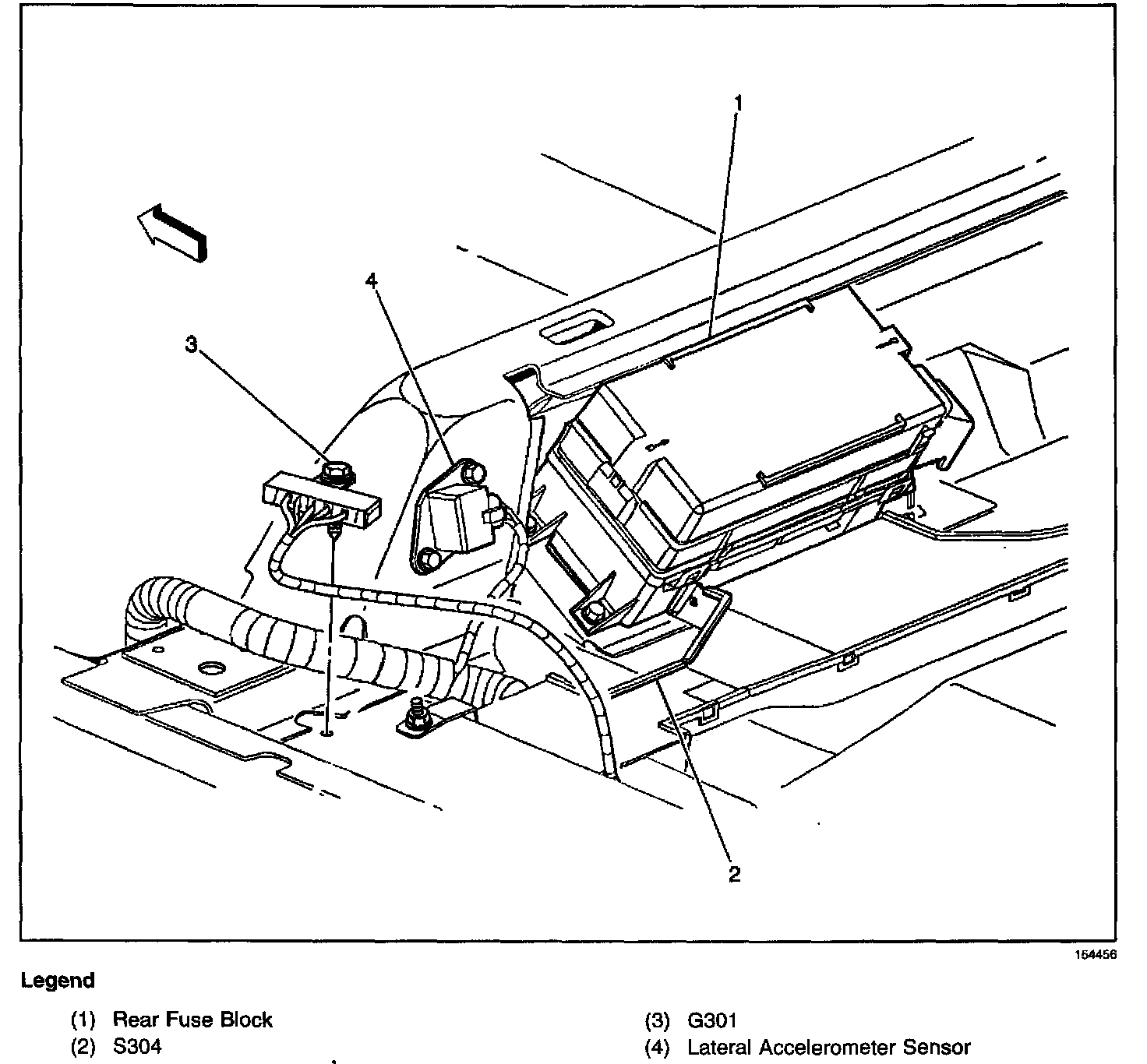

Fuse Block, Rear
Locations View:
Locations View:
Left hand rear of the passenger compartment, under the rear seat below the Rear Relay Center
Left rear of the passenger compartment, under the rear seat
Left hand rear of the passenger compartment, under the rear seat below the Rear Relay Center
Left rear of the passenger compartment, under the rear seat
