Dash Integration Module (DIM)

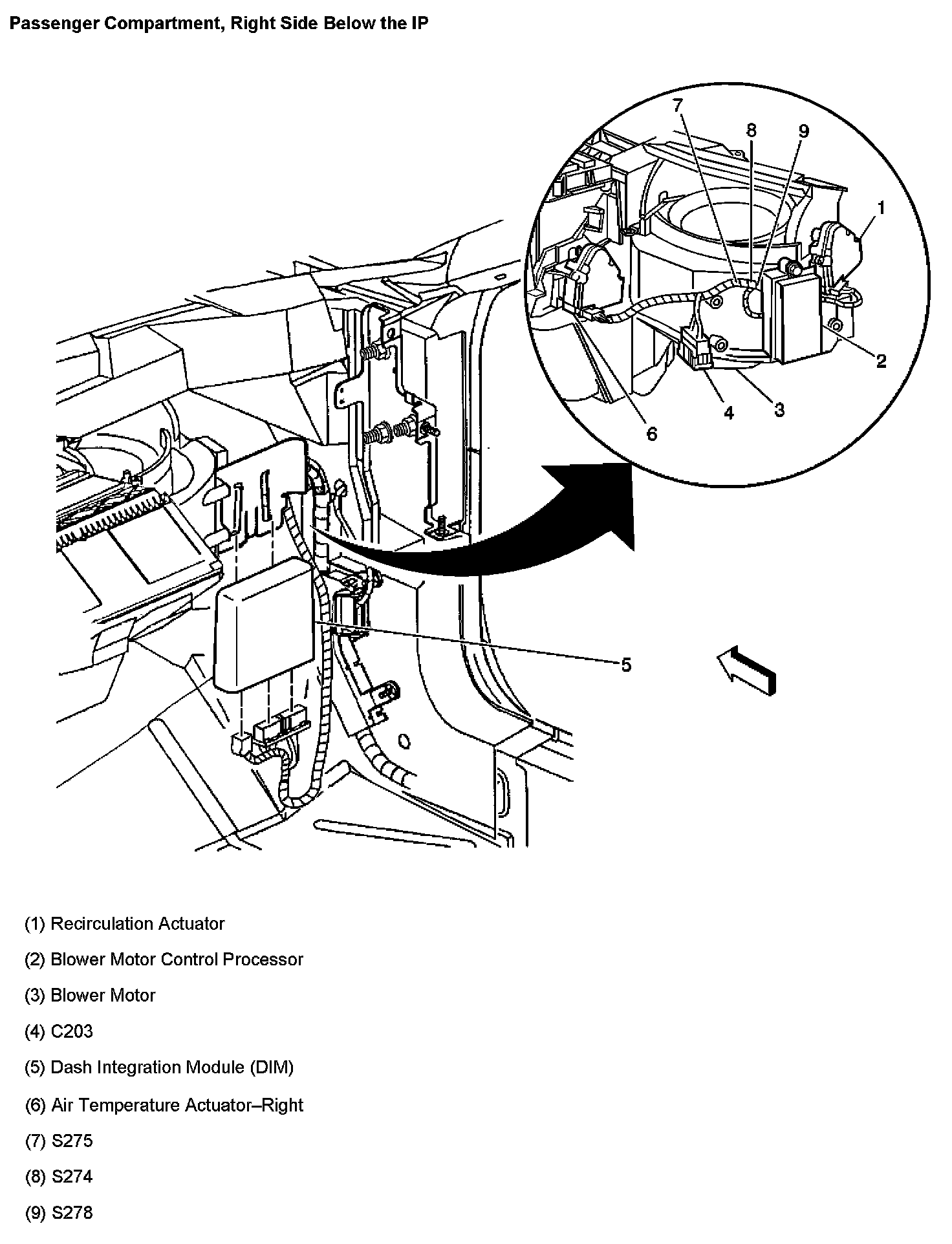

Passenger Compartment Right Side Below The IP:




In the right side of the instrument panel, near the blower motor
