Integration Module (RIM), Rear

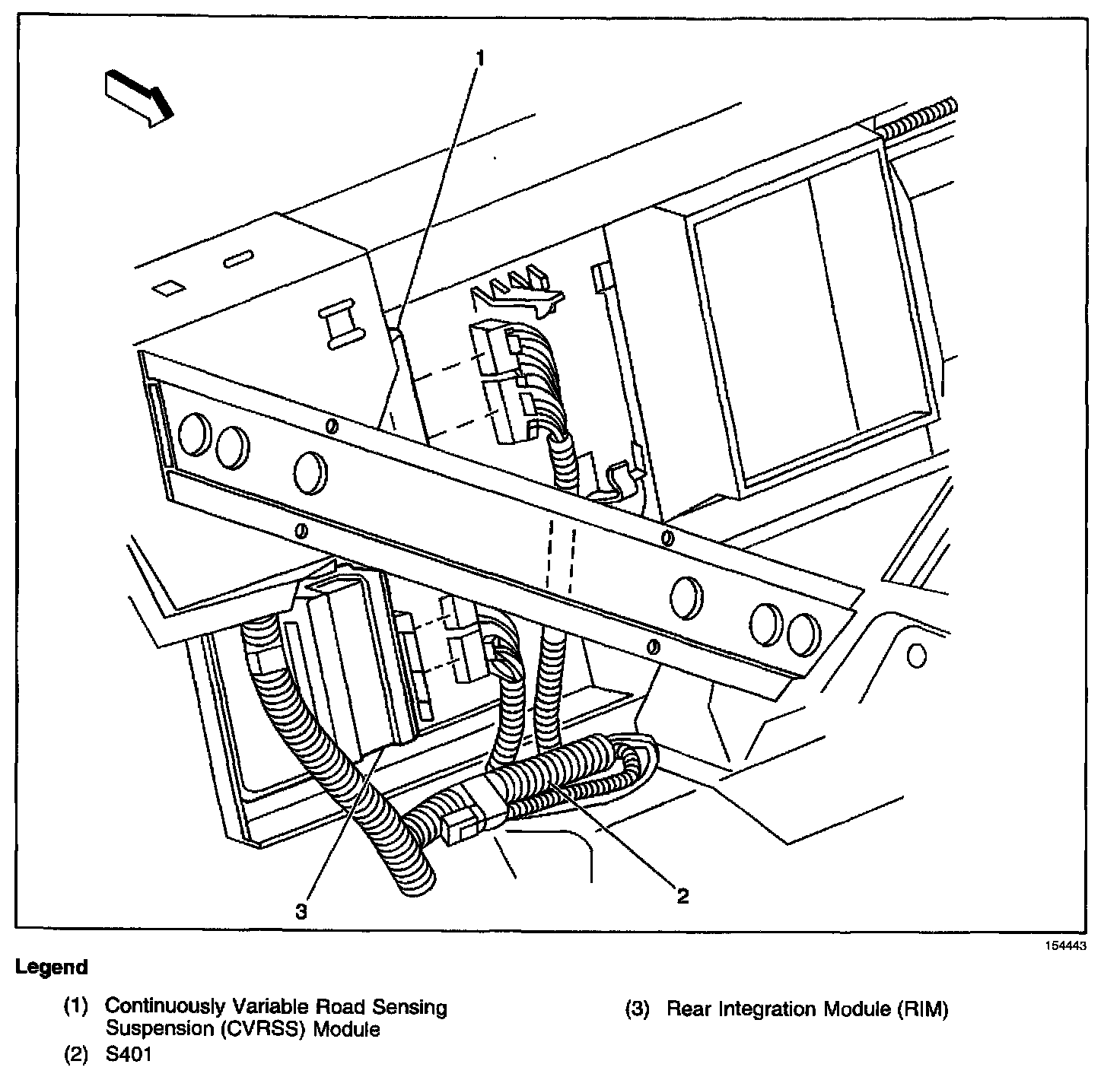

Locations View:

Right hand rear of the passenger compartment, behind the rear seat back
