Remote Keyless Entry (RKE) Module

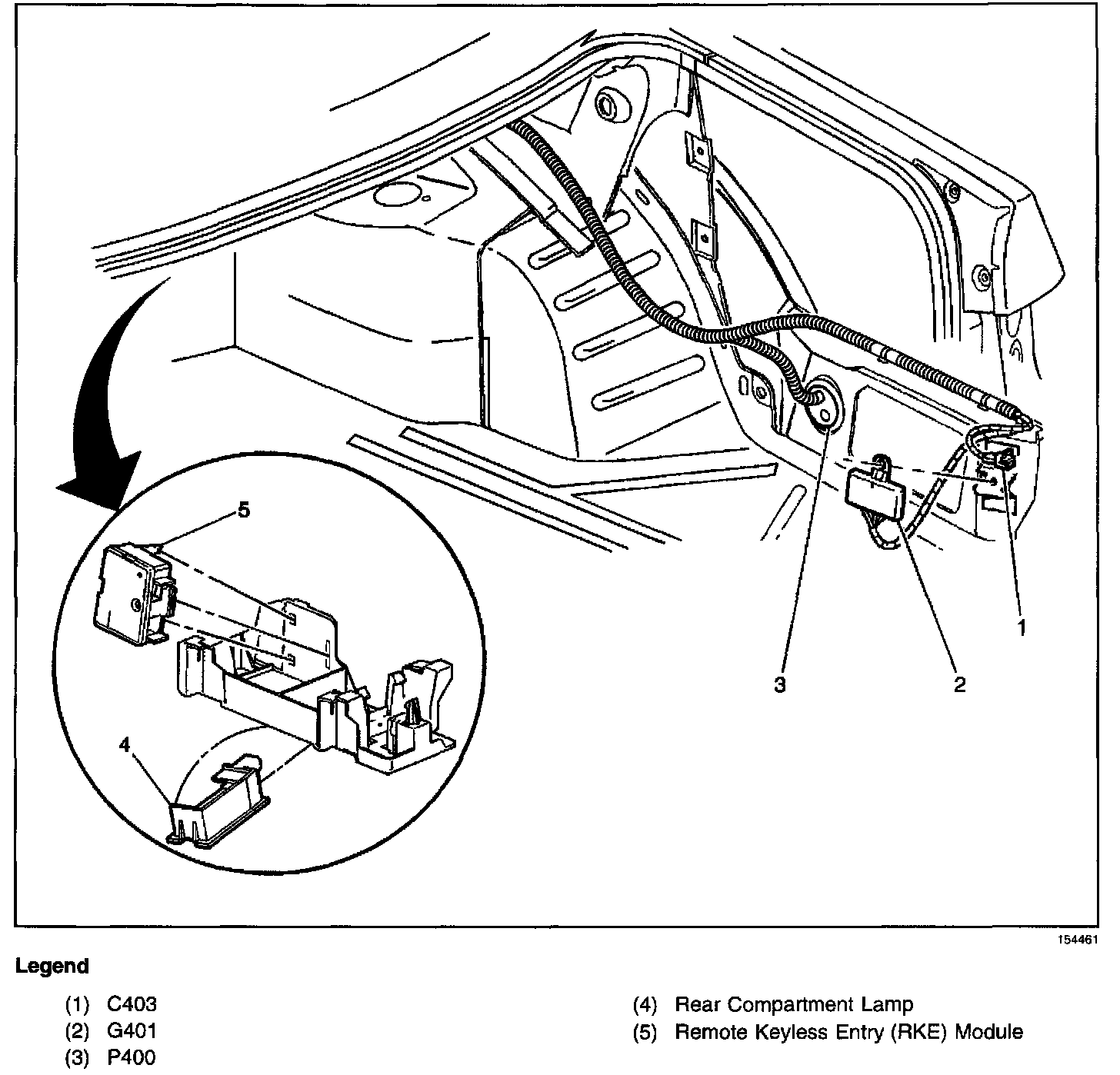

Locations View:




Locations View:




Locations View:




Center front of the Rear compartment, under the package shelf

Front center of the rear compartment, near the rear compartment lamp
