Home >> Cadillac >> 2000 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module >> Suspension Controls Schematic Icons >> (CVRSS) Module Connector C1

April 5, 2026: LEMON Manuals is launched! Read the announcement.

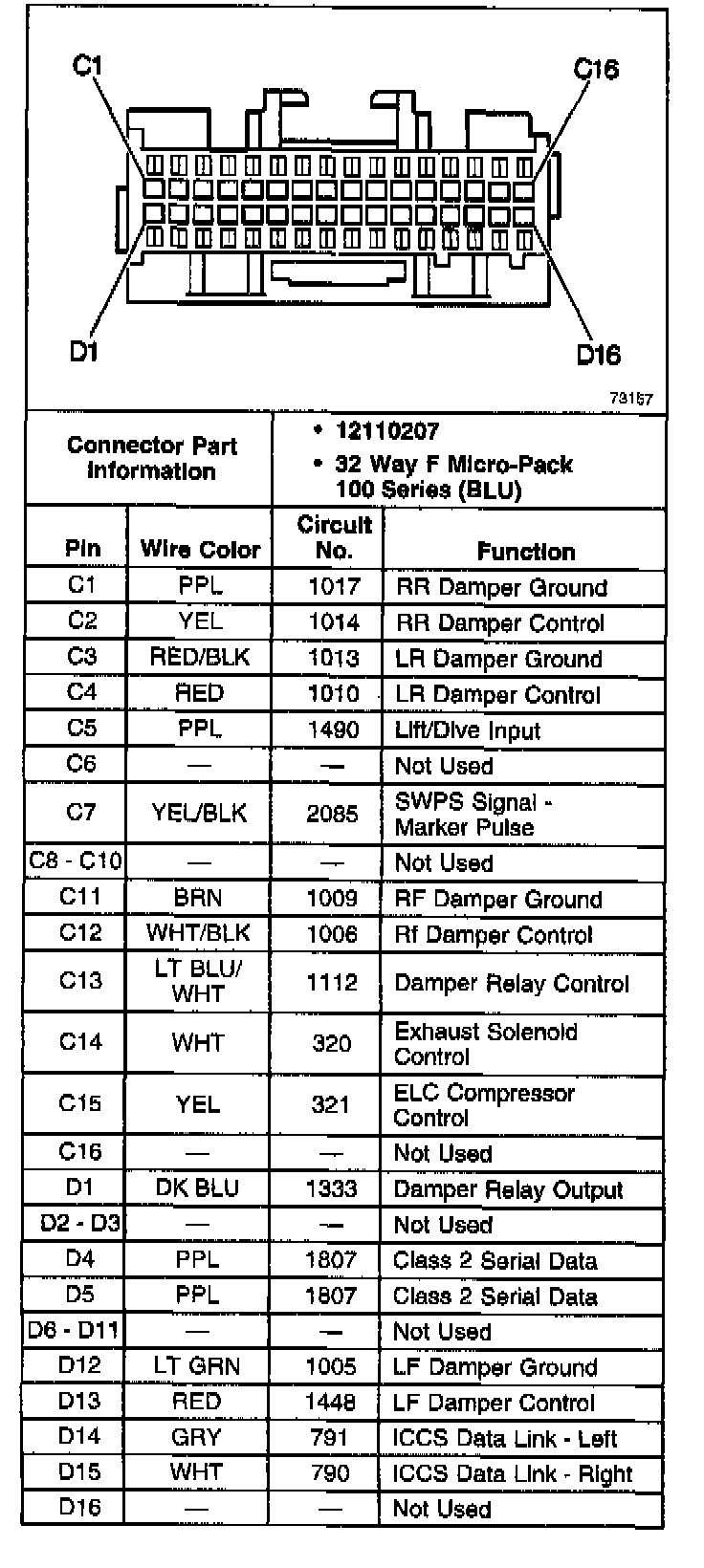

(CVRSS) Module Connector C1
