IPM Inputs/Outputs

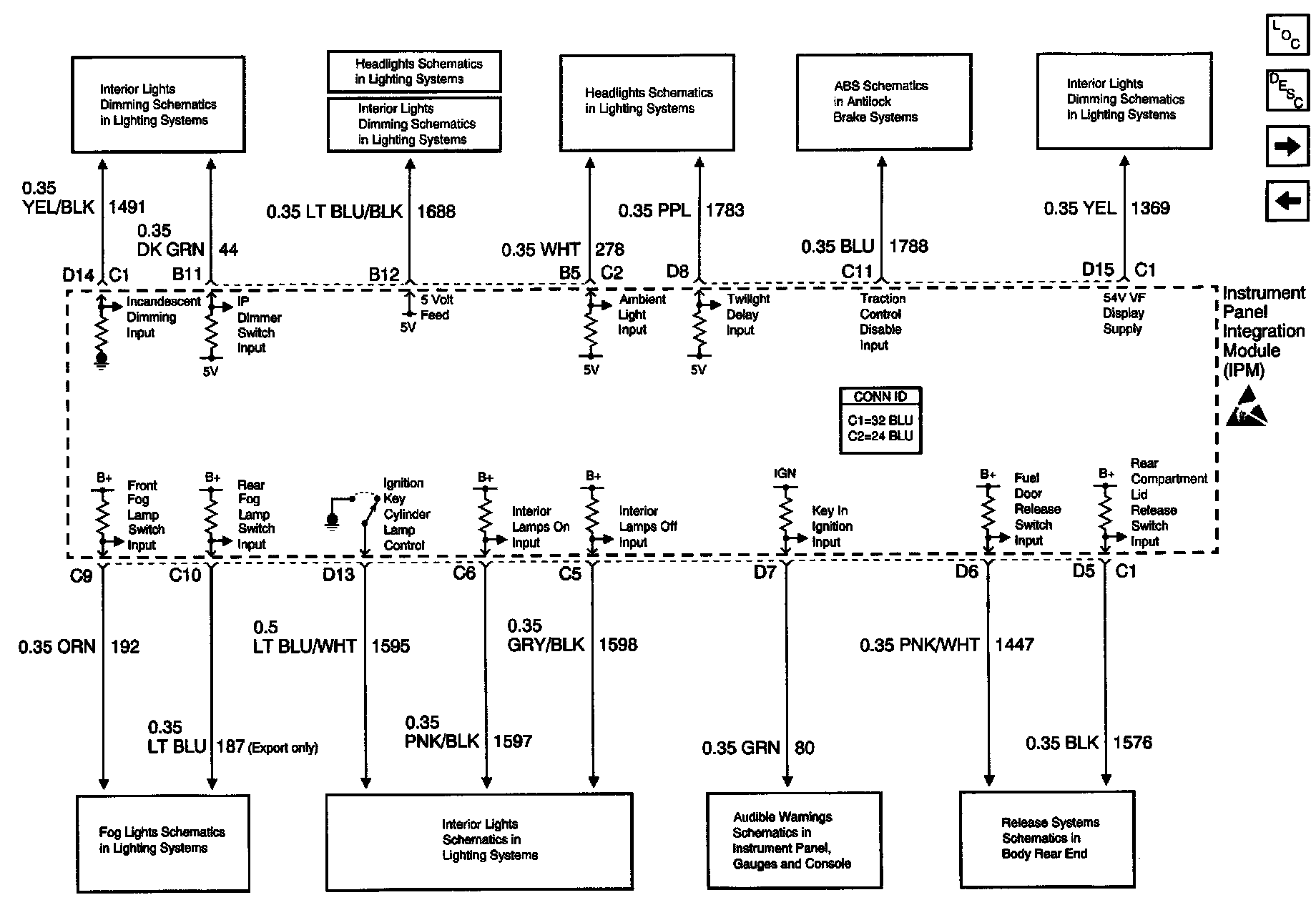

Body Control Module Schematics: IPM Inputs And Outputs (Part 1 Of 2):

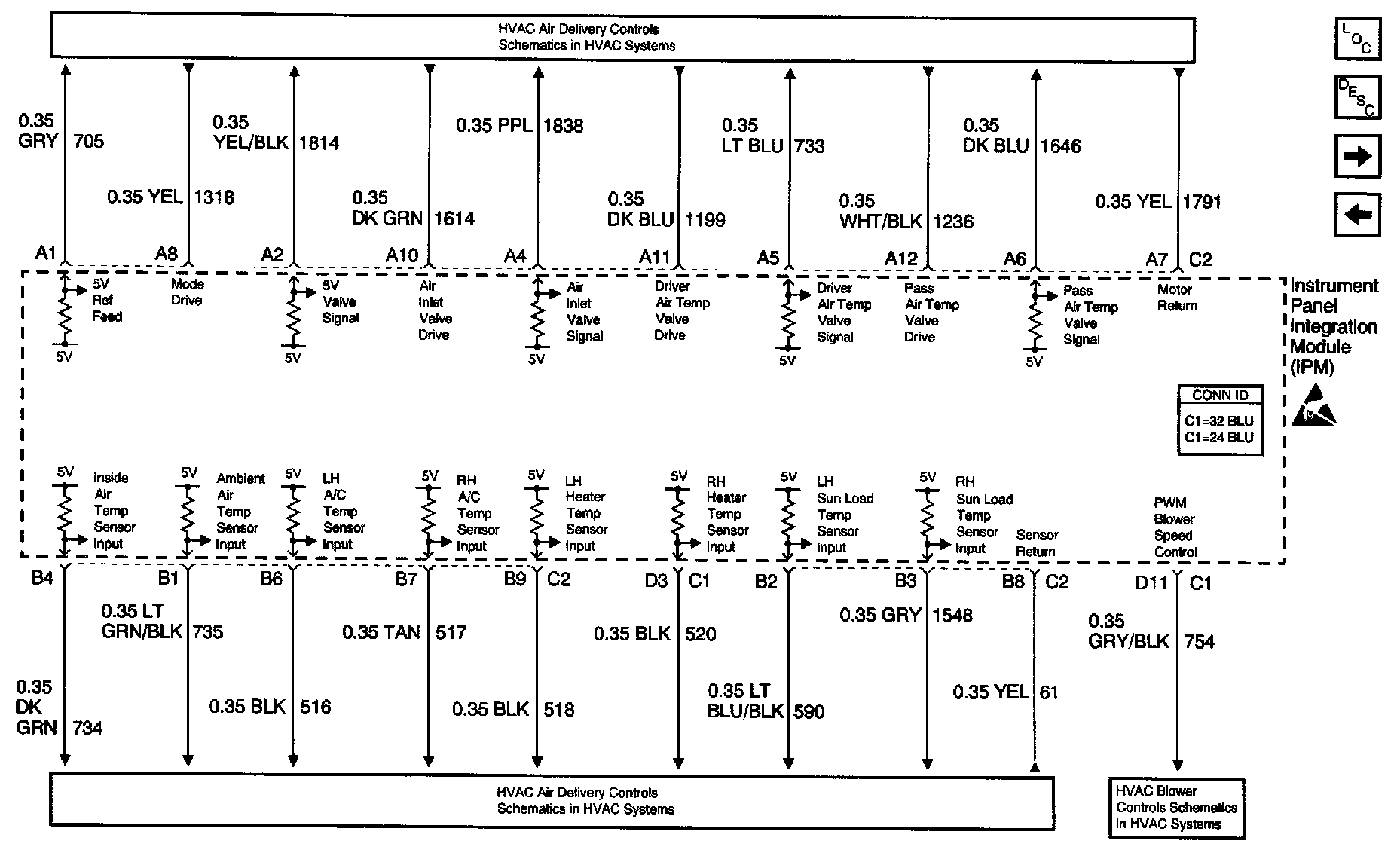

Body Control Module Schematics: IPM Inputs And Outputs (Part 2 Of 2):
