RHD

REMOVAL PROCEDURE




1. Remove the left sound insulator.
2. Remove the IP compartment.
3. Remove the DIM from the bracket.

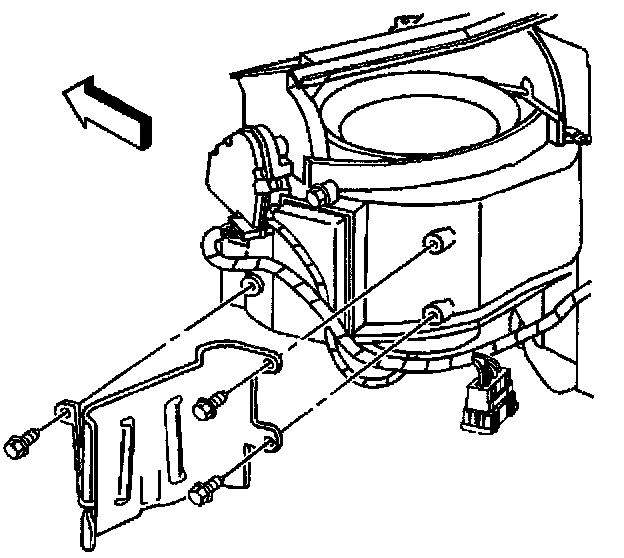

4. Remove the 2 rear DIM bracket fasteners.

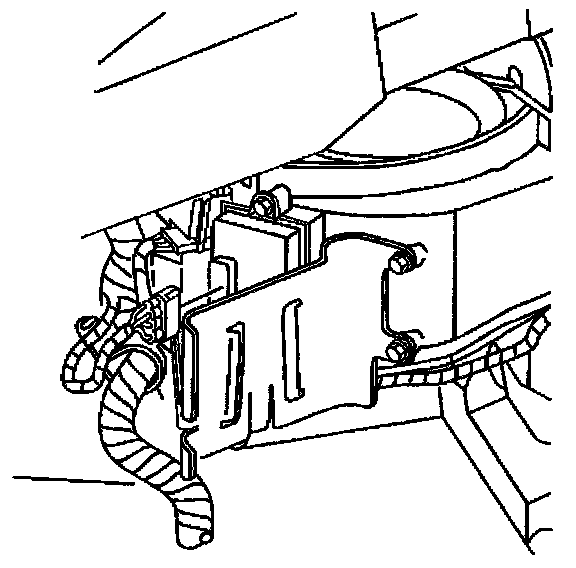

5. Reposition the DIM bracket in order to gain access to the [1][2]blower control module.

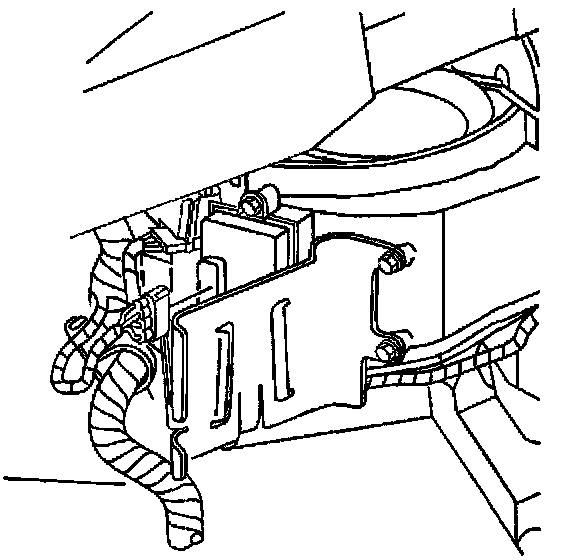

6. Disconnect the [1][2]blower control module electrical connector.




7. Remove the [1][2]blower control module retaining fastener.

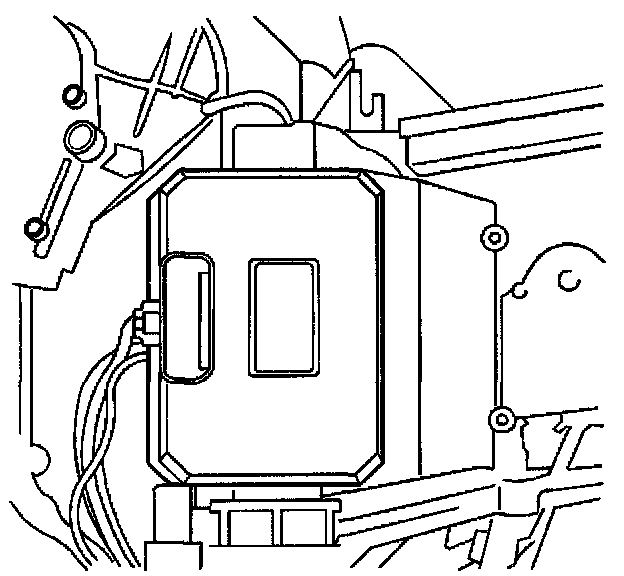

8. Remove the [1][2]blower control module.

INSTALLATION PROCEDURE




1. Install the [1][2]blower control module.
2. Install the [1][2]blower control module retaining fastener.




3. Connect the [1][2]blower control module electrical connector.




4. Install the DIM bracket and fasteners.
5. Install the DIM.
6. Install the IP compartment.
7. Install the left sound insulator.
