Data Link Connector: Service and Repair




REMOVAL PROCEDURE
1. Remove the left sound insulator.

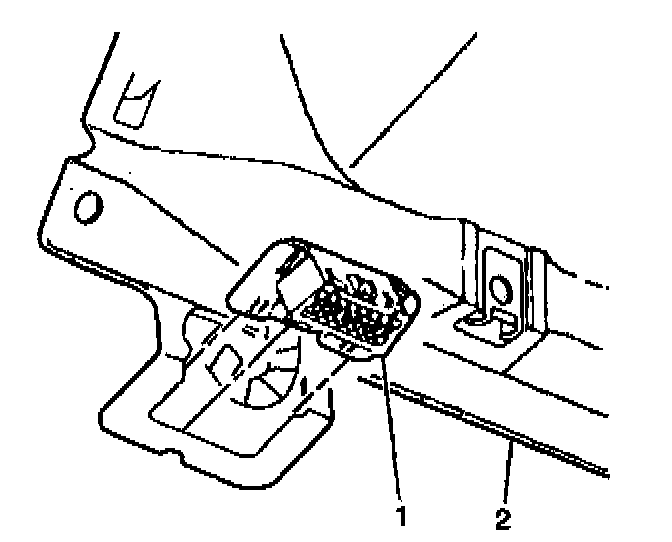

2. Slide the data link connector (DLC) (1) from the bracket (2).

INSTALLATION PROCEDURE
1. Align the DLC (1) with the bracket (2) and push the DLC into position.
2. Install the left sound insulator.
