Navigation System Schematics (Power, Ground, Components and GPS)
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

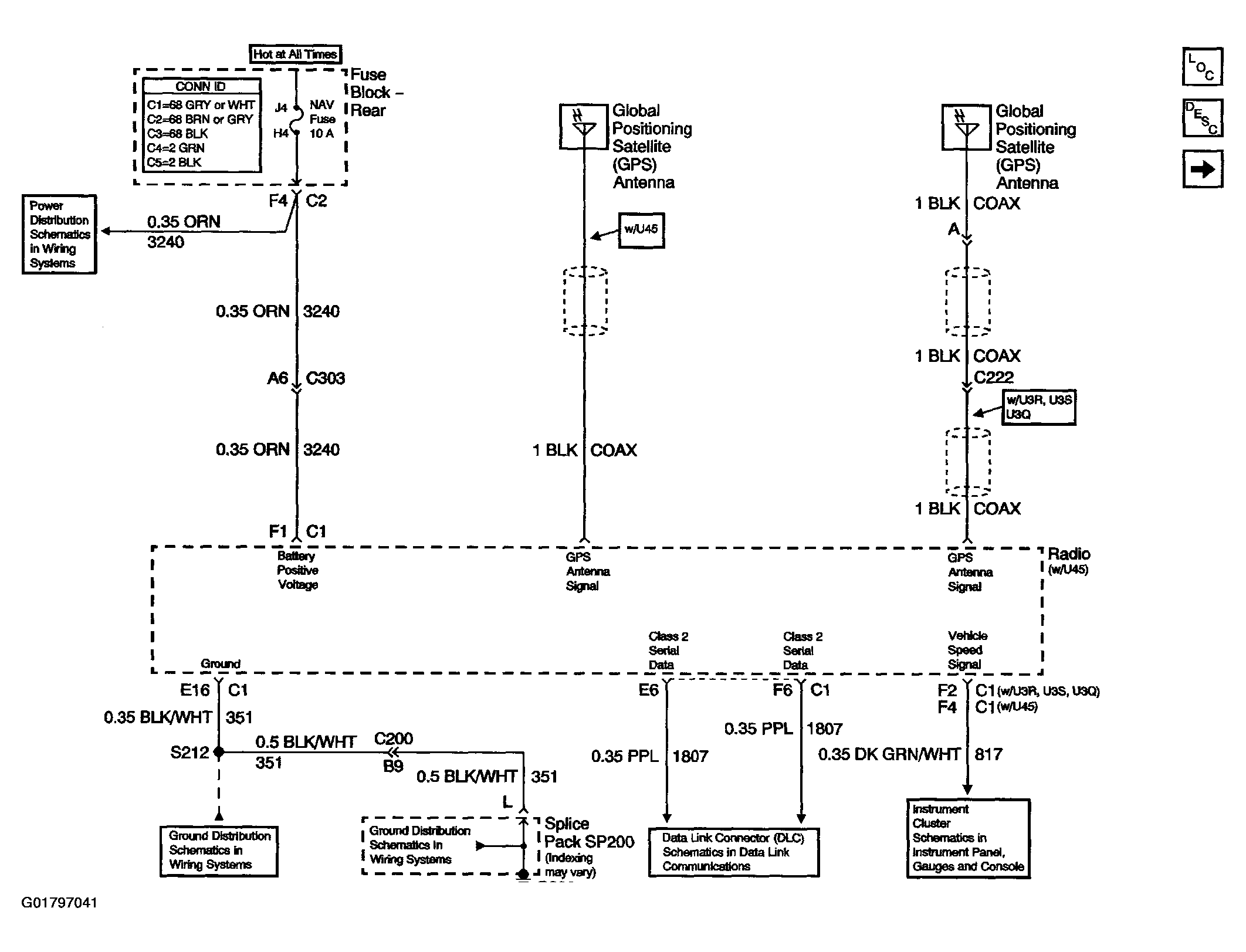

Fig 1: Navigation System Schematics (Power, Ground, Components and GPS)
Courtesy of GENERAL MOTORS CORP.

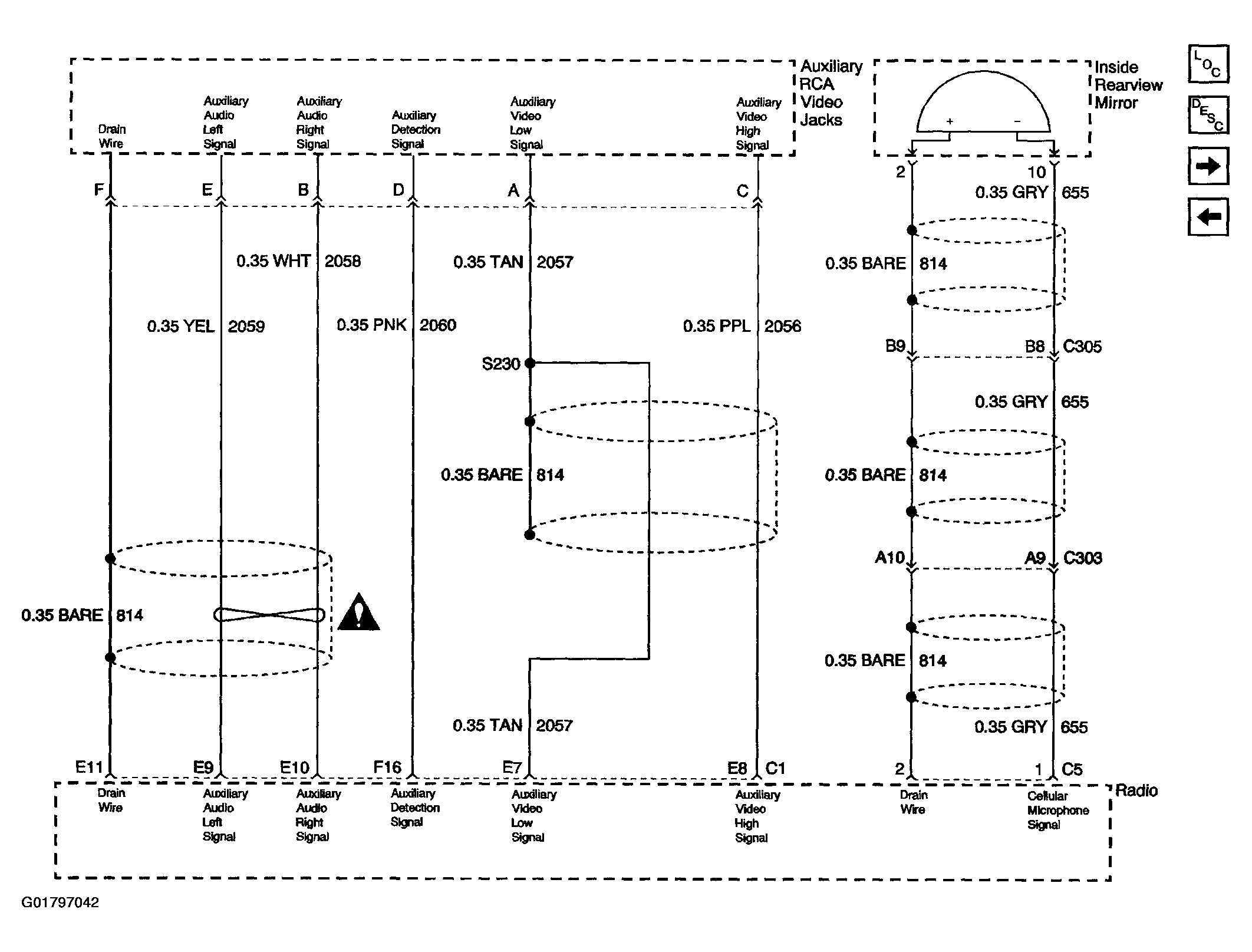

Fig 2: Navigation System Schematics (Auxiliary RCA Video Jacks and Export Microphone)
Courtesy of GENERAL MOTORS CORP.

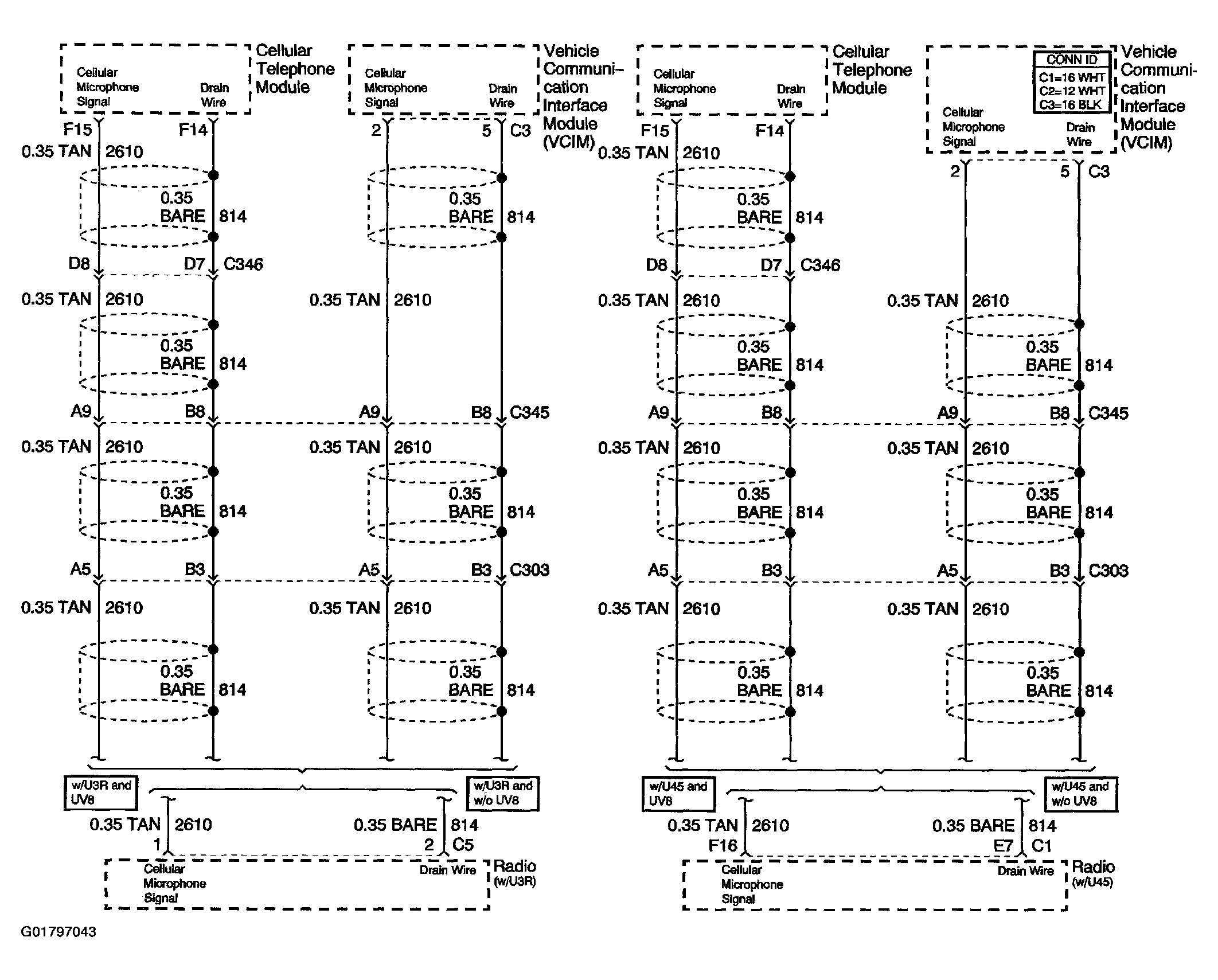

Fig 3: Navigation System Schematics (Domestic Microphone)
Courtesy of GENERAL MOTORS CORP.

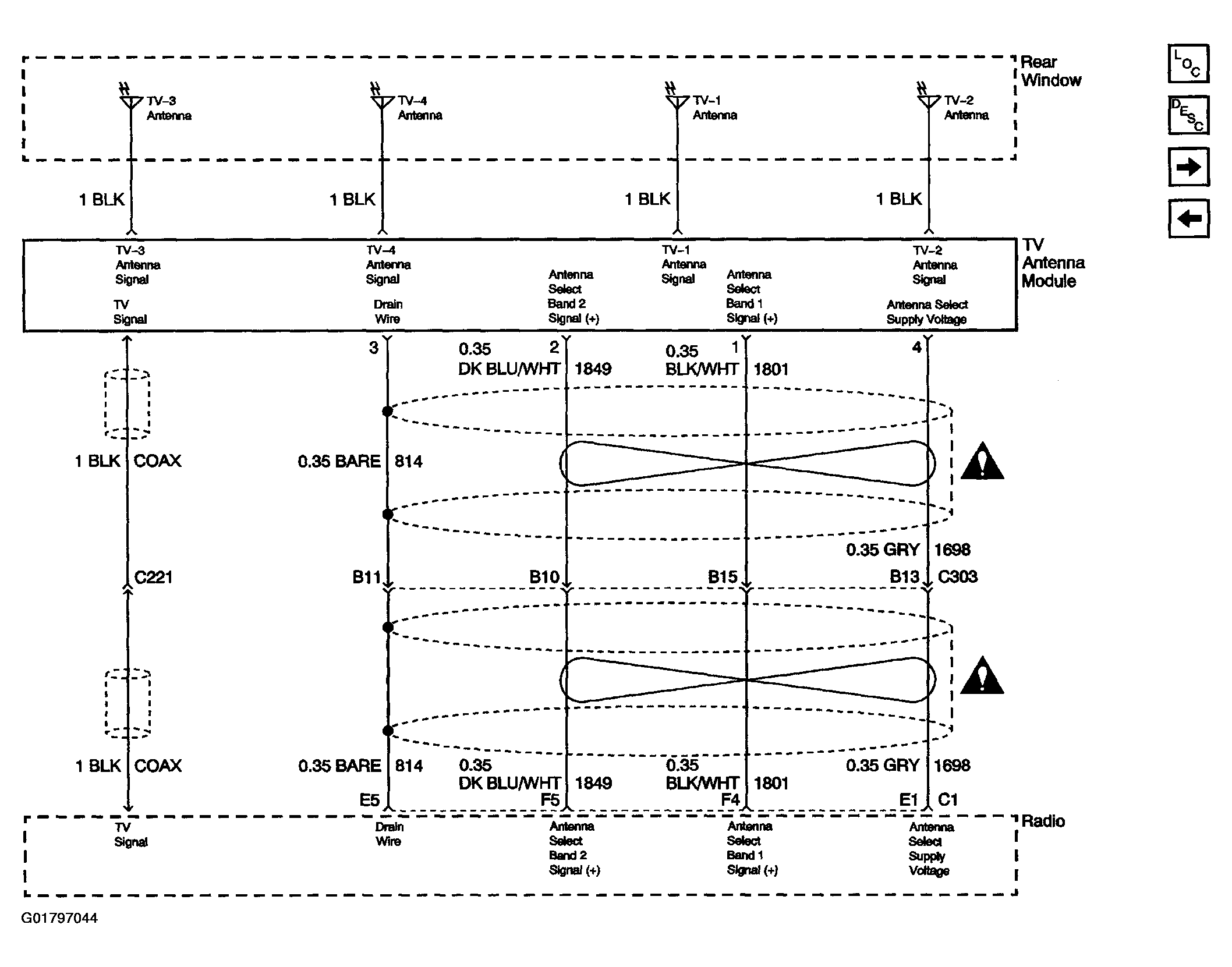

Fig 4: Navigation System Schematics (TV Antenna Module)
Courtesy of GENERAL MOTORS CORP.

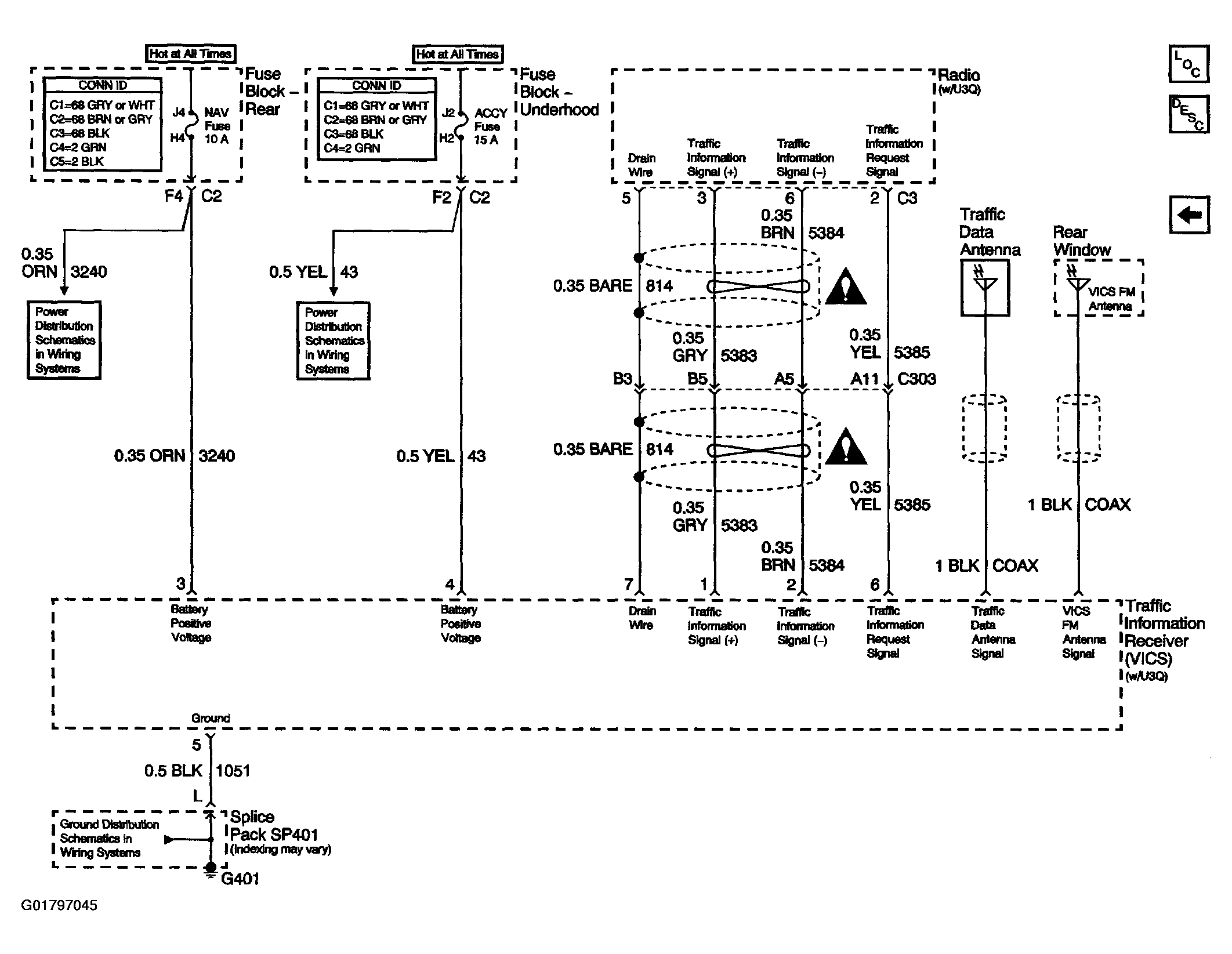

Fig 5: Navigation System Schematics (Traffic Information Receiver (VICS))
