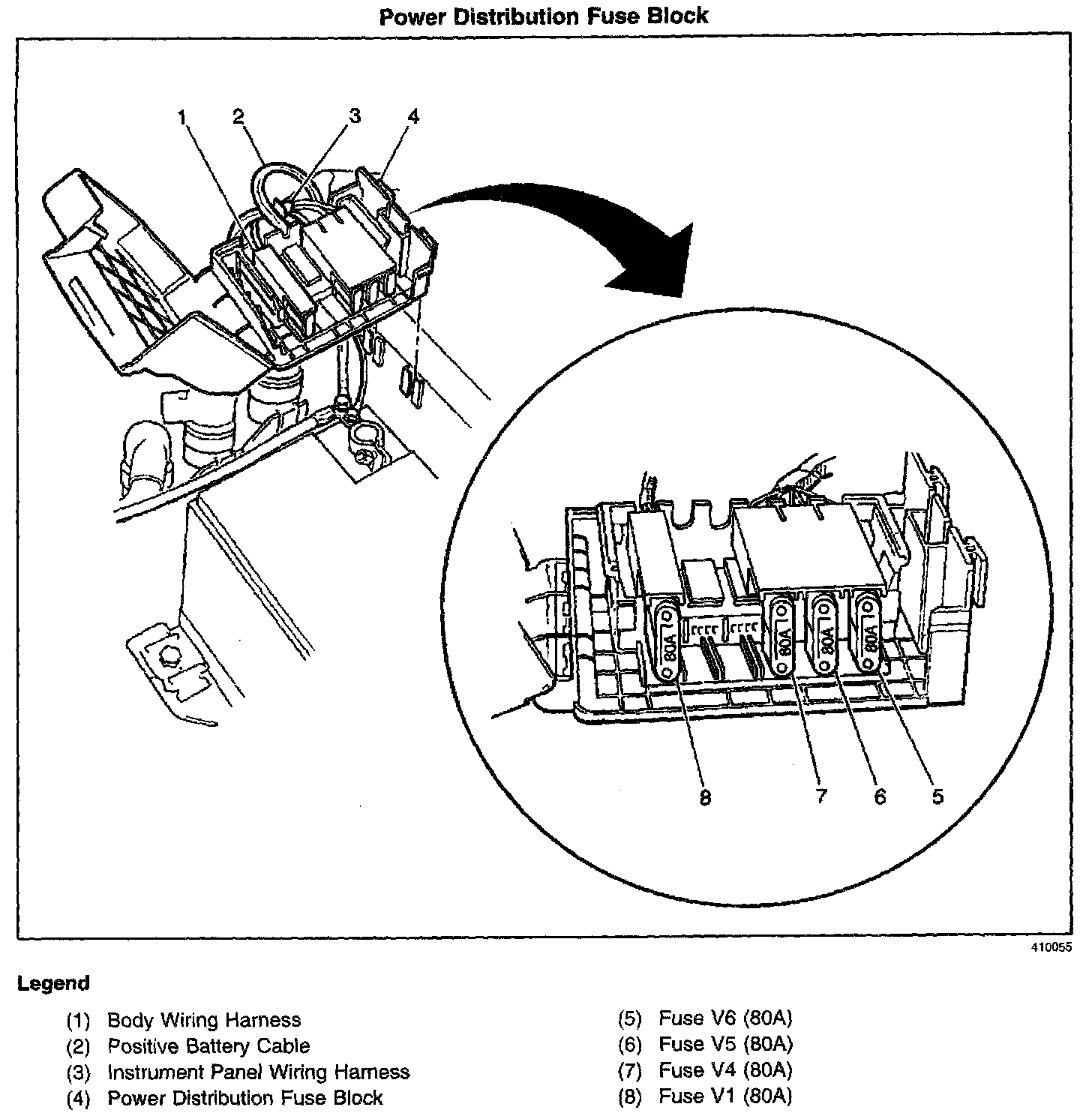

Power Distribution Fuse Block

Locations View:




LH front of the engine compartment, attached to the ECM housing, above the battery
