Air Bag Control Module

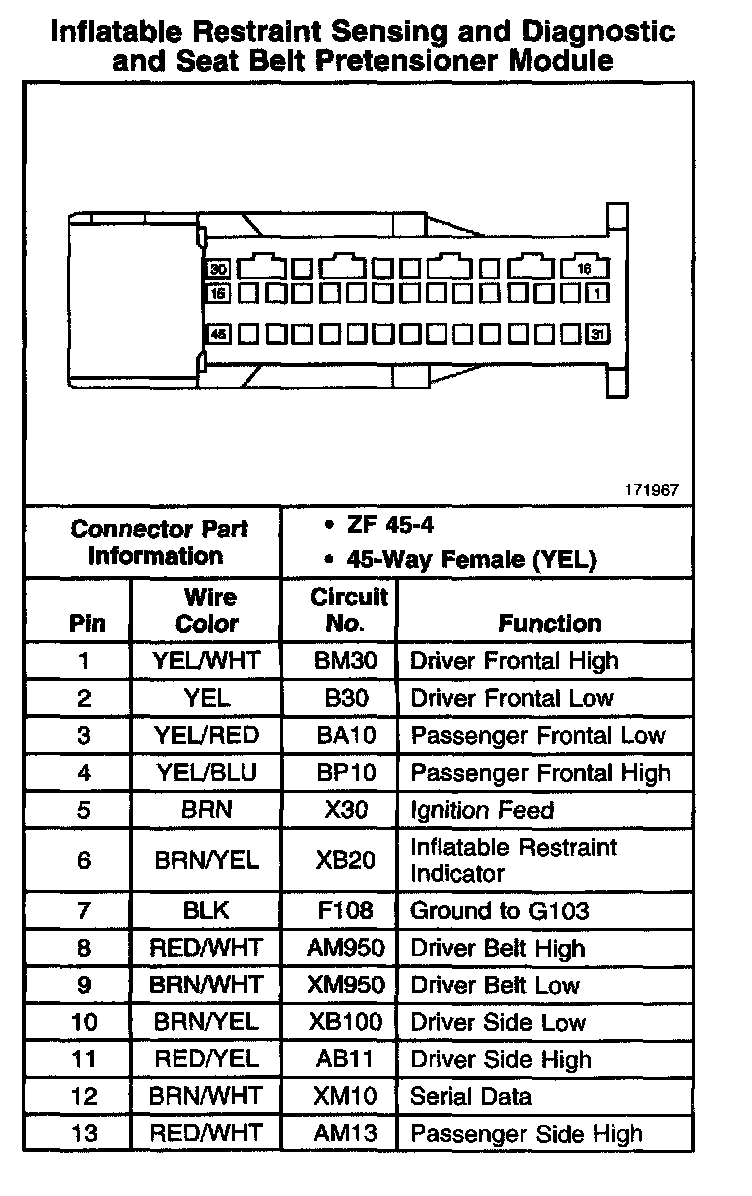

Inflatable Restraint Sensing and Diagnostic and Seat Belt Pretensioner Module (Part 1 Of 2):

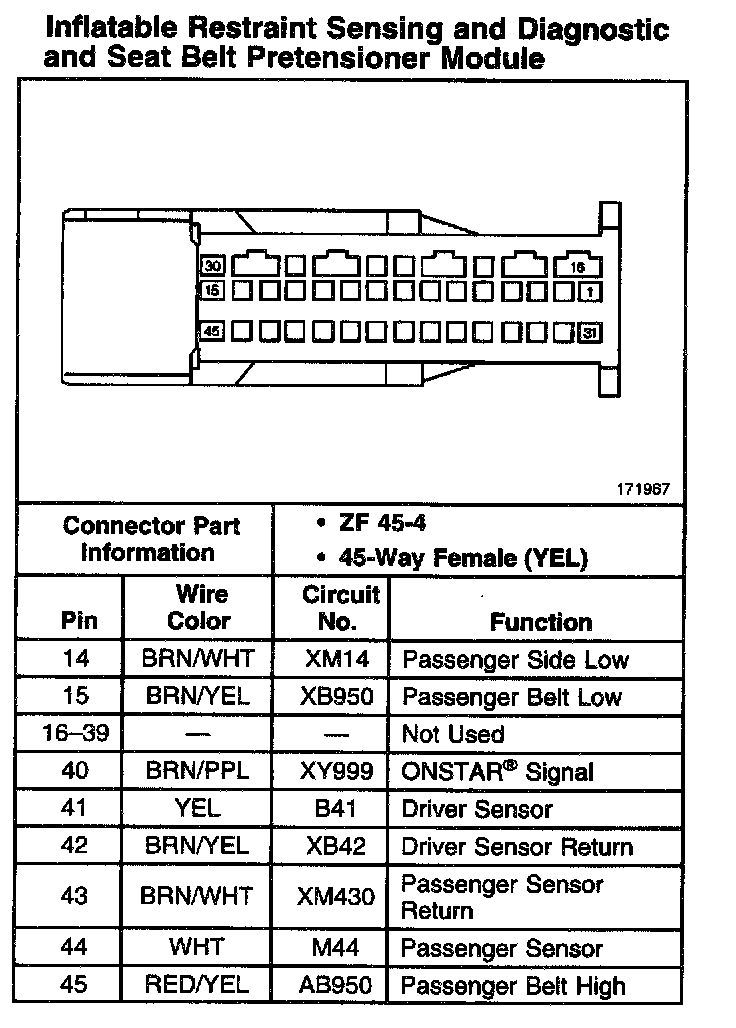

Inflatable Restraint Sensing and Diagnostic and Seat Belt Pretensioner Module (Part 2 Of 2):
