Engine

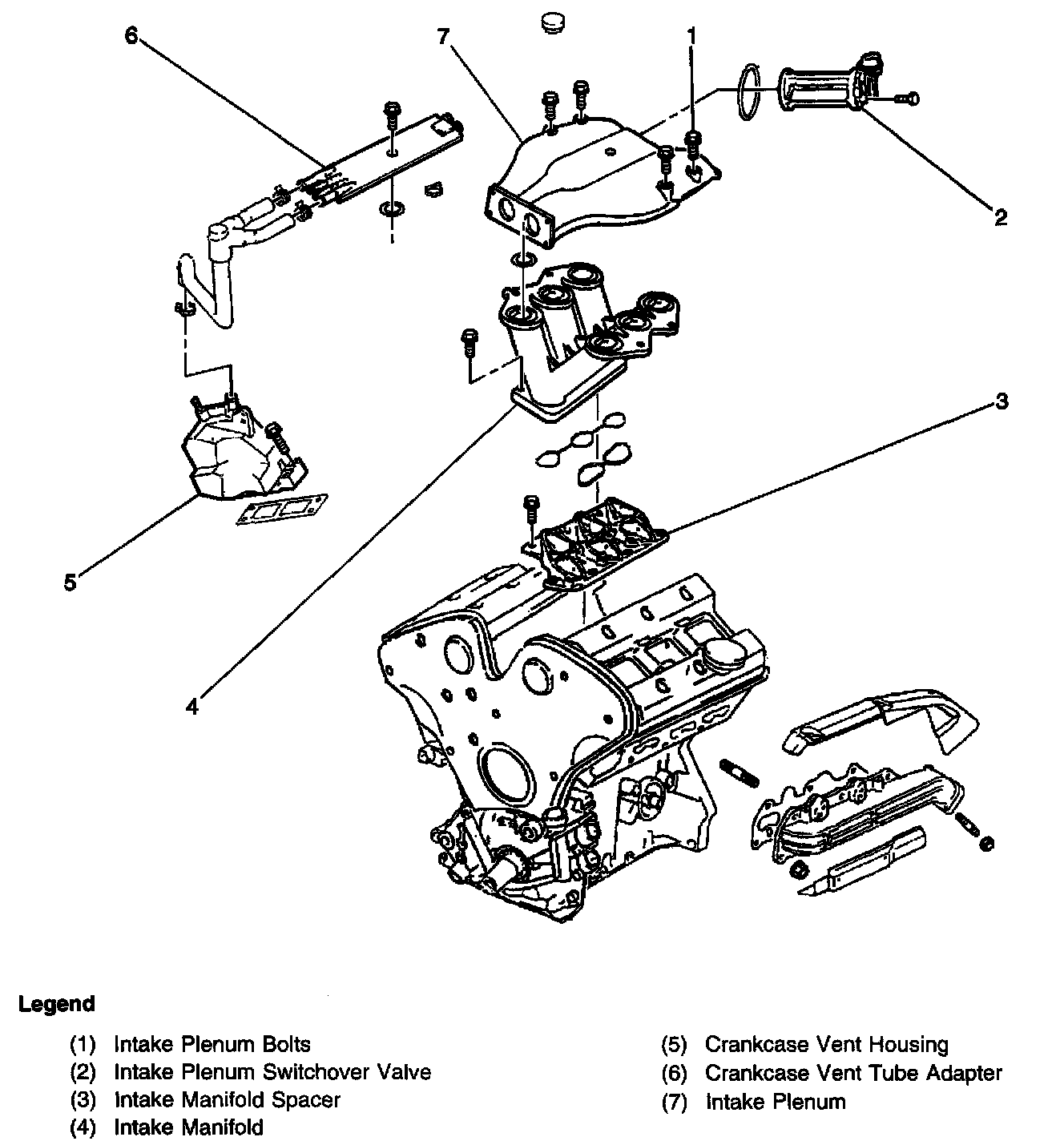

Manifolds and Related Components

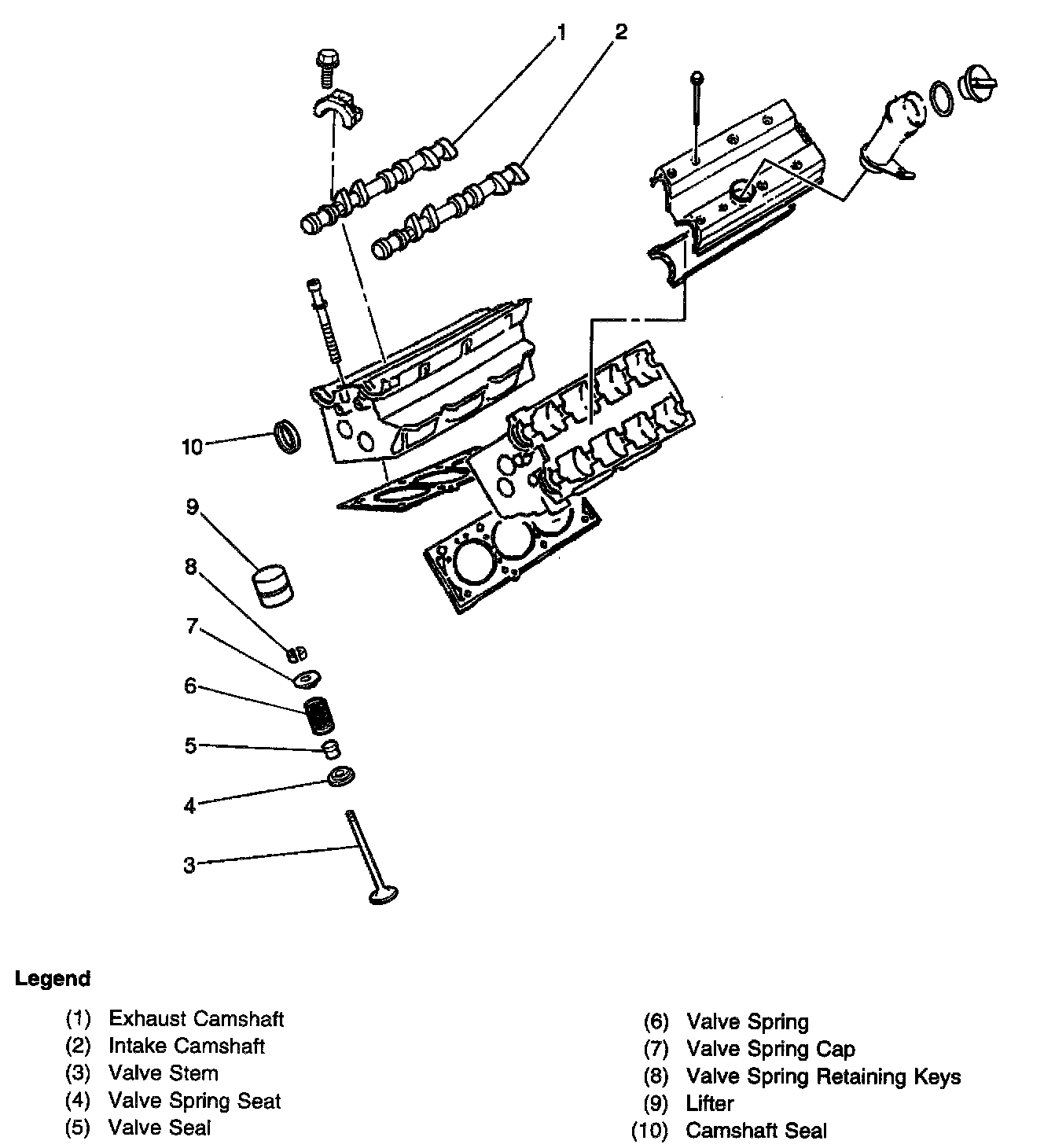

Cylinder Head and Components

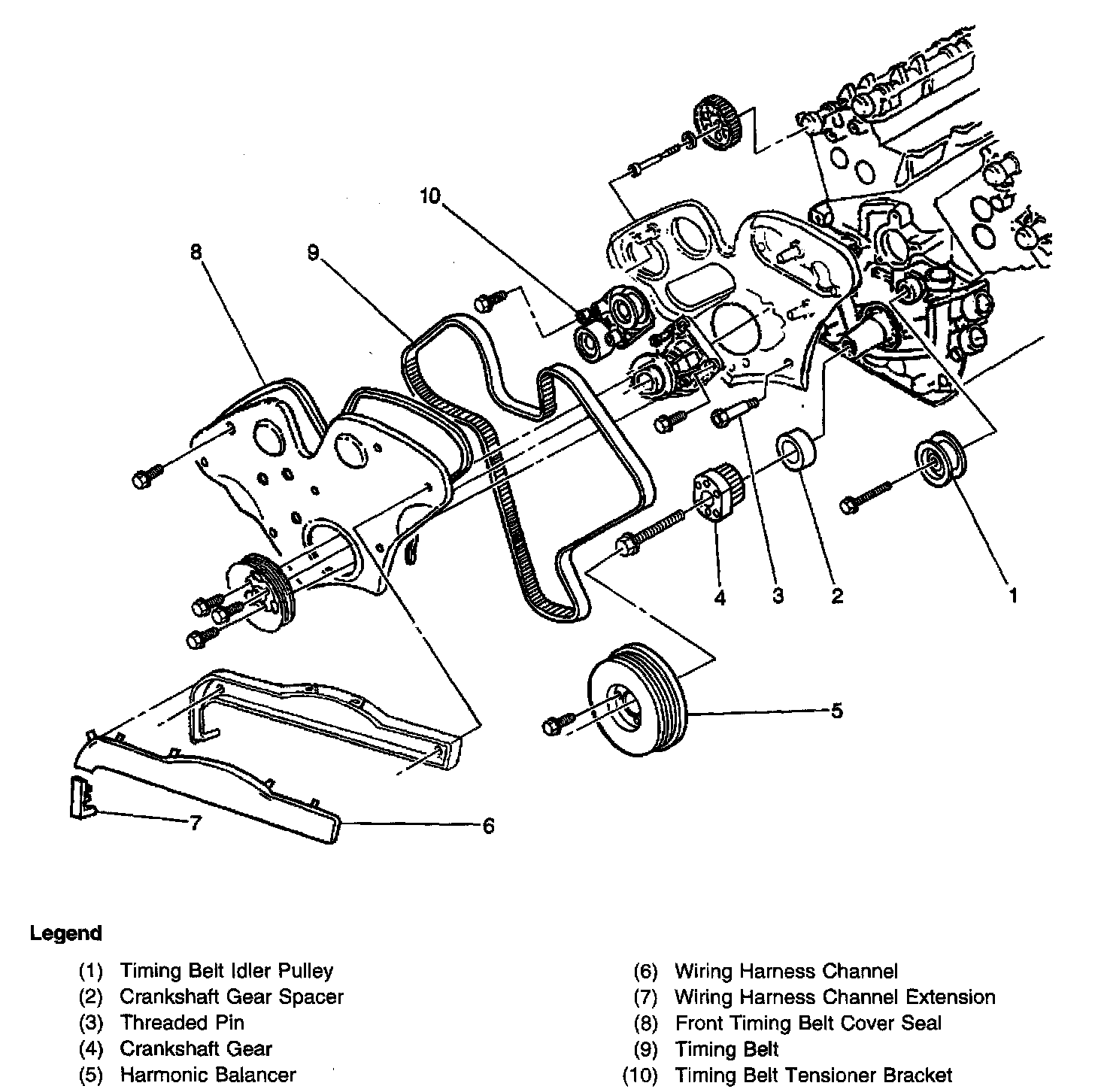

Front of Engine Components

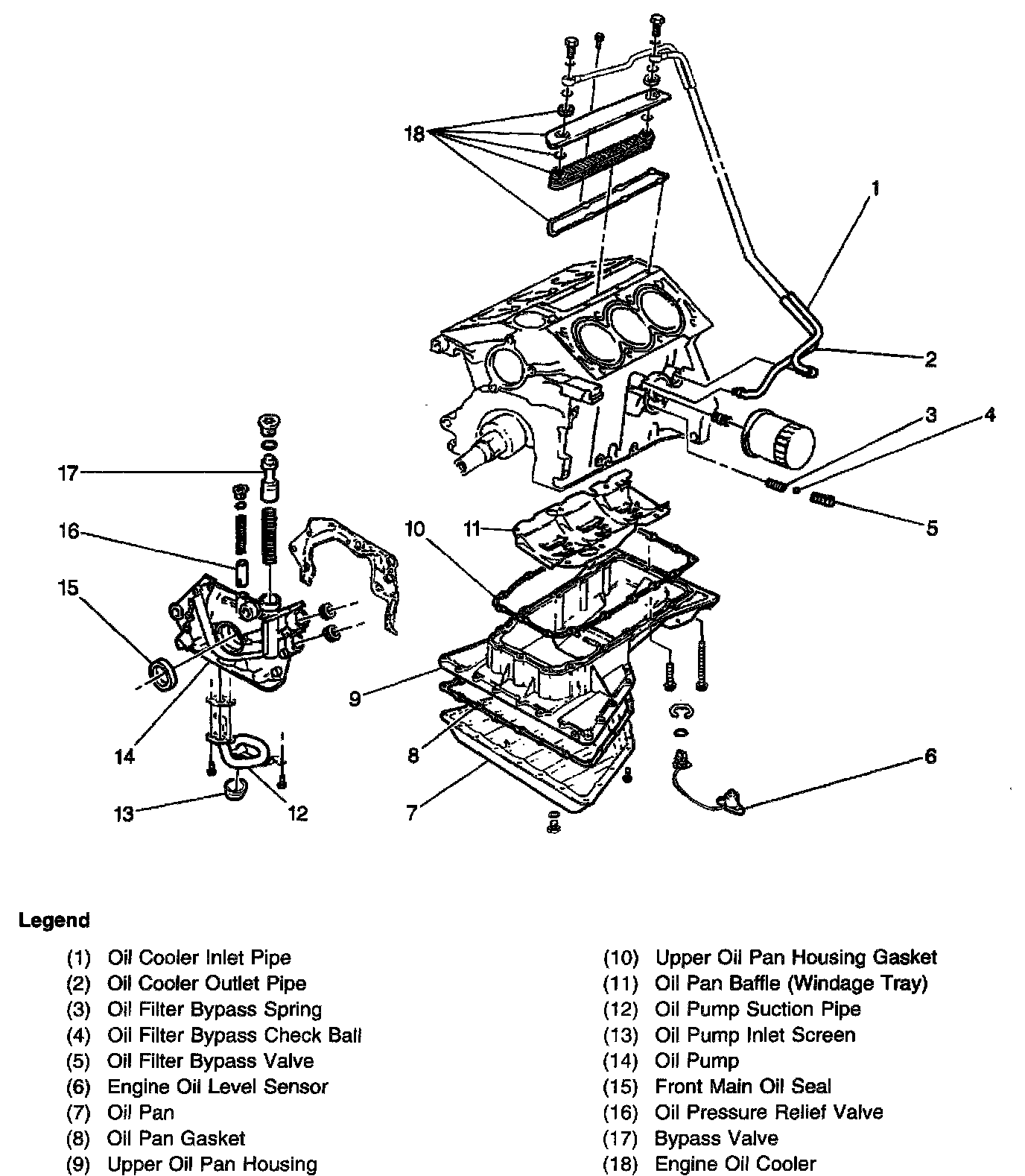

Oil Pan and Oil Delivery Components

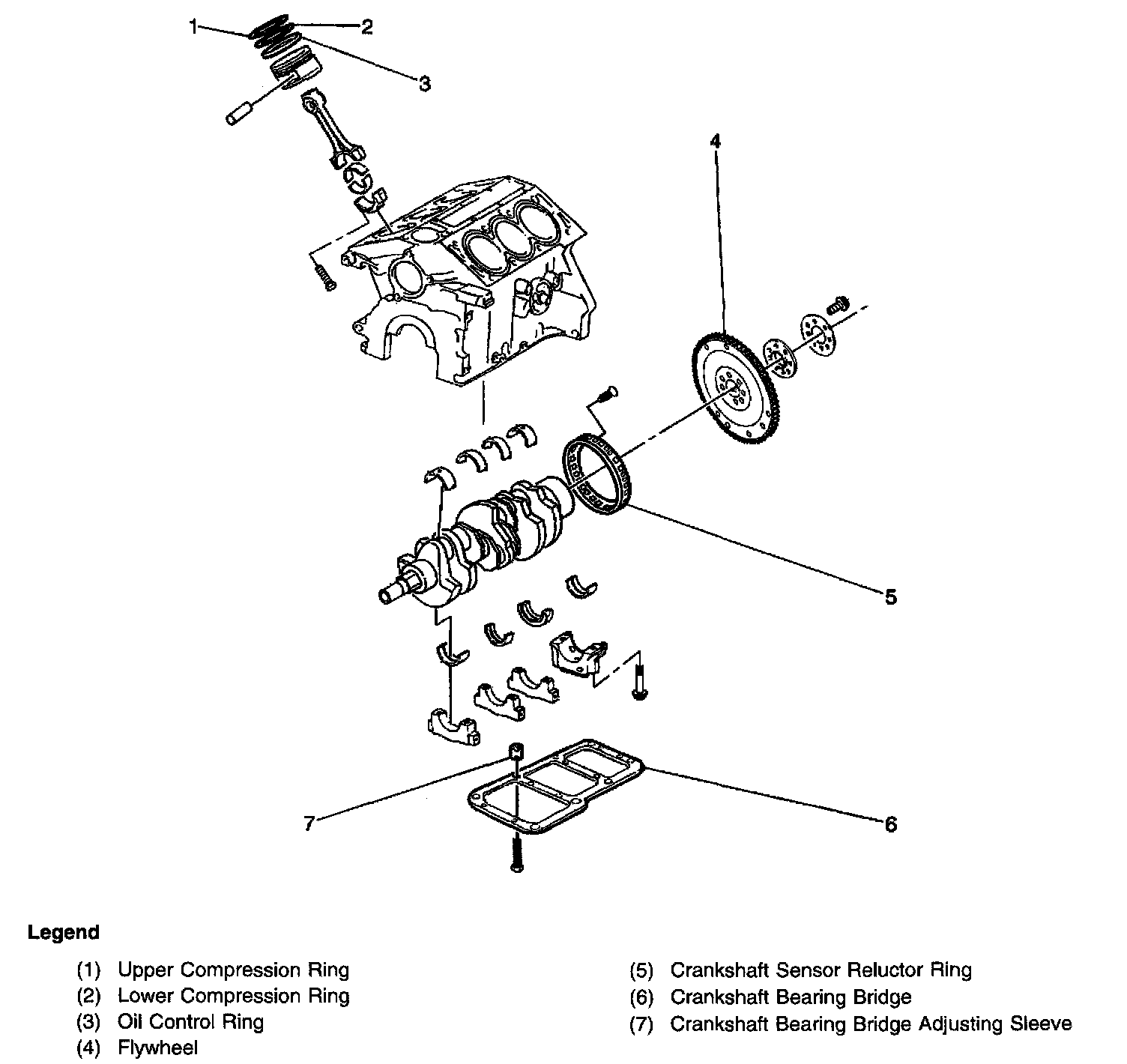

Crankshaft/Piston Components
