Steering Column

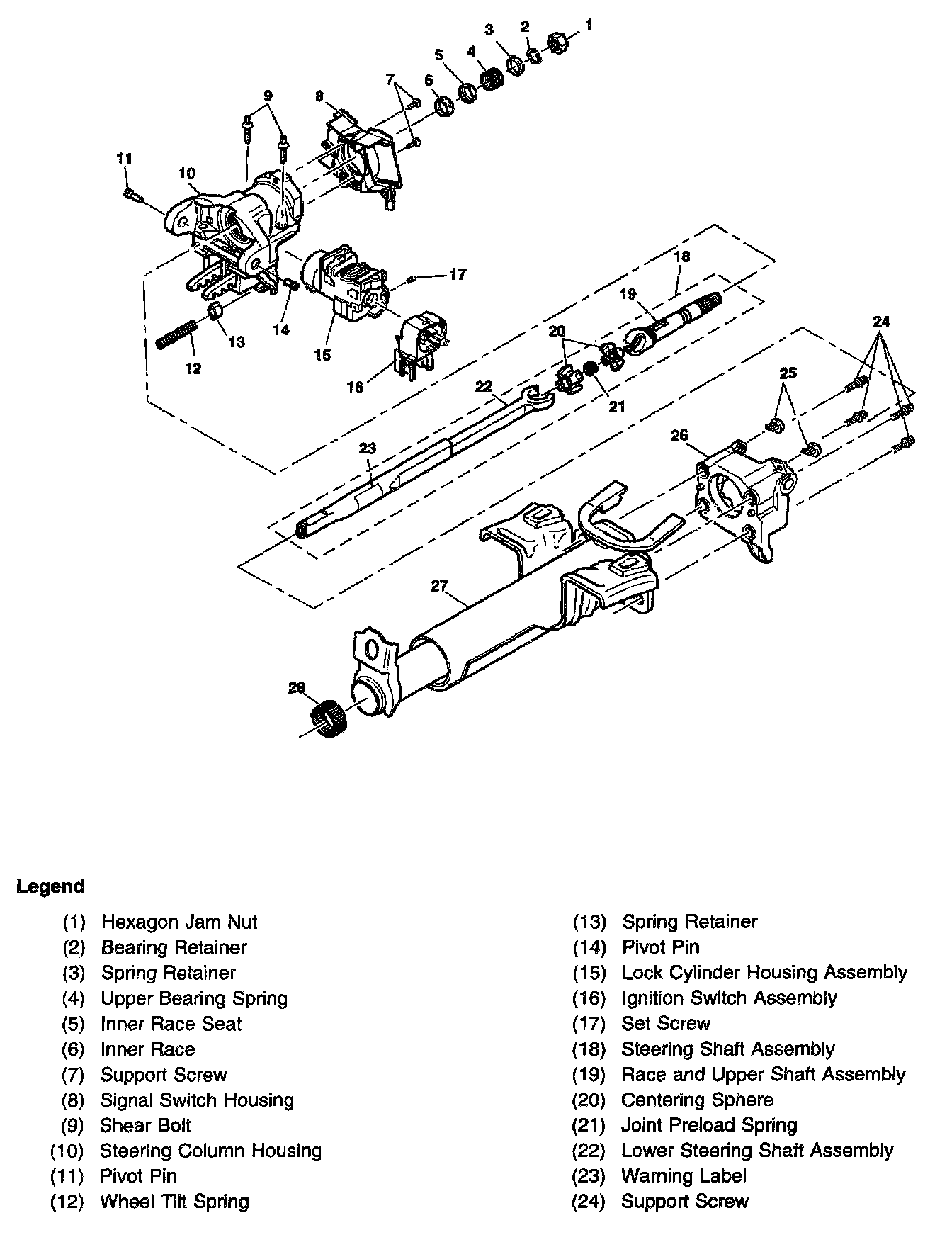

Steering Column Disassembled View Tilt Steering Column





Part 1 of 3





Part 2 of 3





Part 3 of 3
