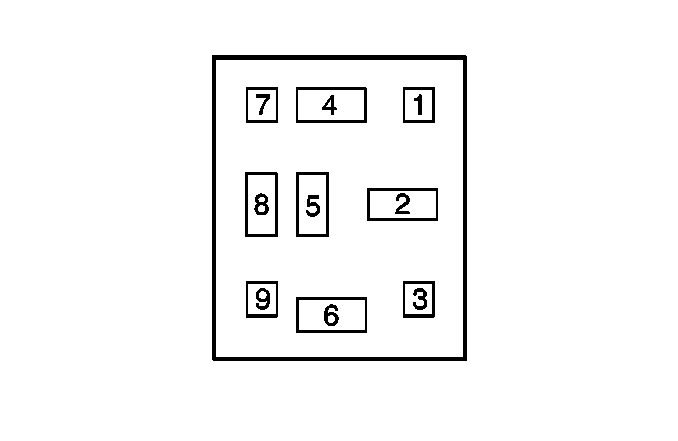

Turn Signal/Hazard Flasher Module K10 Connector End View

Turn Signal/Hazard Flasher Module K10

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		ZF 9-14 9-Way F
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	BRN/WHT	XM200	B+ from Fuse #32
3	-	-	Not Used
4	BLK	F12	Ground to G103
5	-	-	Not Used
6	BLU	P3	Ignition Voltage
7	-	-	Not Used
8	BLK/WHT	FM22	Hazard Flasher Signal
	BLK/WHT	FM91	Hazard Flasher Signal
9	-	-	Not Used
