DTC U2105: Lost Comm with Engine Control System: Notes

WARNING: This page is about a different car, the 2000 Cadillac Catera. However, it is still accessible from the selected car via links, so may be relevant.

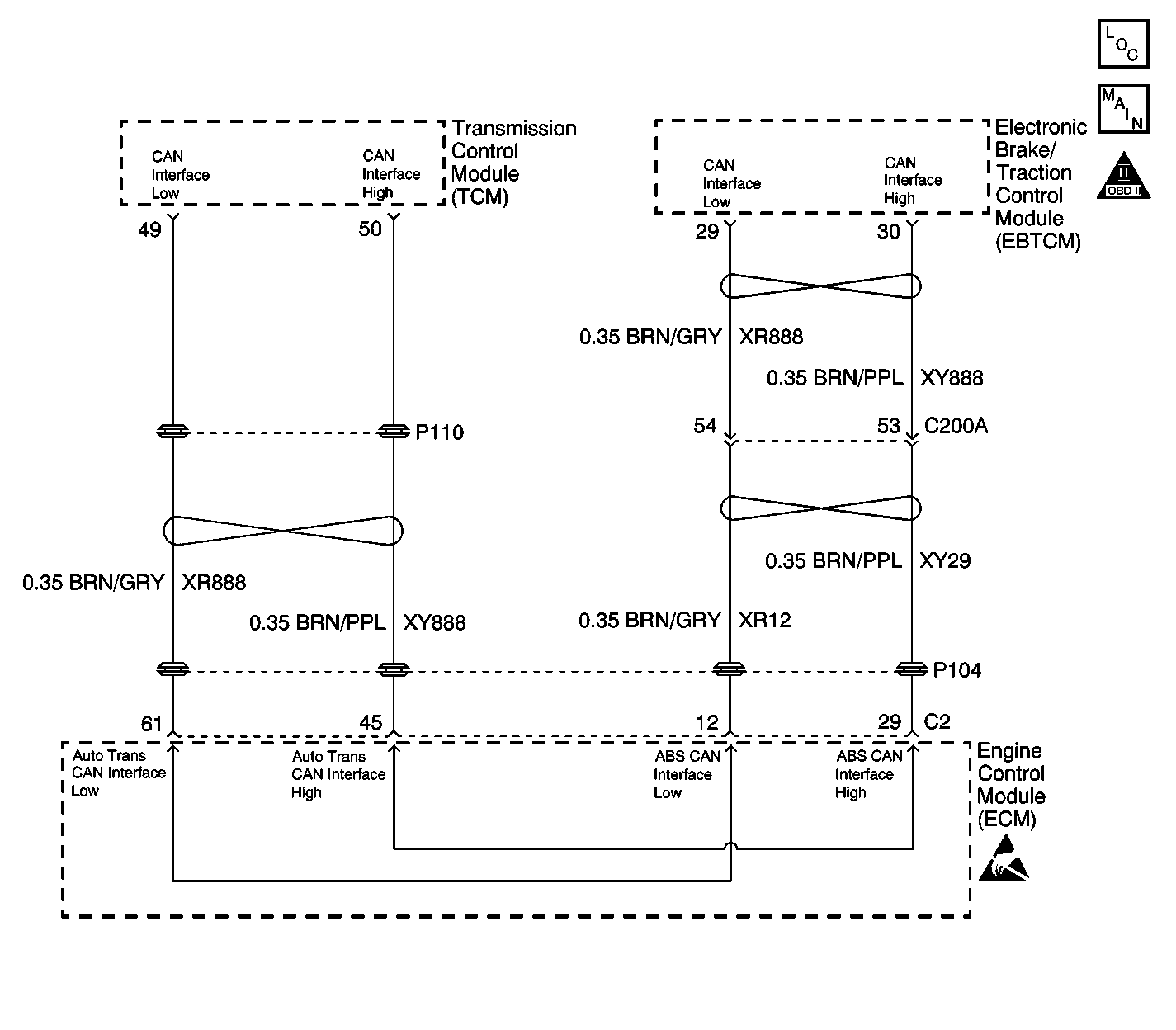

Fig 1: CAN Bus Communication Schematic
GM556741
