Turn Signal/Hazard Flasher Module

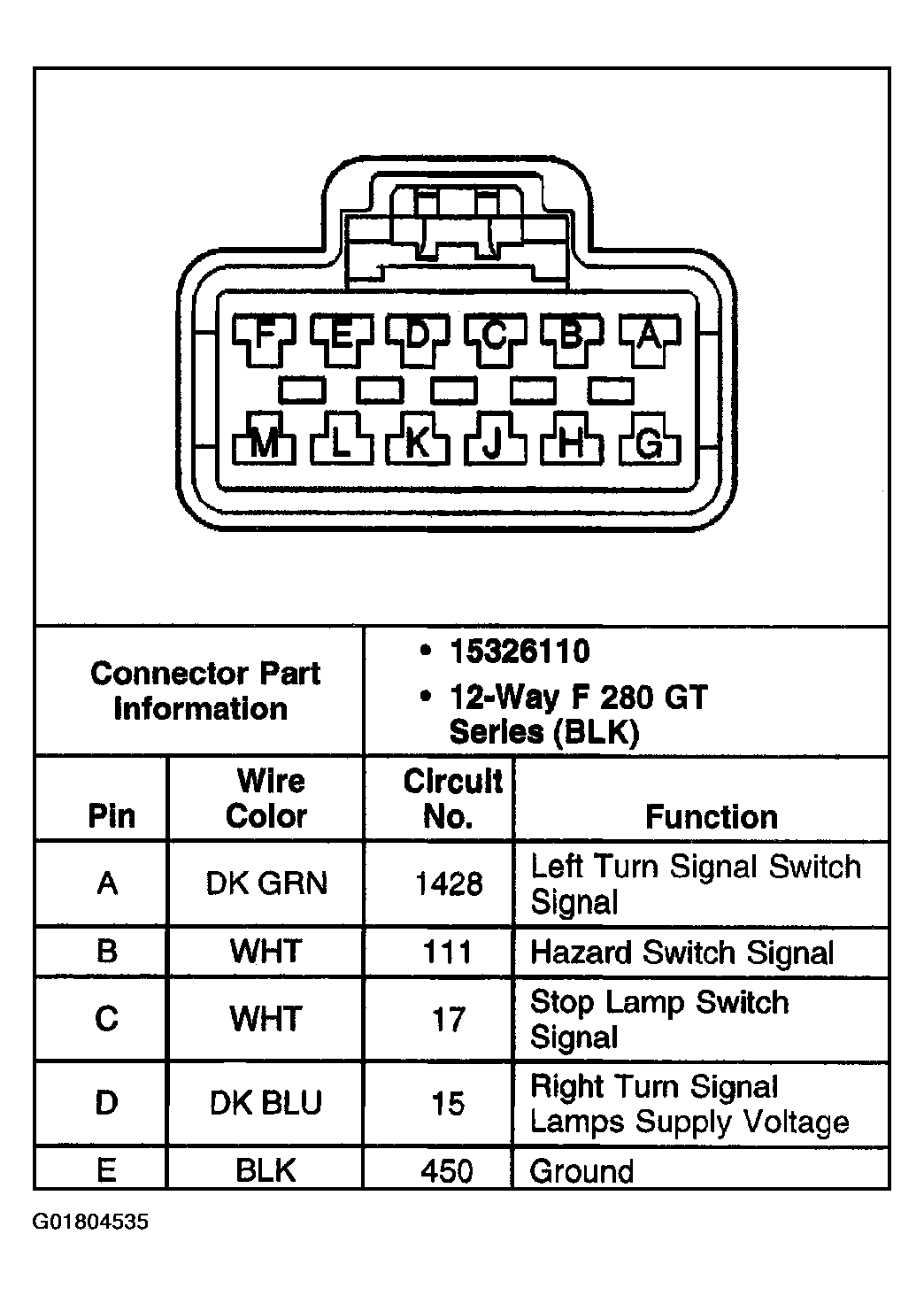

Fig 1: Turn Signal/Hazard Flasher Module (1 Of 2)
G01804535Courtesy of GENERAL MOTORS CORP.

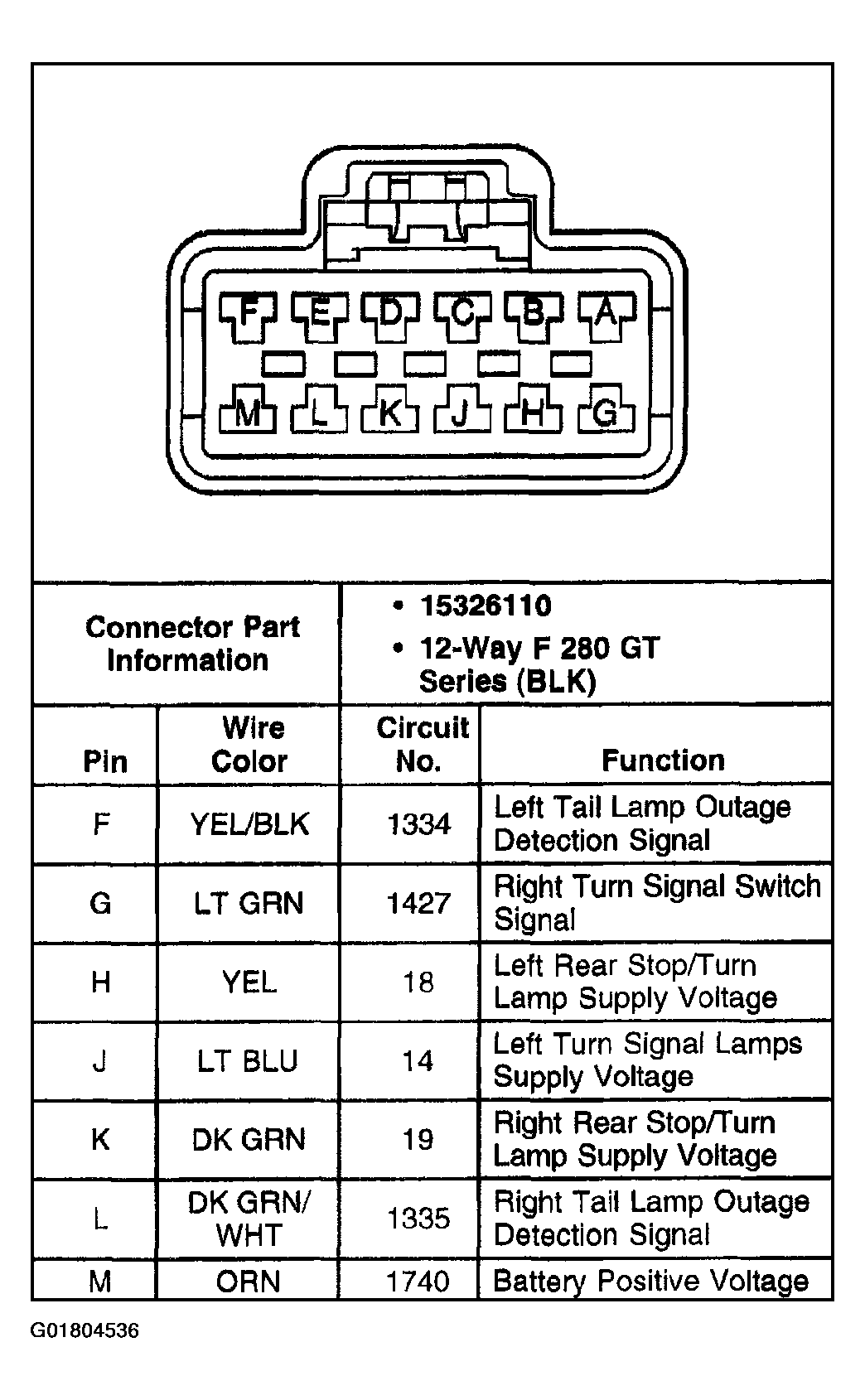

Fig 2: Turn Signal/Hazard Flasher Module (2 Of 2)
G01804536Courtesy of GENERAL MOTORS CORP.
