Remote Transmitter Battery: Installation

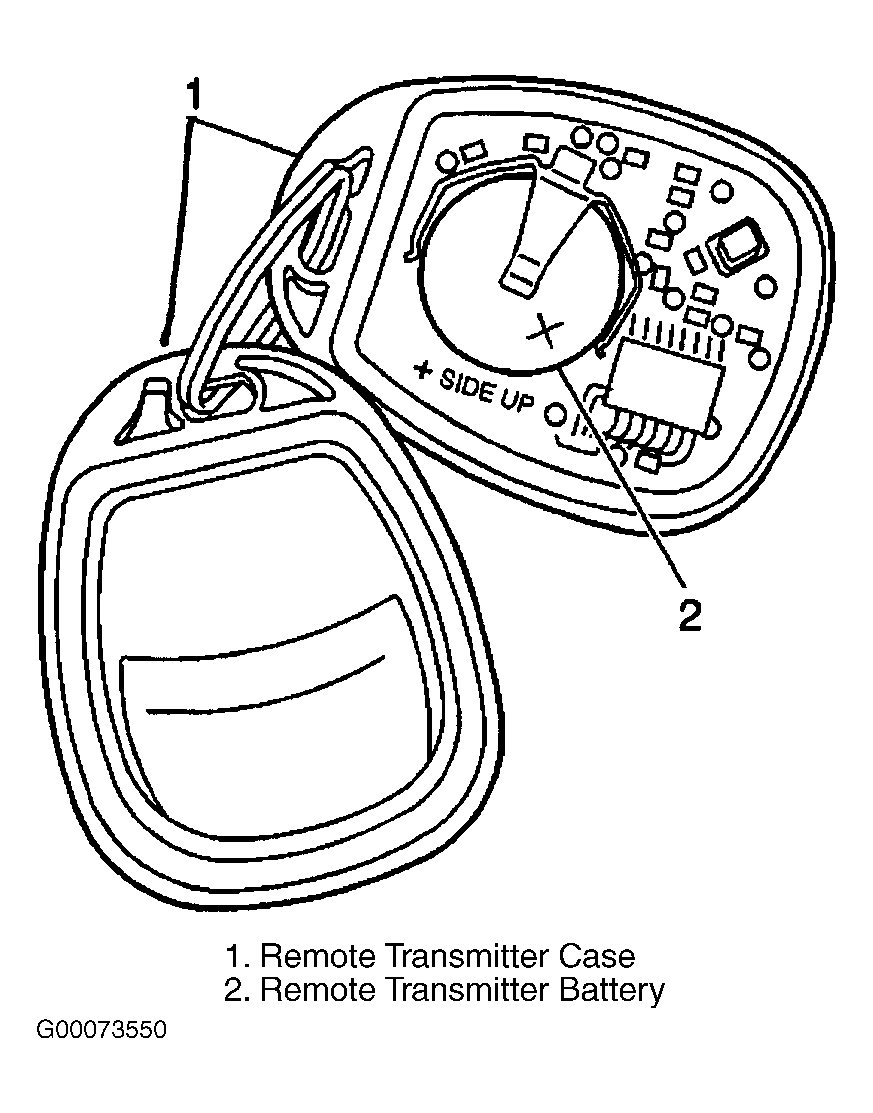

- Install battery (2) with positive (+) side up. See Fig 1 .
- Align both halves (1, 3) of transmitter.
- Ensure that seal is positioned correctly.
- Close transmitter case.
- Synchronize transmitter(s). See TRANSMITTER PROGRAMMING under PROGRAMMING.
