Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

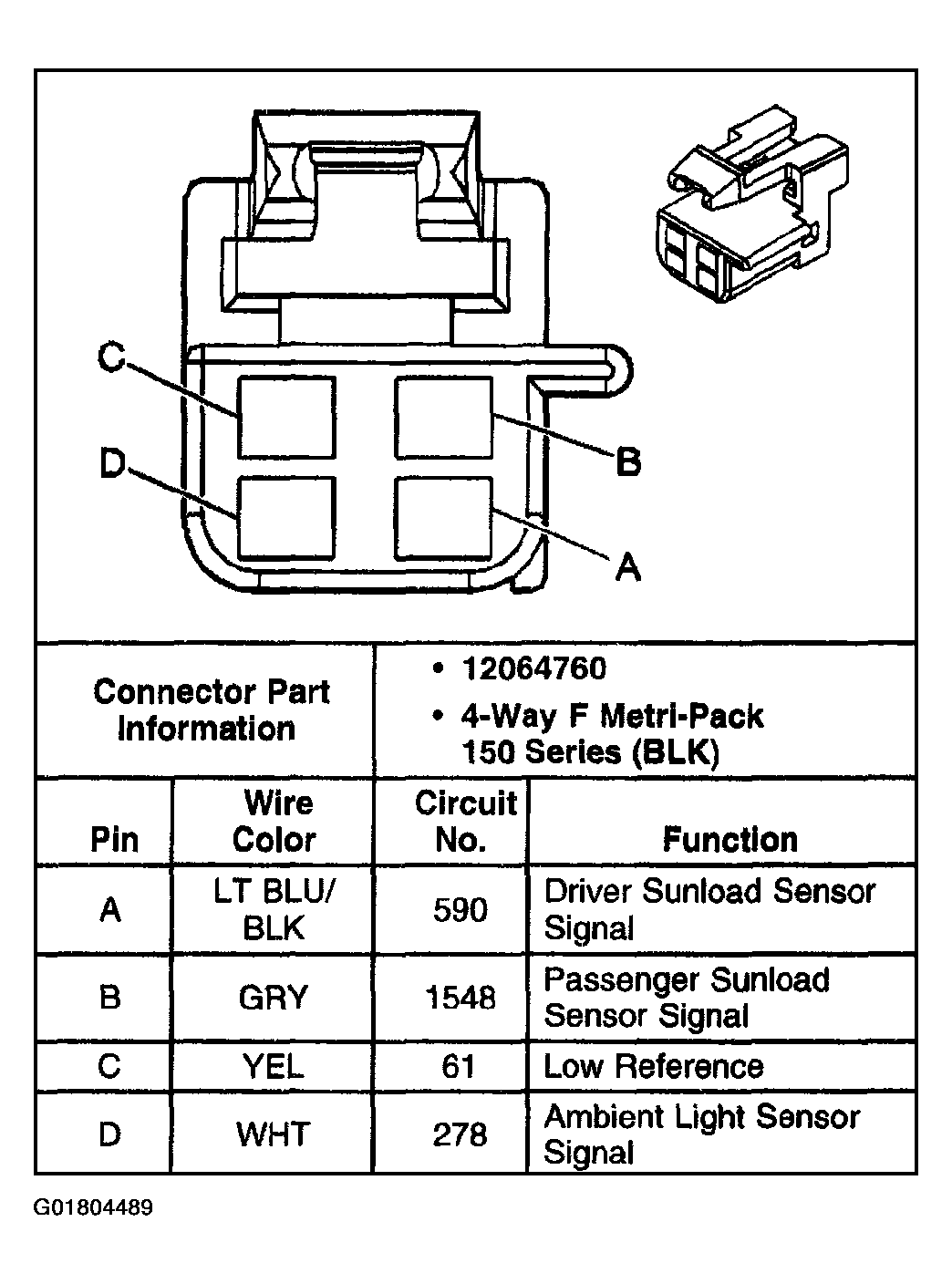

Fig 1: Ambient Light Sensor

G01804489

Courtesy of GENERAL MOTORS CORP.

Fig 2: Ashtray Lamp

G01804490

Courtesy of GENERAL MOTORS CORP.

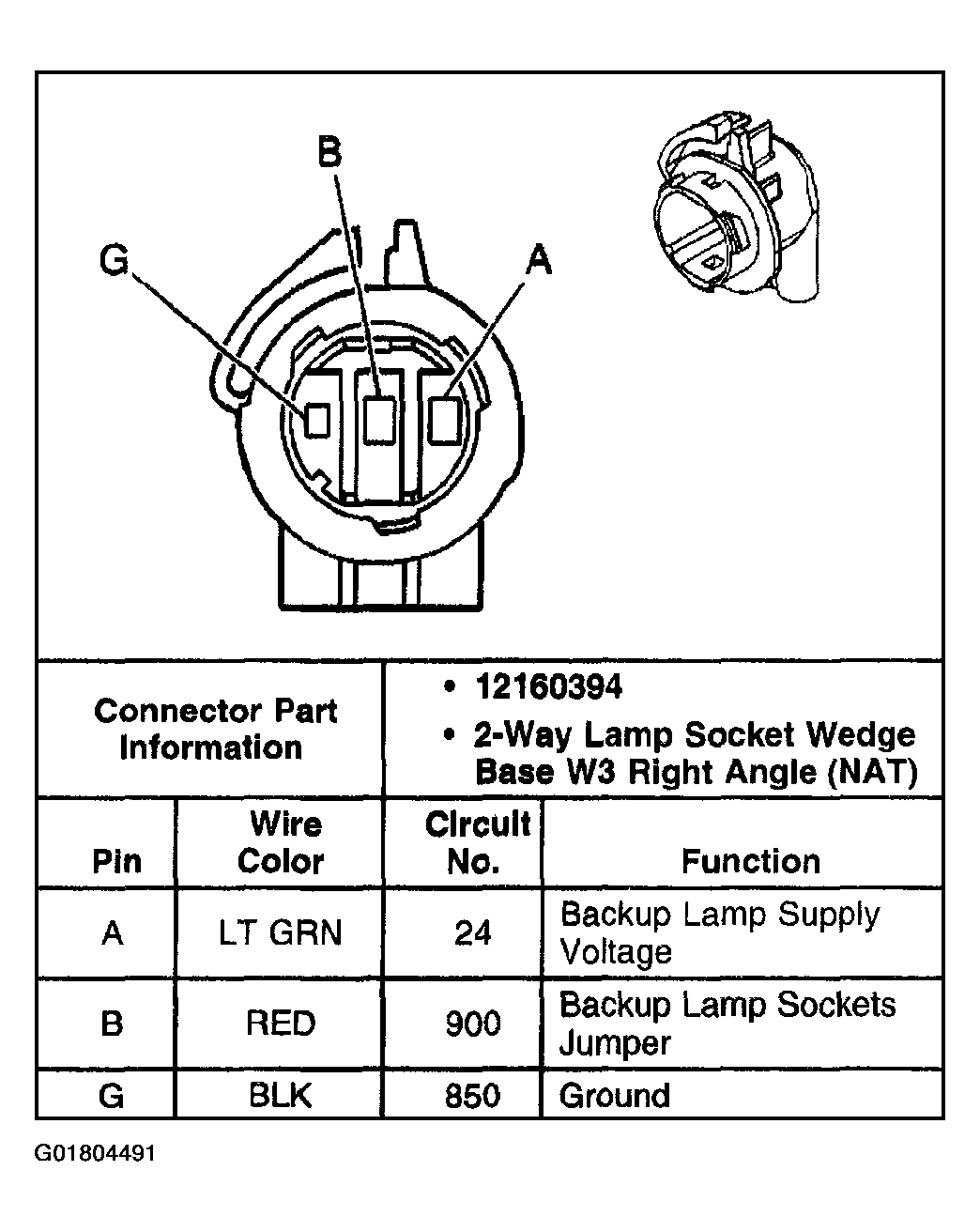

Fig 3: Backup Lamp - Left

G01804491

Courtesy of GENERAL MOTORS CORP.

Fig 4: Backup Lamp - Right

G01804492

Courtesy of GENERAL MOTORS CORP.

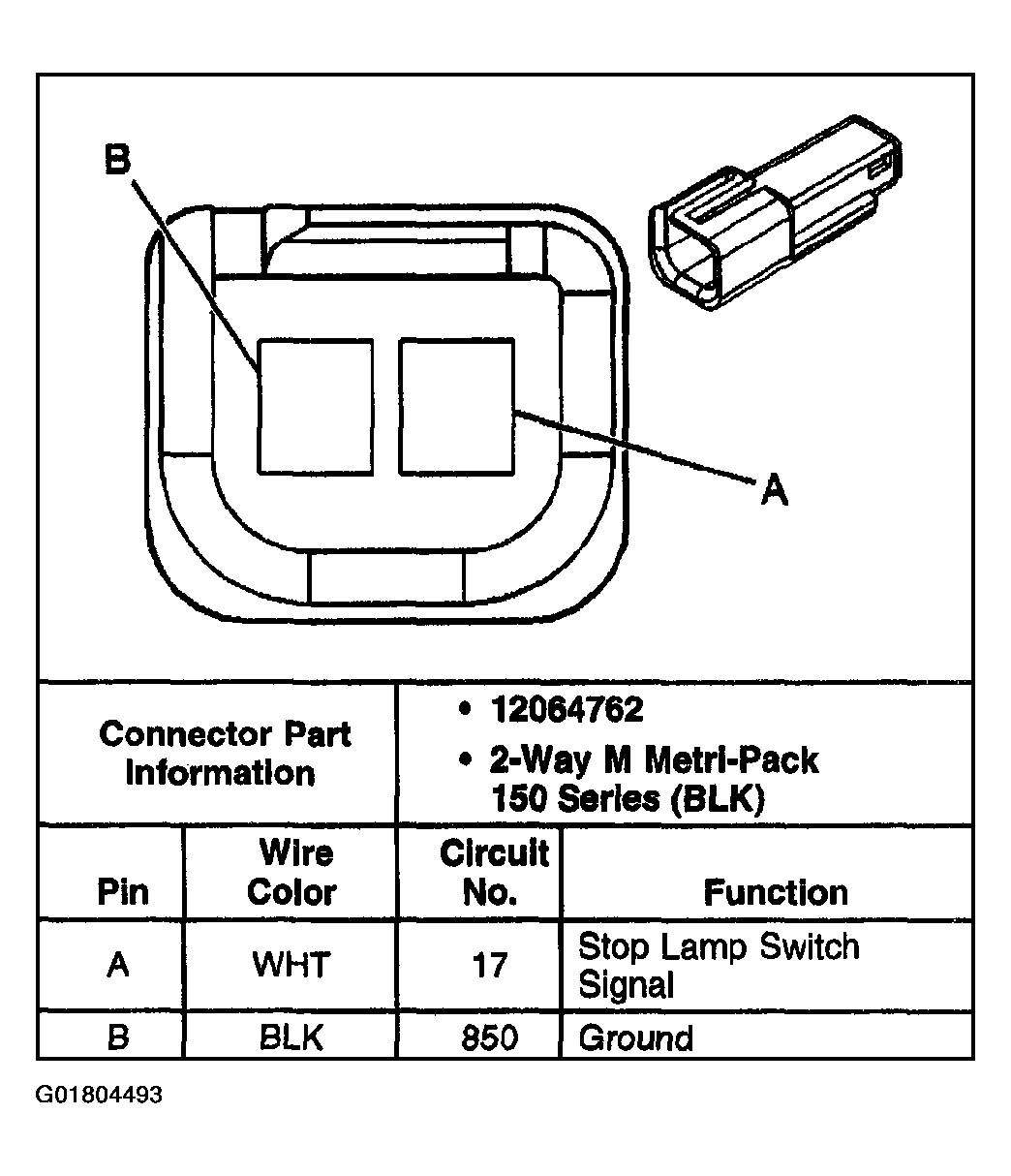

Fig 5: Center High Mount Stop Lamp (CHMSL)

G01804493

Courtesy of GENERAL MOTORS CORP.

Fig 6: Cornering Lamp - Left

G01804494

Courtesy of GENERAL MOTORS CORP.

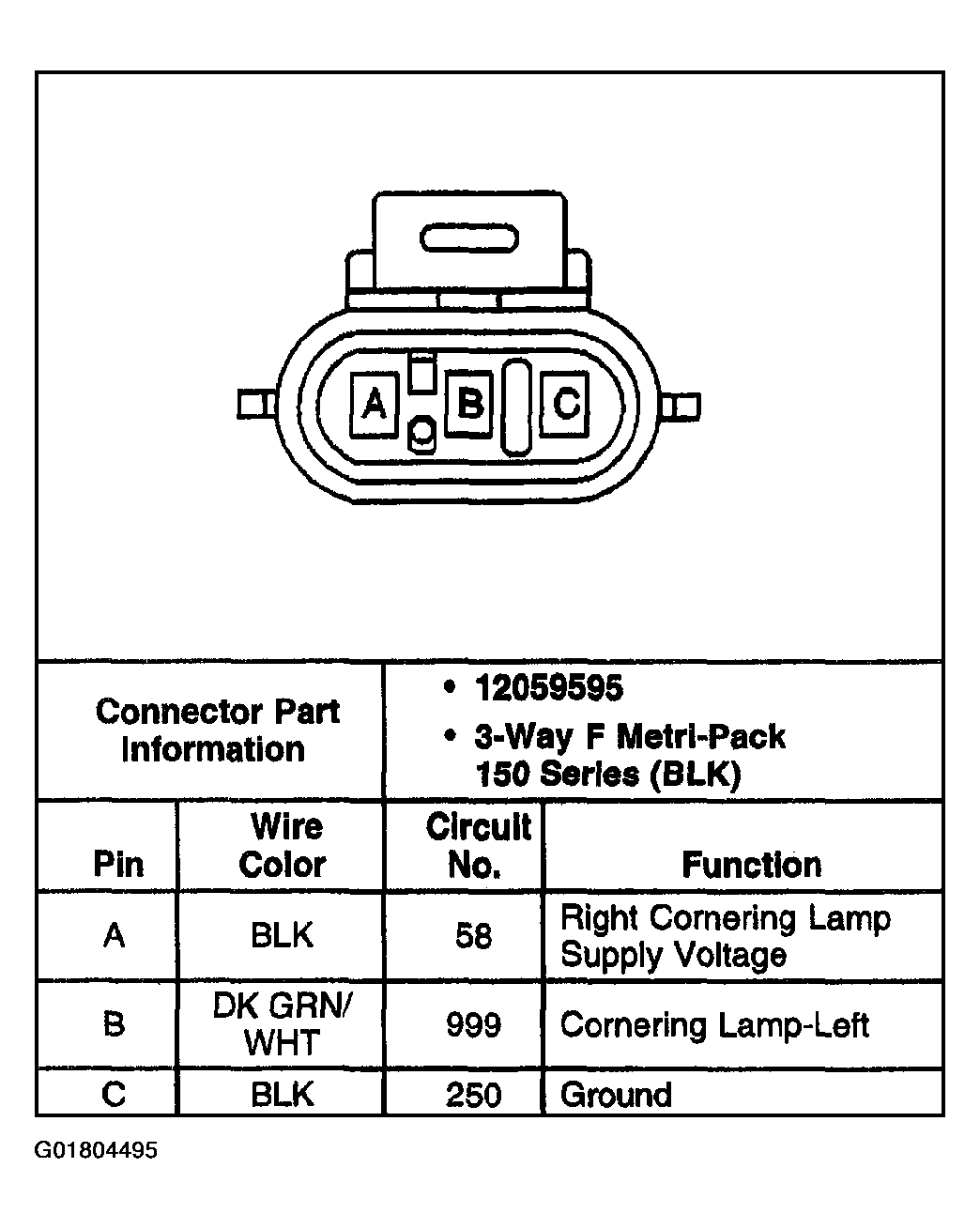

Fig 7: Cornering Lamp - Right

G01804495

Courtesy of GENERAL MOTORS CORP.

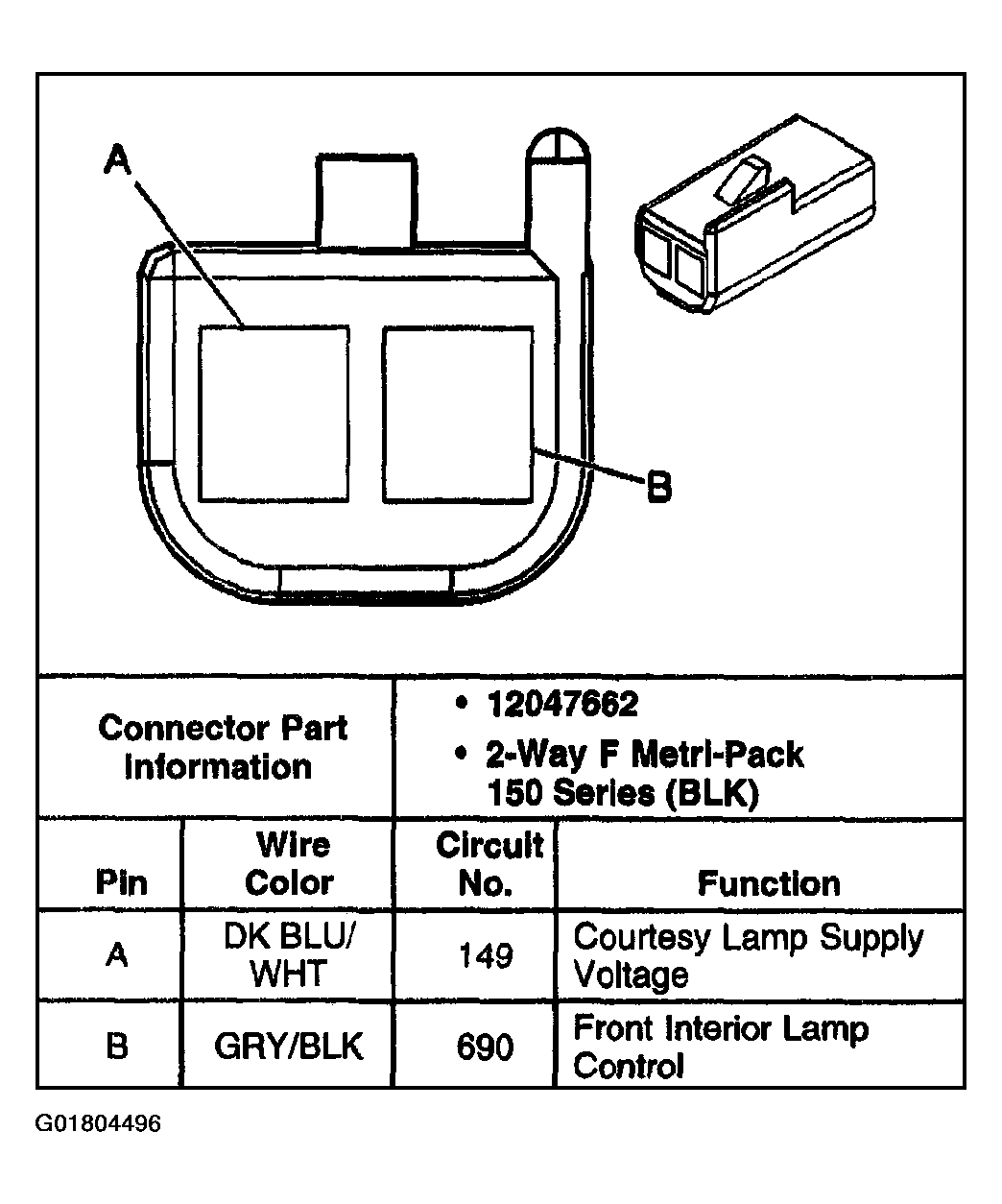

Fig 8: Courtesy Lamp - Console

G01804496

Courtesy of GENERAL MOTORS CORP.

Fig 9: Courtesy Lamp Switch - Left

G01804497

Courtesy of GENERAL MOTORS CORP.

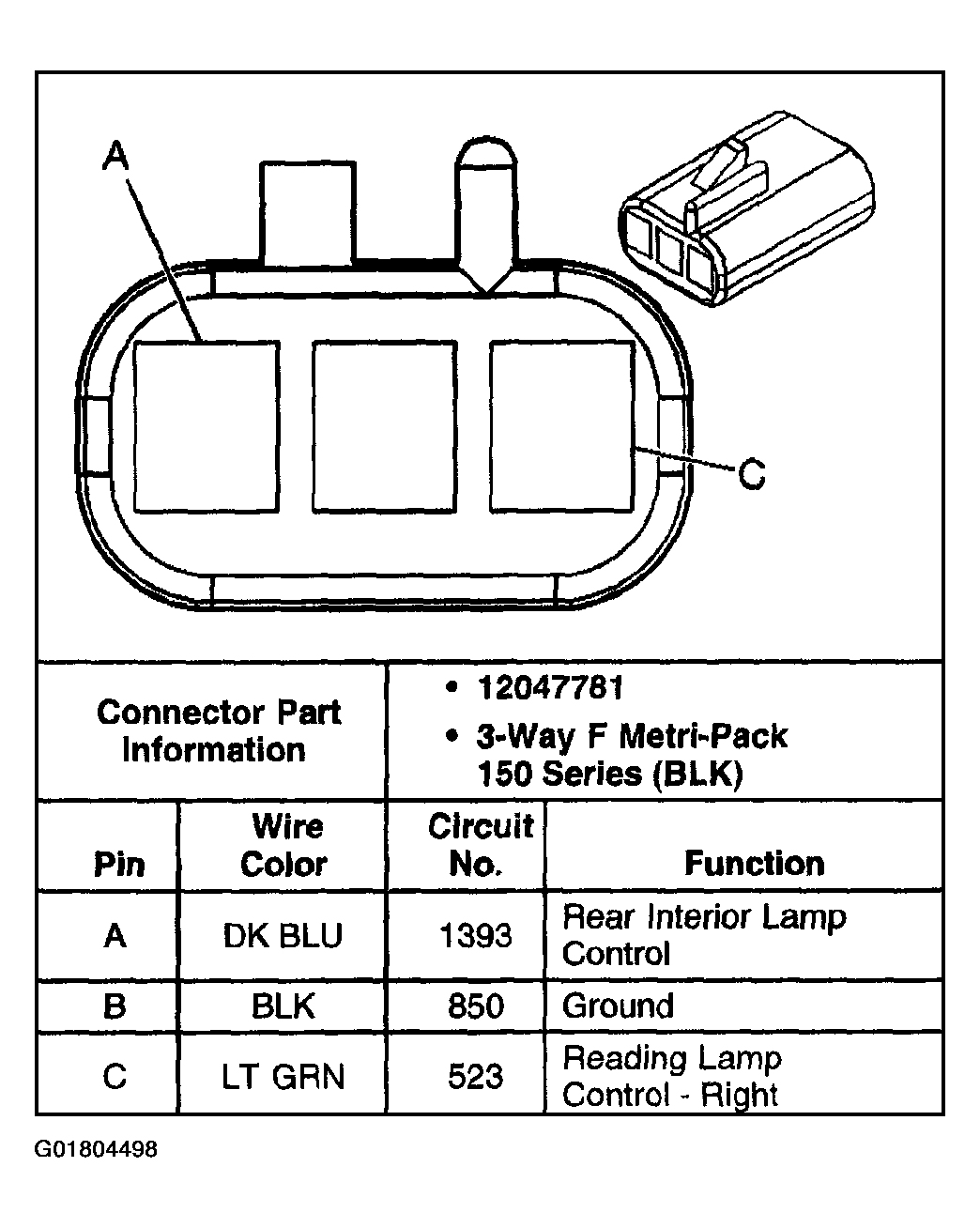

Fig 10: Courtesy Lamp Switch - Right

G01804498

Courtesy of GENERAL MOTORS CORP.

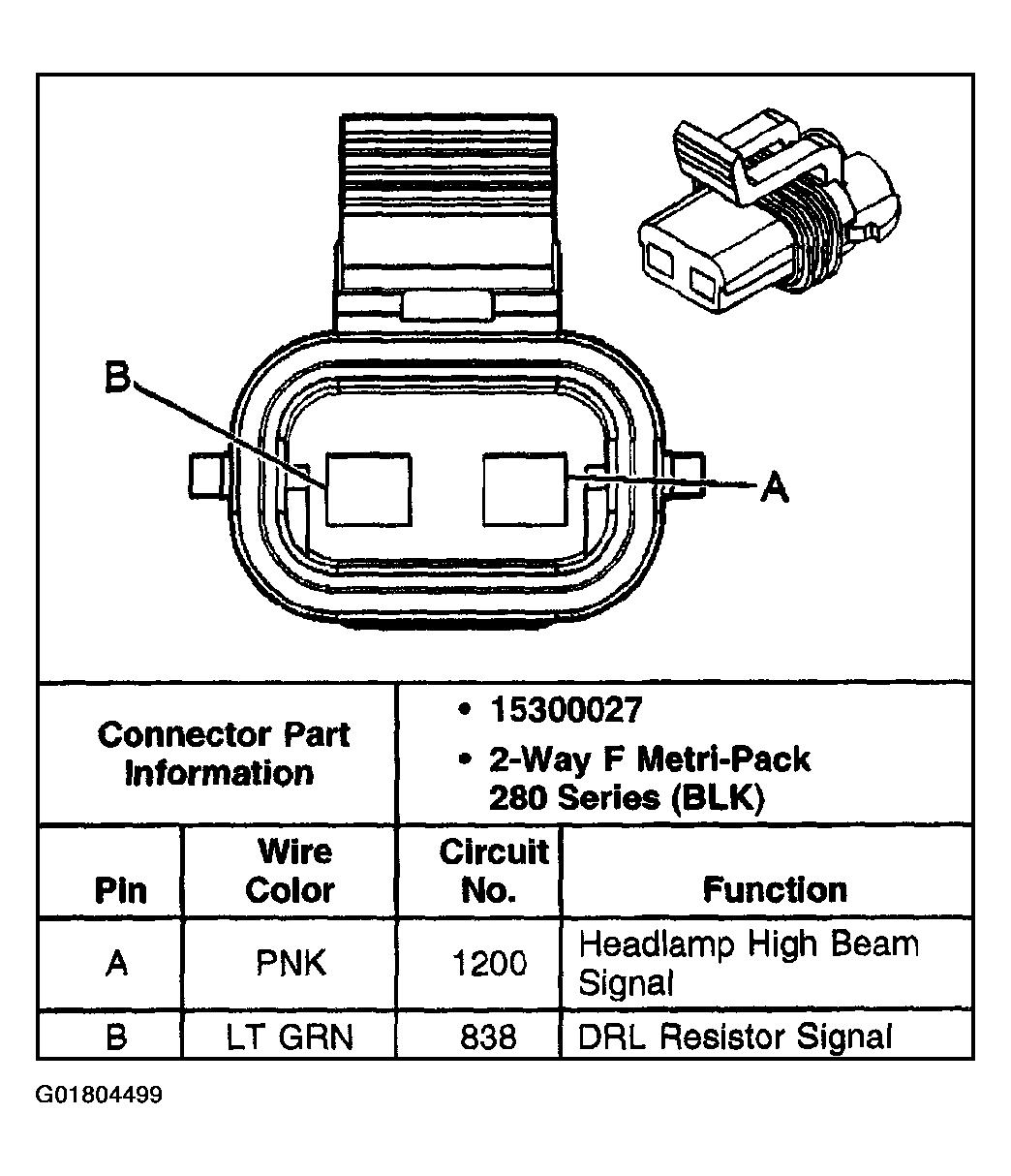

Fig 11: Daytime Running Lamp (DRL) Resistor

G01804499

Courtesy of GENERAL MOTORS CORP.

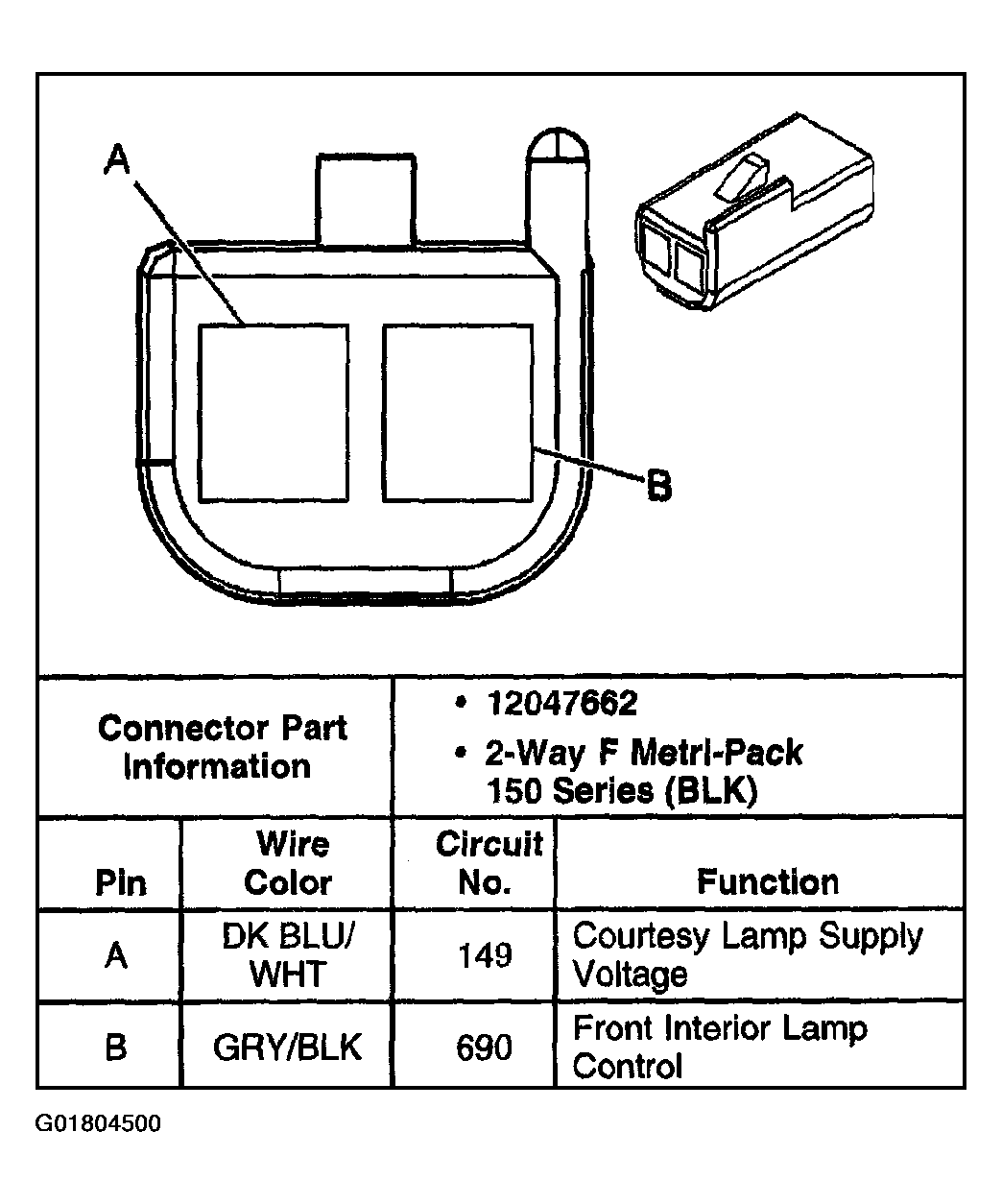

Fig 12: Door Courtesy Lamp - LF

G01804500

Courtesy of GENERAL MOTORS CORP.

Fig 13: Door Courtesy Lamp - LR

G01804501

Courtesy of GENERAL MOTORS CORP.

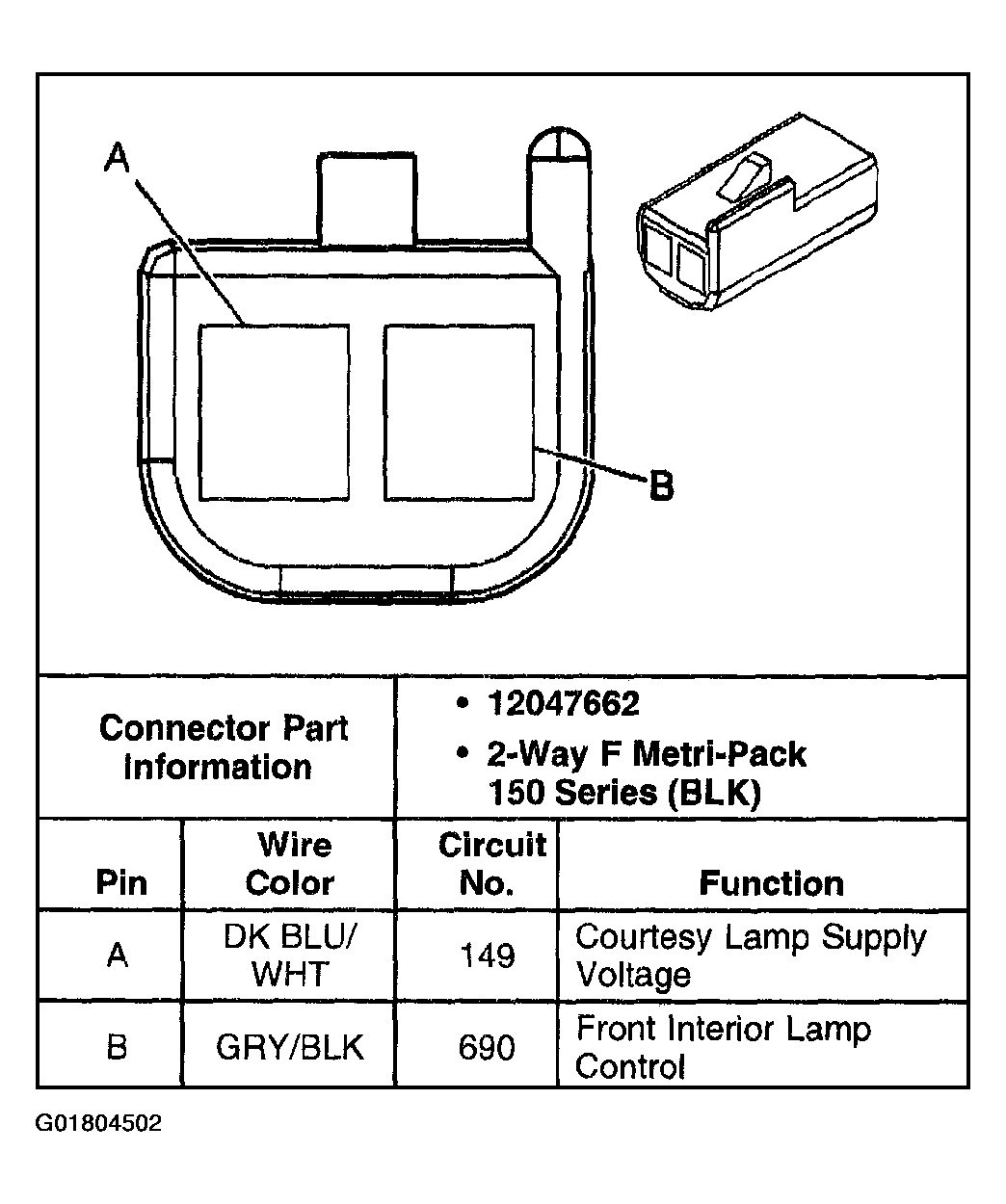

Fig 14: Door Courtesy Lamp - RF

G01804502

Courtesy of GENERAL MOTORS CORP.

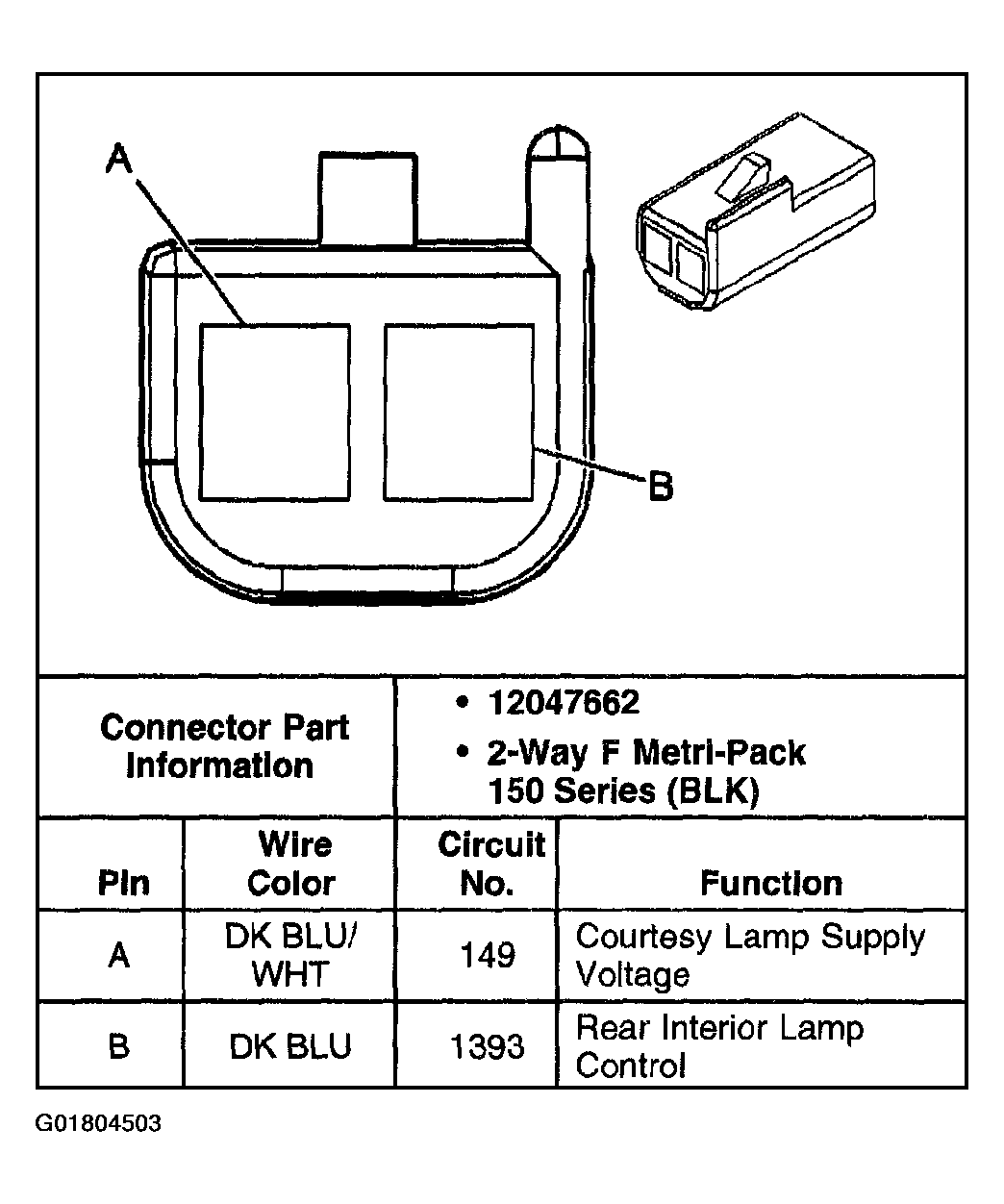

Fig 15: Door Courtesy Lamp - RR

G01804503

Courtesy of GENERAL MOTORS CORP.

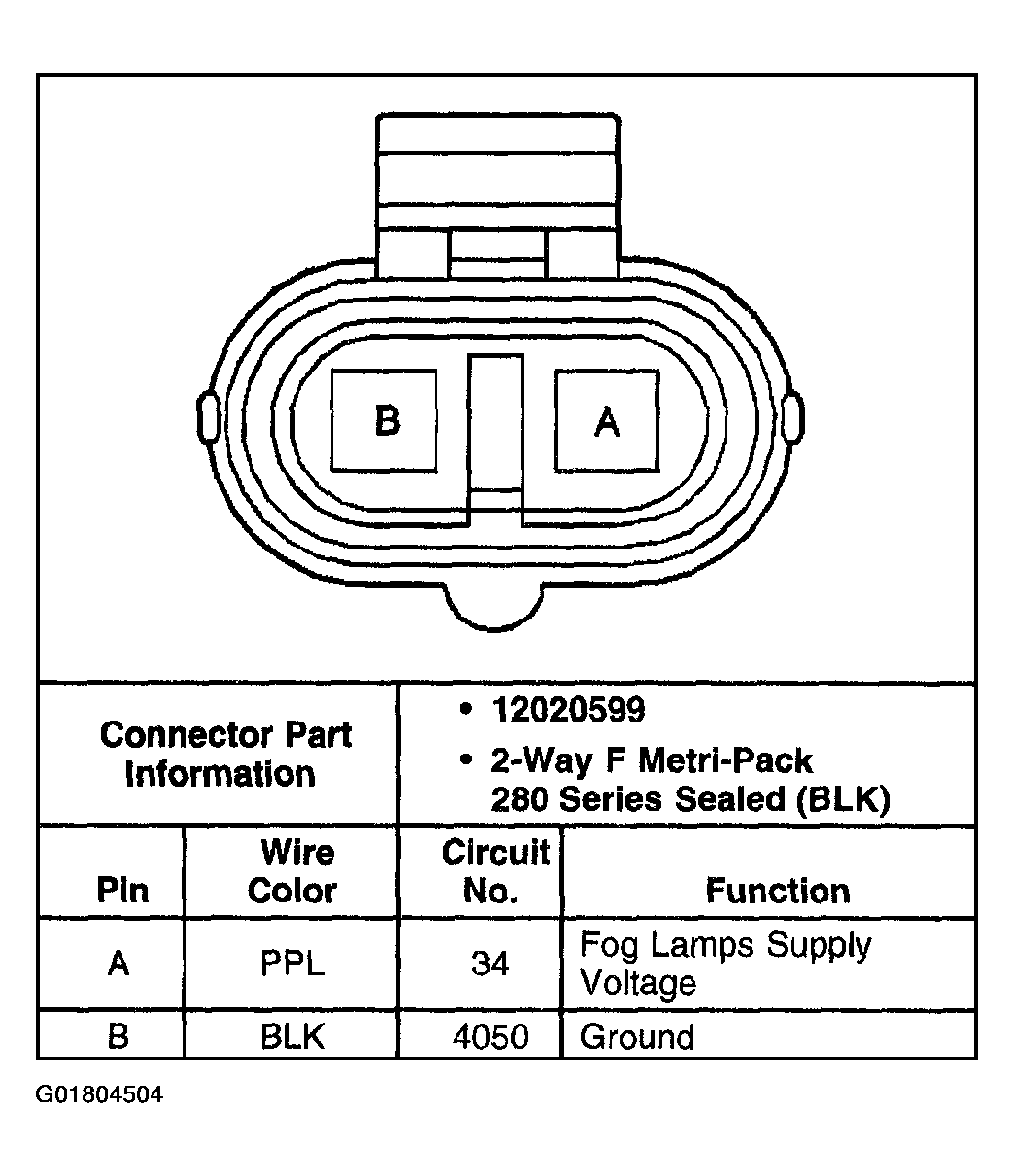

Fig 16: Fog Lamp - LF

G01804504

Courtesy of GENERAL MOTORS CORP.

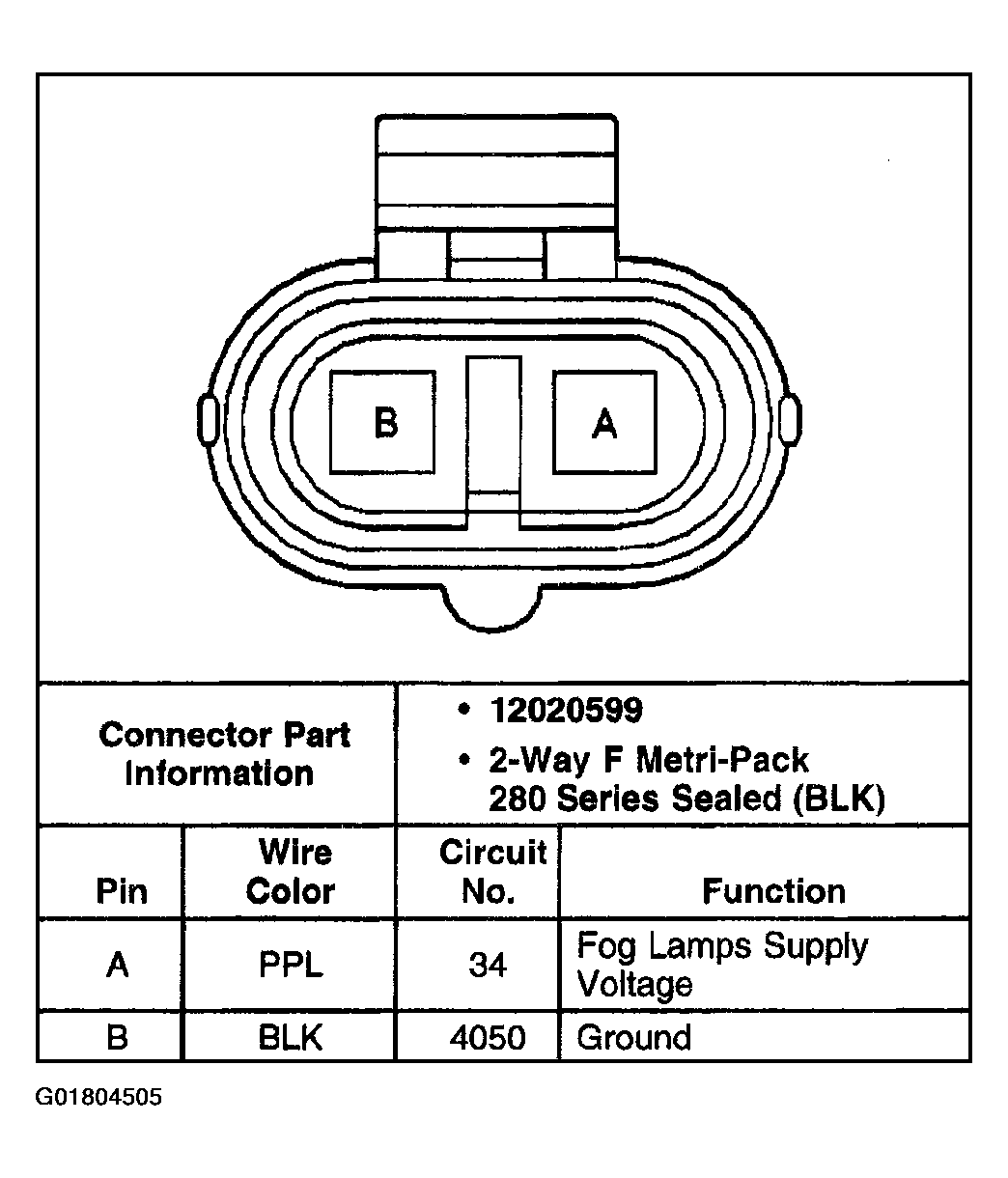

Fig 17: Fog Lamp - RF

G01804505

Courtesy of GENERAL MOTORS CORP.

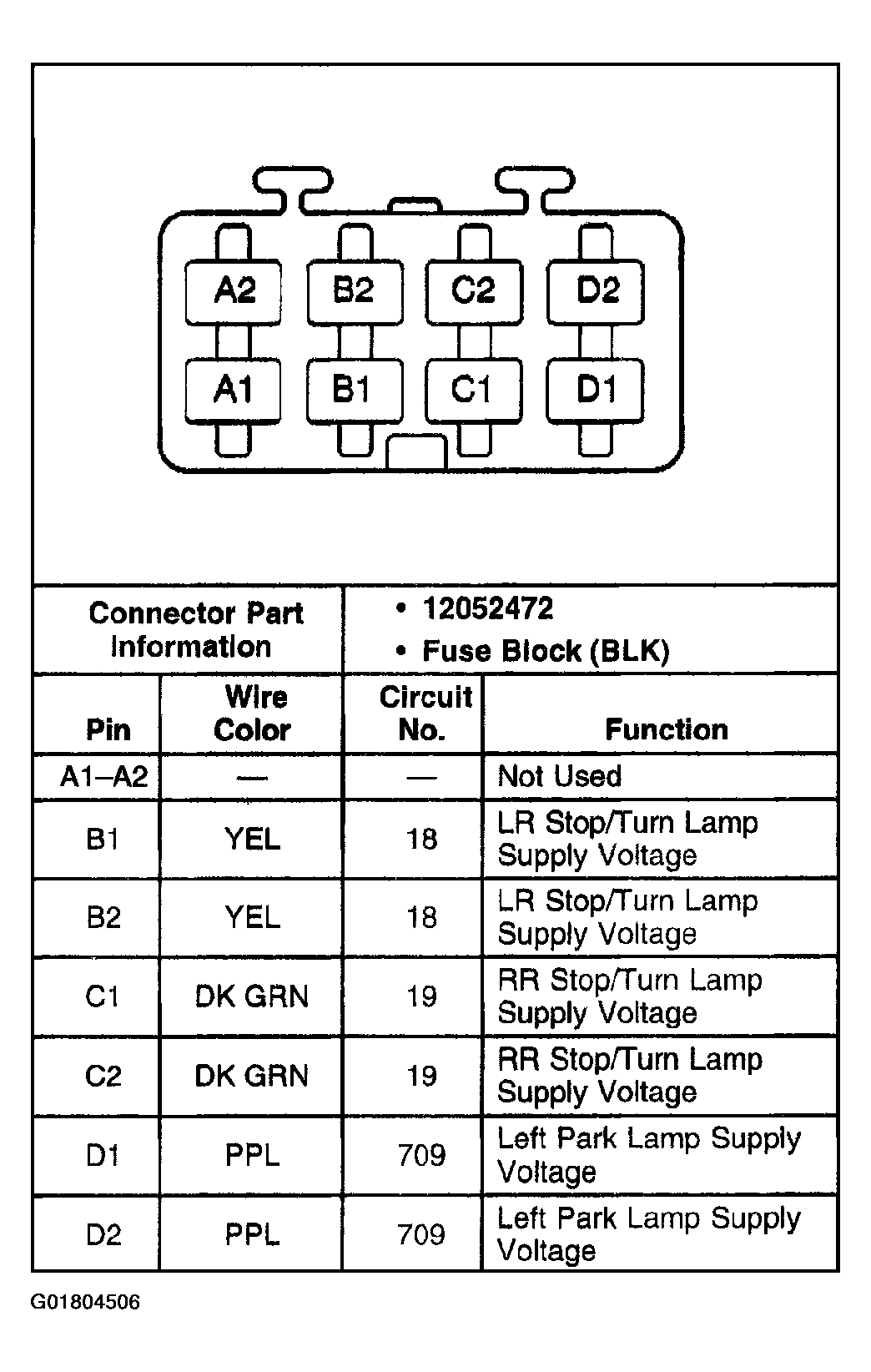

Fig 18: Fuse Block - Trailer Harness

G01804506

Courtesy of GENERAL MOTORS CORP.

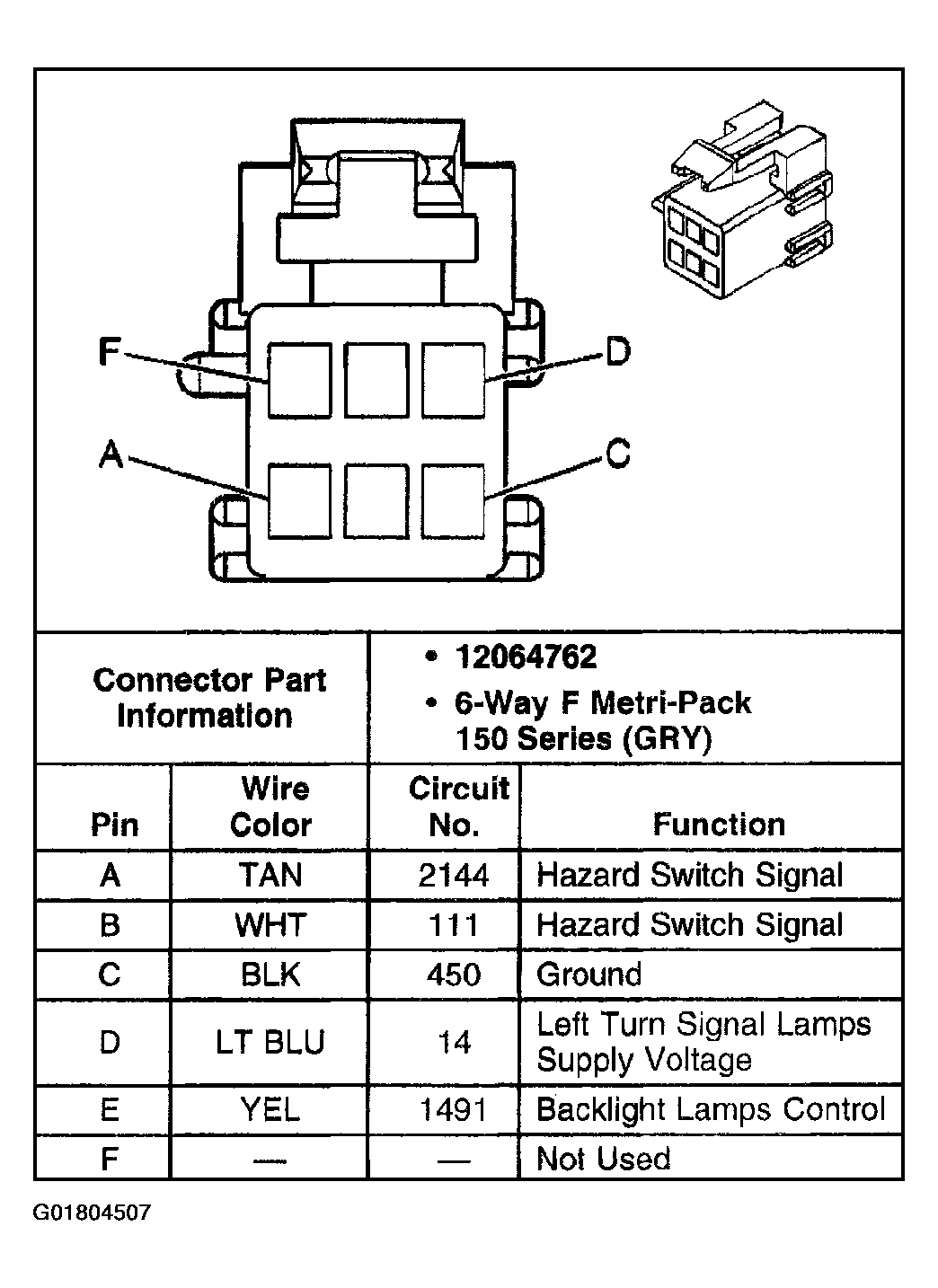

Fig 19: Hazard Switch

G01804507

Courtesy of GENERAL MOTORS CORP.

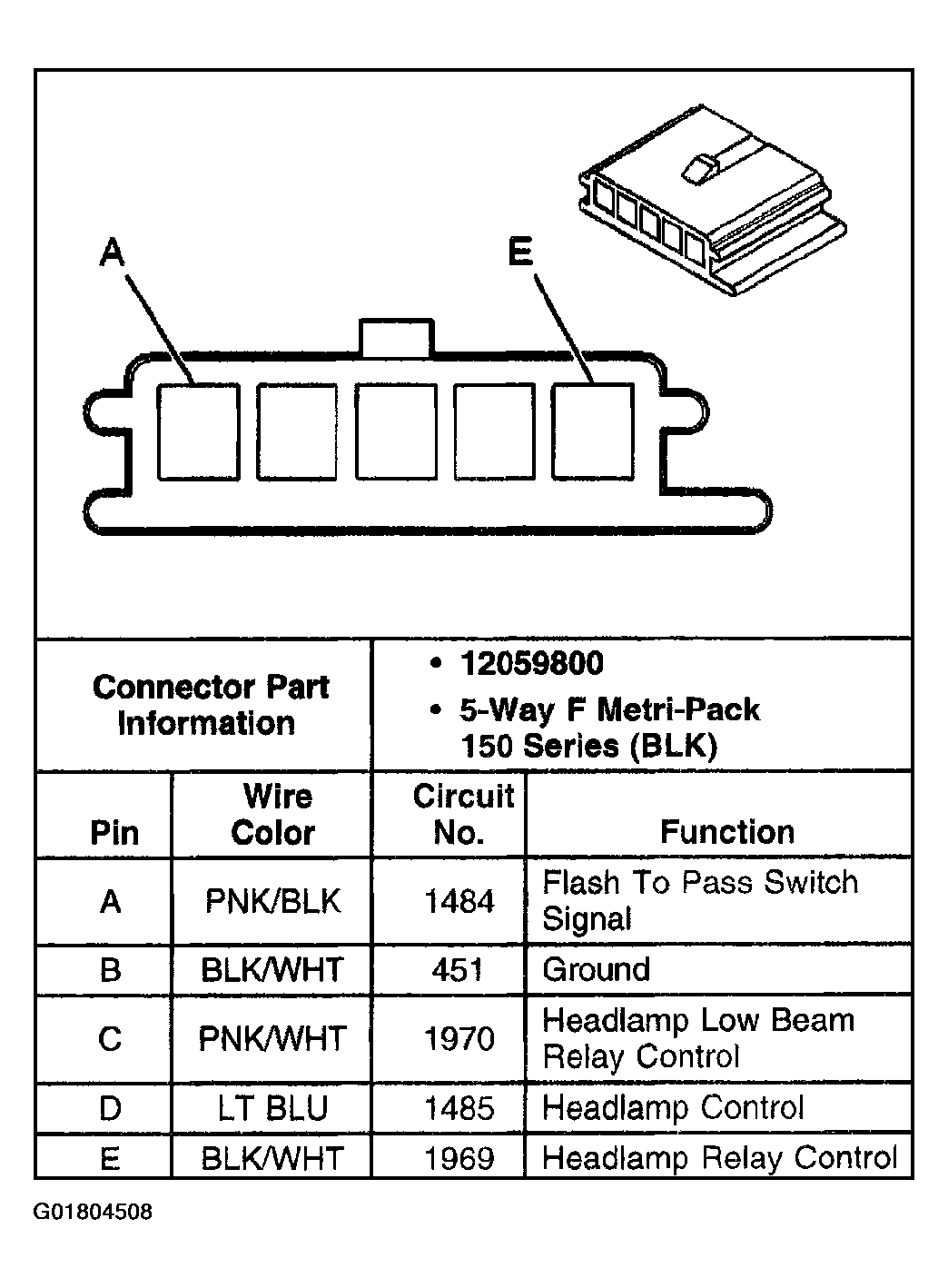

Fig 20: Headlamp Dimmer Switch

G01804508

Courtesy of GENERAL MOTORS CORP.

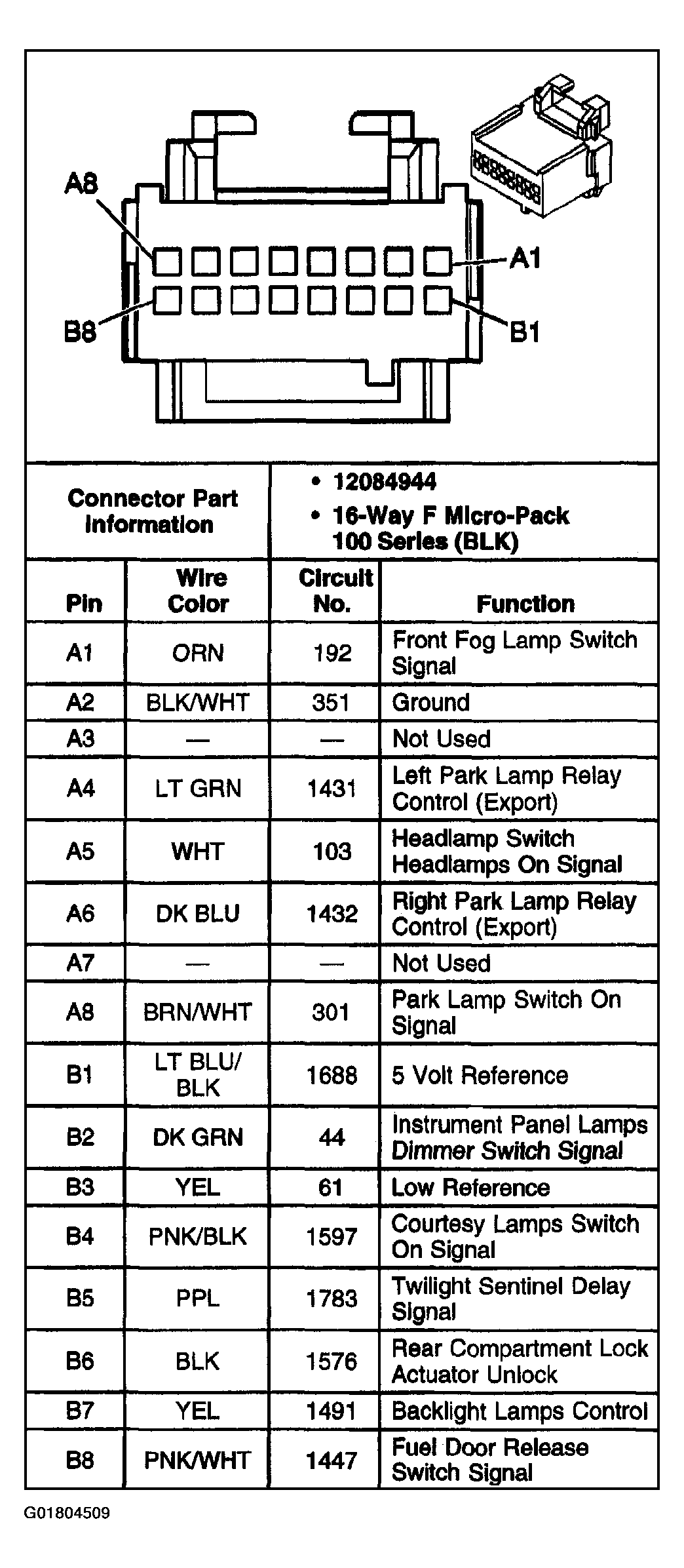

Fig 21: Headlamp Switch

G01804509

Courtesy of GENERAL MOTORS CORP.

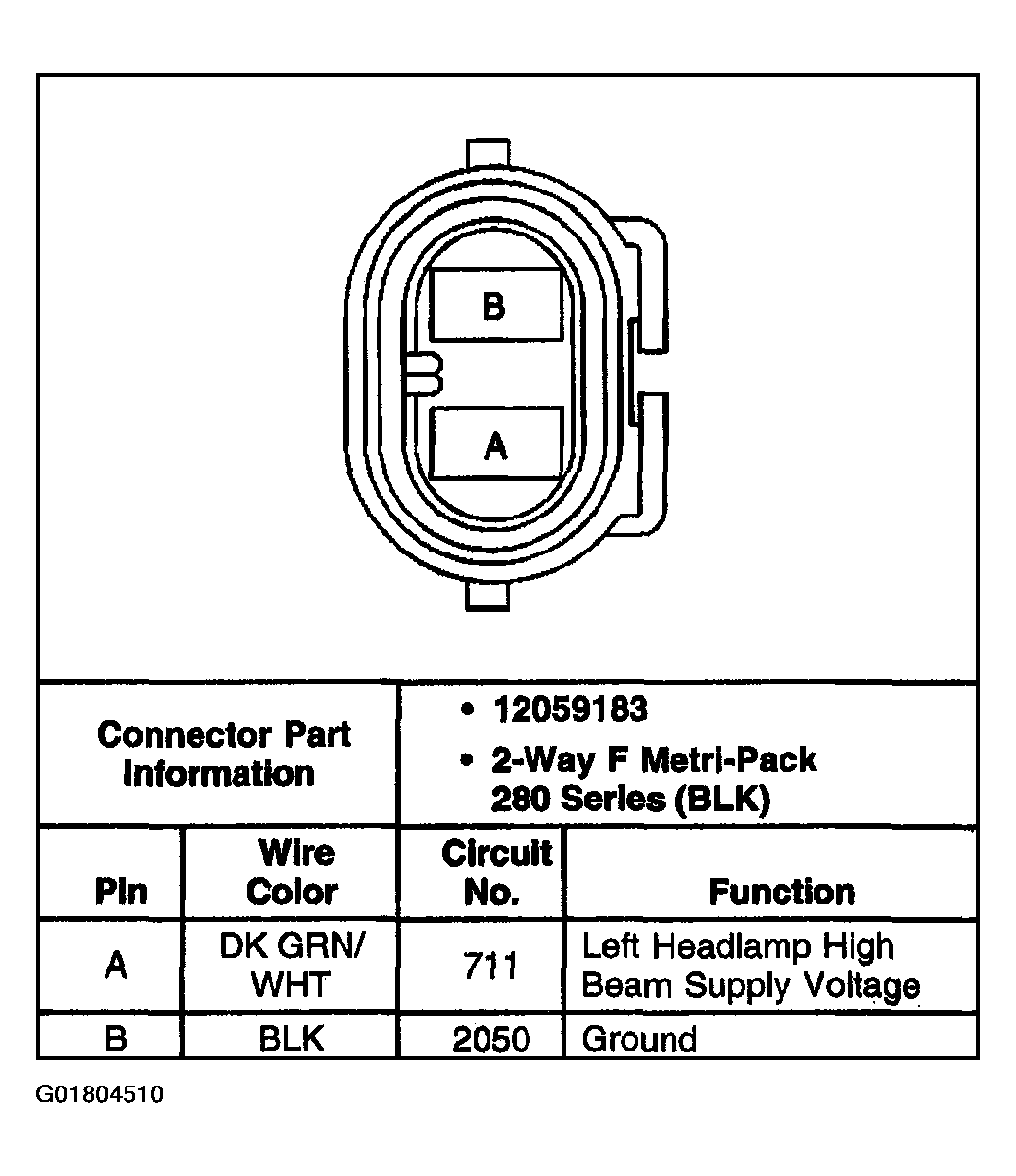

Fig 22: Headlamp - High Beam - Left

G01804510

Courtesy of GENERAL MOTORS CORP.

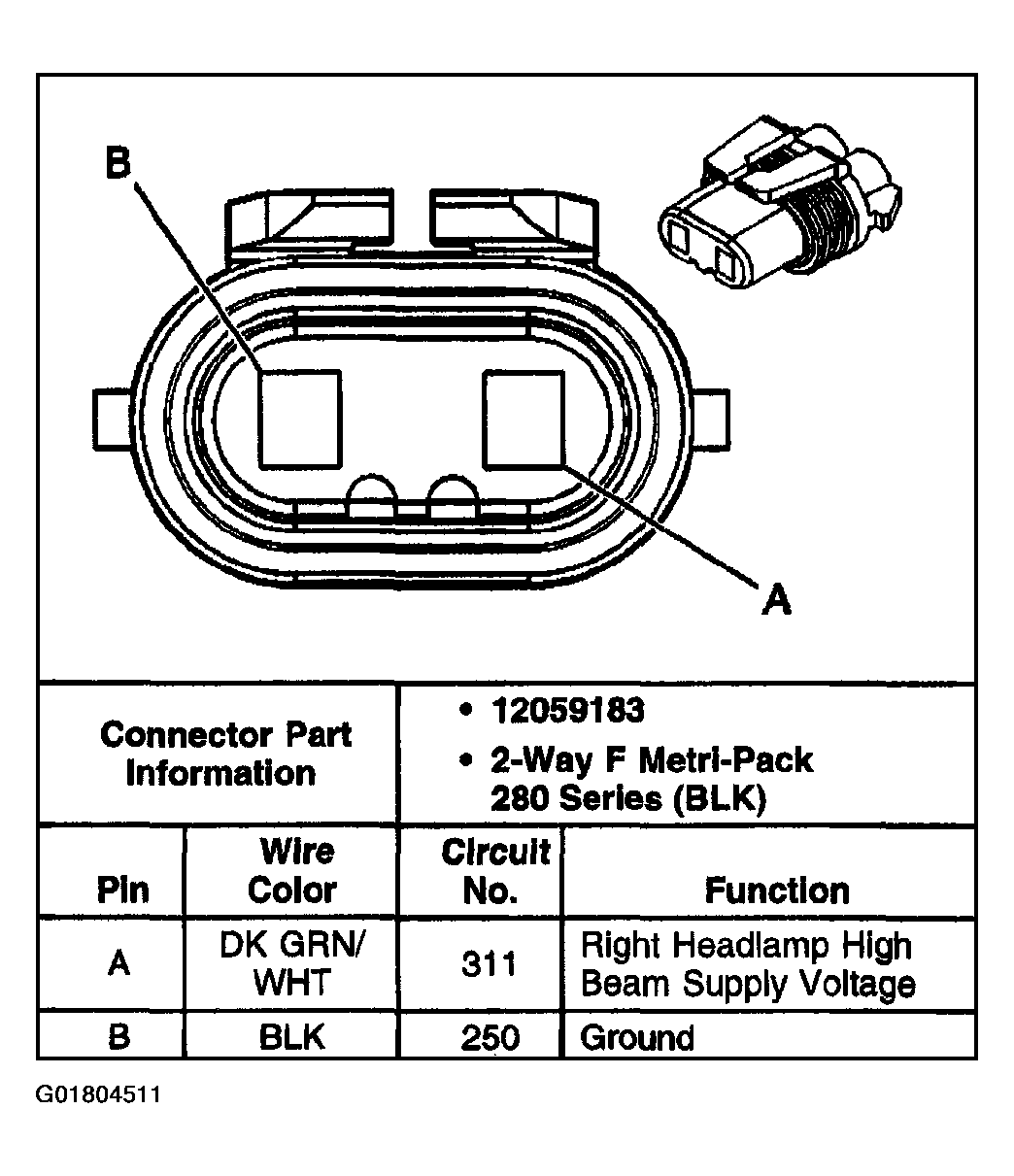

Fig 23: Headlamp - High Beam - Right

G01804511

Courtesy of GENERAL MOTORS CORP.

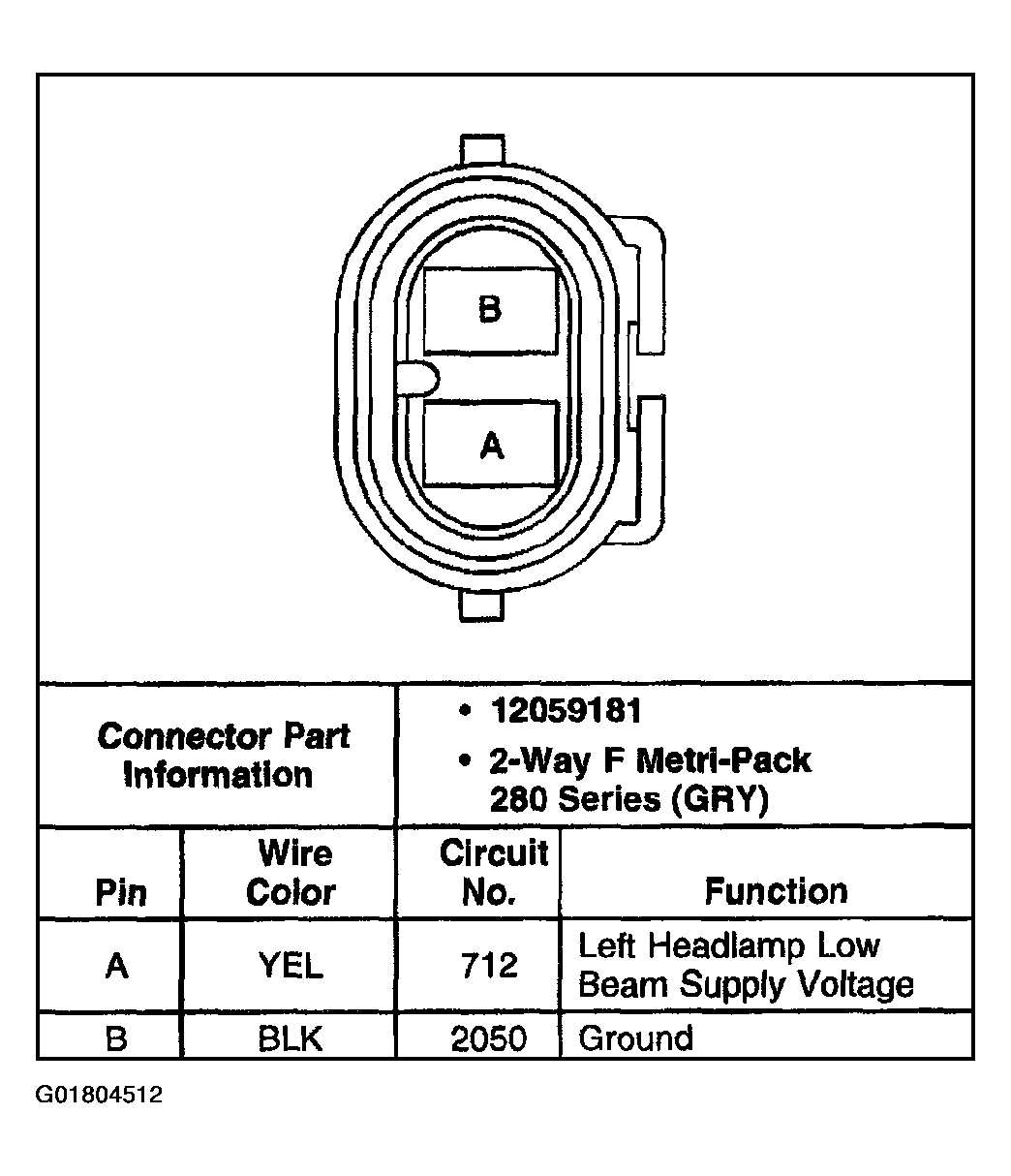

Fig 24: Headlamp - Low Beam - Left

G01804512

Courtesy of GENERAL MOTORS CORP.

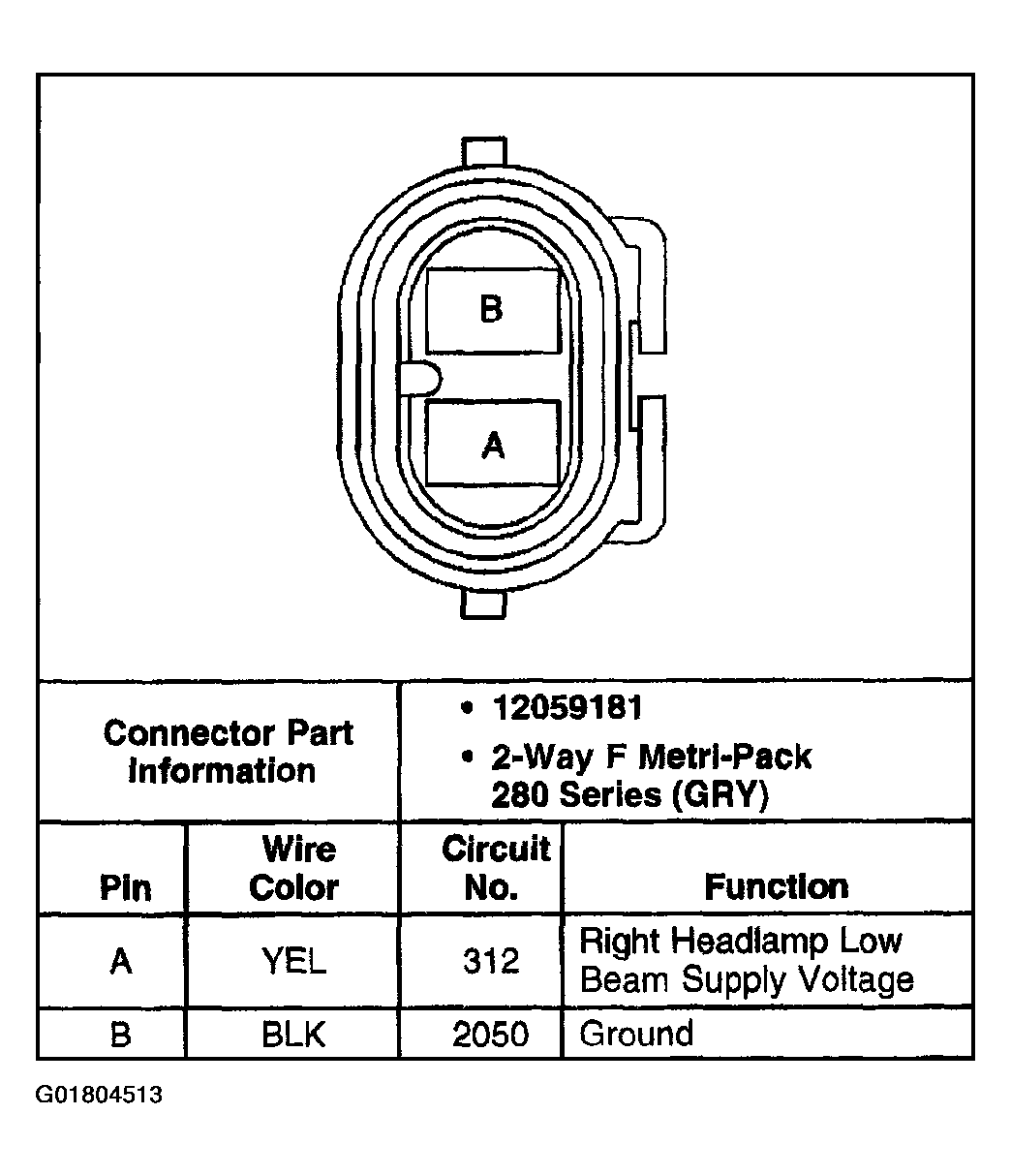

Fig 25: Headlamp - Low Beam - Right

G01804513

Courtesy of GENERAL MOTORS CORP.

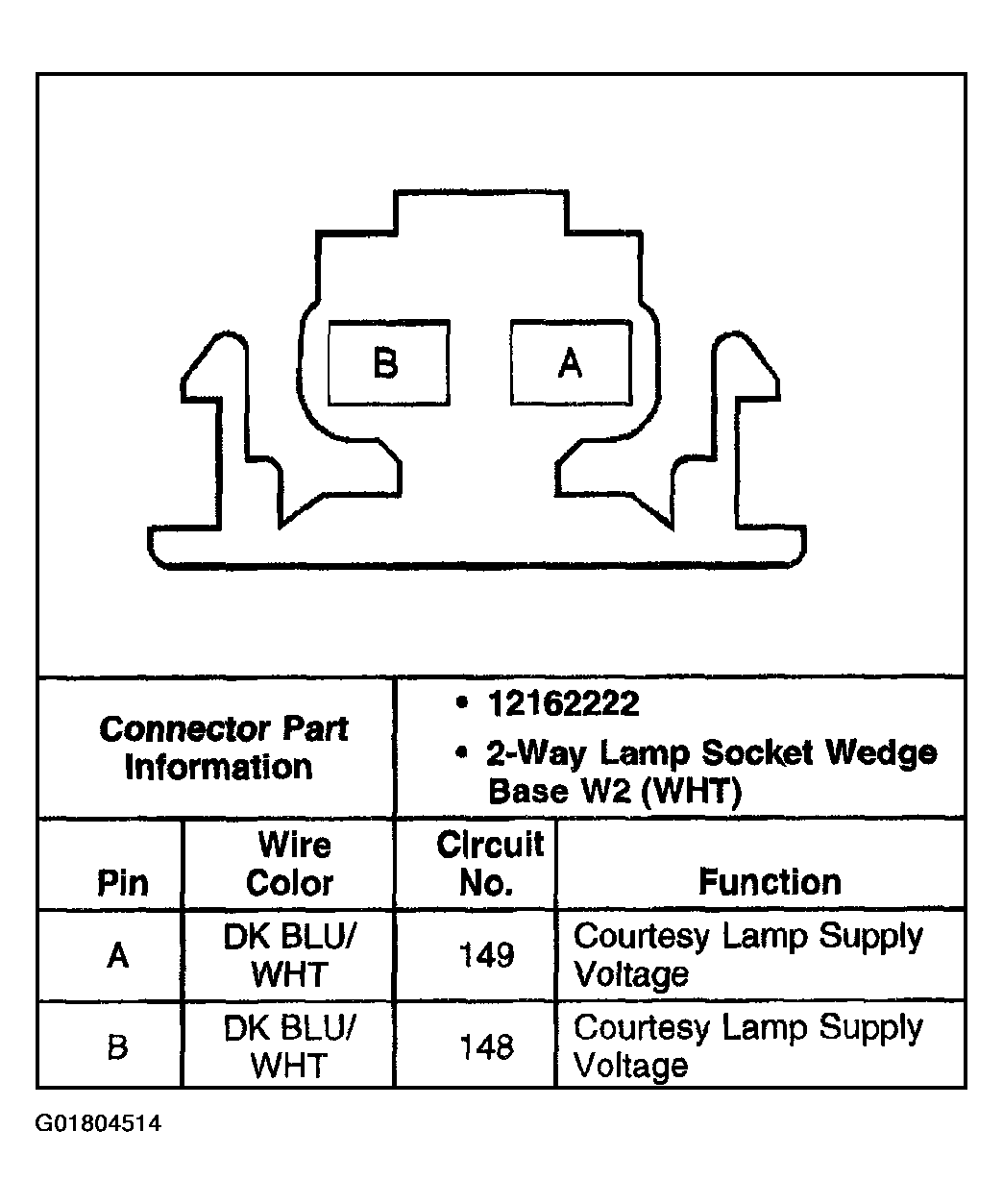

Fig 26: IP Compartment Lamp

G01804514

Courtesy of GENERAL MOTORS CORP.

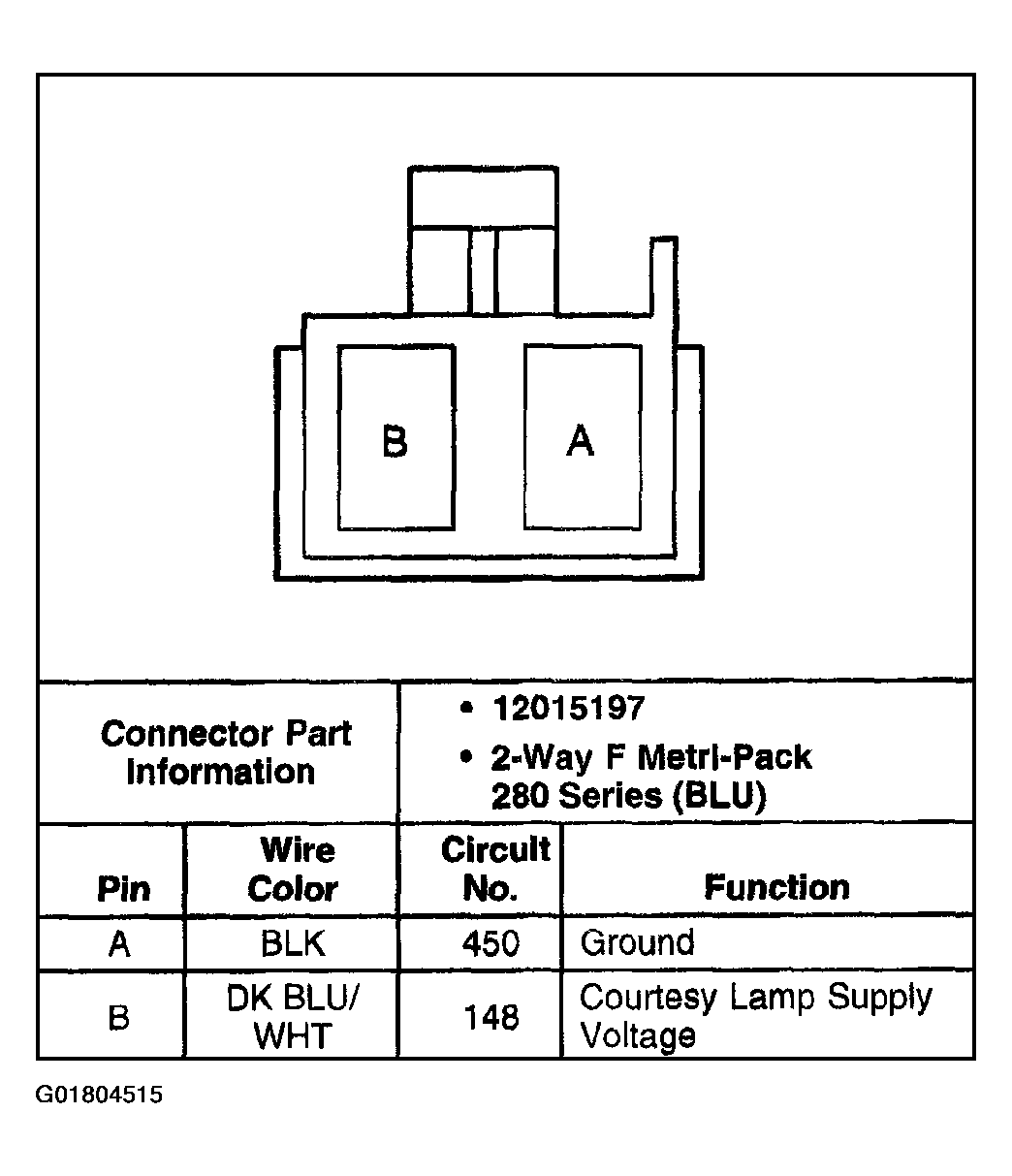

Fig 27: IP Compartment Lamp Switch

G01804515

Courtesy of GENERAL MOTORS CORP.

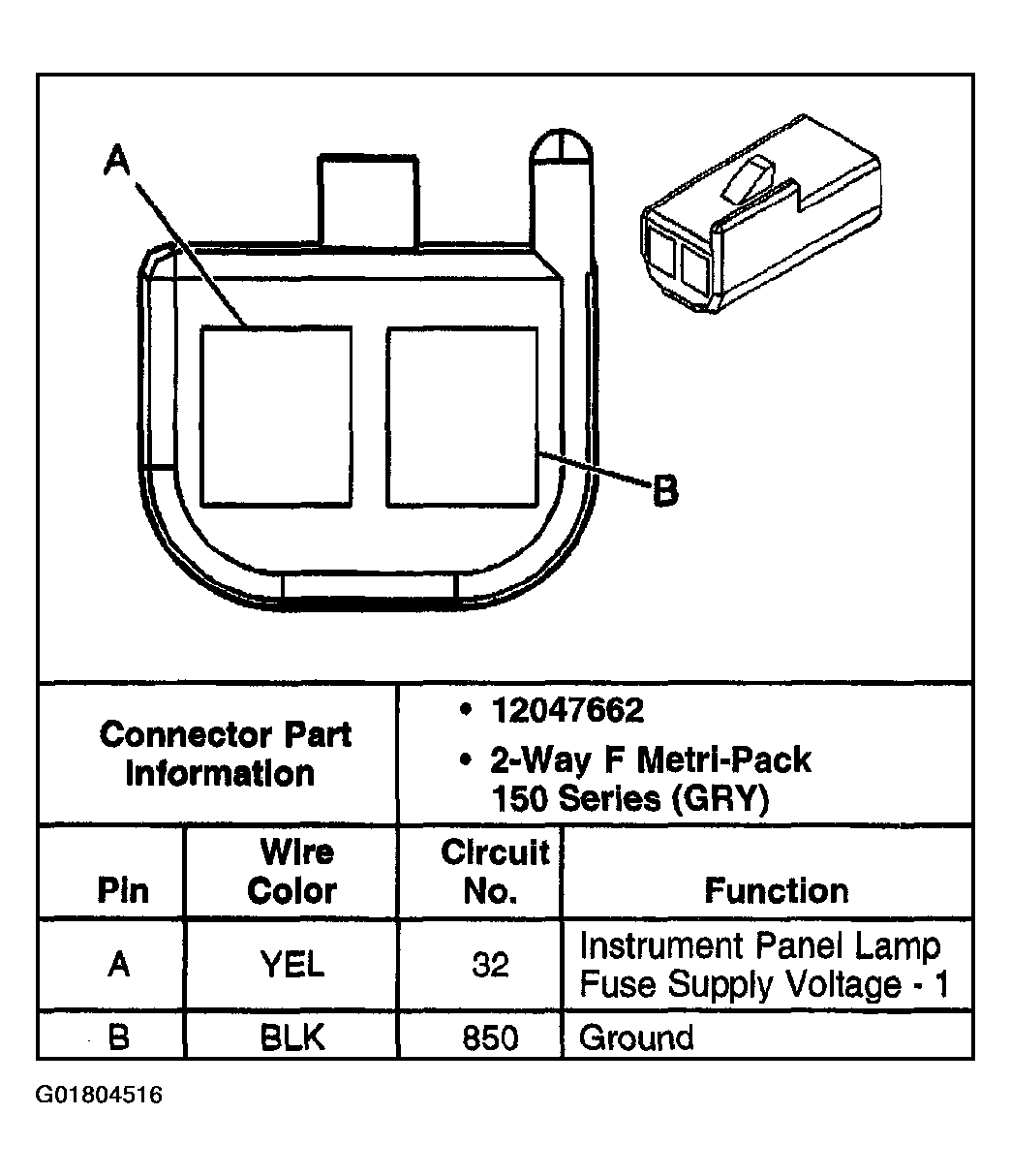

Fig 28: License Lamp (Domestic)

G01804516

Courtesy of GENERAL MOTORS CORP.

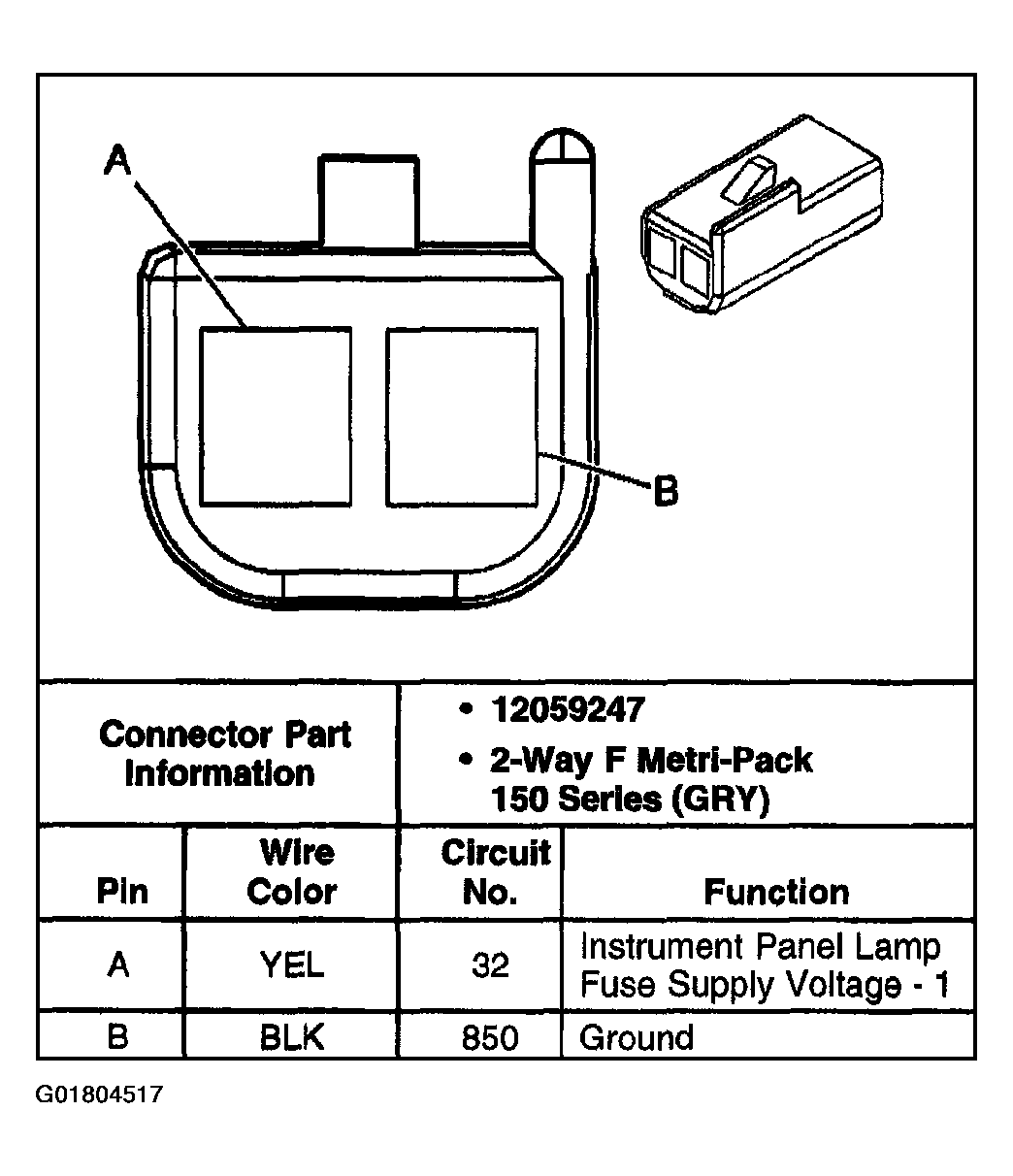

Fig 29: License Lamp (Export)

G01804517

Courtesy of GENERAL MOTORS CORP.

Fig 30: Marker Lamp - Left

G01804518

Courtesy of GENERAL MOTORS CORP.

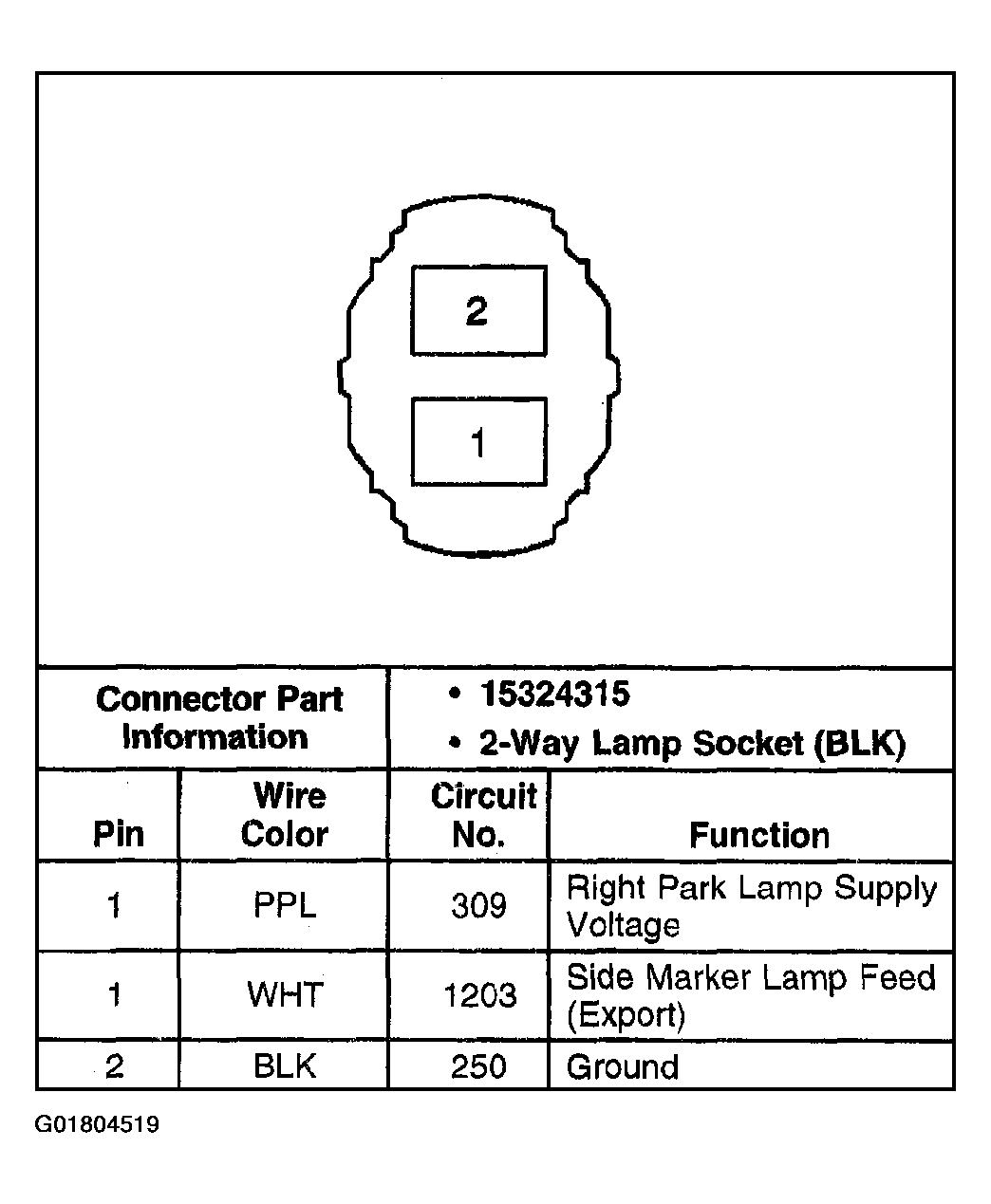

Fig 31: Marker Lamp - Right

G01804519

Courtesy of GENERAL MOTORS CORP.

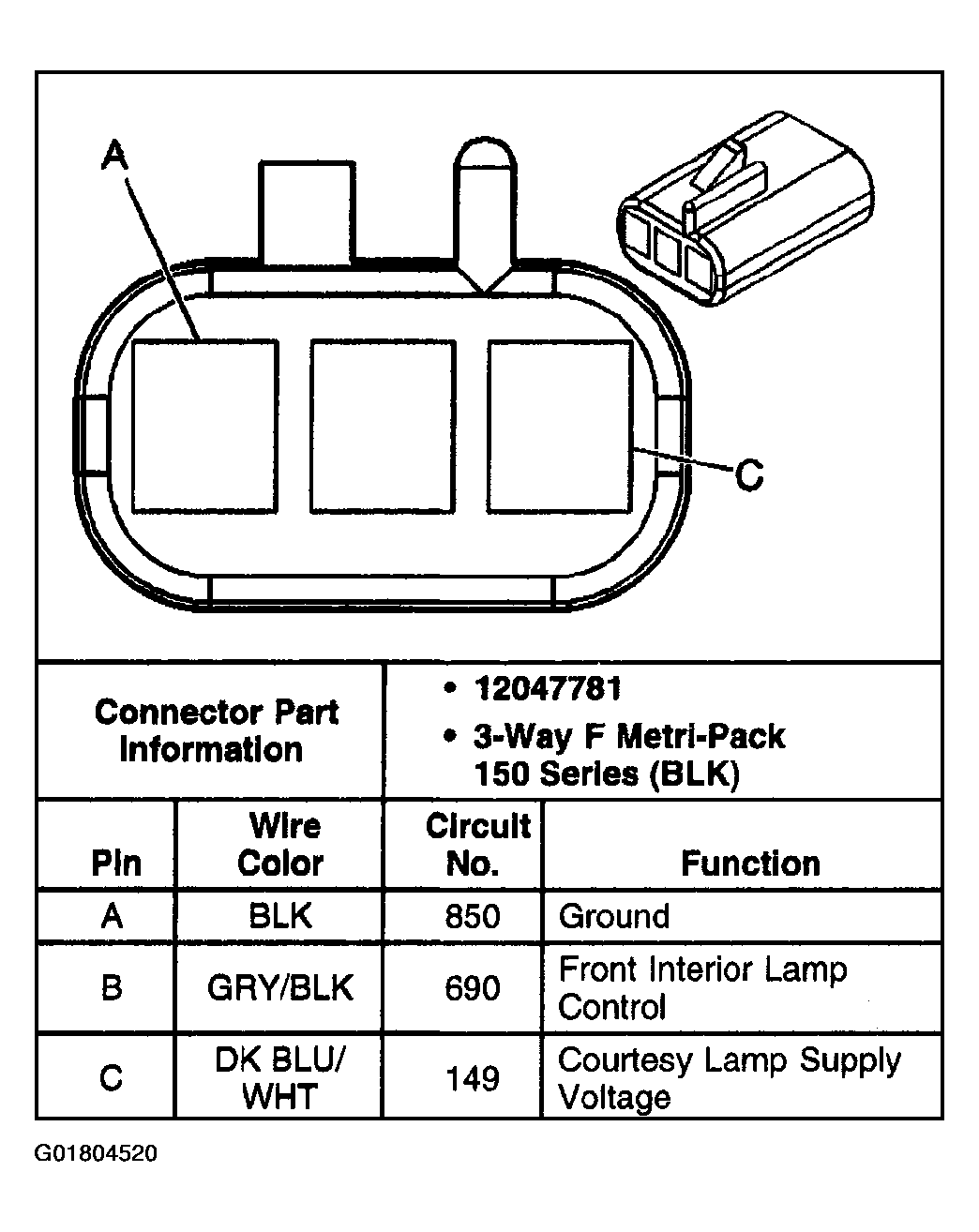

Fig 32: Overhead Console Courtesy Lamp

G01804520

Courtesy of GENERAL MOTORS CORP.

Fig 33: Park/Turn Lamp - LF

G01804521

Courtesy of GENERAL MOTORS CORP.

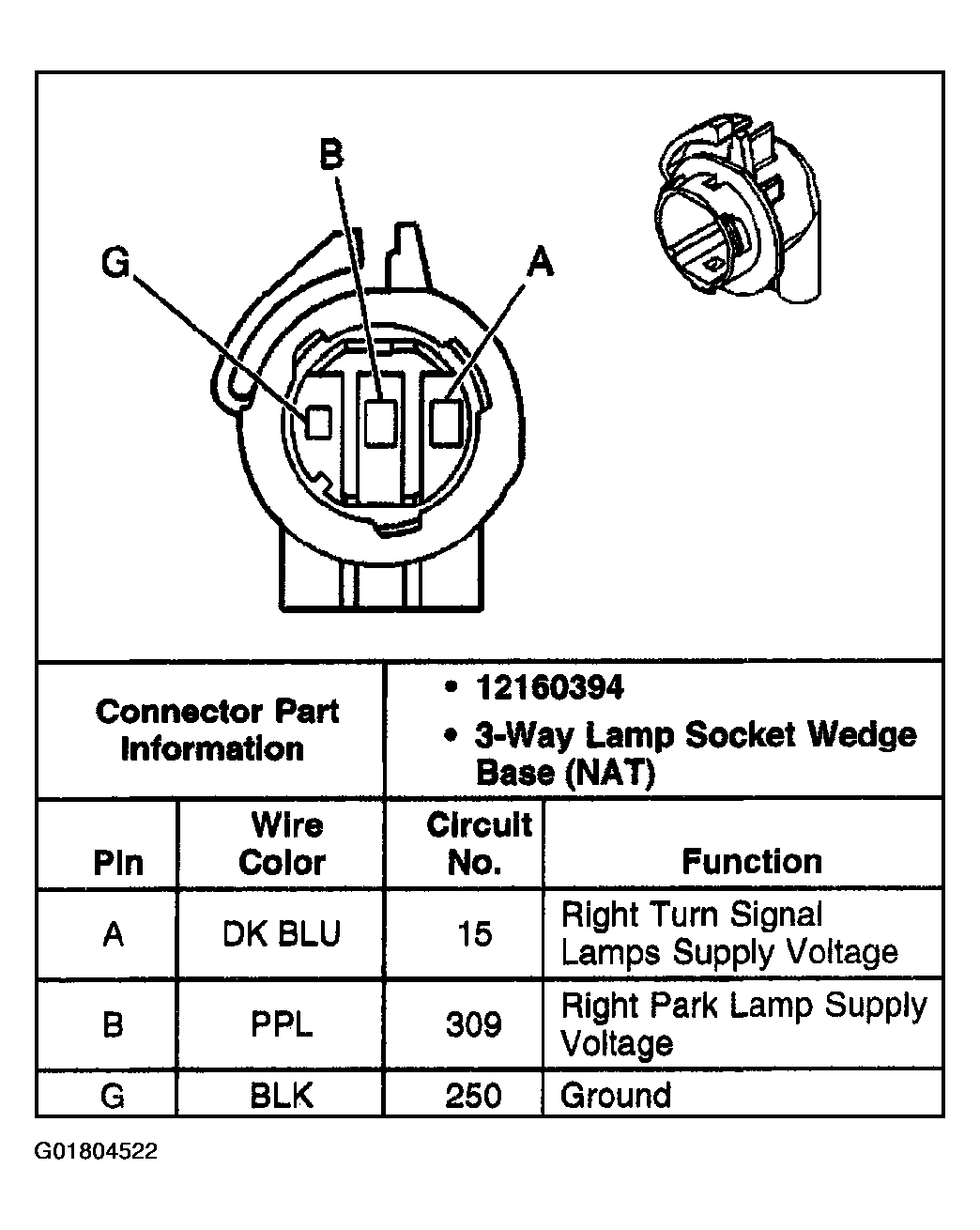

Fig 34: Park/Turn Lamp - RF

G01804522

Courtesy of GENERAL MOTORS CORP.

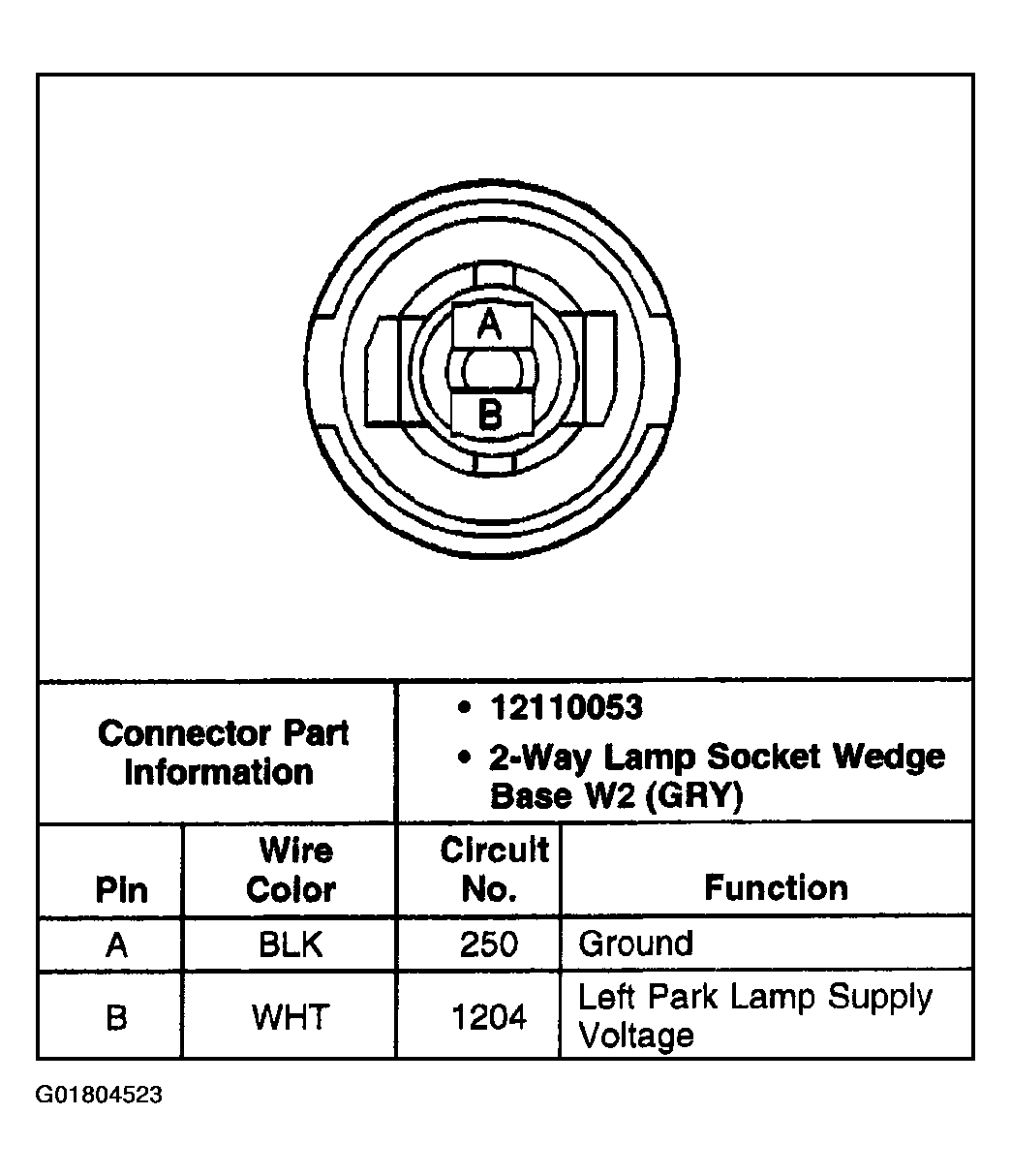

Fig 35: Position Lamp - Left (Export)

G01804523

Courtesy of GENERAL MOTORS CORP.

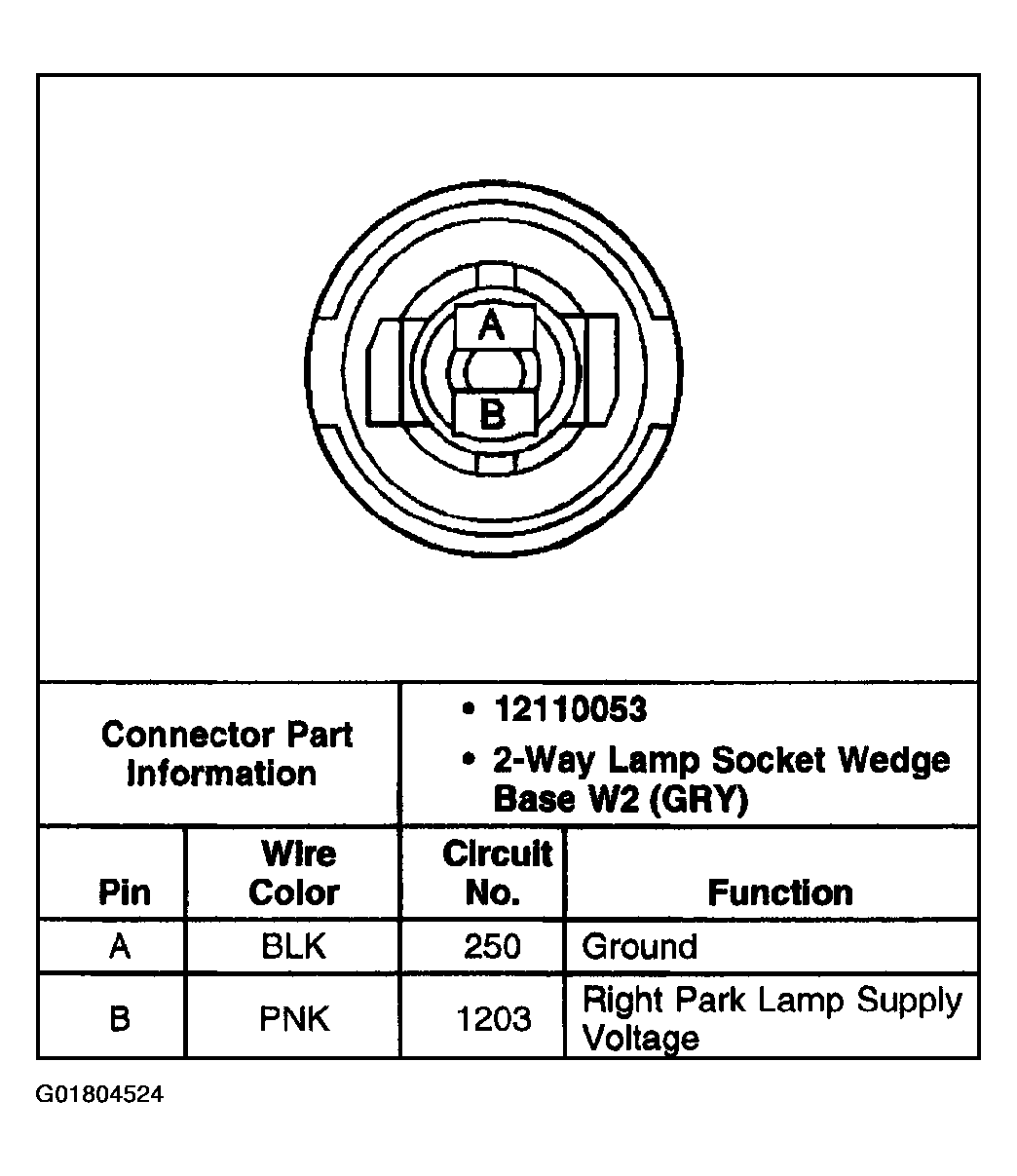

Fig 36: Position Lamp - Right (Export)

G01804524

Courtesy of GENERAL MOTORS CORP.

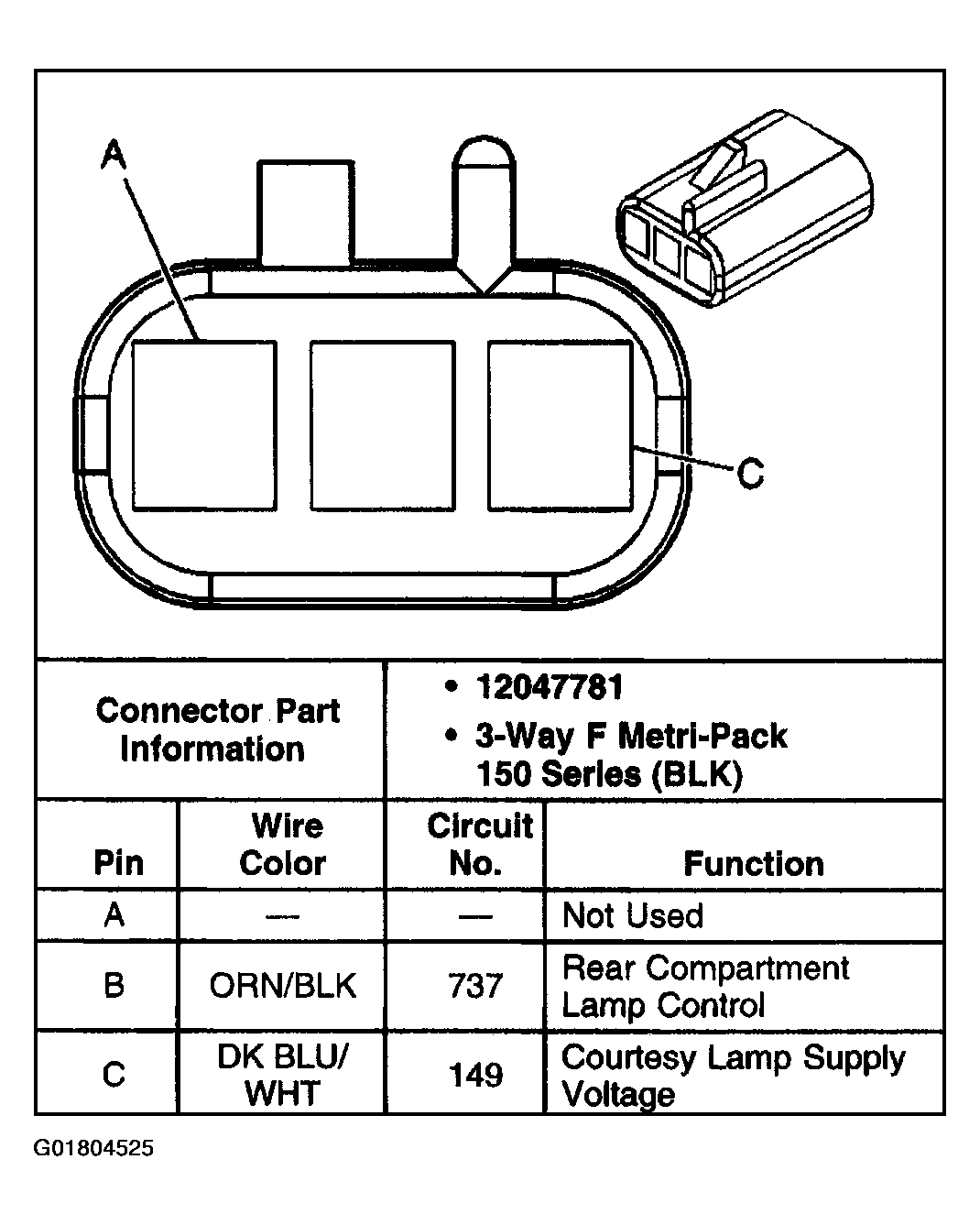

Fig 37: Rear Compartment Lamp

G01804525

Courtesy of GENERAL MOTORS CORP.

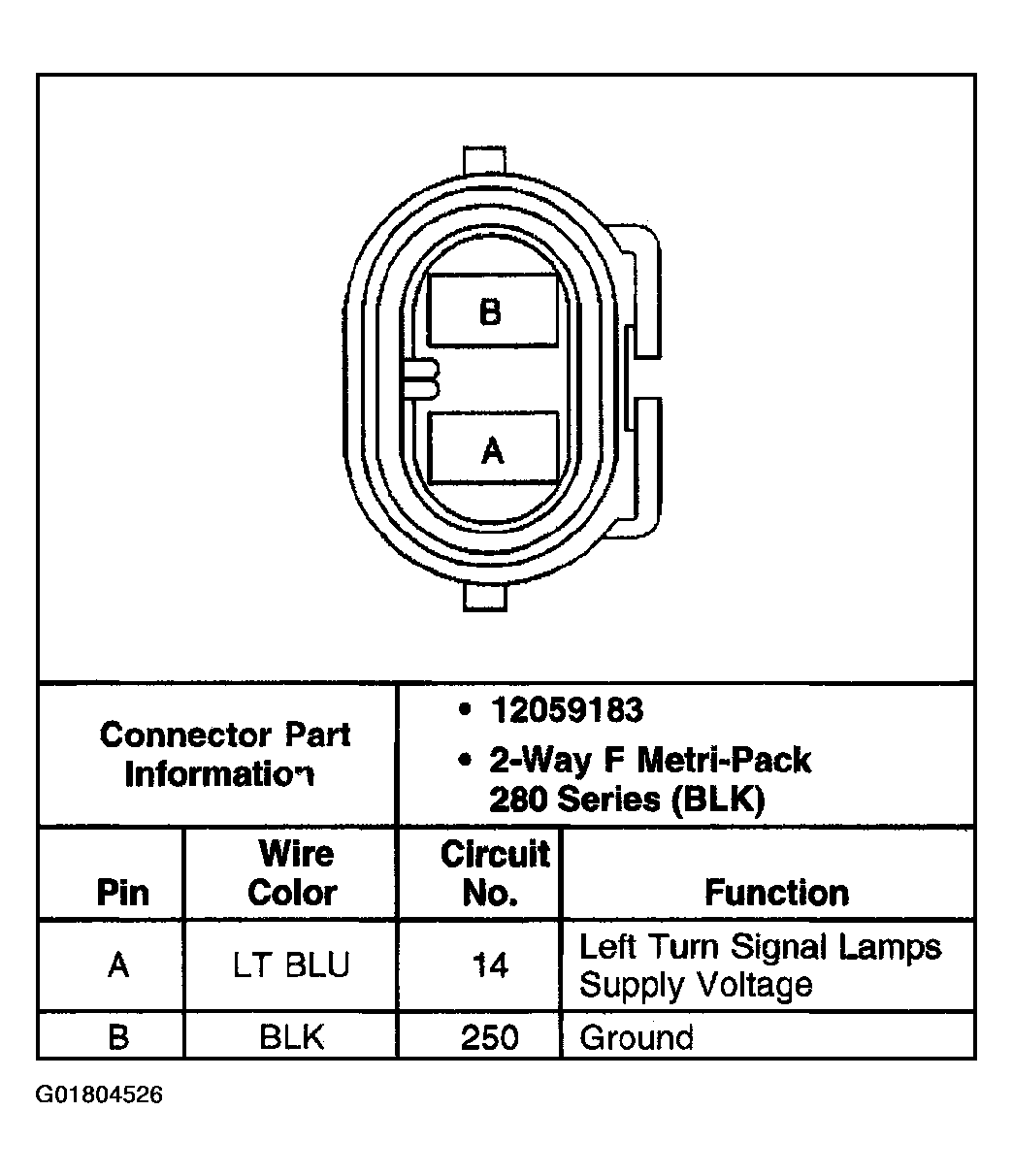

Fig 38: Repeater Lamp - Left (Export)

G01804526

Courtesy of GENERAL MOTORS CORP.

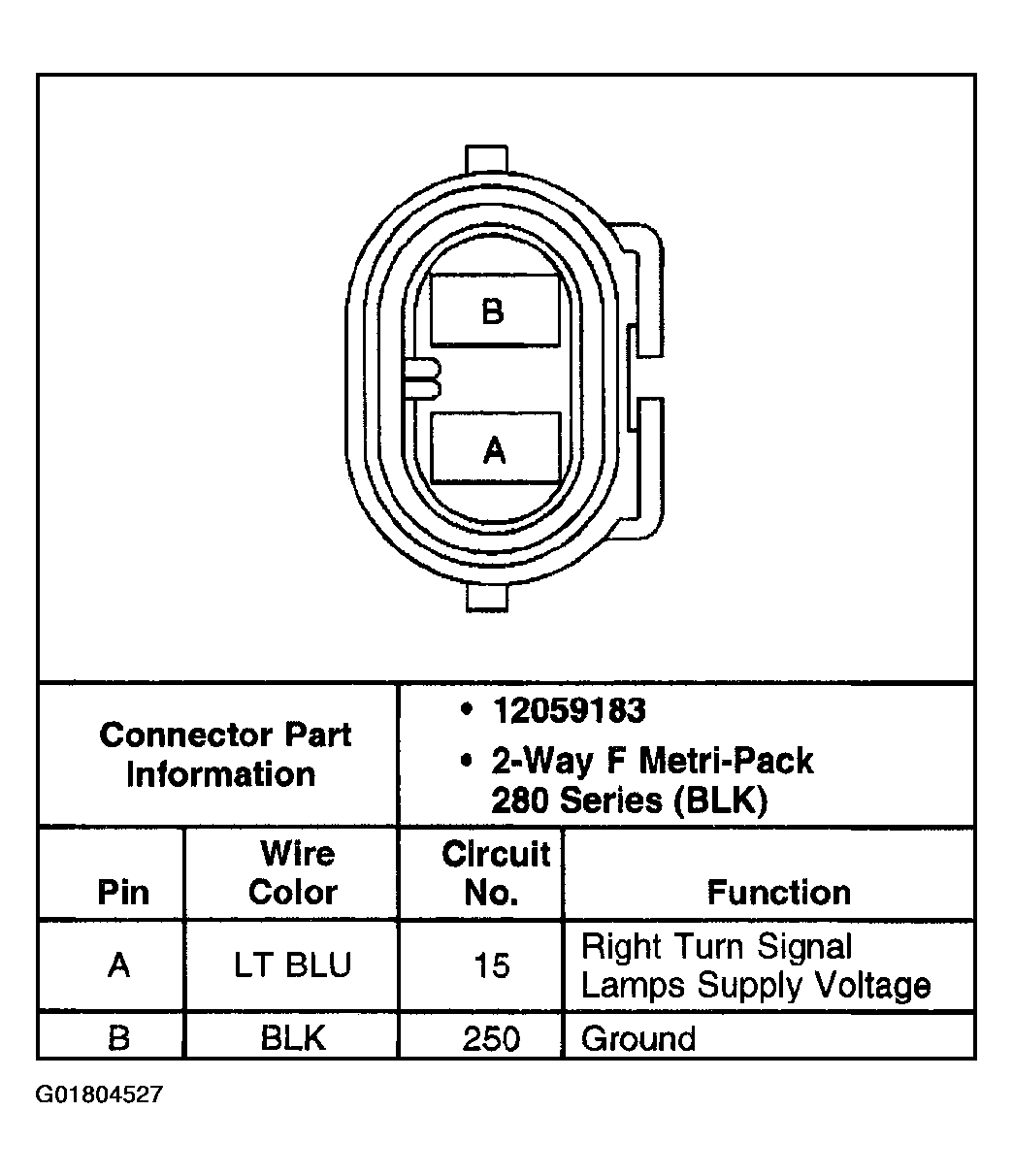

Fig 39: Repeater Lamp - Right (Export)

G01804527

Courtesy of GENERAL MOTORS CORP.

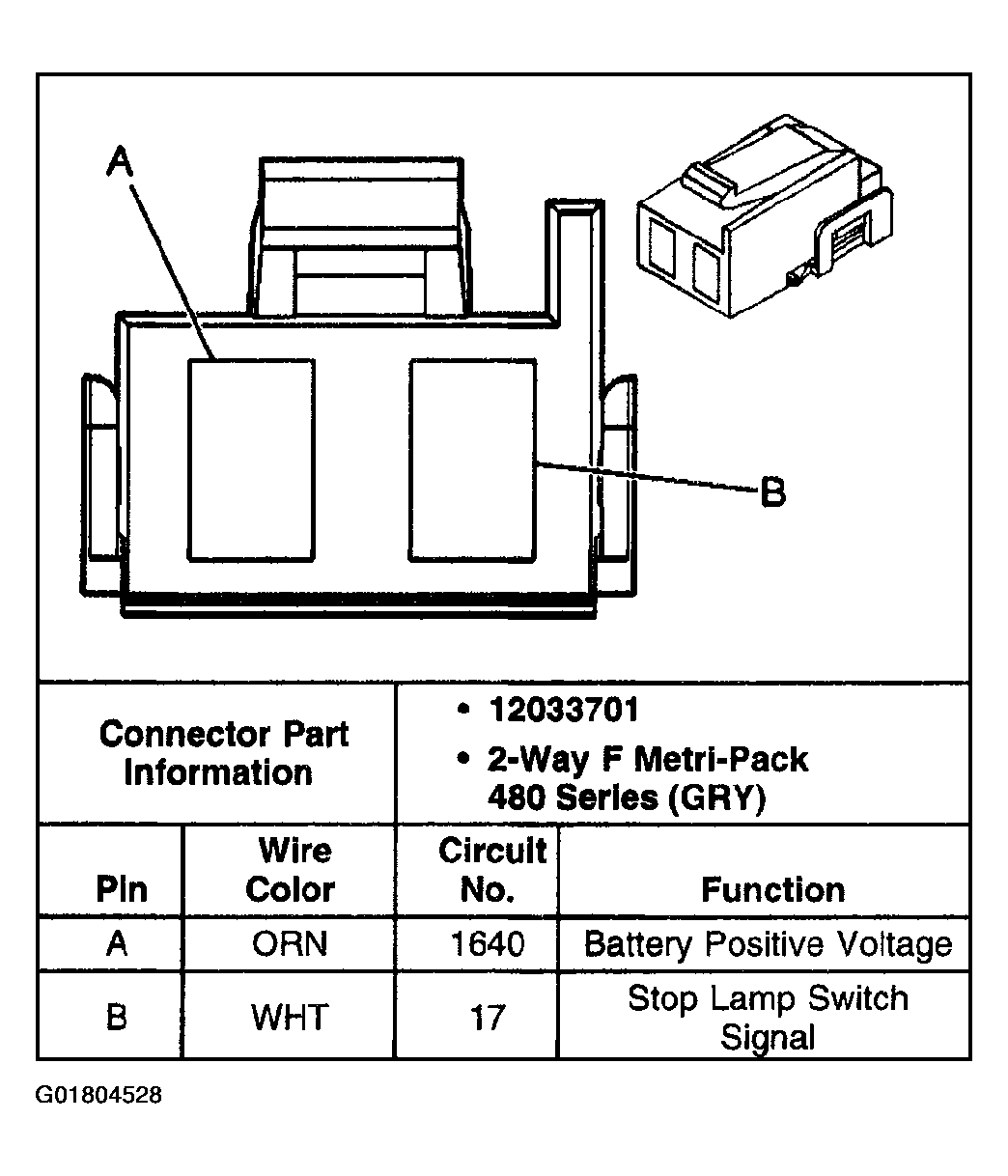

Fig 40: Stop Lamp/AT Shiftlock Control Switch - C1

G01804528

Courtesy of GENERAL MOTORS CORP.

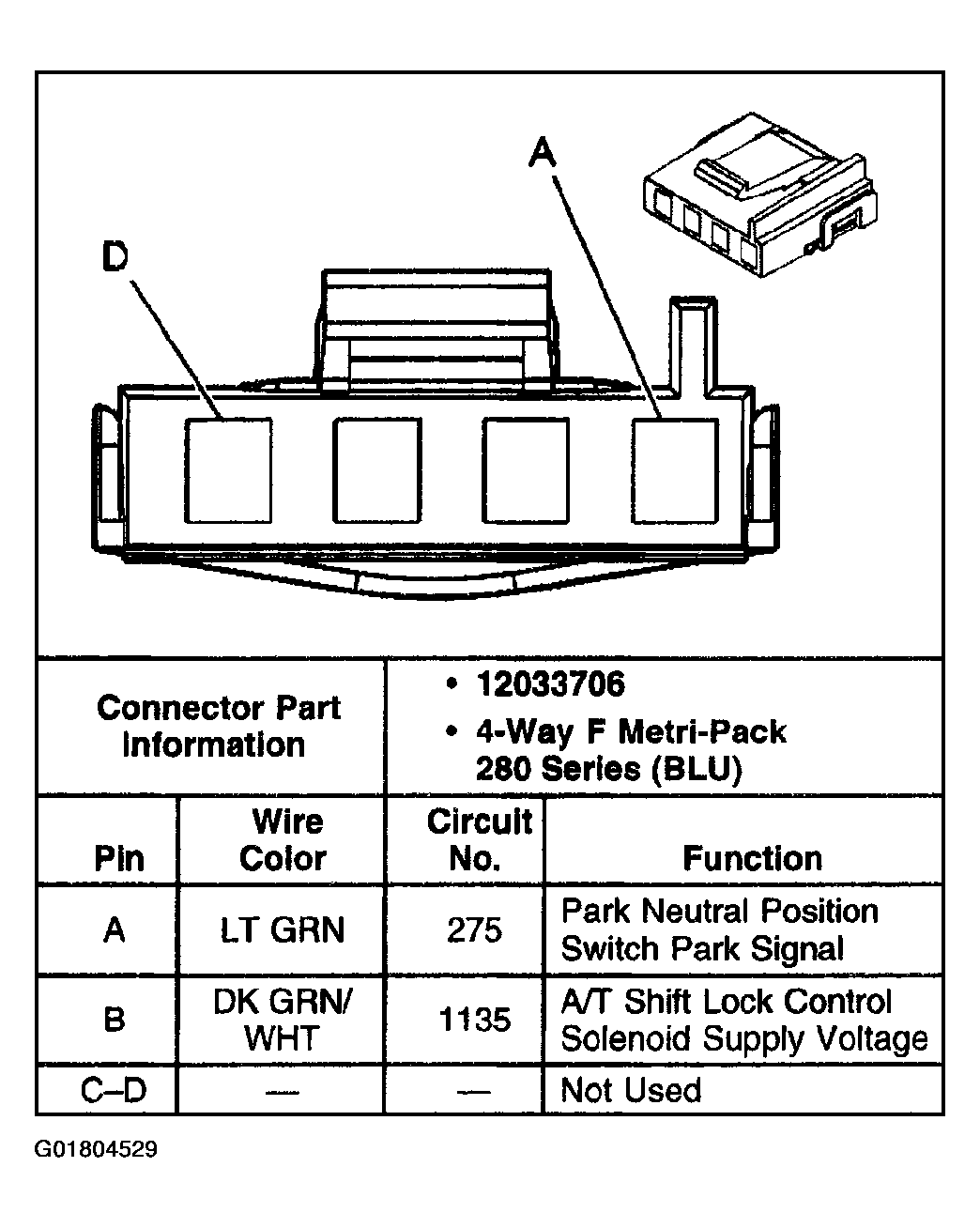

Fig 41: Stop Lamp/AT Shift Lock Control Switch C2

G01804529

Courtesy of GENERAL MOTORS CORP.

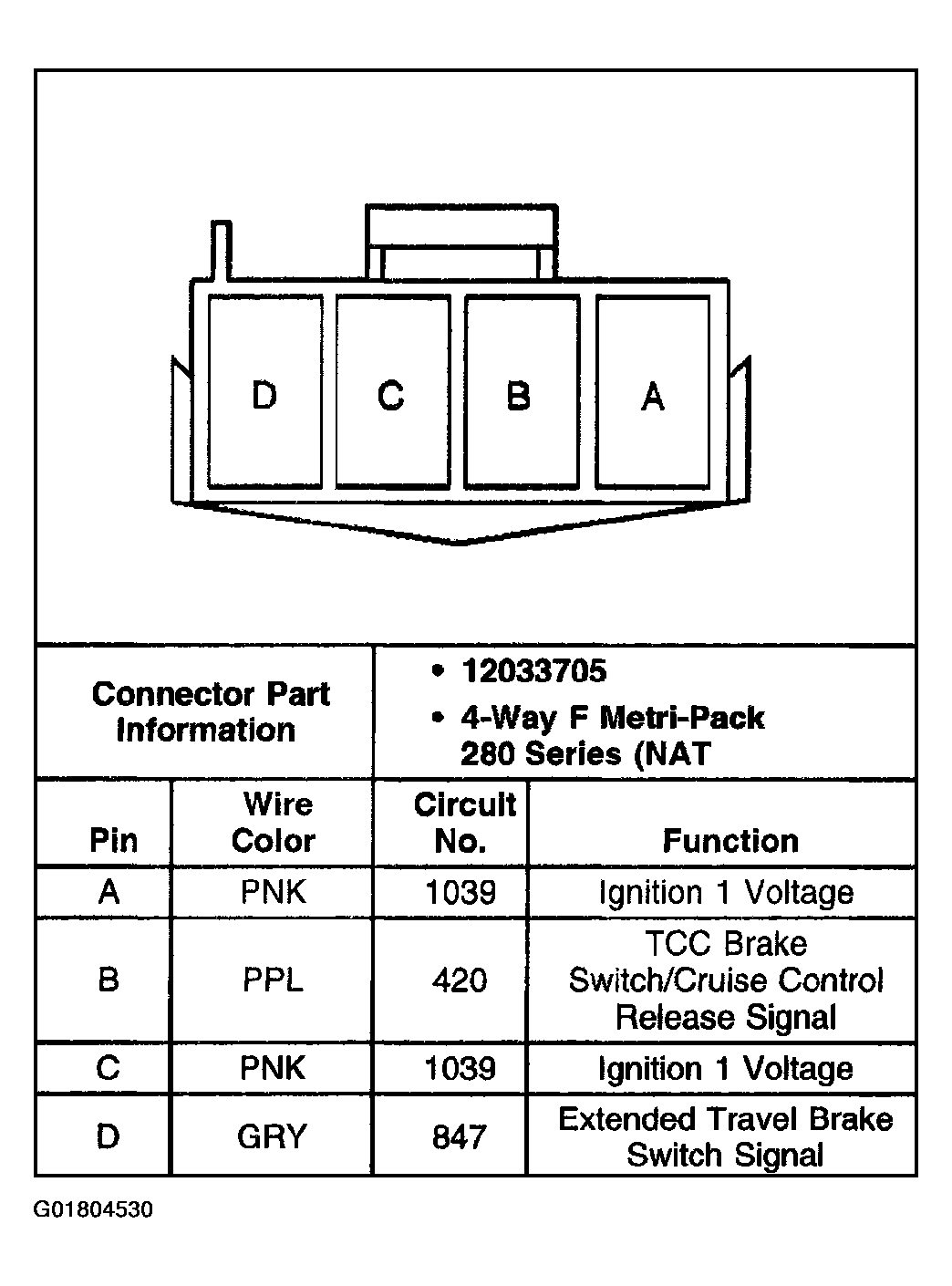

Fig 42: Stop Lamp Switch

G01804530

Courtesy of GENERAL MOTORS CORP.

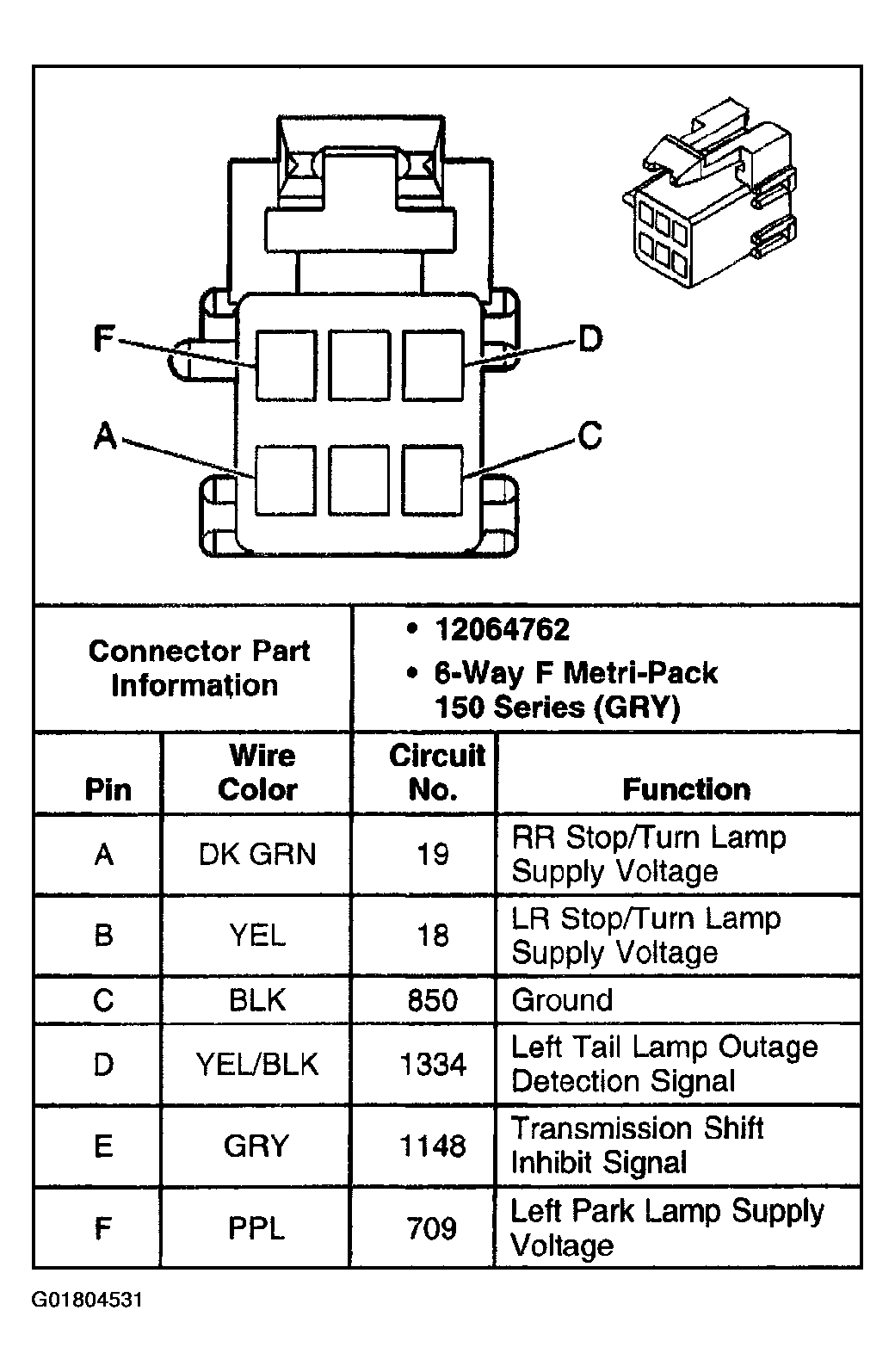

Fig 43: Tail Lamp - Left (Domestic)

G01804531

Courtesy of GENERAL MOTORS CORP.

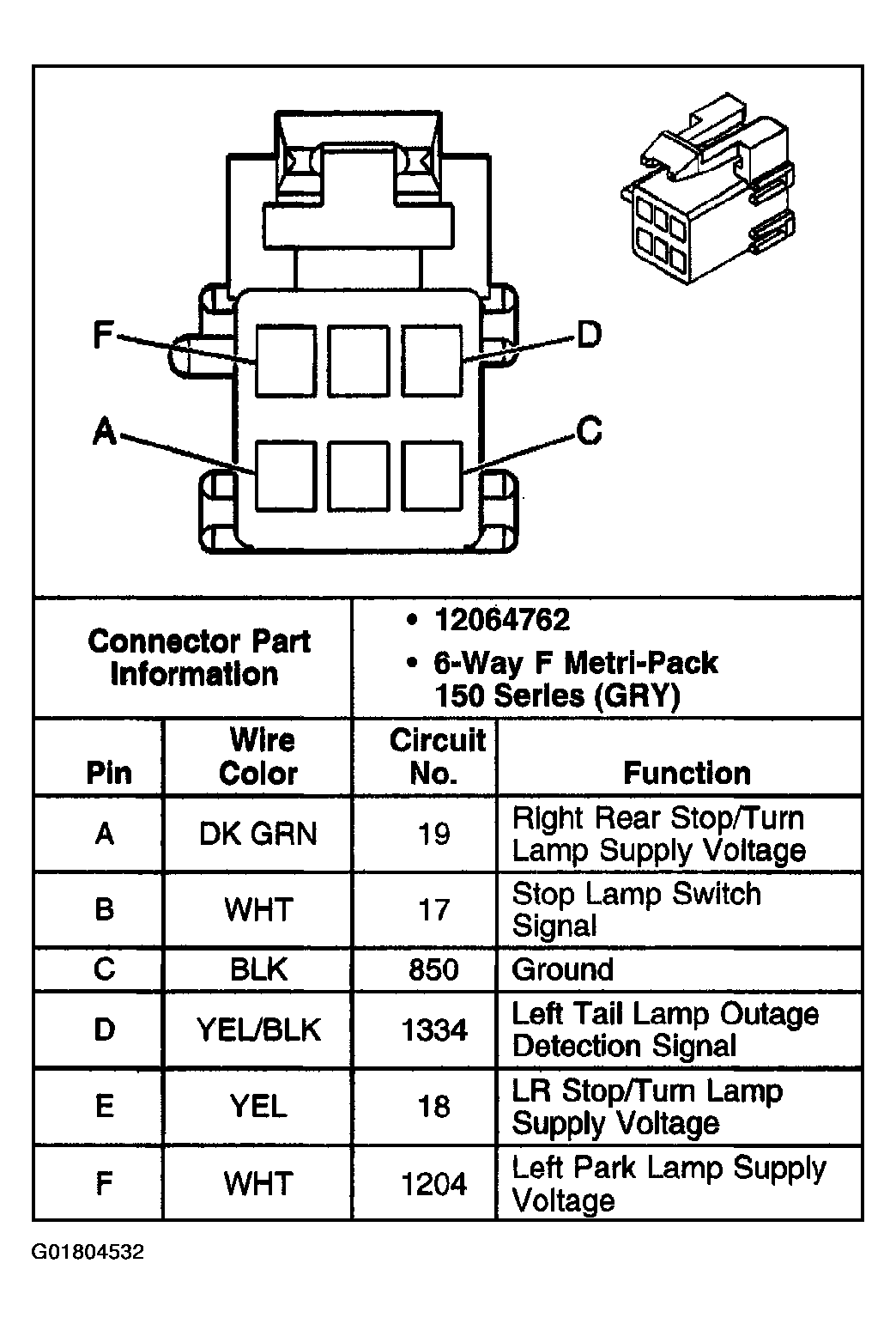

Fig 44: Tail Lamp - Left (Export)

G01804532

Courtesy of GENERAL MOTORS CORP.

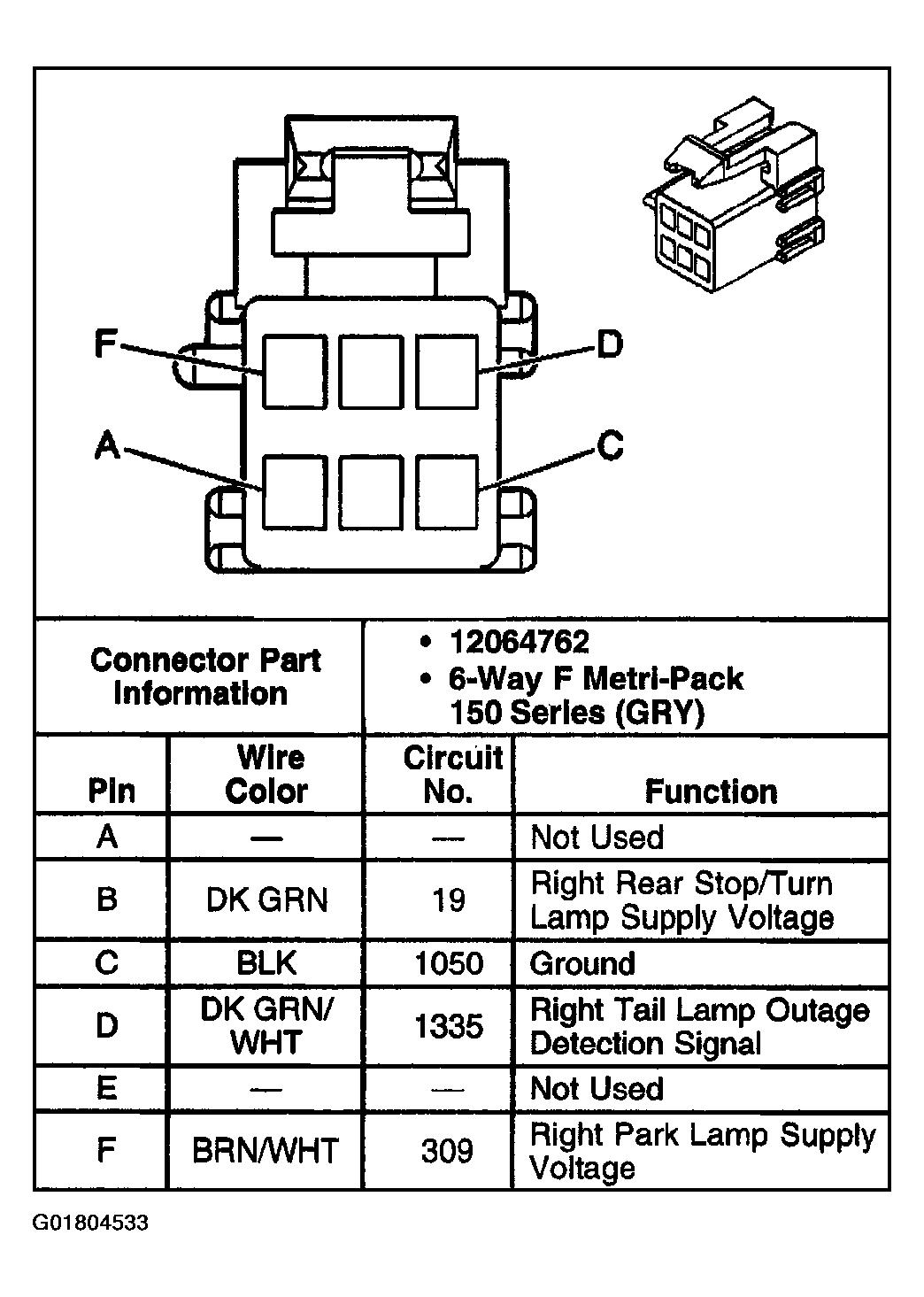

Fig 45: Tail Lamp - Right (Domestic)

G01804533

Courtesy of GENERAL MOTORS CORP.

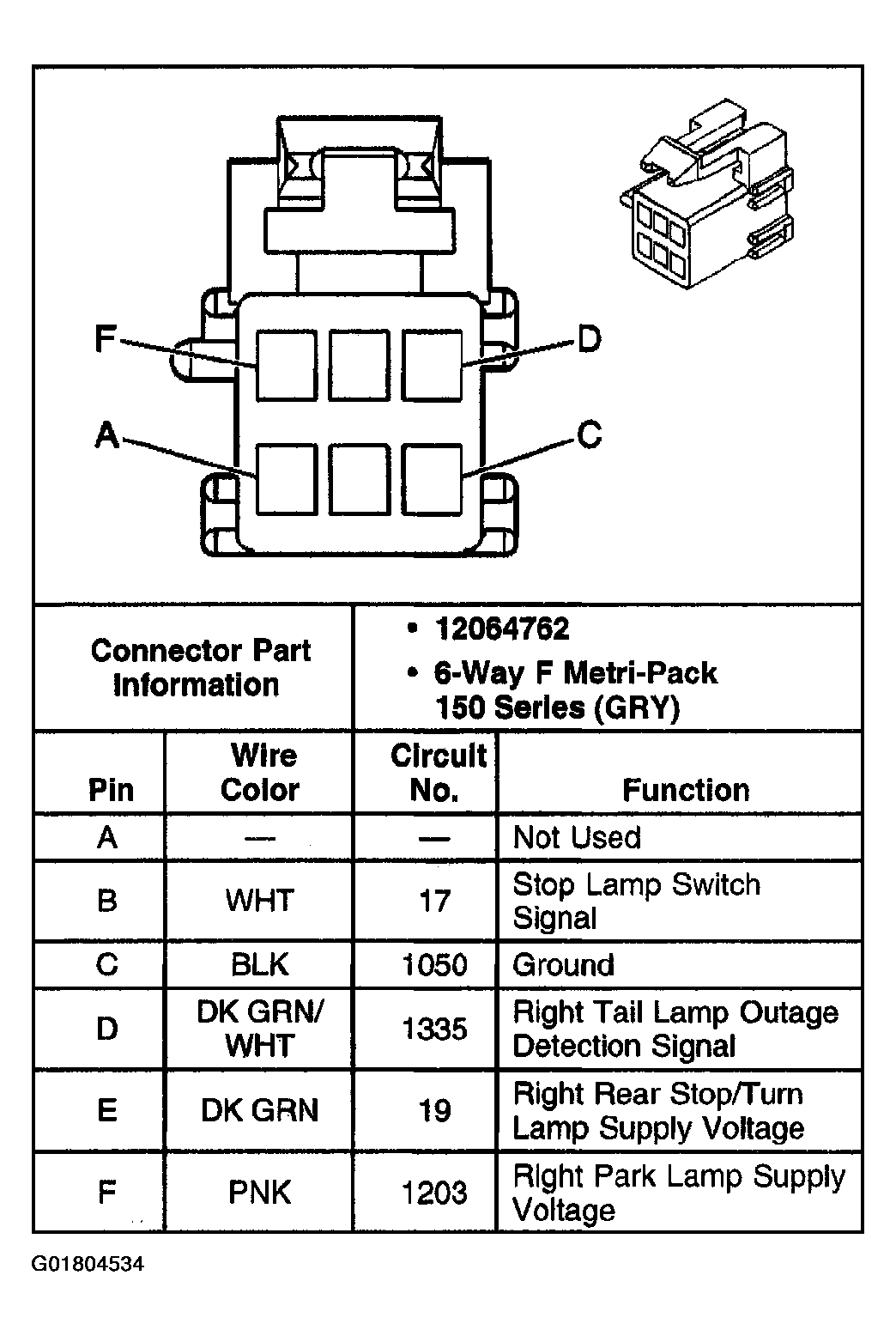

Fig 46: Tail Lamp - Right (Export)

G01804534

Courtesy of GENERAL MOTORS CORP.

Fig 47: Turn Signal/Hazard Flasher Module (1 Of 2)

G01804535

Courtesy of GENERAL MOTORS CORP.

Fig 48: Turn Signal/Hazard Flasher Module (2 Of 2)

G01804536

Courtesy of GENERAL MOTORS CORP.

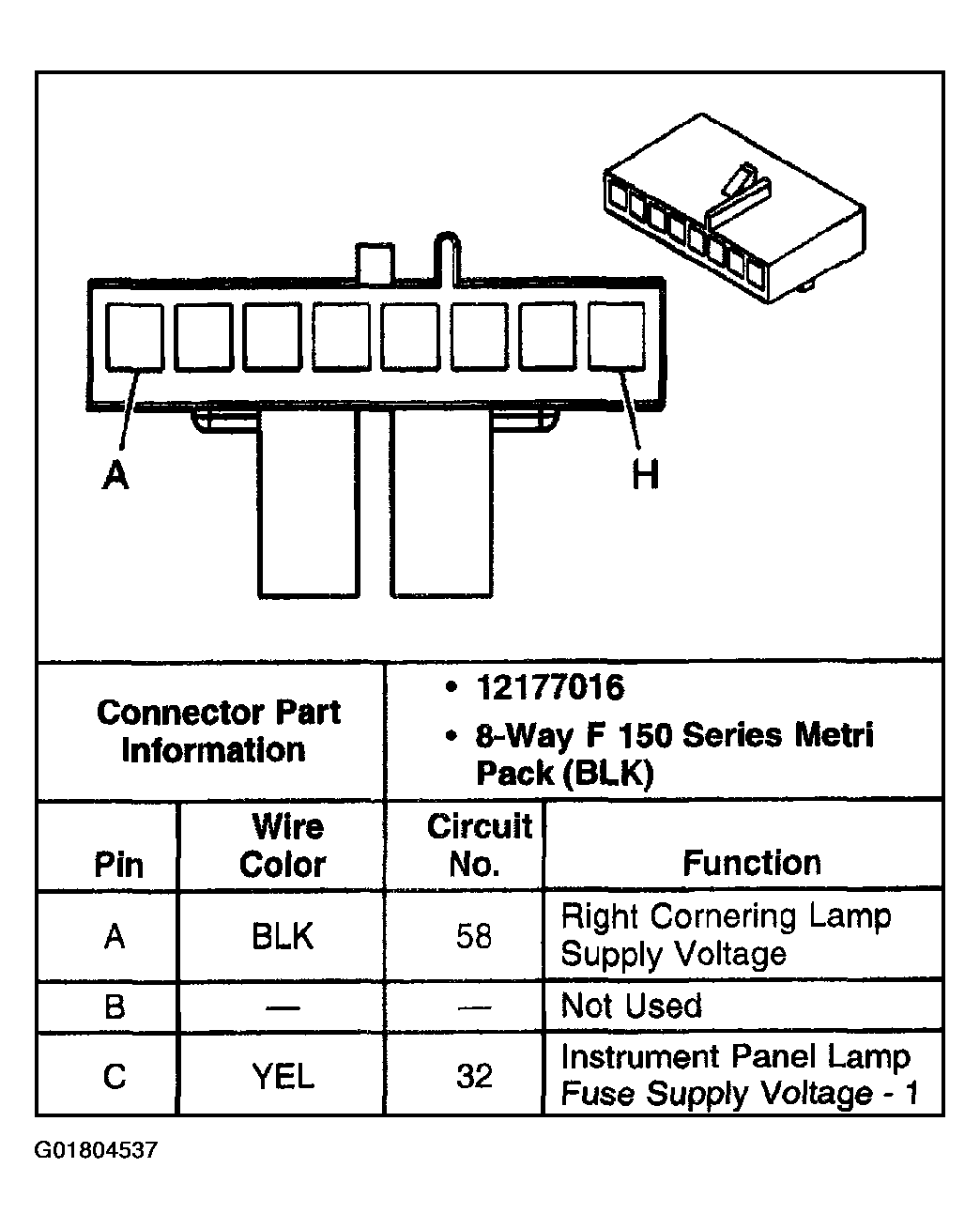

Fig 49: Turn Signal Switch (1 Of 2)

G01804537

Courtesy of GENERAL MOTORS CORP.

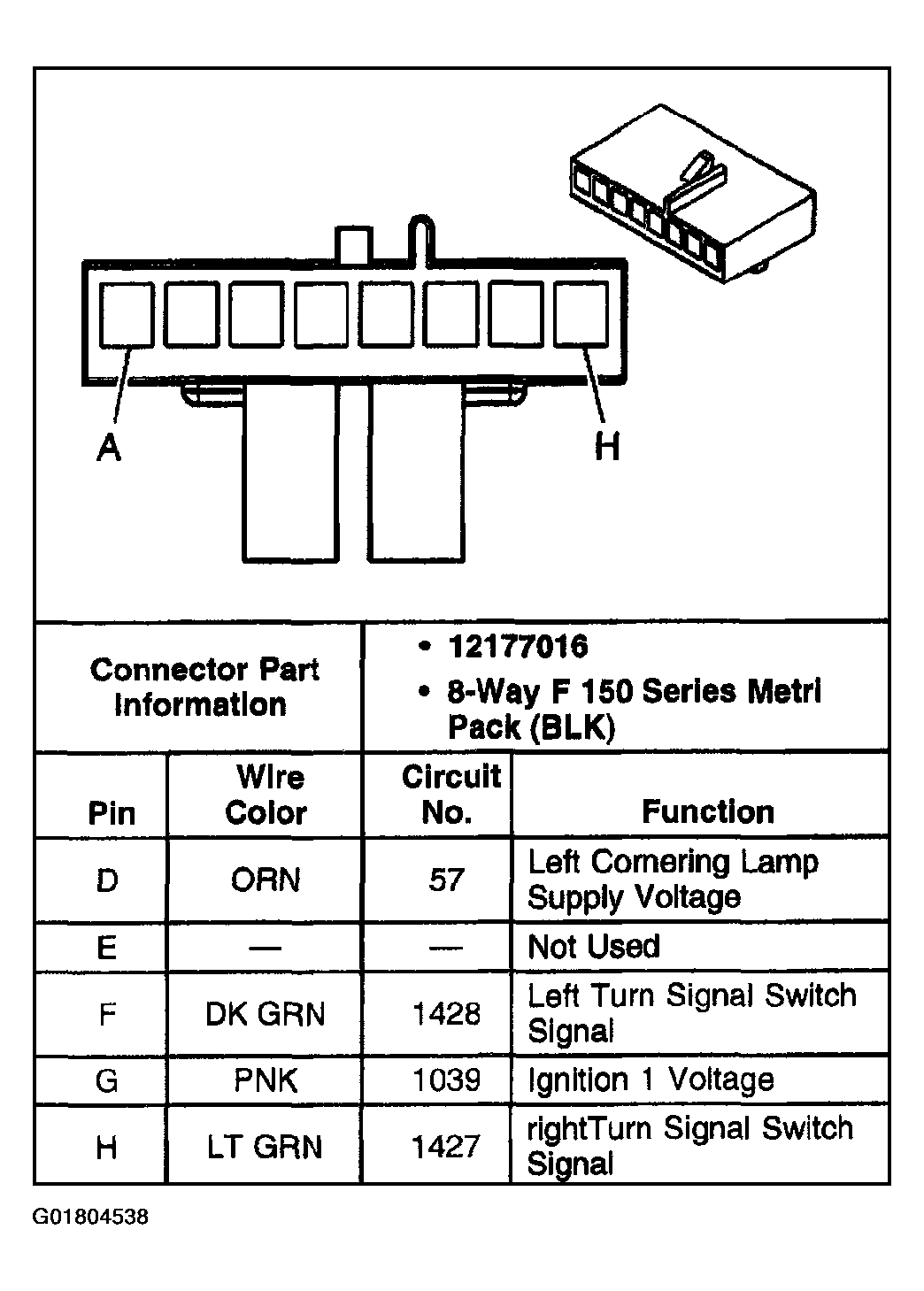

Fig 50: Turn Signal Switch (2 Of 2)

G01804538

Courtesy of GENERAL MOTORS CORP.

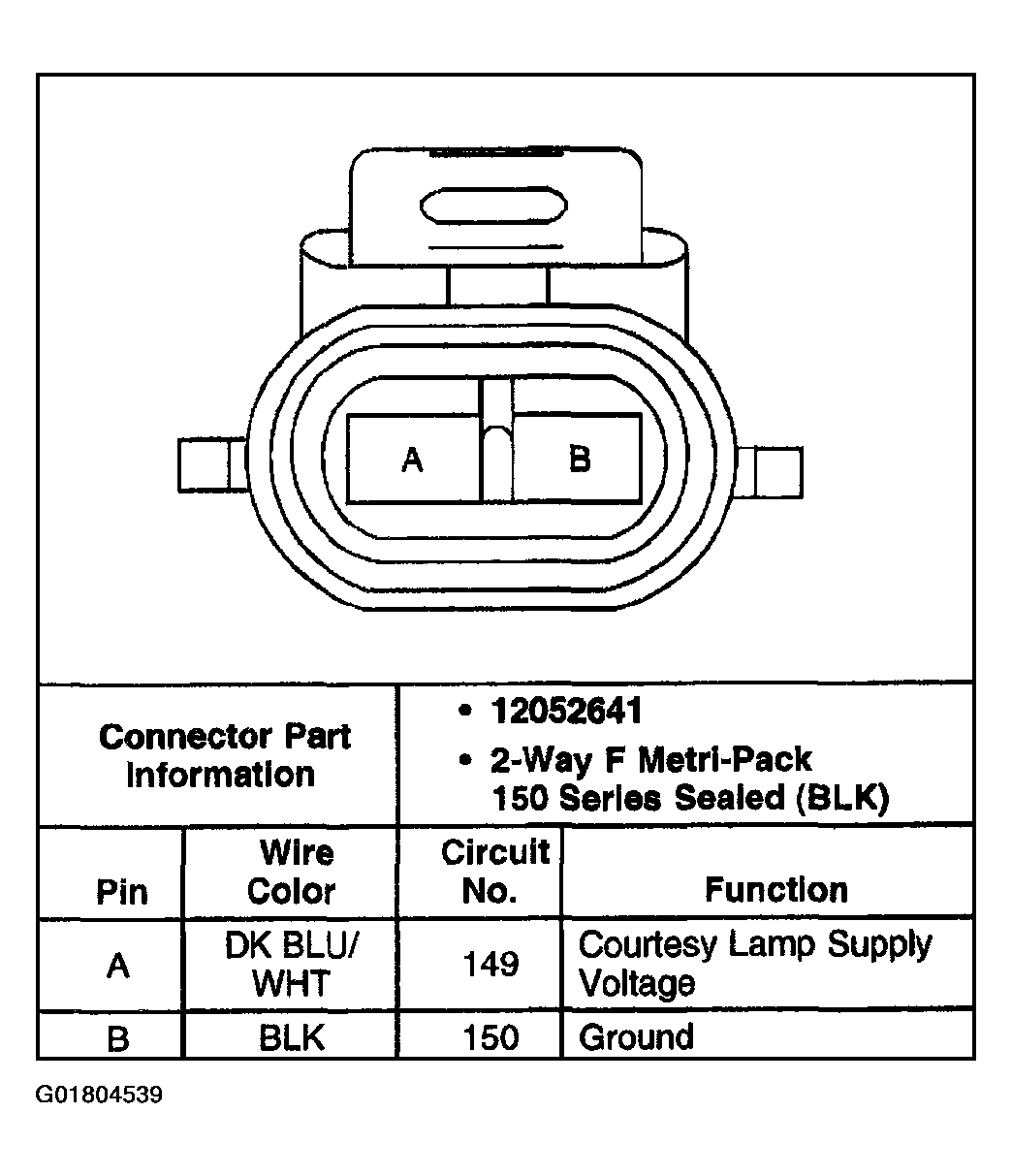

Fig 51: Underhood Lamp

G01804539

Courtesy of GENERAL MOTORS CORP.

Fig 52: Vanity Mirror Lamp - LR (w/UD7 & W20)

G01804540

Courtesy of GENERAL MOTORS CORP.

Fig 53: Vanity Mirror Lamp - Right

G01804541

Courtesy of GENERAL MOTORS CORP.

Fig 54: Vanity Mirror Lamp - Left

G01804542

Courtesy of GENERAL MOTORS CORP.

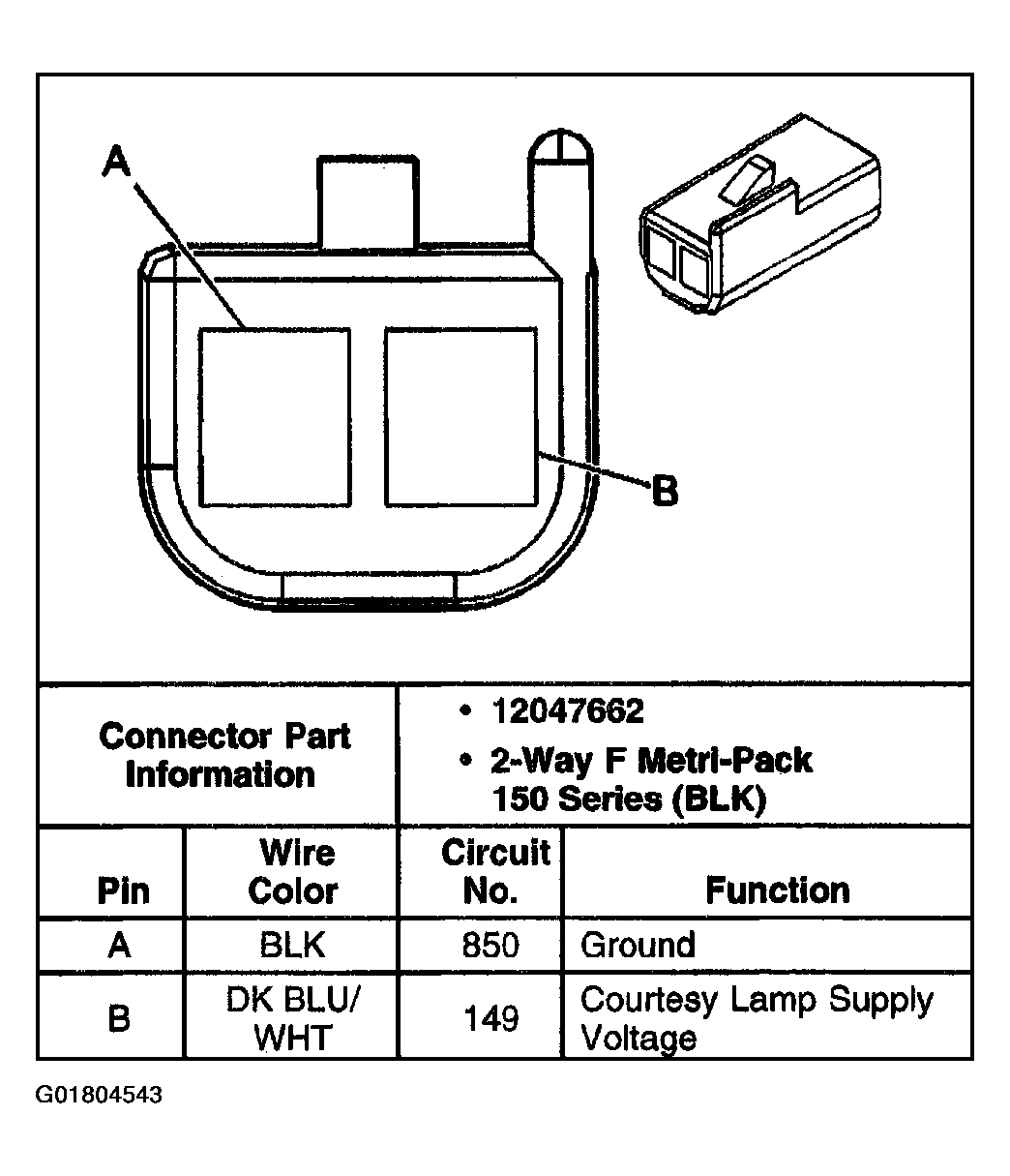

Fig 55: Vanity Mirror Lamp - RR (w/UD7 & W20)

G01804543

Courtesy of GENERAL MOTORS CORP.
