Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

The Diagnostic System Check will direct you to the correct procedure for diagnosing the system and where the procedure is located.

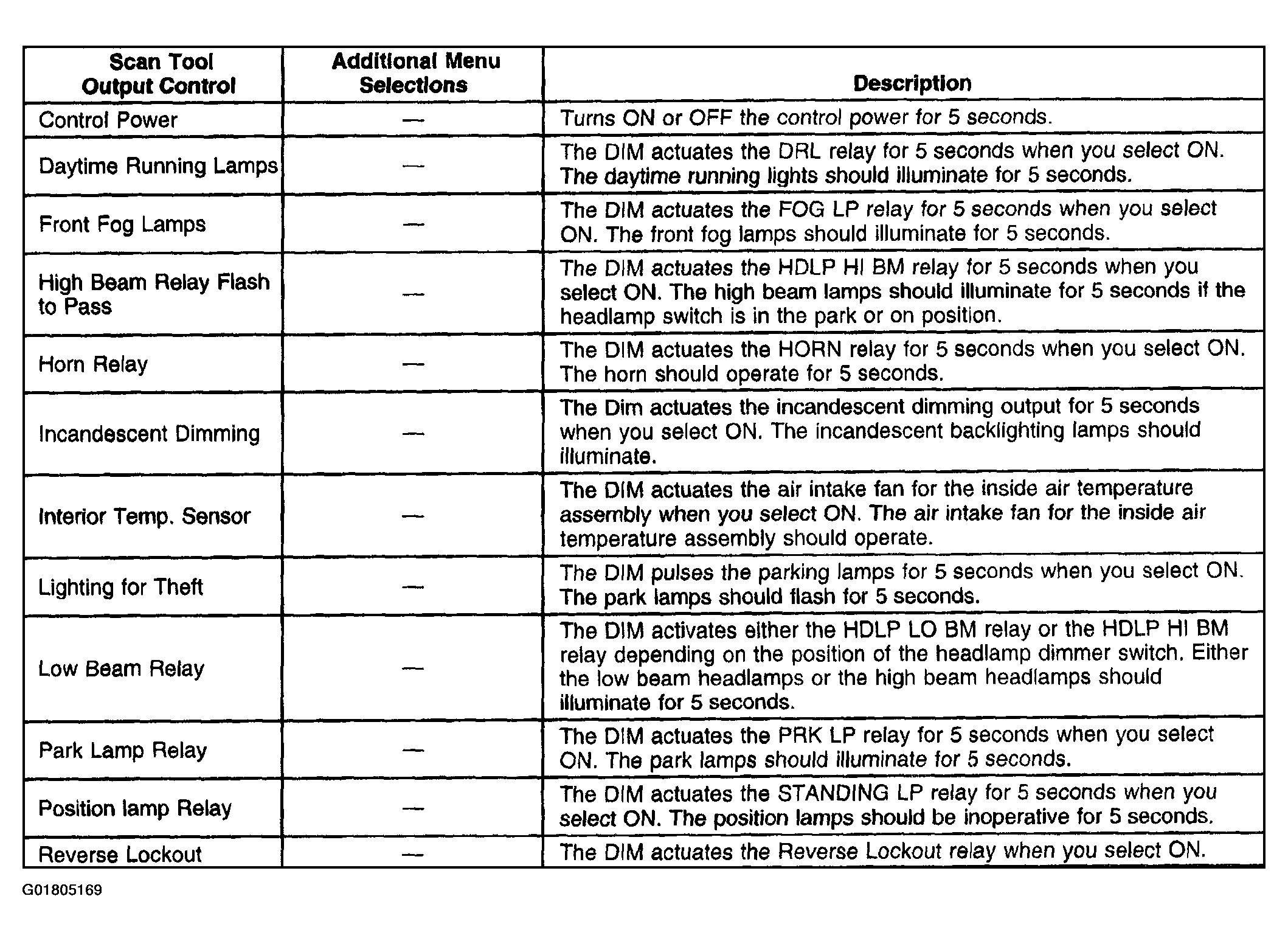

Fig 1: Dash Integration Module (DIM)
G01805169Courtesy of GENERAL MOTORS CORP.

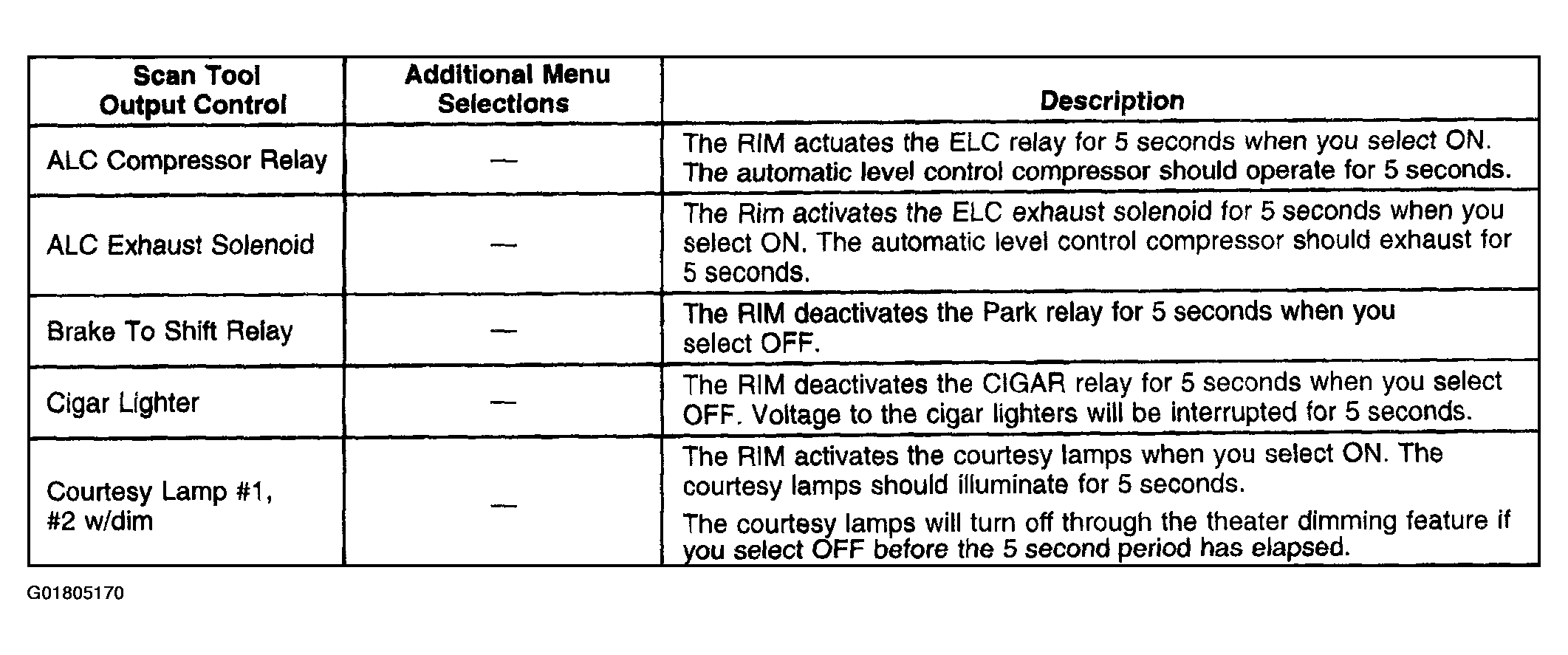

Fig 2: Rear Integration Module (RIM) (1 Of 2)
G01805170Courtesy of GENERAL MOTORS CORP.

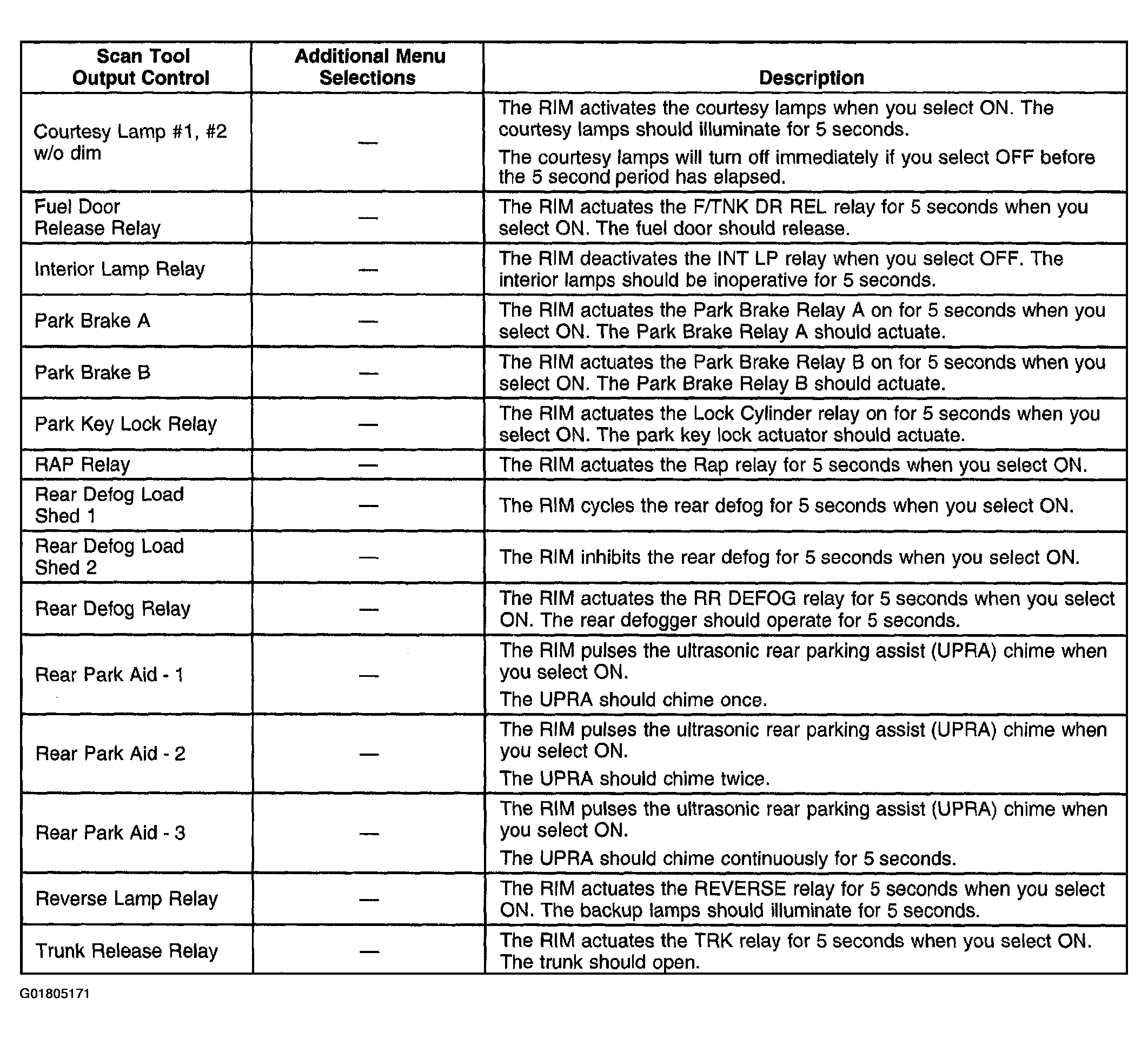

Fig 3: Rear Integration Module (RIM) (2 Of 2)
G01805171Courtesy of GENERAL MOTORS CORP.
