WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

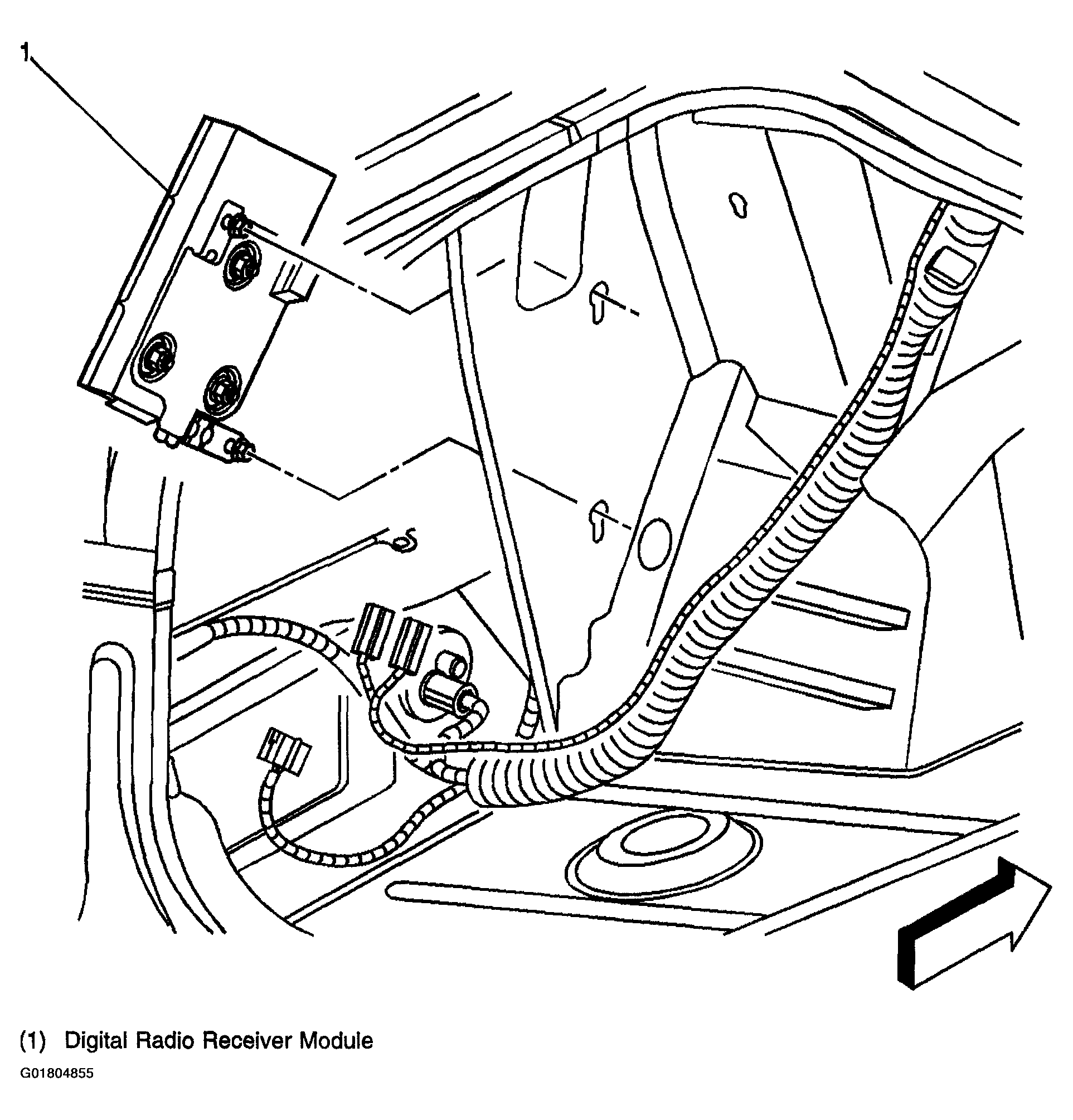

Fig 1: Digital Radio Receiver Module
Courtesy of GENERAL MOTORS CORP.

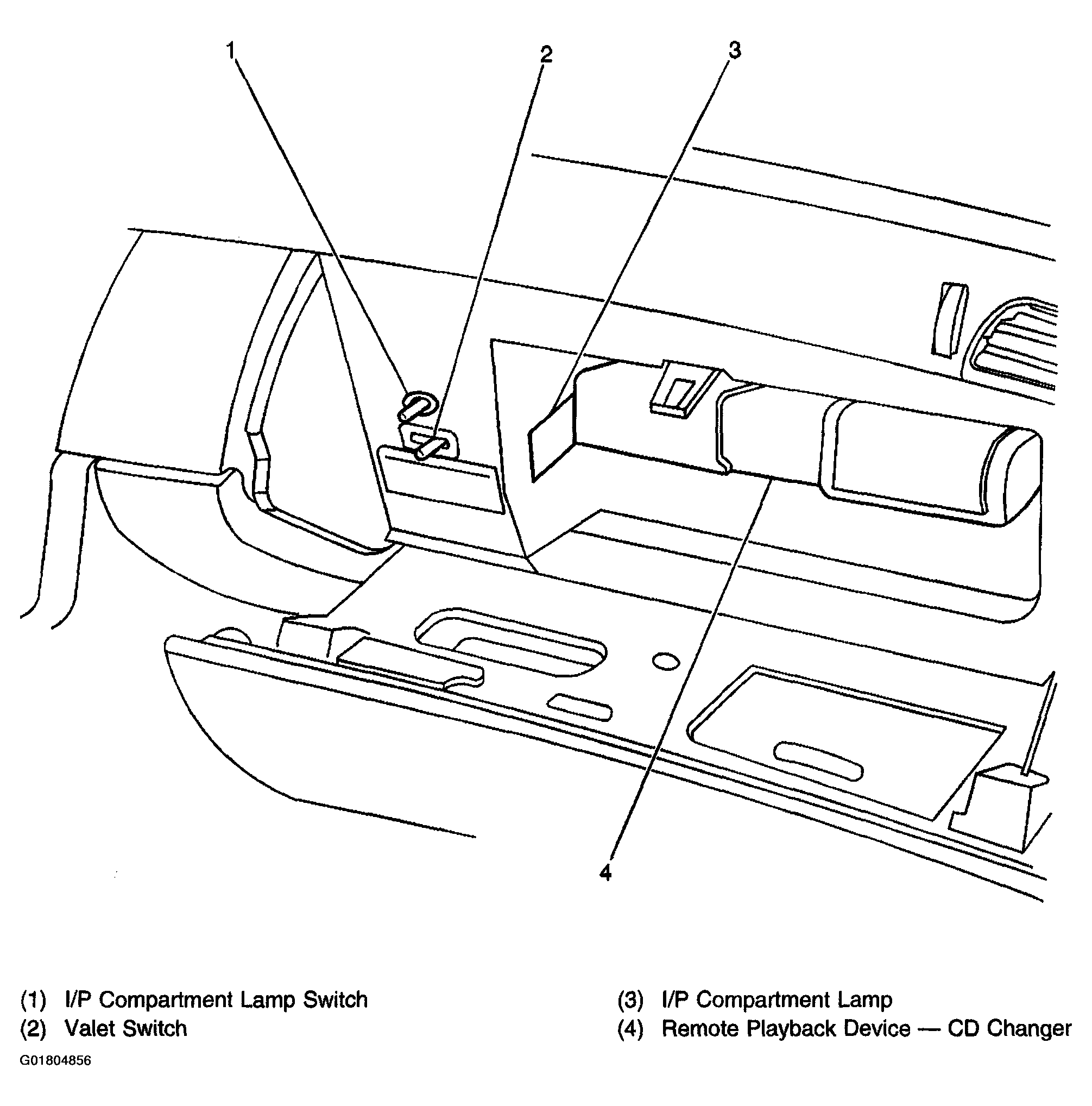

Fig 2: Right Side of the Instrument Panel, in the Instrument Panel Compartment
Courtesy of GENERAL MOTORS CORP.

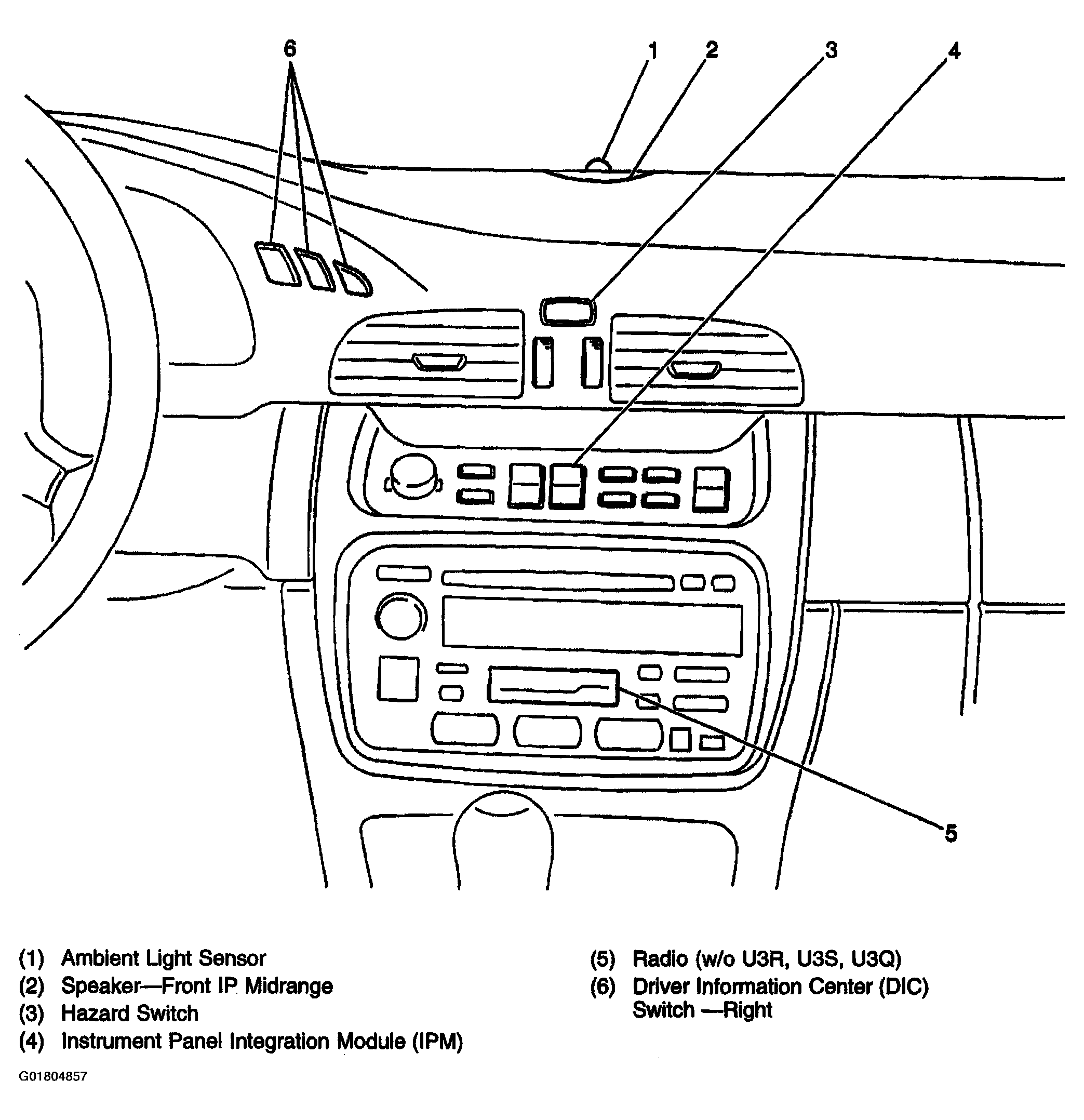

Fig 3: Passenger Compartment, Center of the Instrument Panel
Courtesy of GENERAL MOTORS CORP.

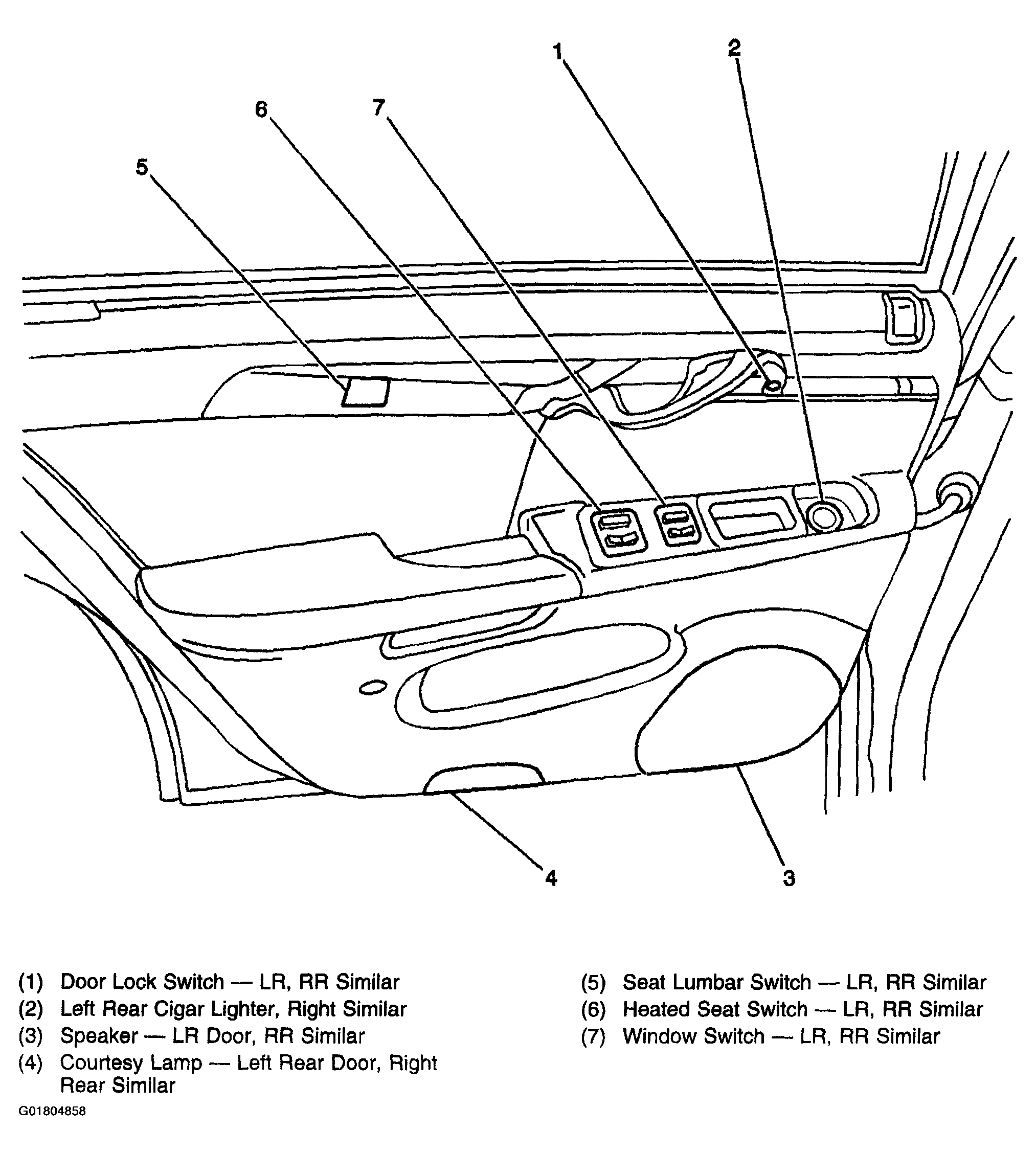

Fig 4: Front of the Left Rear Door
Courtesy of GENERAL MOTORS CORP.

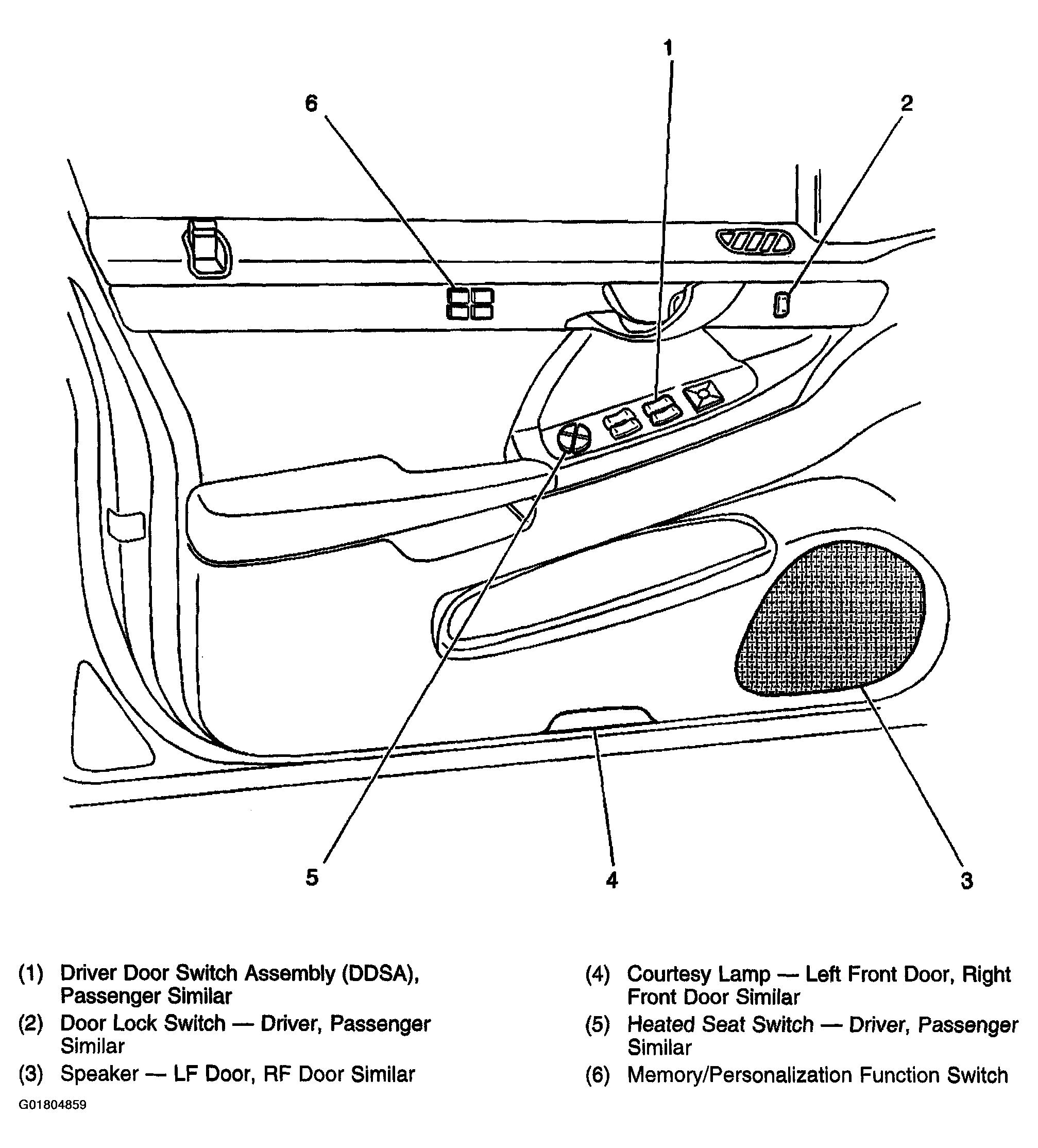

Fig 5: Left Front Door, on the Door Trim Panel
Courtesy of GENERAL MOTORS CORP.

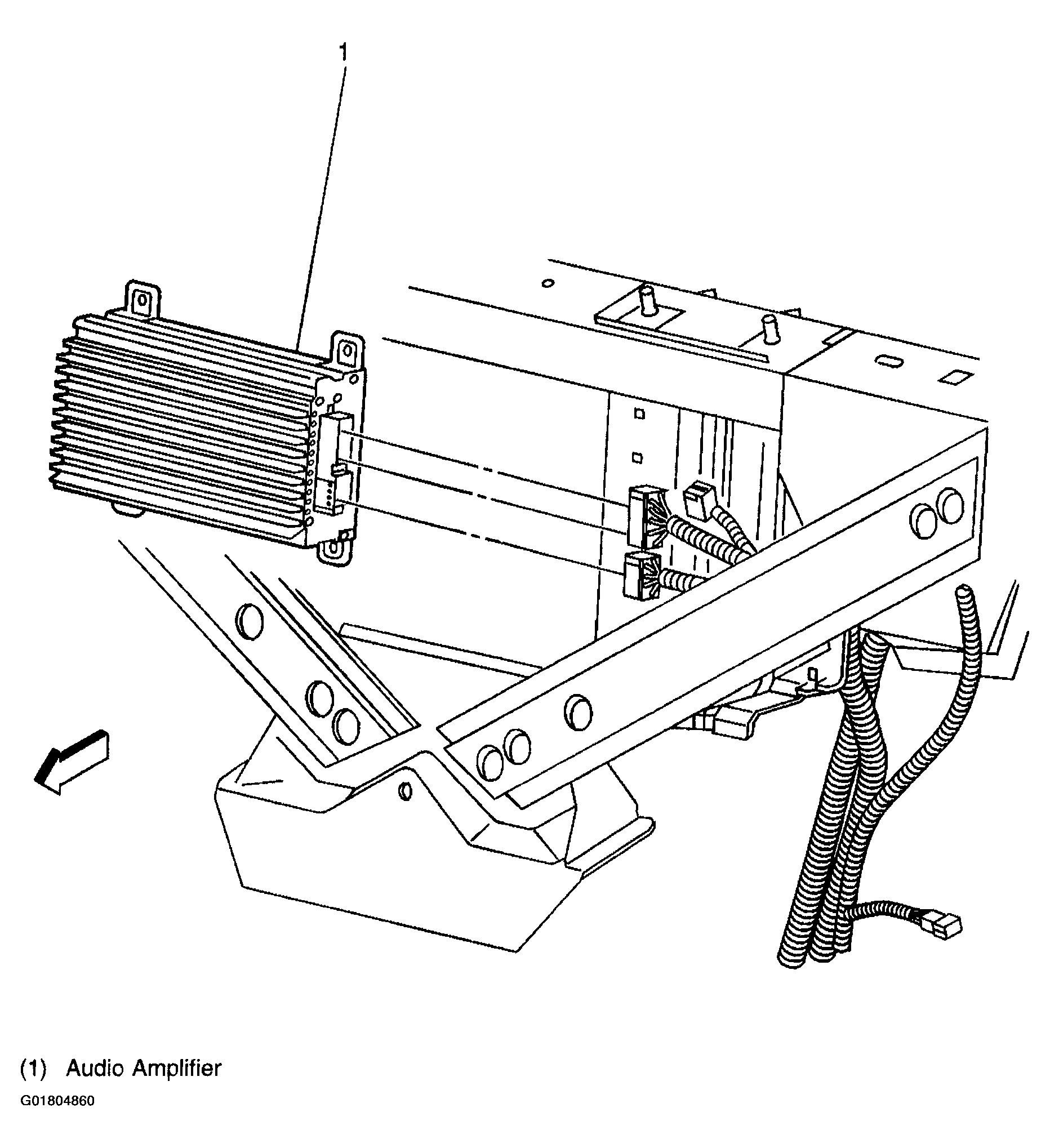

Fig 6: Left Rear of the Passenger Compartment, Behind the Rear Seat Back
Courtesy of GENERAL MOTORS CORP.

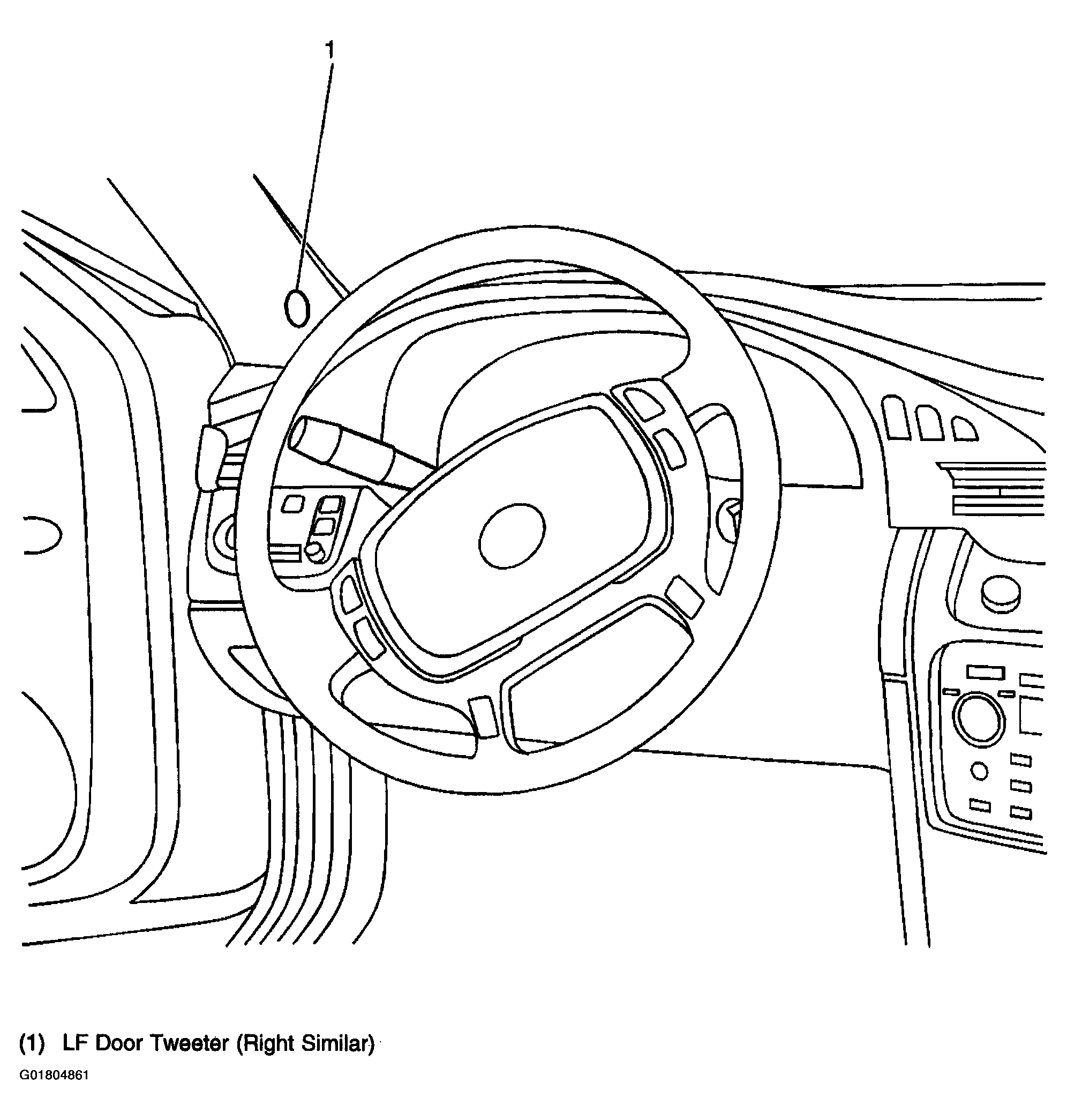

Fig 7: Passenger Compartment, Left Side of the Instrument Panel
Courtesy of GENERAL MOTORS CORP.

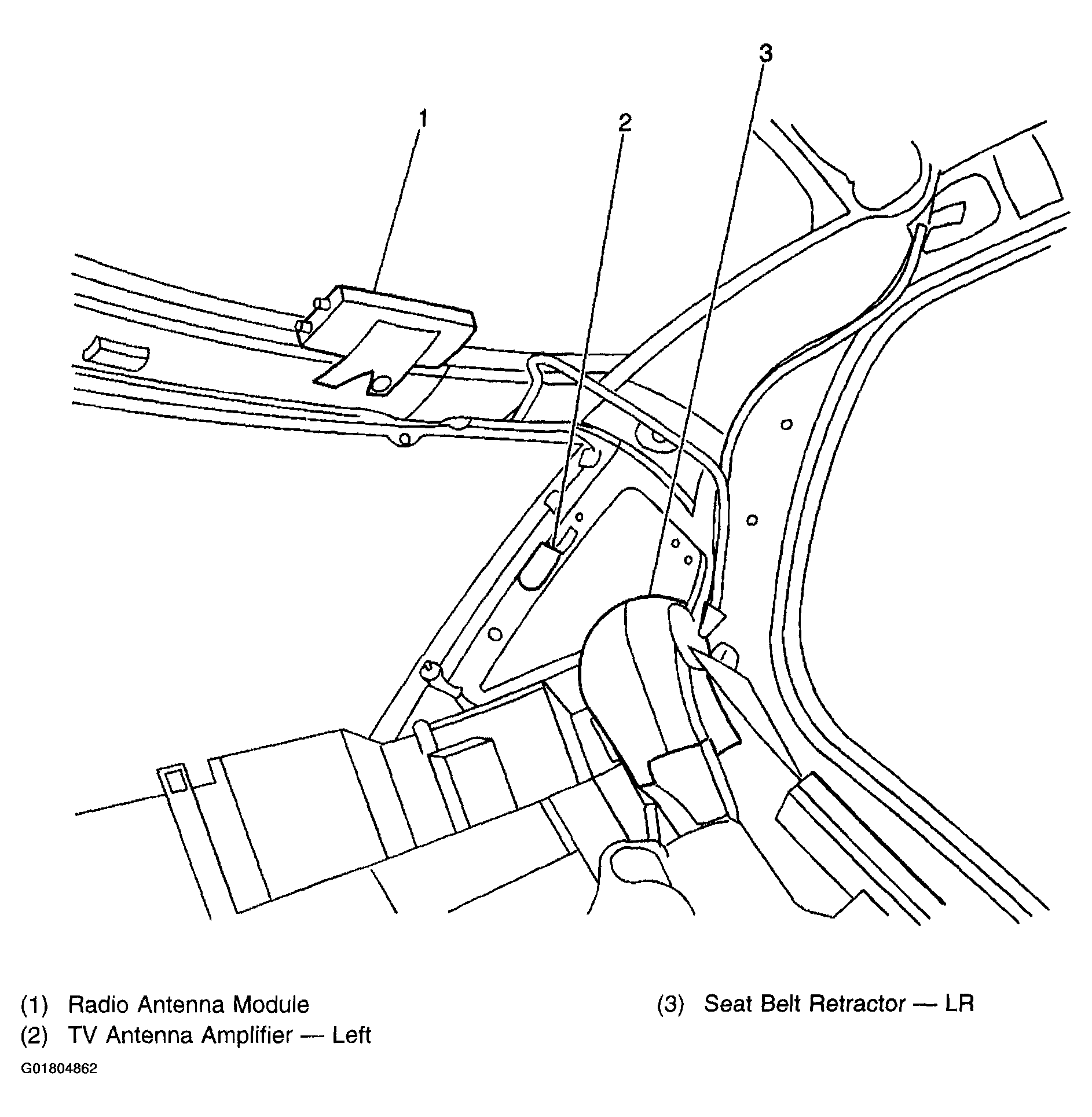

Fig 8: Left Rear Corner of the Passenger Compartment, Above the Rear Seat
Courtesy of GENERAL MOTORS CORP.

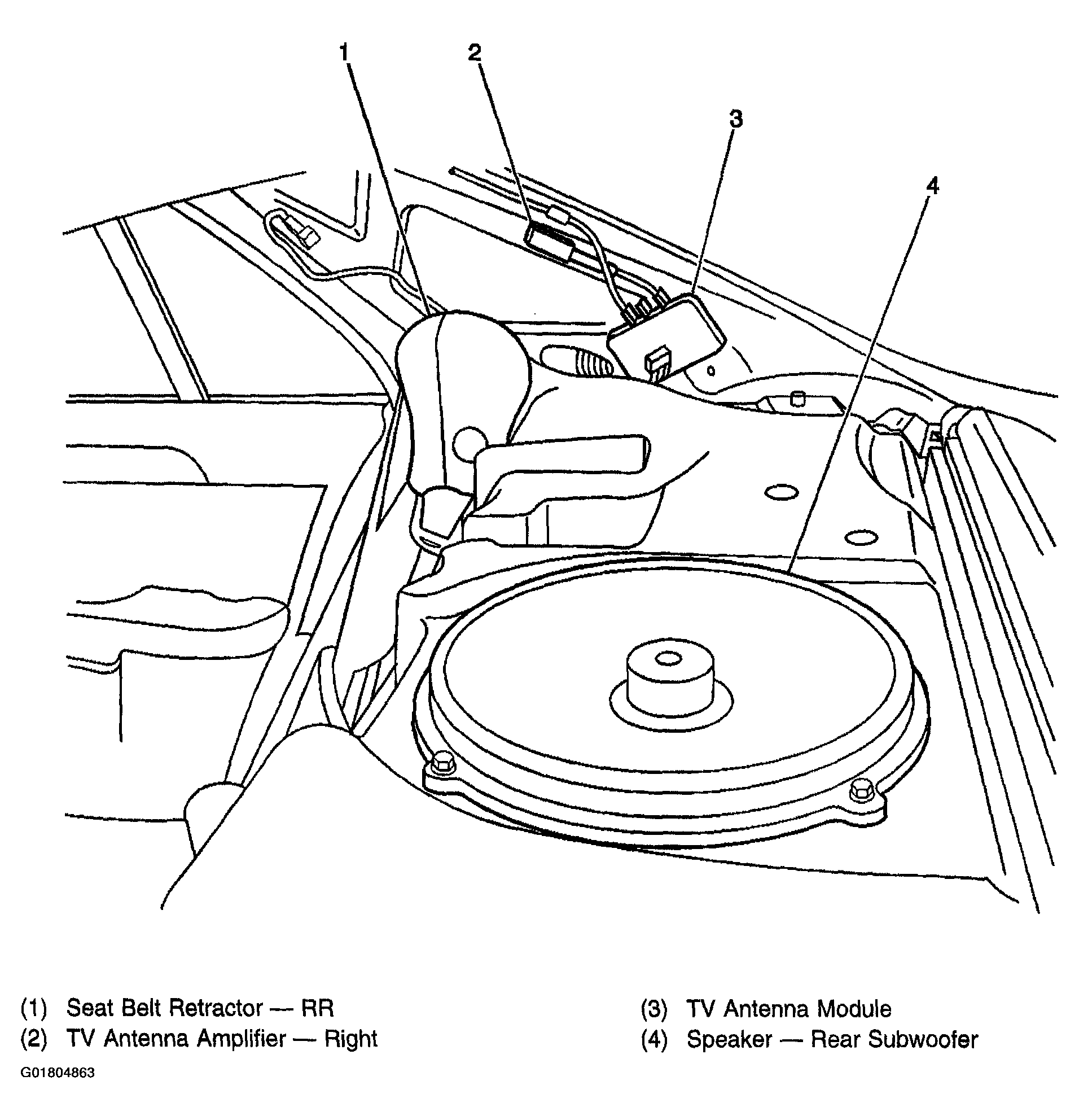

Fig 9: Right Corner of the Passenger Compartment, Above the Rear Seat
