Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Install the AM/FM antenna module (1) to the roof beam, ensuring that the alignment tab is properly located.
NOTE: Refer to FASTENER NOTICE .
Install AM/FM antenna module retaining fastener (3).
Tighten

Tighten the antenna module fastener (3) to 6 N.m (53 lb in).
Connect the electrical connectors (2) and the coaxial cables (4, 5) to the AM/FM antenna module (1).
Install the rear assist handles. Refer to ASSIST HANDLE REPLACEMENT .

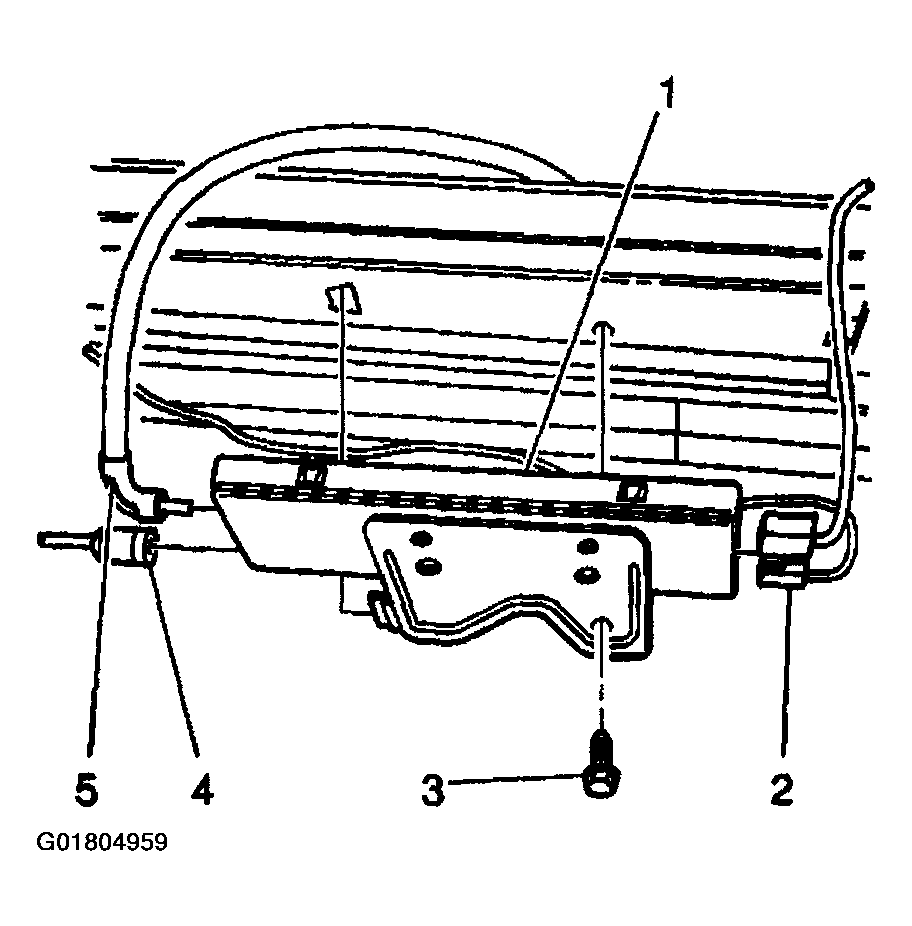

Fig 1: Installing Antenna Module, Electrical Connectors, Fastener & Coaxial Cable
Courtesy of GENERAL MOTORS CORP.
Install the left rear sail panel. Refer to SAIL PANEL REPLACEMENT .
