Removal & Installation

Remove passenger's closeout/insulator panel from below instrument panel. See Fig 1. Disconnect DIM connectors. See Fig 2. Depress locking tab inward. See Fig 3. With locking tab depressed, slide DIM module downward and remove DIM from bracket. To install, reverse removal procedure. After installation, DIM must be programmed. See DASH INTEGRATION MODULE  under PROGRAMMING.

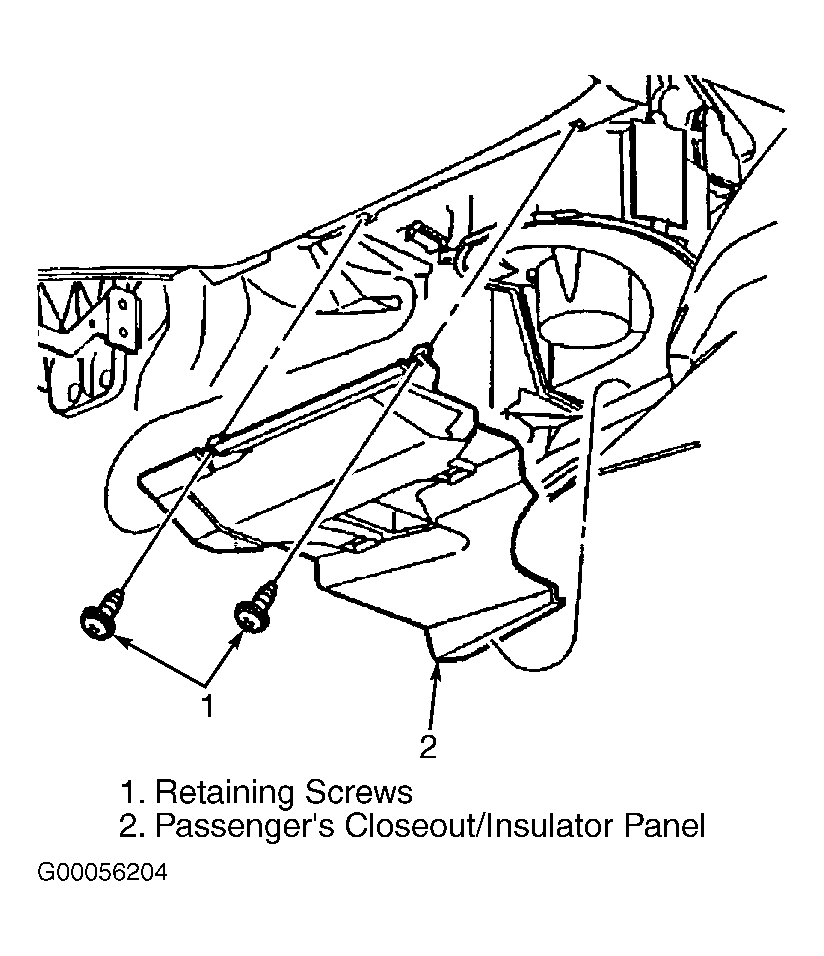

Fig 1: Removing Passenger's Closeout/Insulator Panel

Courtesy of GENERAL MOTORS CORP.

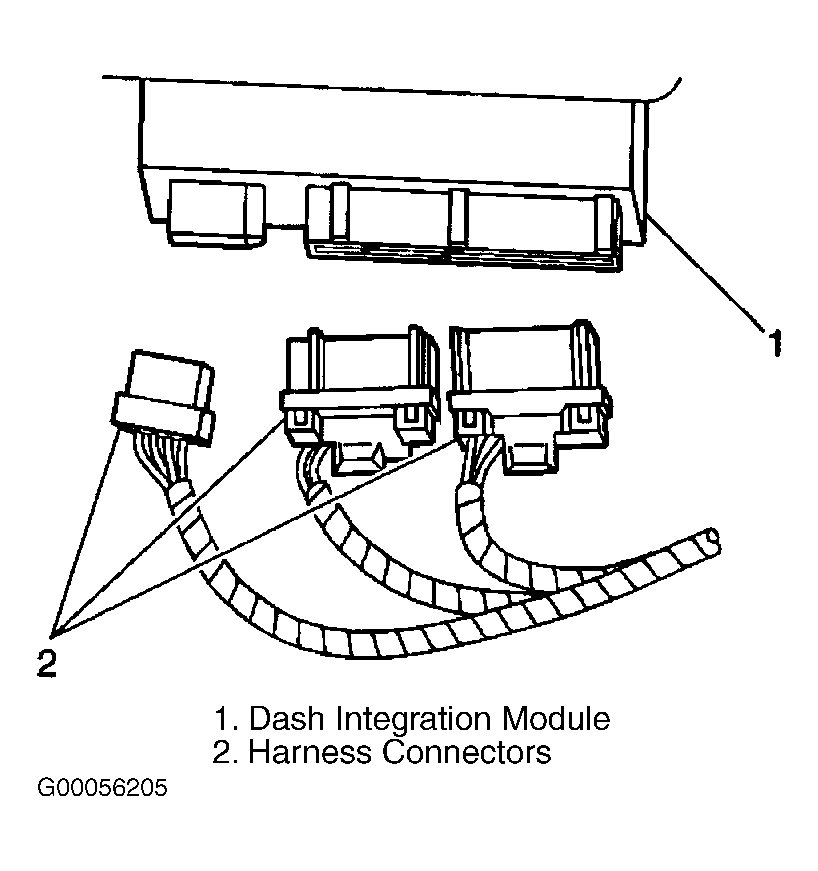

Fig 2: Identifying Dash Integration Module (DIM) Harness Connectors

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing Dash Integration Module

Courtesy of GENERAL MOTORS CORP.
