SIR Zone Identification Views
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

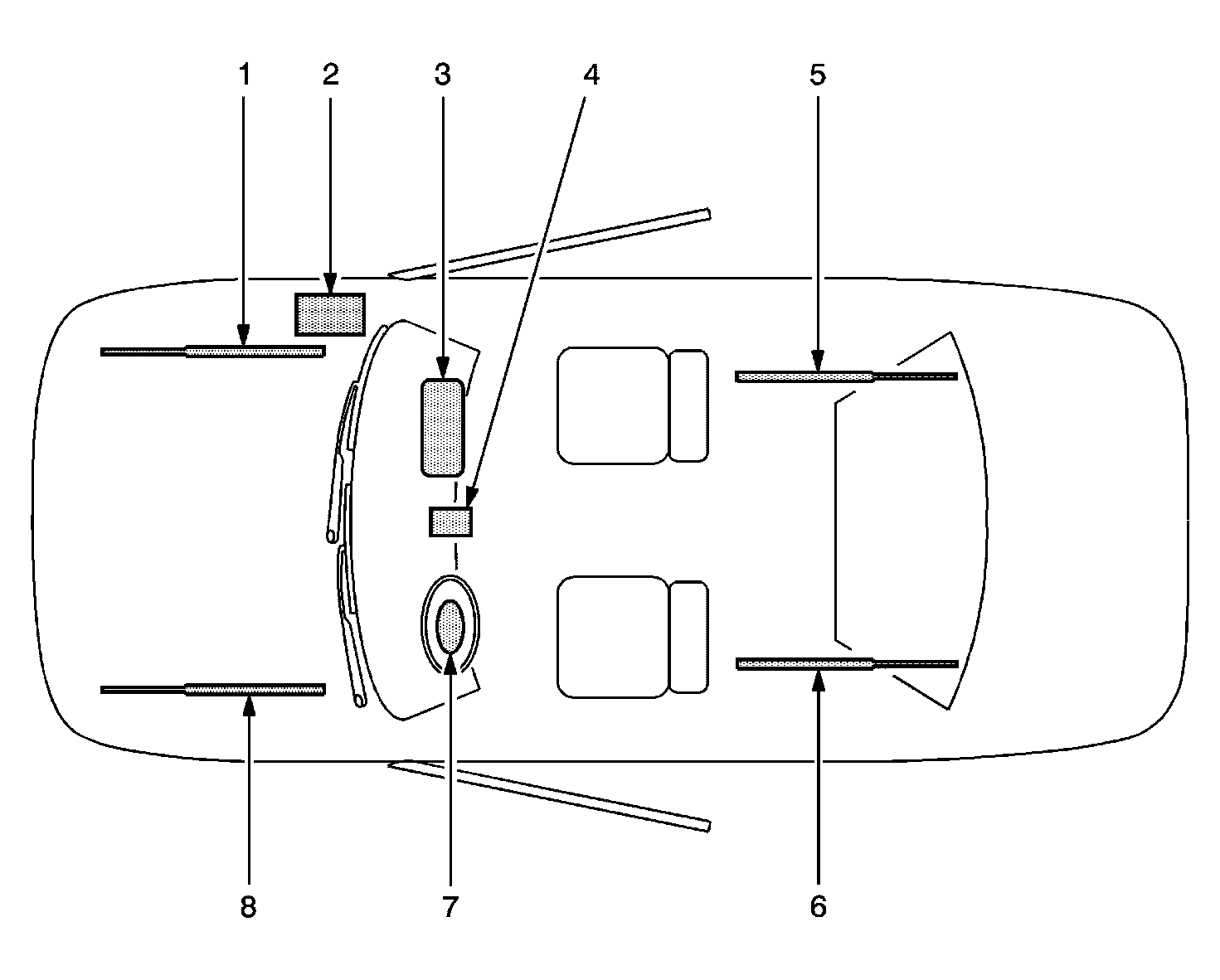

The SIR Zone Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling Zones for a given service procedure, refer to SIR Disabling and Enabling Zones .
| Callout | Component Name |
|---|---|
| 1 | Front Hood Assist Rod - A gas shock located under the hood on the right side. |
| 2 | Vehicle Battery - Located under the hood on the right side. |
| 3 | I/P Module - Located at the top right under the instrument panel. |
| 4 | Sensing and Diagnostic Module (SDM) - Located in the instrument panel below the radio. |
| 5 | Rear Lift Window Struts - Located under the rear lift window on the right side. |
| 6 | Rear Lift Window Struts - Located under the rear lift window on the left side. |
| 7 | Steering Wheel Module - Located on the steering wheel. |
| 8 | Front Hood Assist Rod - A gas shock located under the hood on the left side. |
