Connector Views

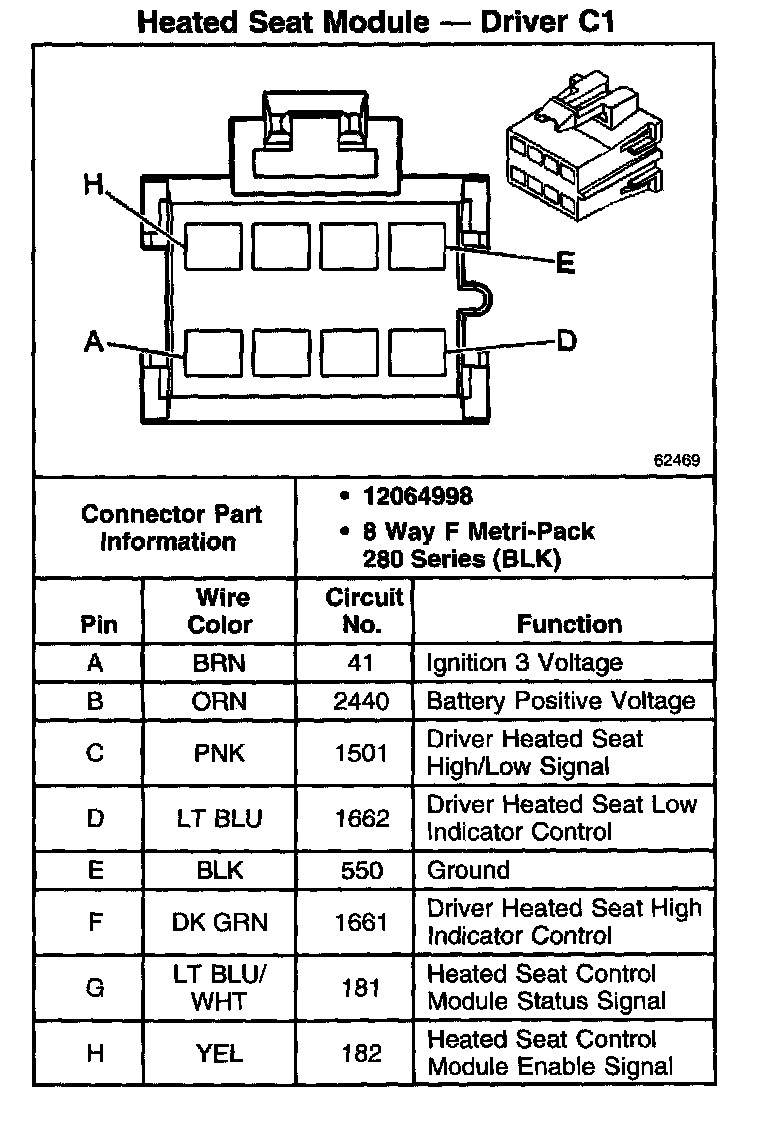

Heated Seat Module - Driver C1:

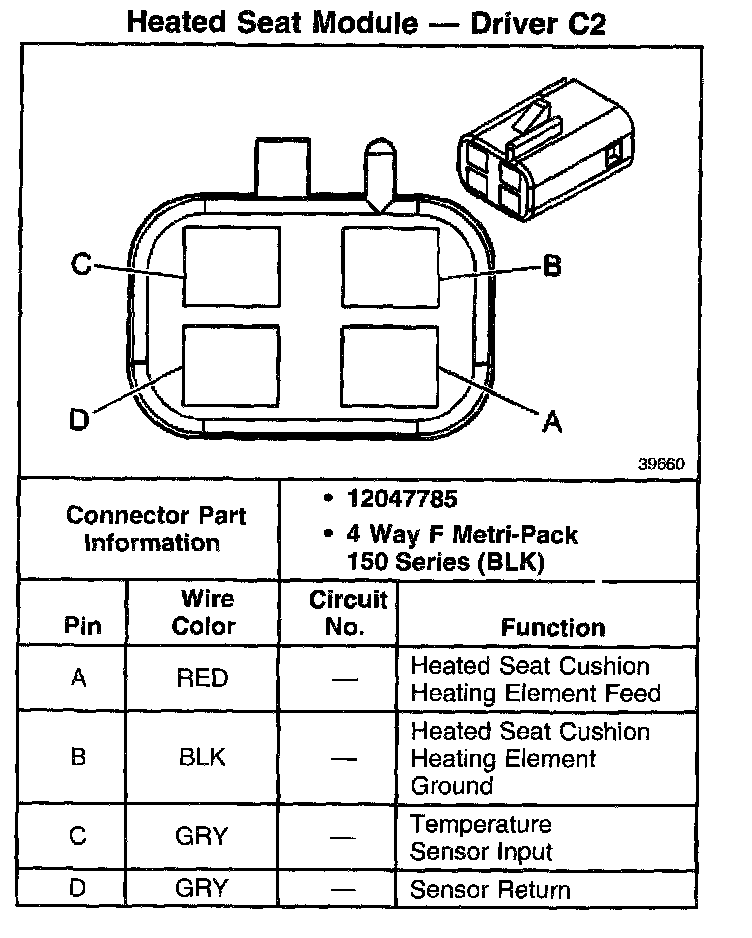

Heated Seat Module - Driver C2:

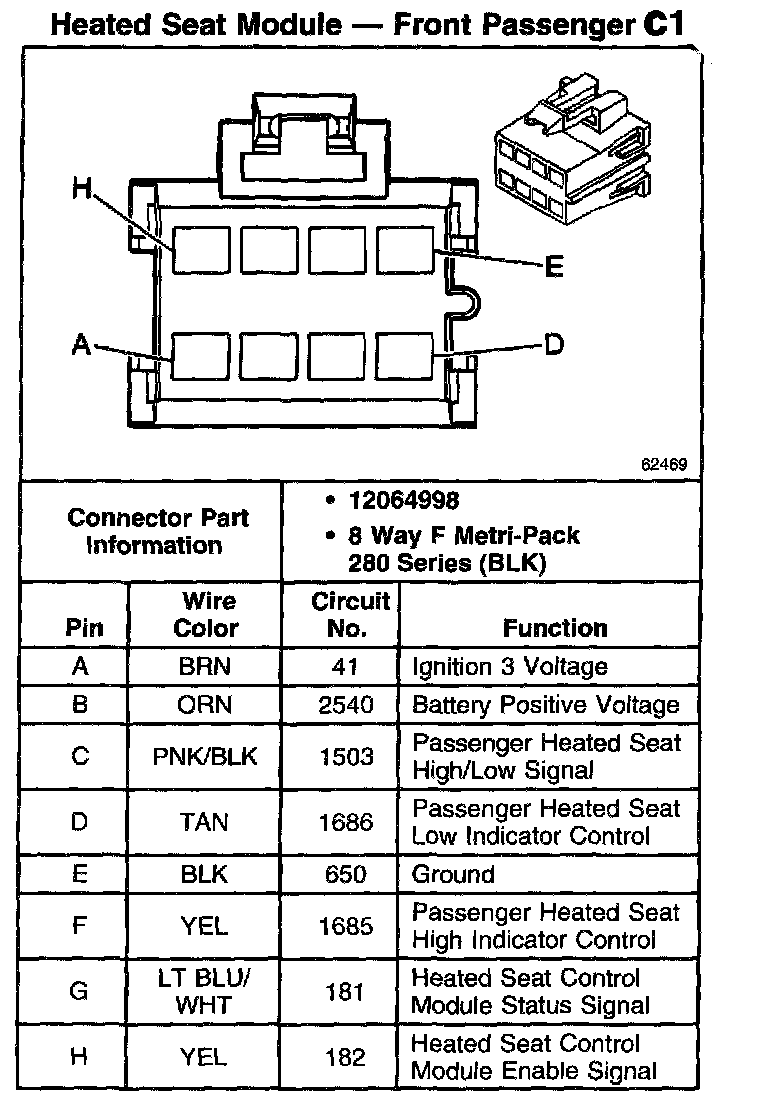

Heated Seat Module - Front Passenger C1:

Heated Seat Module - Driver C3:

Heated Seat Module - Front Passenger C2:

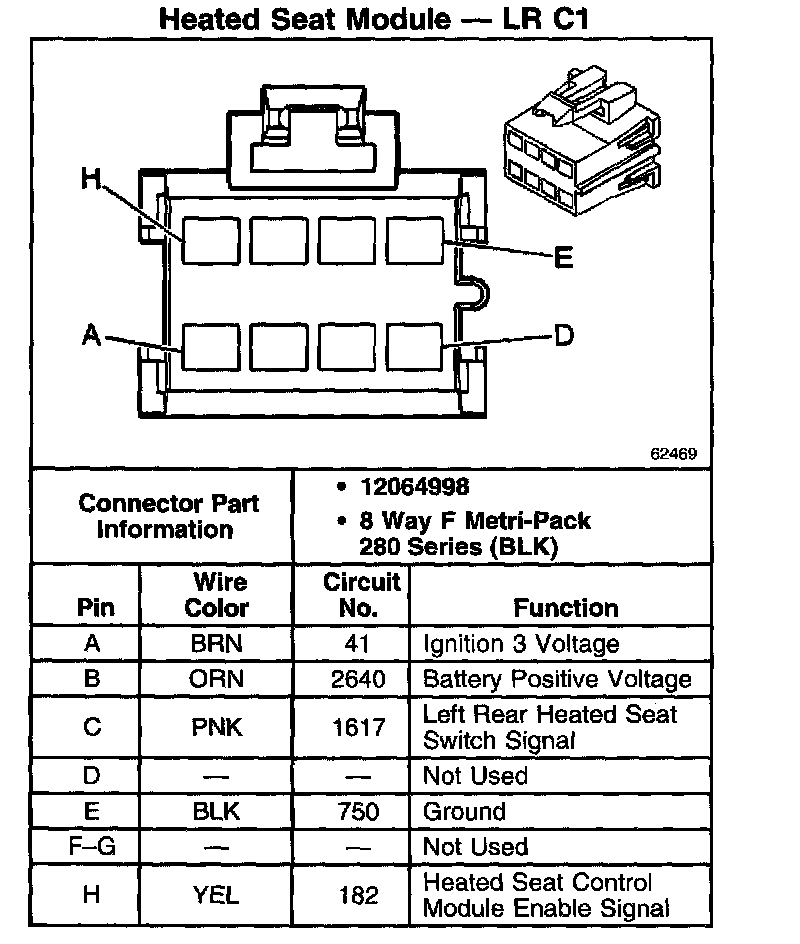

Heated Seat Module - LR C1:

Heated Seat Module - Front Passenger C3:

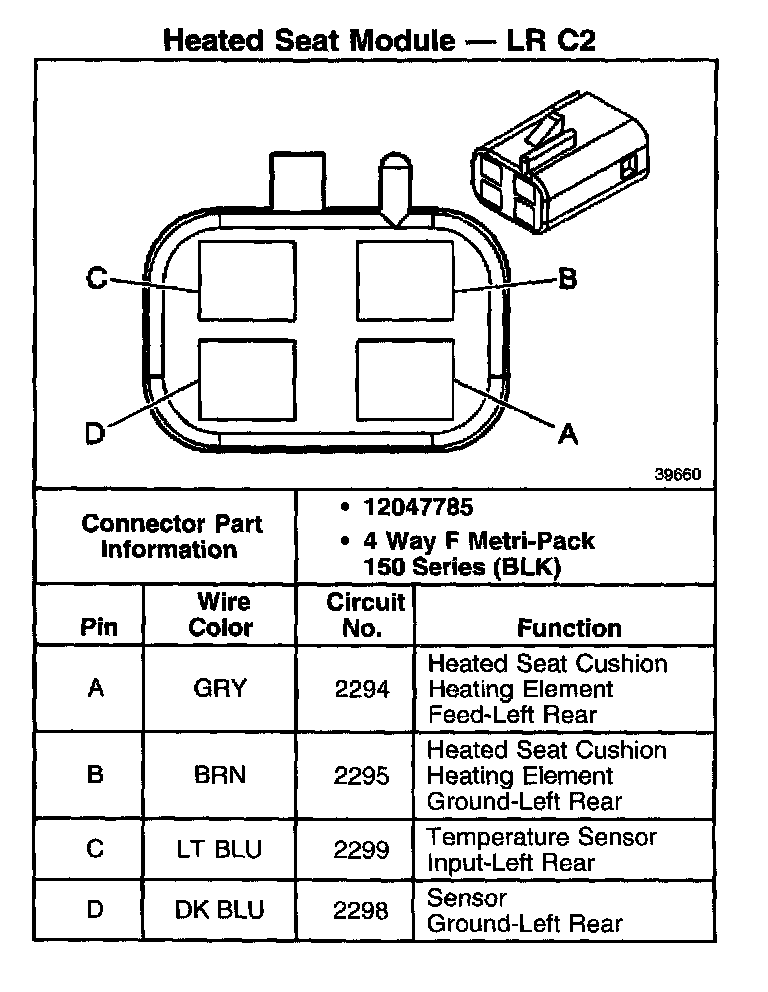

Heated Seat Module - LR C2:

Heated Seat Module - LR C3:

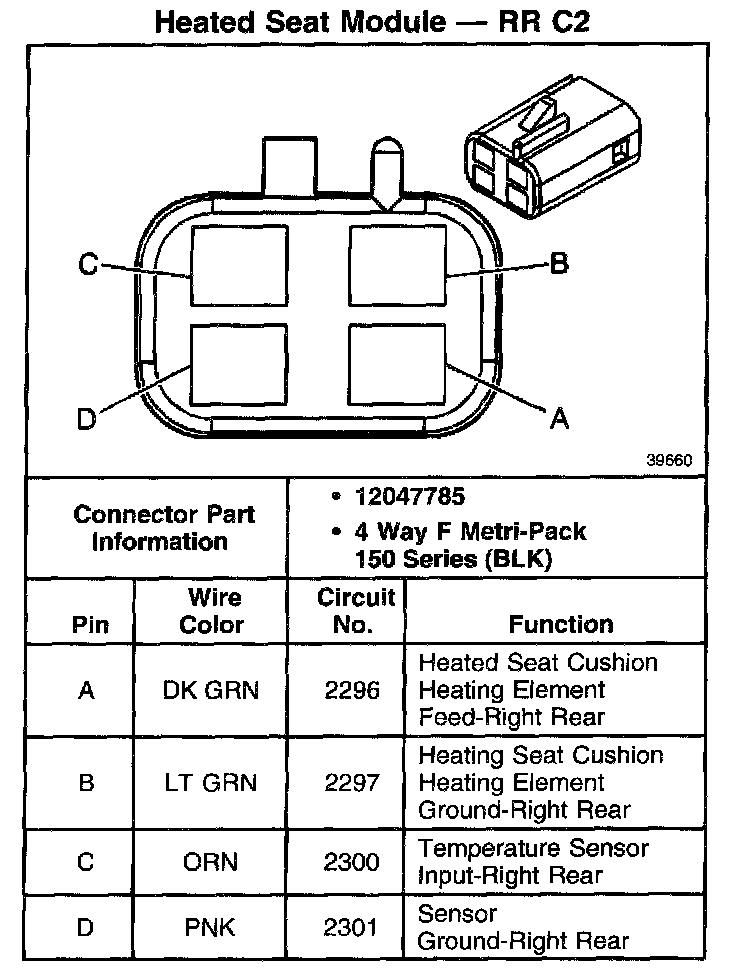

Heated Seat Module - RR C2:

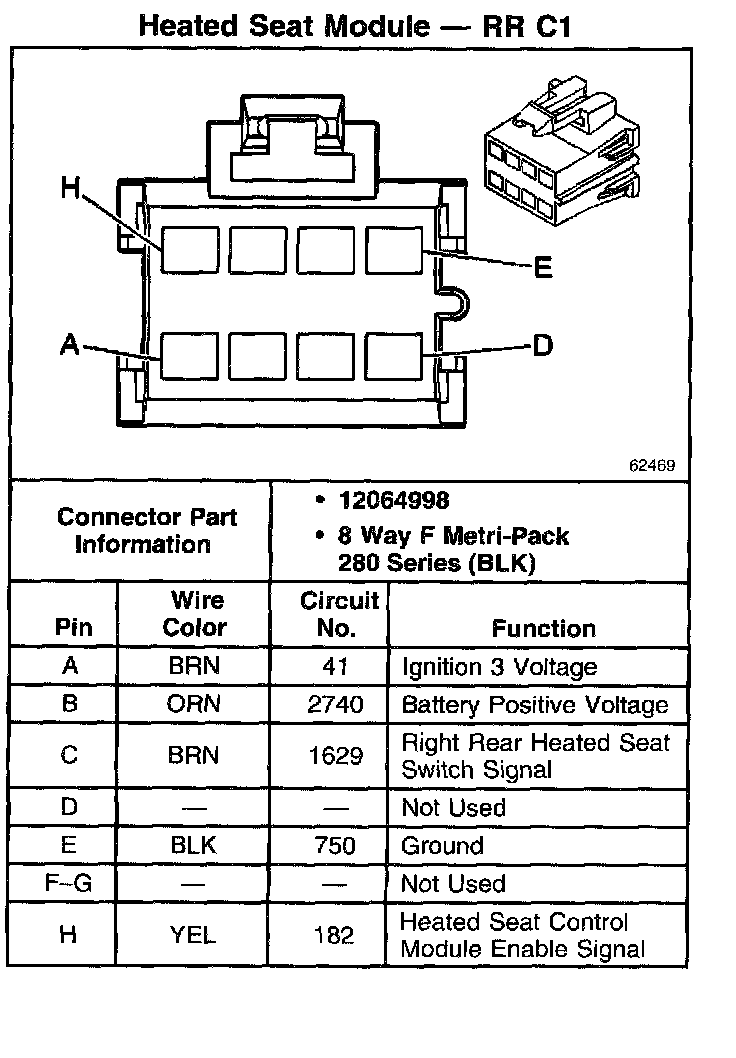

Heated Seat Module - RR C1:

Heated Seat Module - RR C3:
