Body Control Module Component Views

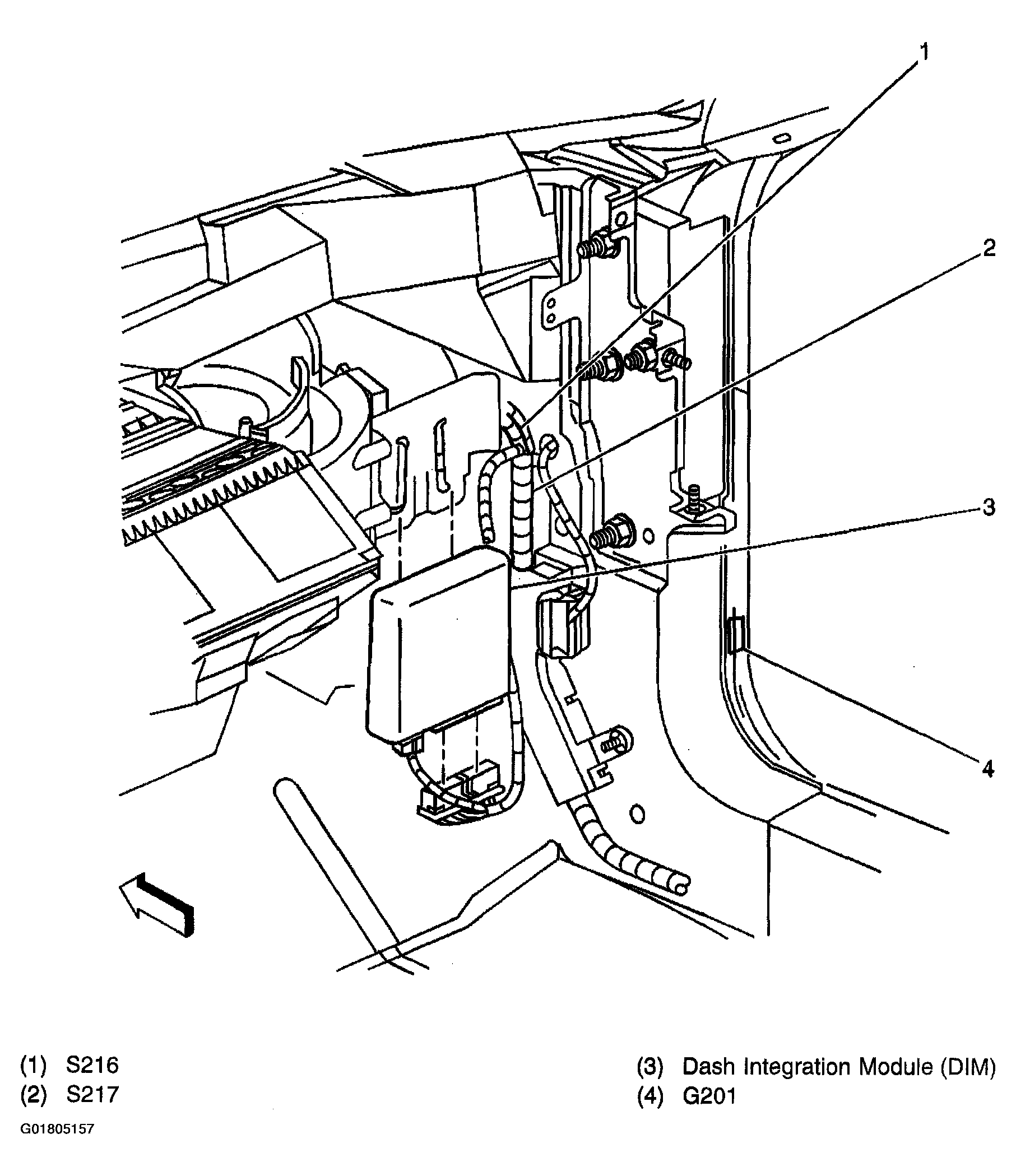

Fig 1: Right Side Of Instrument Panel, Near Blower Motor
G01805157Courtesy of GENERAL MOTORS CORP.

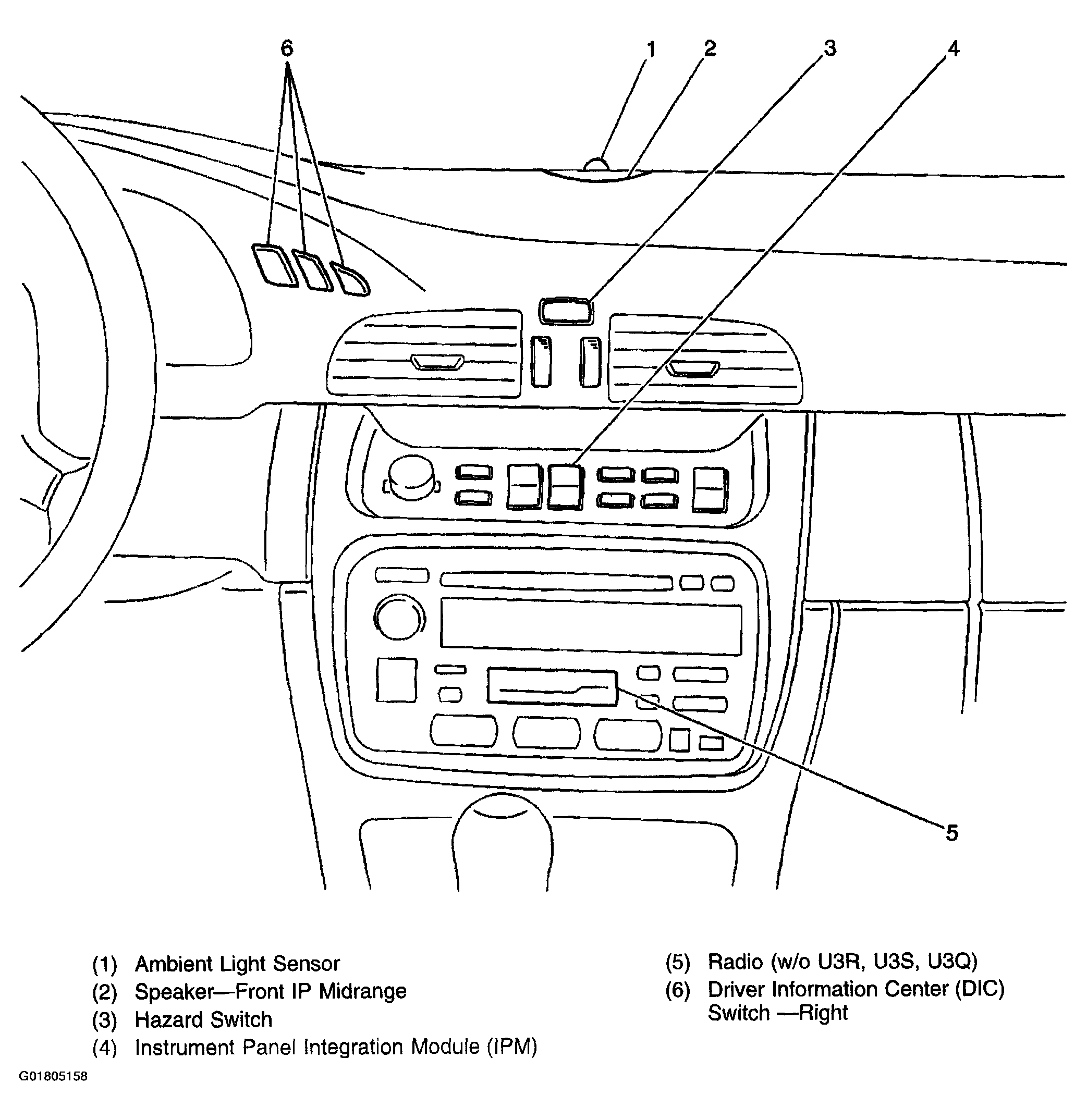

Fig 2: Passenger Compartment, Center Of Instrument Panel
G01805158Courtesy of GENERAL MOTORS CORP.

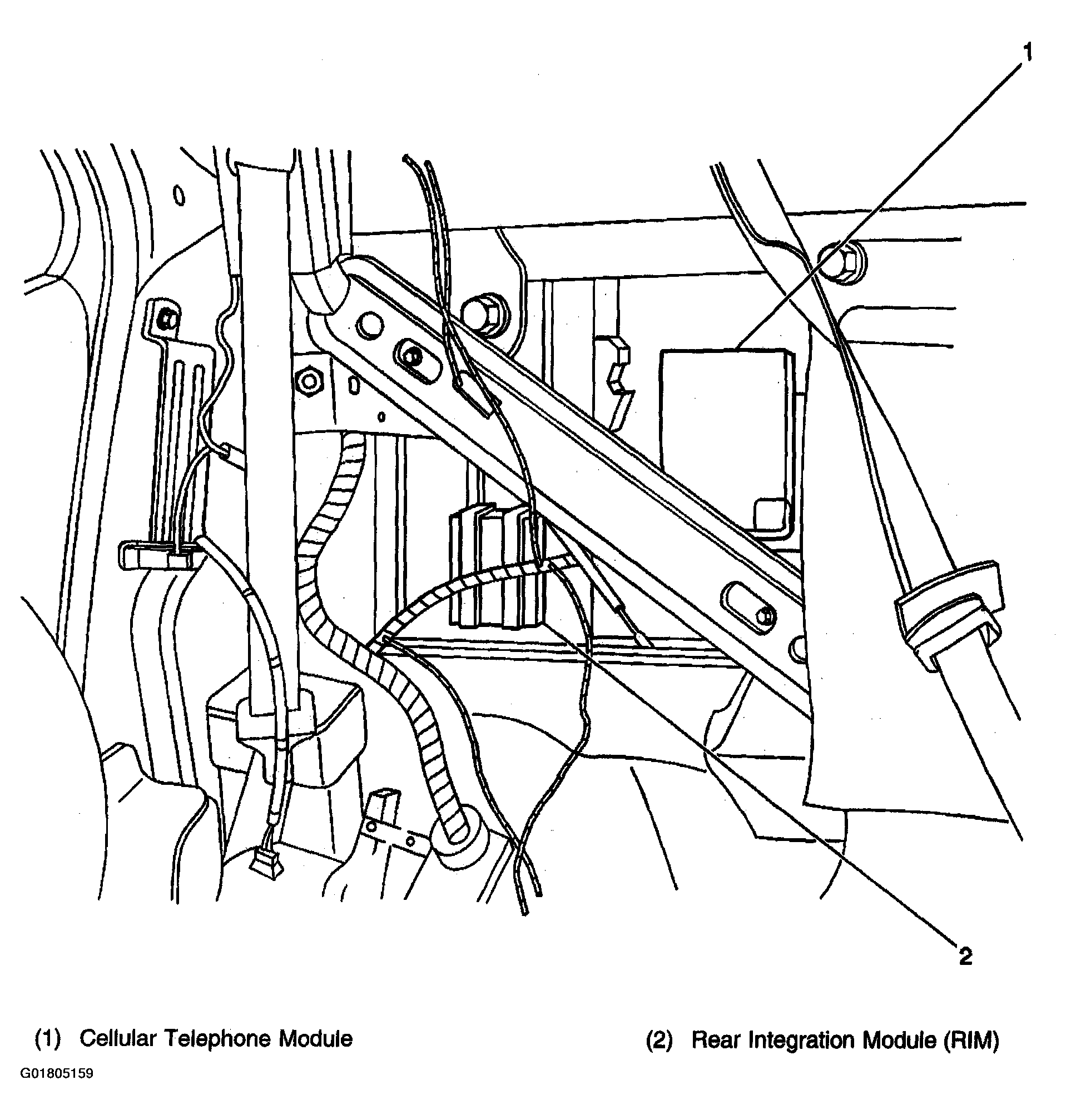

Fig 3: Right Rear Of Passenger Compartment, Behind Rear Seat Back
G01805159Courtesy of GENERAL MOTORS CORP.
