Body Control Module Connector End Views

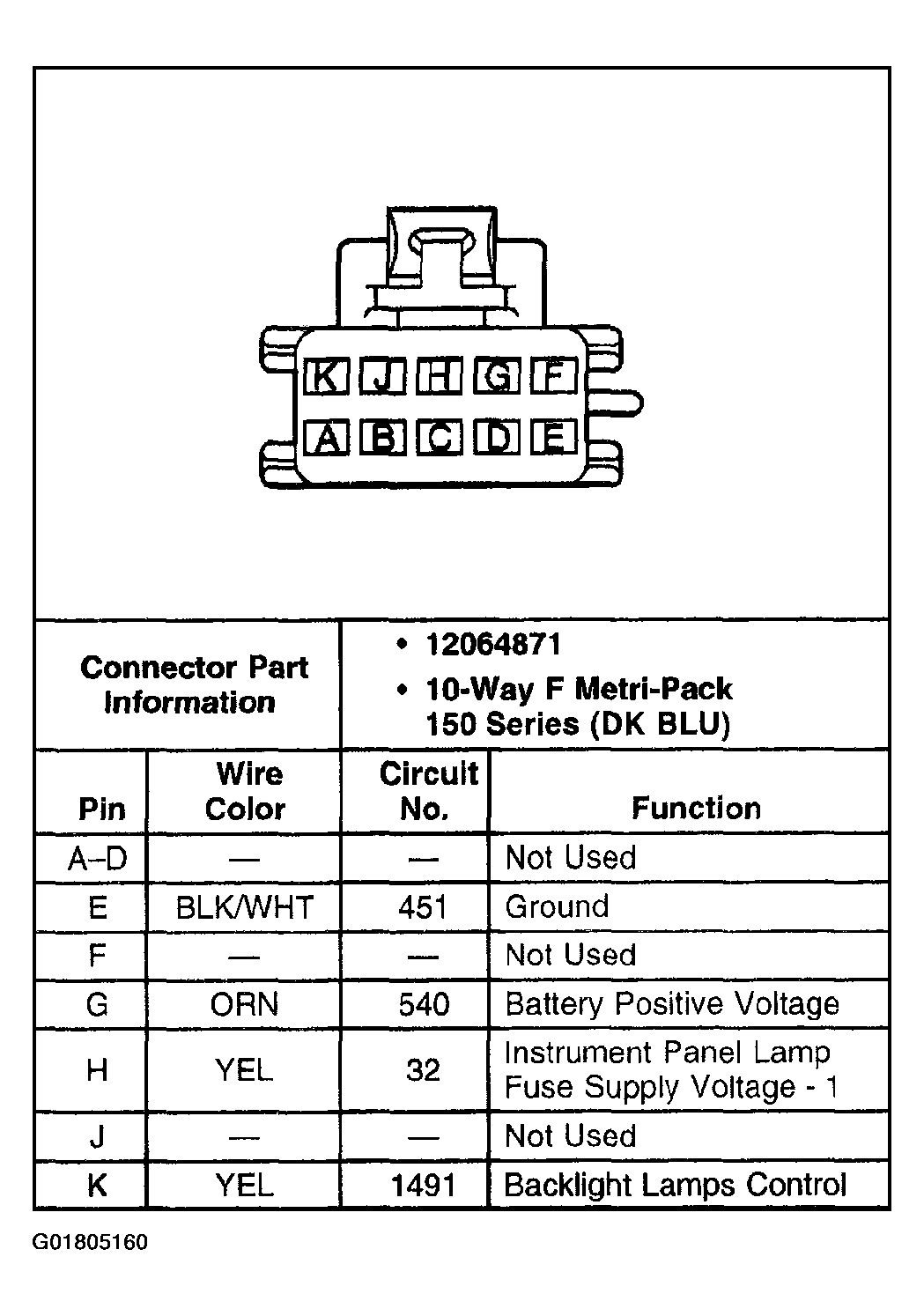

Fig 1: Dash Integration Module (DIM) C1
G01805160Courtesy of GENERAL MOTORS CORP.
Fig 2: Dash Integration Module (DIM) C2
G01805161Courtesy of GENERAL MOTORS CORP.

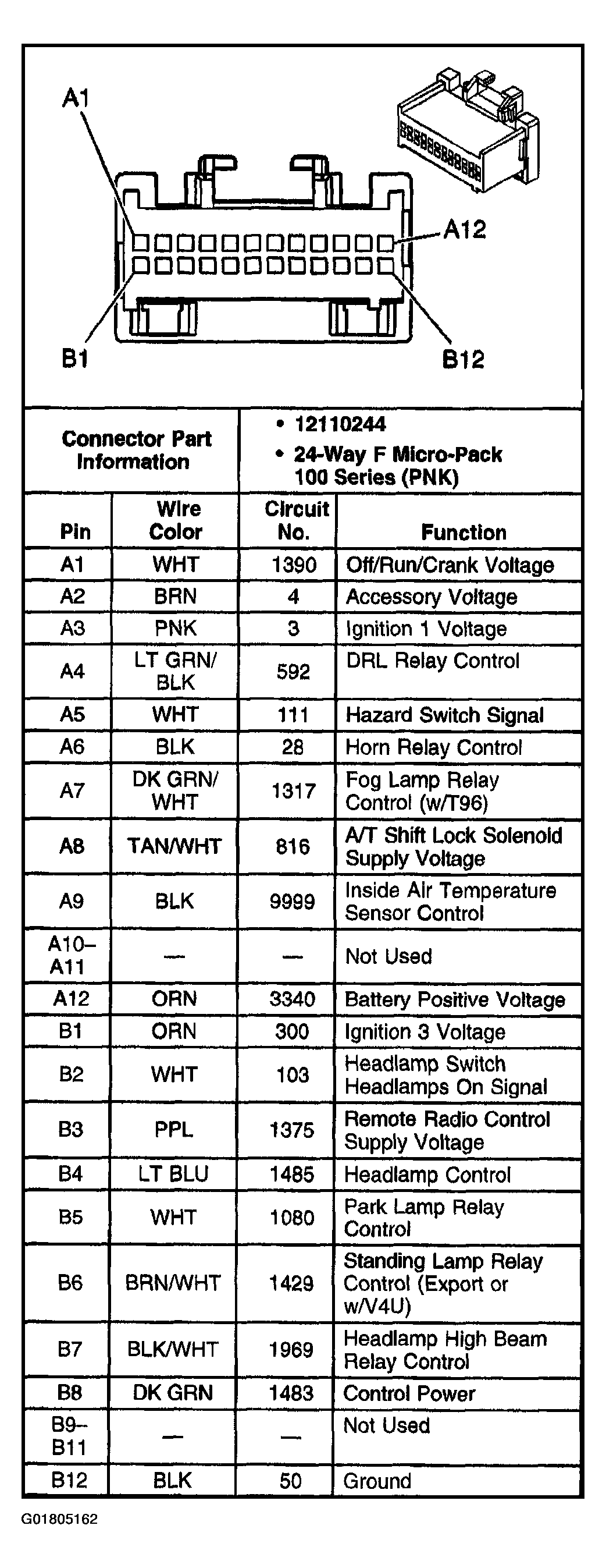

Fig 3: Dash Integration Module (DIM) C3
G01805162Courtesy of GENERAL MOTORS CORP.

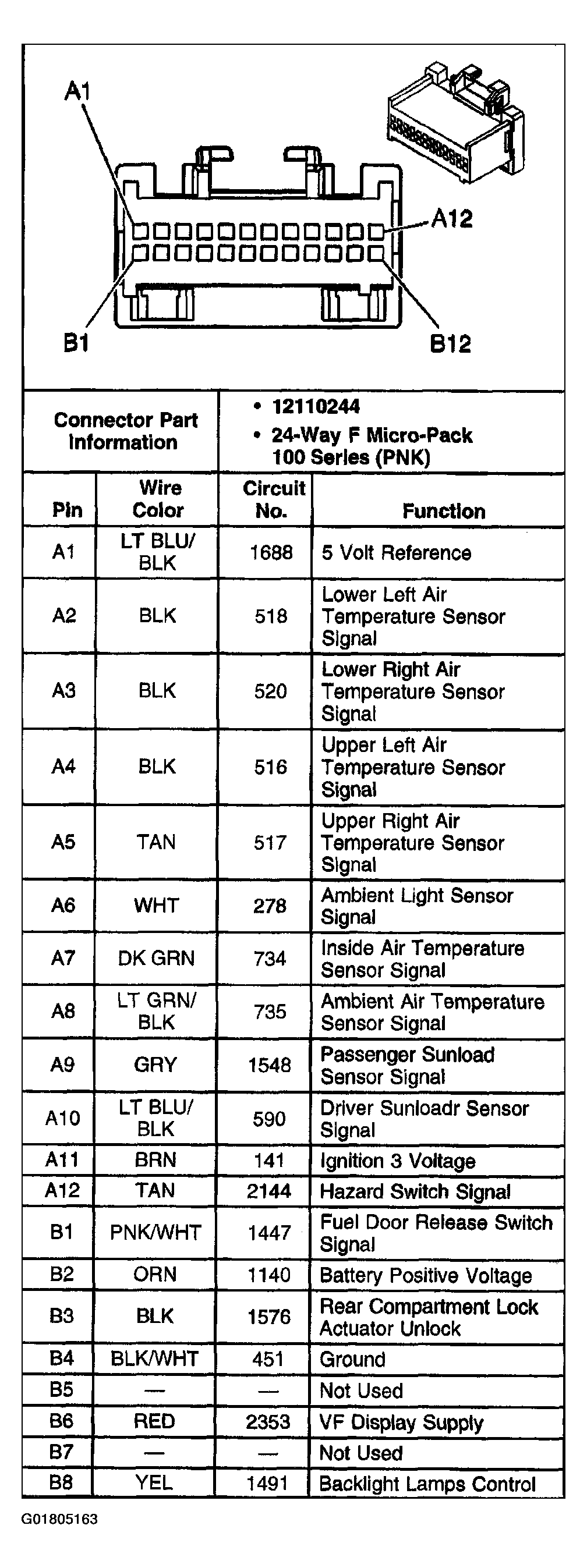

Fig 4: Instrument Panel Integration Module (IPM) C1 (1 Of 2)
G01805163Courtesy of GENERAL MOTORS CORP.
Fig 5: Instrument Panel Integration Module (IPM) C1 (2 Of 2)
G01805164Courtesy of GENERAL MOTORS CORP.

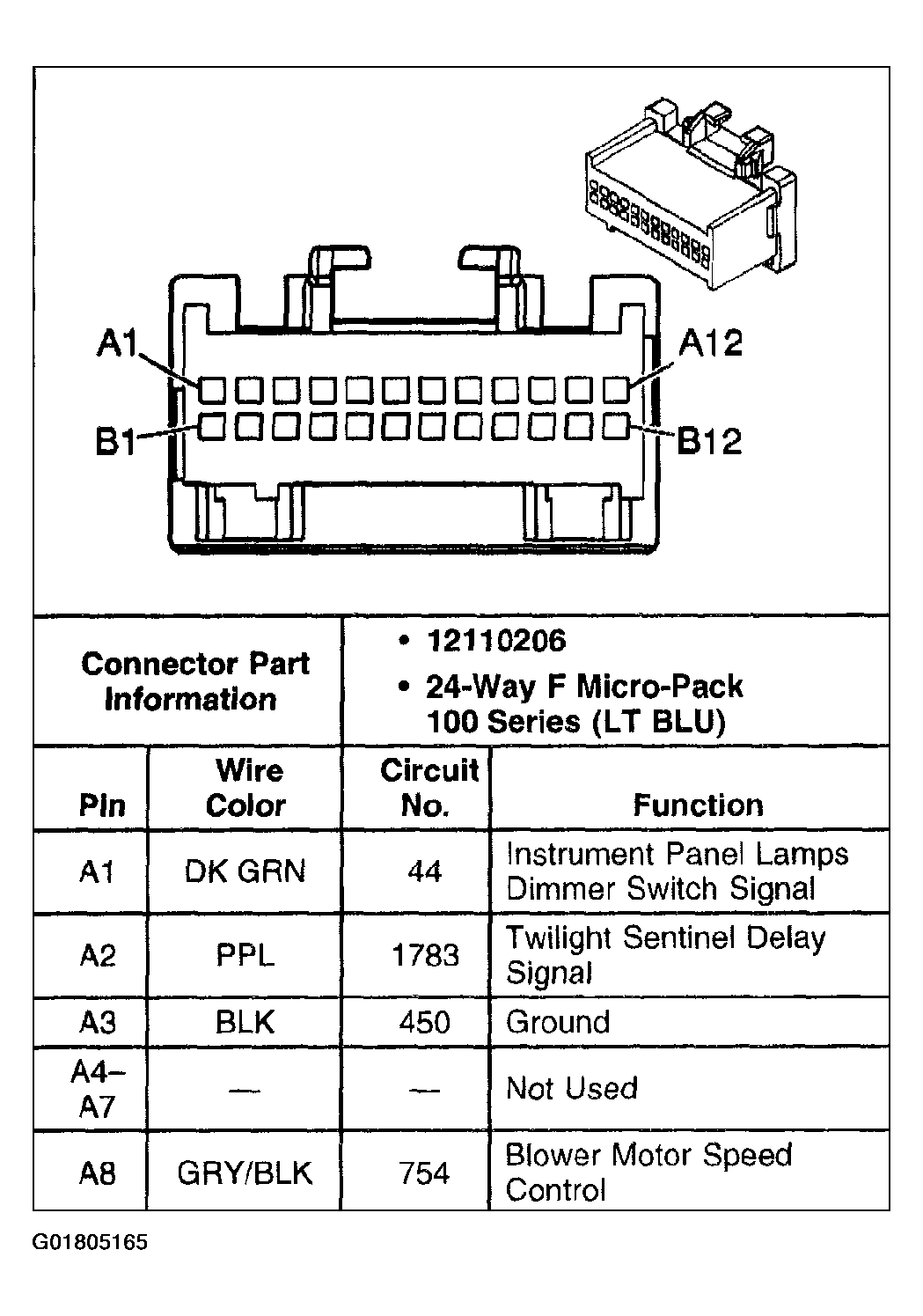

Fig 6: Instrument Panel Integration Module (IPM) C2 (1 Of 2)
G01805165Courtesy of GENERAL MOTORS CORP.

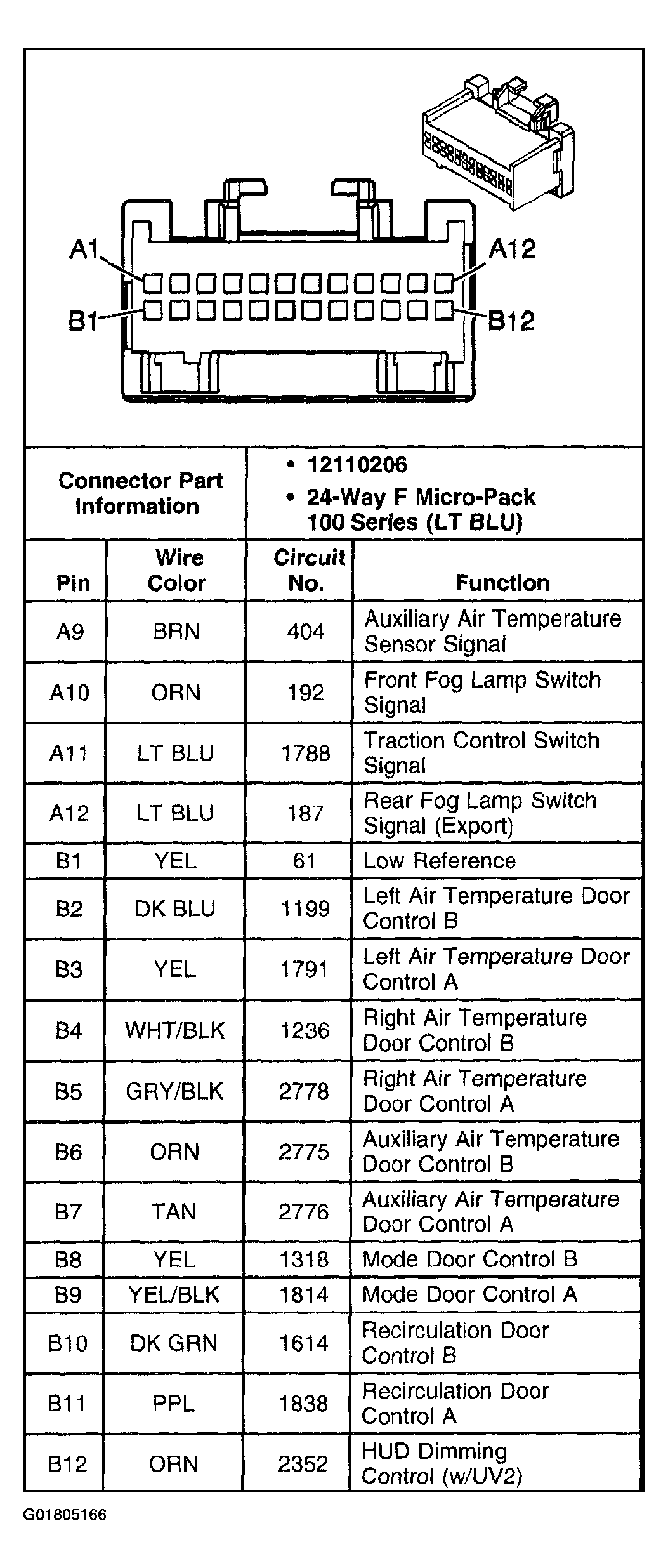

Fig 7: Instrument Panel Integration Module (IPM) C2 (2 Of 2)
G01805166Courtesy of GENERAL MOTORS CORP.

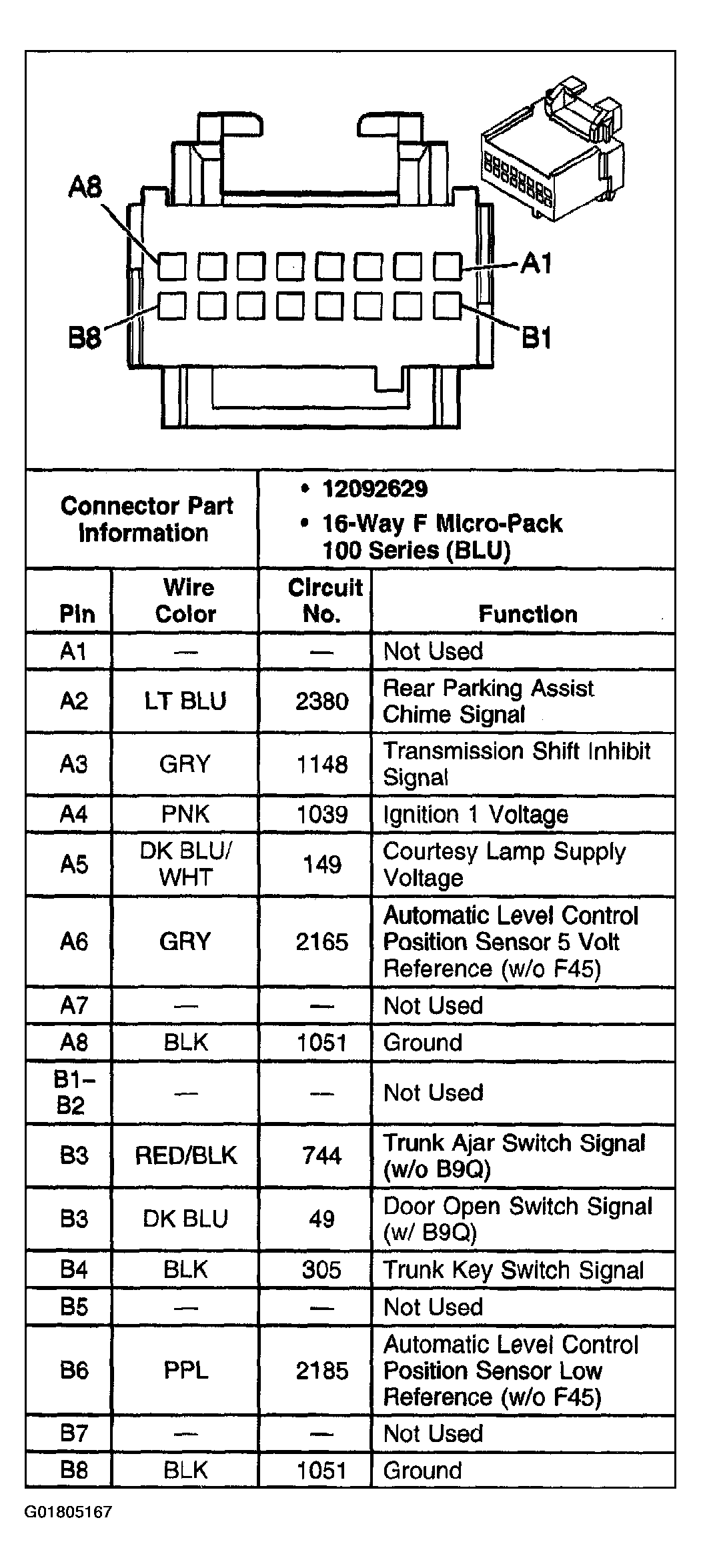

Fig 8: Rear Integration Module (RIM) C1
G01805167Courtesy of GENERAL MOTORS CORP.

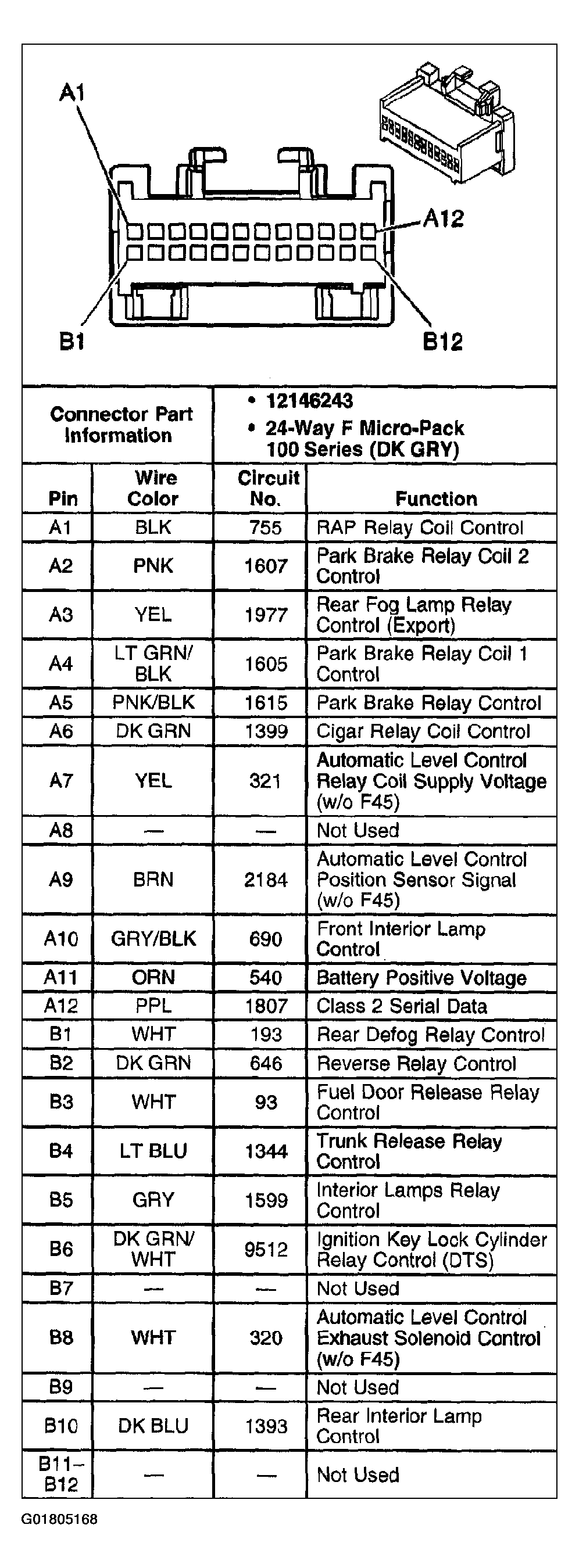

Fig 9: Rear Integration Module (RIM) C2
G01805168Courtesy of GENERAL MOTORS CORP.
