Navigation System Component Views

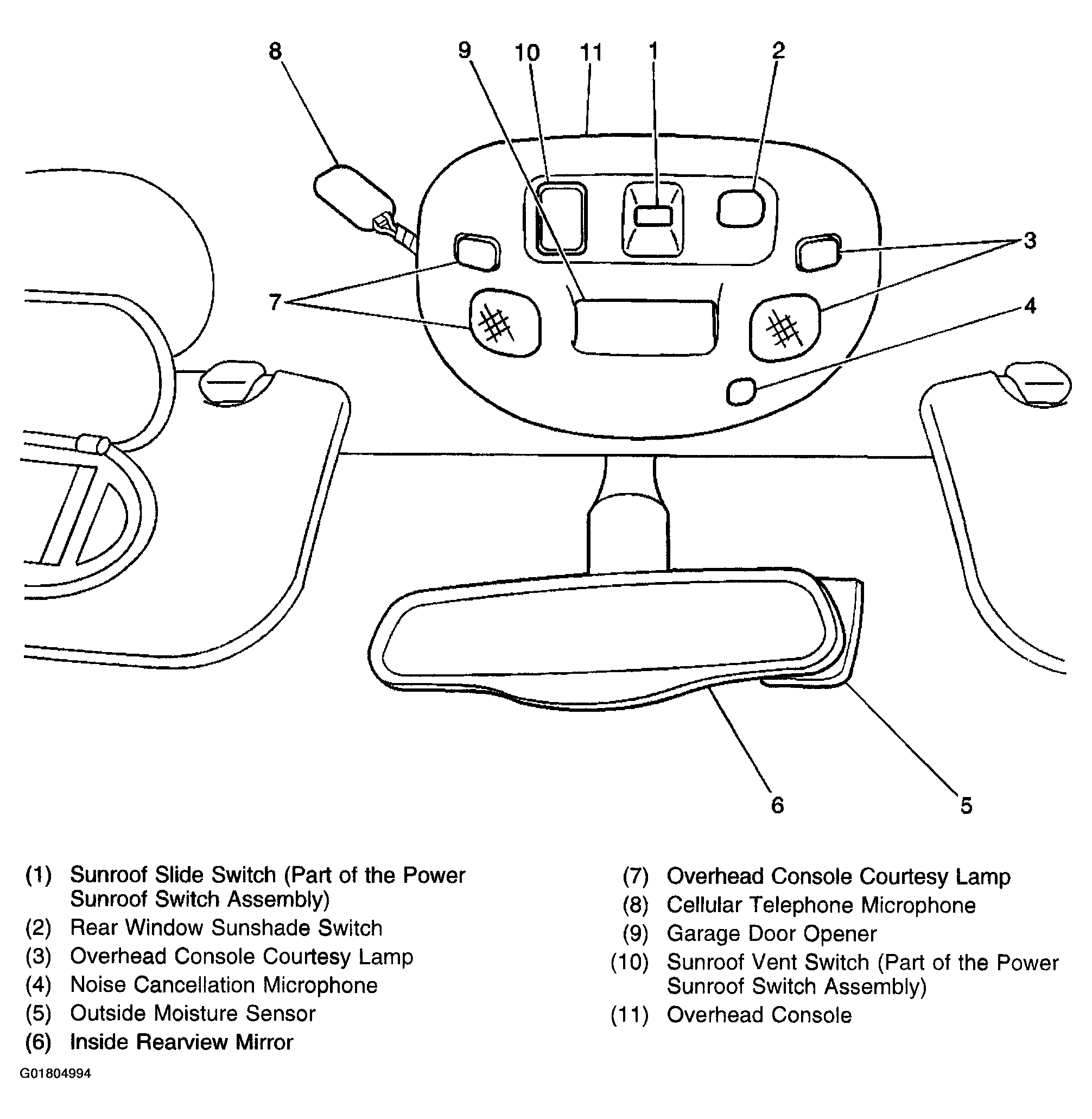

Fig 1: Passenger Compartment, Center Front of the Headliner

Courtesy of GENERAL MOTORS CORP.

Fig 2: Center of the Passenger Compartment, Behind the Center Console Storage Compartment

Courtesy of GENERAL MOTORS CORP.

Fig 3: Right Corner of the Passenger Compartment, Above the Rear Seat

Courtesy of GENERAL MOTORS CORP.

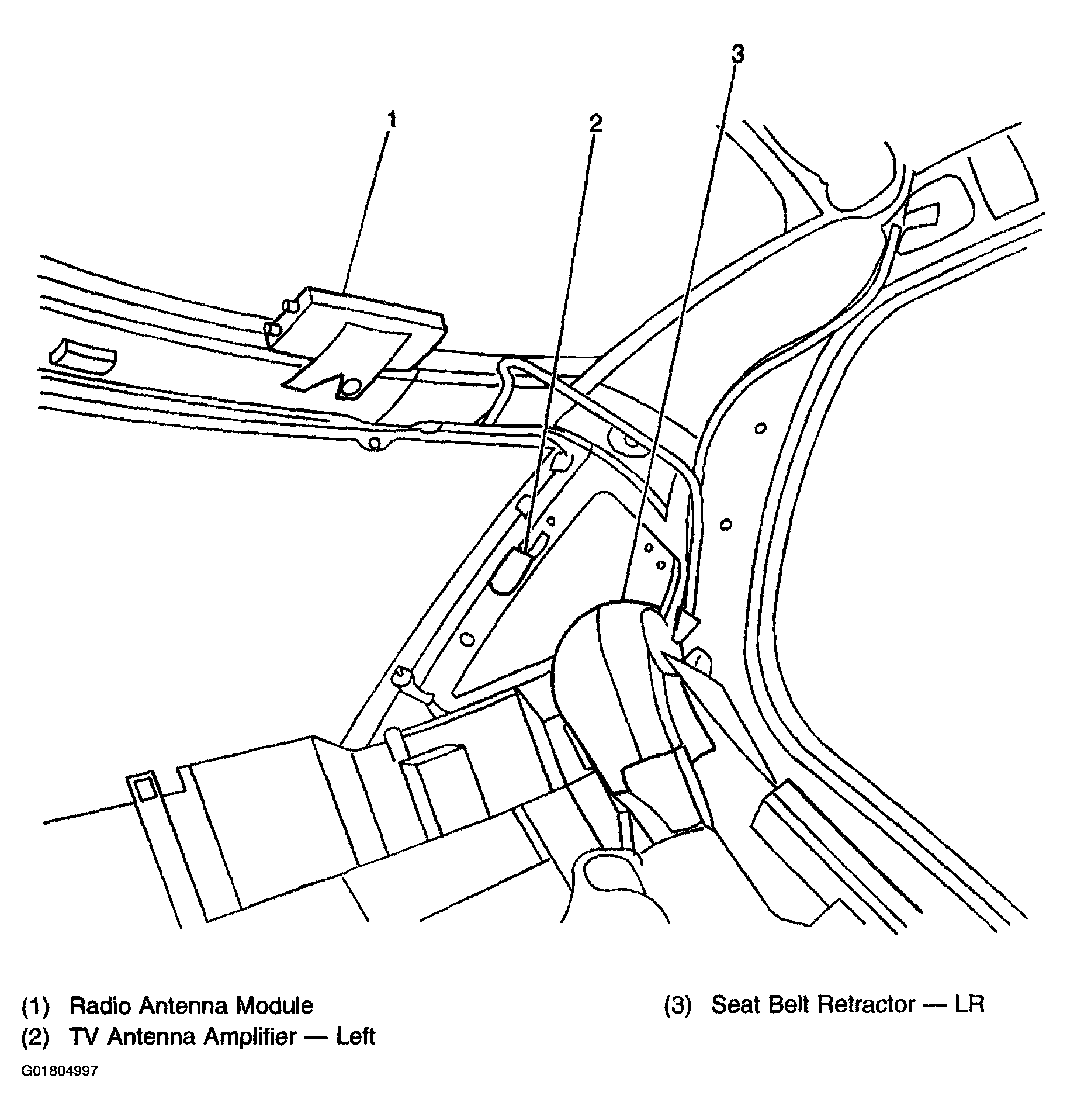

Fig 4: Left Rear Corner of the Passenger Compartment, Above the Rear Seat

Courtesy of GENERAL MOTORS CORP.
