Installation Procedure
CAUTION:
Refer to FASTENER NOTICE
.

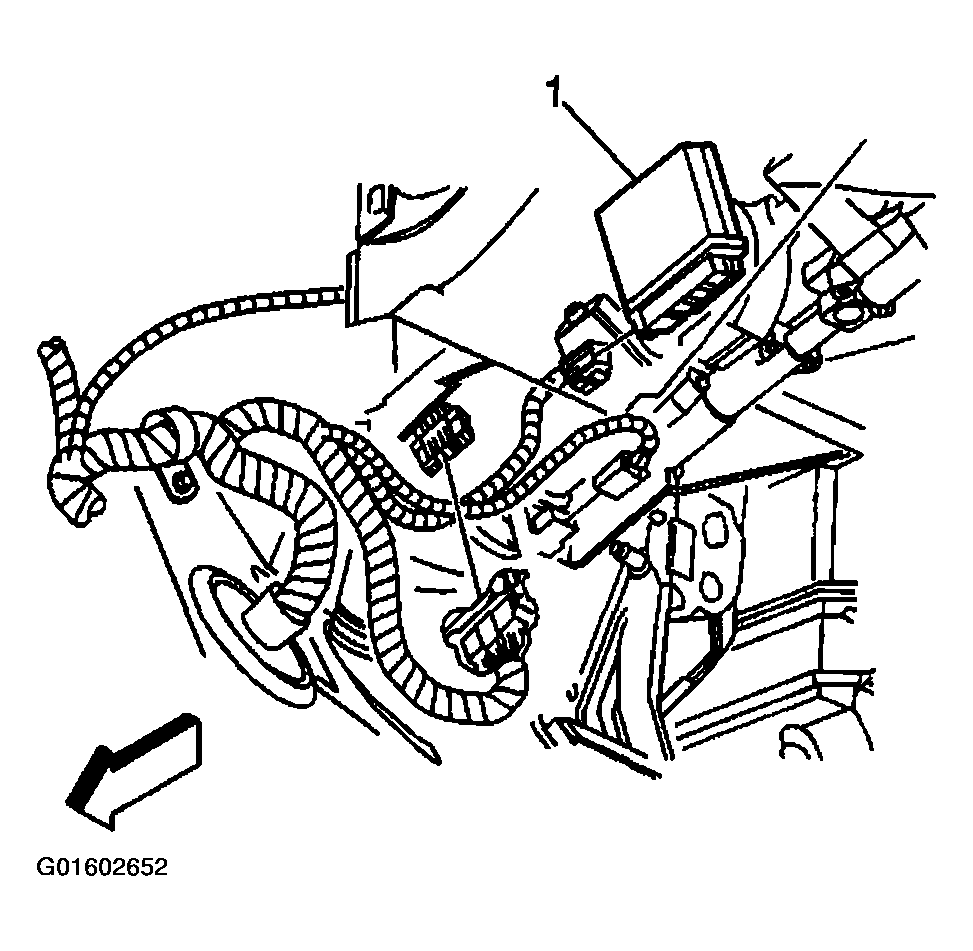

- Install the steering column control module (1) to the steering column and tighten the retaining screw.
Tighten
Tighten steering column control module retaining screw to 2 N.m (15 lb in).
- Connect the steering column control module electrical connectors.
- Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT (WITHOUT UV2) or KNEE BOLSTER REPLACEMENT - LEFT (UV2) .
- Program the steering column control module. Refer to Steering Column Control Module Programming .
