Installation Procedure

  1. Connect the electrical connectors (1) to the steering wheel control switch (2).
  2. Align the steering control switch (2) engagement tabs to the steering wheel.

    Push in on the steering wheel control switch (2) in order to secure the control switch to the steering wheel.

  3. Install the steering wheel inflatable restraint module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  4. Enable the SIR. Refer to ACTIVATING SYSTEM .

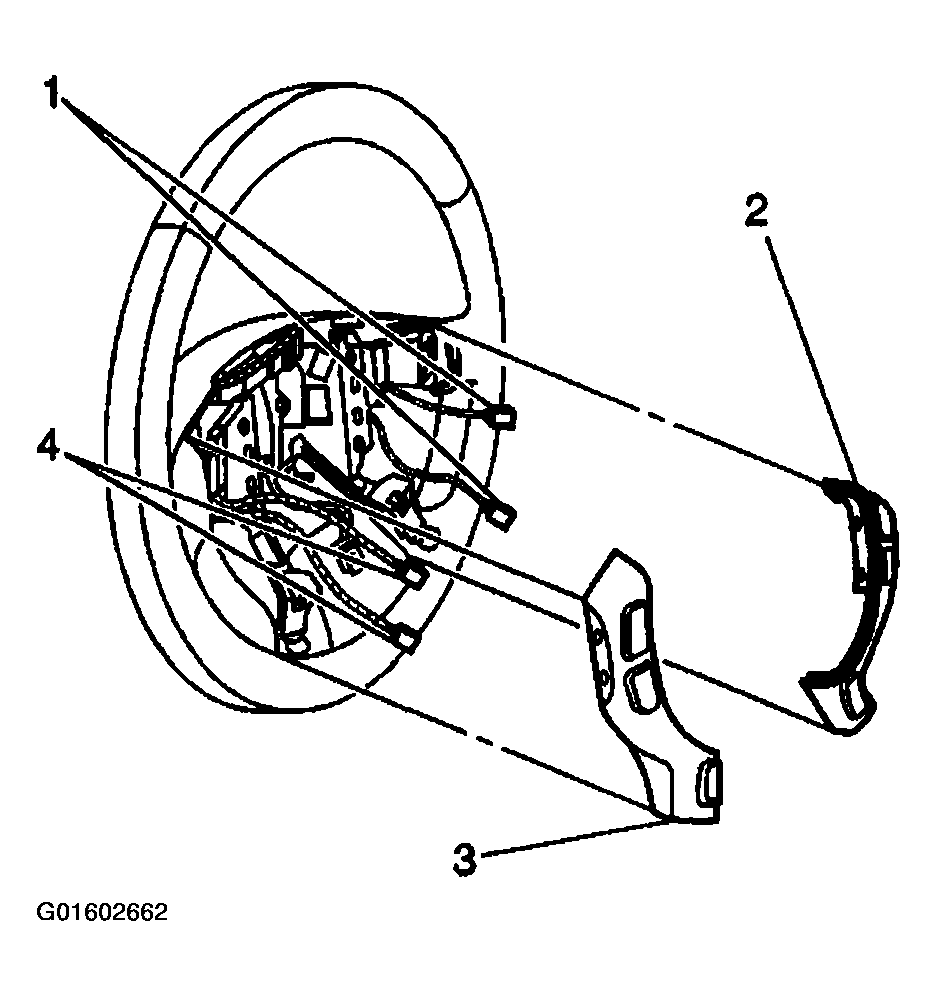

    Fig 1: Installing Steering Wheel Control Switch
    G01602662Courtesy of GENERAL MOTORS CORP.
