Memory Seat Module (MSM) Connector End View C3 (AL2)

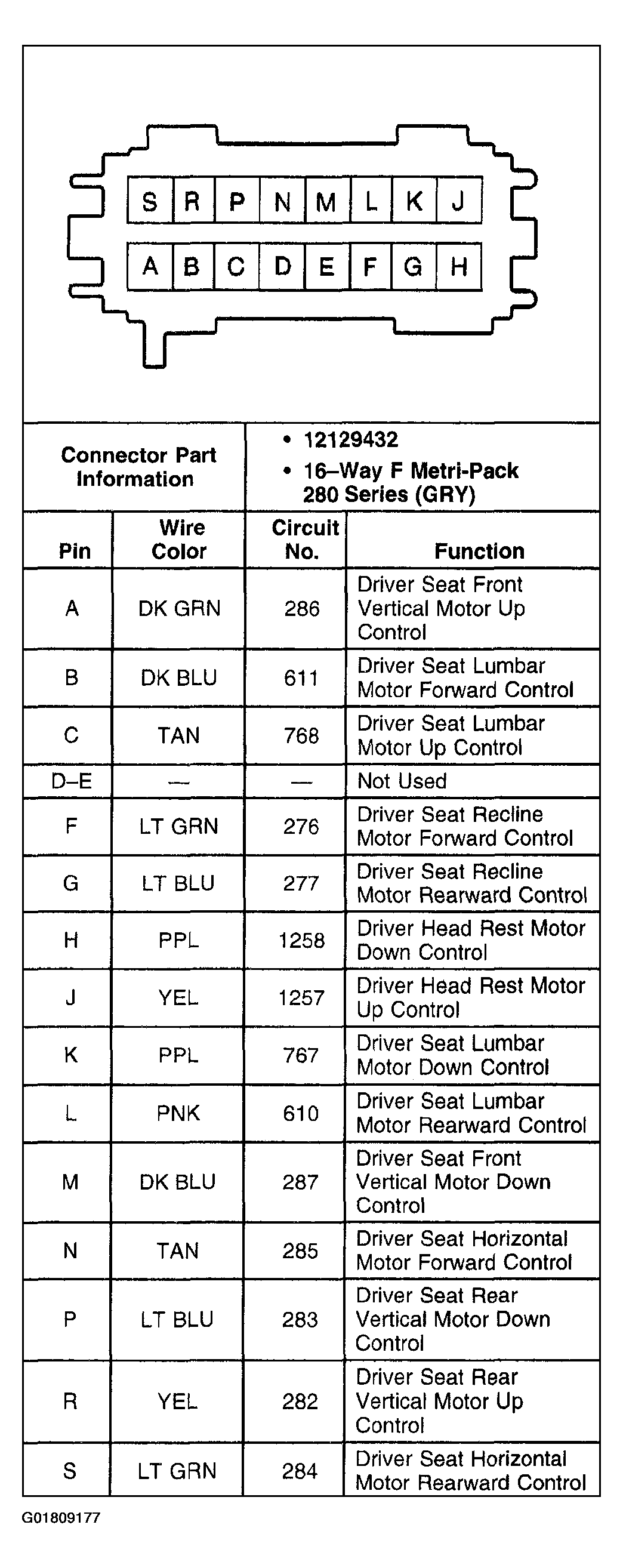

Fig 1: Memory Seat Module (MSM) C3 (AL2)
G01809177Courtesy of GENERAL MOTORS CORP.
